HILOOK IPC-C340HA-D/W(W) 安裝、保養、維修

Name: HILOOK IPC-C340HA-D/W(W) 4MP定焦網絡半球攝影機
Brand: HiLook
SKU: IPC-C340HA-D/W(W)

產品簡介

HiLook IPC-C340HA-D/W(W) 為4MP定焦網絡半球攝影機，適合舖頭、寫字樓、貨倉出入口、後巷、停車場等日常監控場景。配合10米紅外夜視及IR Cut Filter日夜自動切換，夜晚都清晰唔偏色；HKEZIT提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務，歡迎聯絡我們查詢 IPC-C340HA-D/W(W) 香港價格連安裝報價。

4MP高清畫質：1/3" Progressive Scan CMOS，重要範圍（收銀處、貨架、車牌位）睇得夠細緻
10米有效夜視距離：夜晚/密閉車庫、後巷都有清晰畫面
內置Digital WDR數碼寬動態，逆光/光暗反差大嘅環境都睇得清楚主體
多焦距鏡頭可選：舖頭、走廊、貨倉唔同空間闊度都揀到啱視角，唔使另配鏡頭
內置咪高風收音：配合錄影同步收聲，糾紛/意外時多一重證據

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

影像感測器	1/3" Progressive Scan CMOS
最低照度	Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
最大解像度	2560 × 1440
快門速度	1/3 s to 1/100,000 s
日夜切換	IR cut filter
角度調節	Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° 2.8 mm, horizontal FOV 92°, vertical FOV 50°, diagonal FOV 110° 4 mm, horizontal FOV 75°, vertical FOV 41°, diagonal FOV 89°
光圈	F1.6
鏡頭接口	M12 2.8 mm: D: 56.0 m, O: 22.2 m, R: 11.2 m, I: 5.6 m 4 mm: D: 79.4 m, O: 31.5 m, R: 15.9 m, I: 7.9 m
補光類型	IR
補光距離	Up to 10 m
紅外波長	850 nm
智能補光	Yes 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (1280 × 720, 768 × 432, 512 × 288) 60 Hz: 30 fps (1280 × 720, 768 × 432, 512 × 288) Main stream: H.265/H.264 Sub-stream: H.265/H.264
視頻碼率	Up to 2 Mbps
H.264 類型	Baseline Profile/Main Profile/High Profile
H.265 類型	Main Profile
碼率控制	CBR/VBR
環境噪音過濾	Yes
音訊取樣率	8 kHz/16 kHz
音訊壓縮	G.711/AAC-LC
音訊碼率	64 Kbps (G.711ulaw/G.711alaw)/16 to 64 Kbps (AAC-LC)
同時取流	Up to 4 channels
API	ONVIF, SDK TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour, SSL/TLS
用戶管理	Administrator Password protection, HTTPS encryption, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for Open Network Video Interface
客戶端	iVMS-4200, HiLookVision, Hik-Partner-Pro
Encryption Mode	WPA-PSK/WPA2-PSK
Wi-Fi Protocol	IEEE 802.11b, 802.11g, 802.11n
Frequency Range	2.412 GHz to 2.472 GHz
Channel Bandwidth	20 MHz 802.11b: CCK, QPSK, BPSK
Modulation	802.11g: OFDM 802.11n: OFDM
Wireless Range	Up to 50 m (The performance varies based on actual environment) 11b: up to 54 Mbps,
Transfer Rate	11g: up to 54 Mbps, 11n: up to 150 Mbps
寬動態 WDR	Digital WDR
隱私遮蔽	4 programmable polygon privacy masks
日夜模式	Day, Night, Auto, Schedule
圖像參數切換	Yes Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software
內置麥克風	Yes, 1 built-in microphone
Built-in Speaker	Yes, 1 built-in speaker
機身儲存	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
重設鍵	Yes
網絡接口	1 RJ45 10 M/100 M self-adaptive Ethernet port Motion detection (support alarm triggering by specified target types (human and vehicle)), exception Upload to memory card, notify surveillance center, trigger capture, audible warning, auto-tracking lite 12 VDC, 0.38 A, max. 4.56 W, Ø 2.0 mm coaxial power plug, PoE: IEEE 802.3af, Class 3
一般功能	Heartbeat, mirror
儲存環境	-10 °C to 45 °C (14 °F to 113 °F). Humidity 95% or less (non-condensing) -10 °C to 45 °C (14 °F to 113 °F). Humidity 95% or less (non-condensing)
材質	Plastic

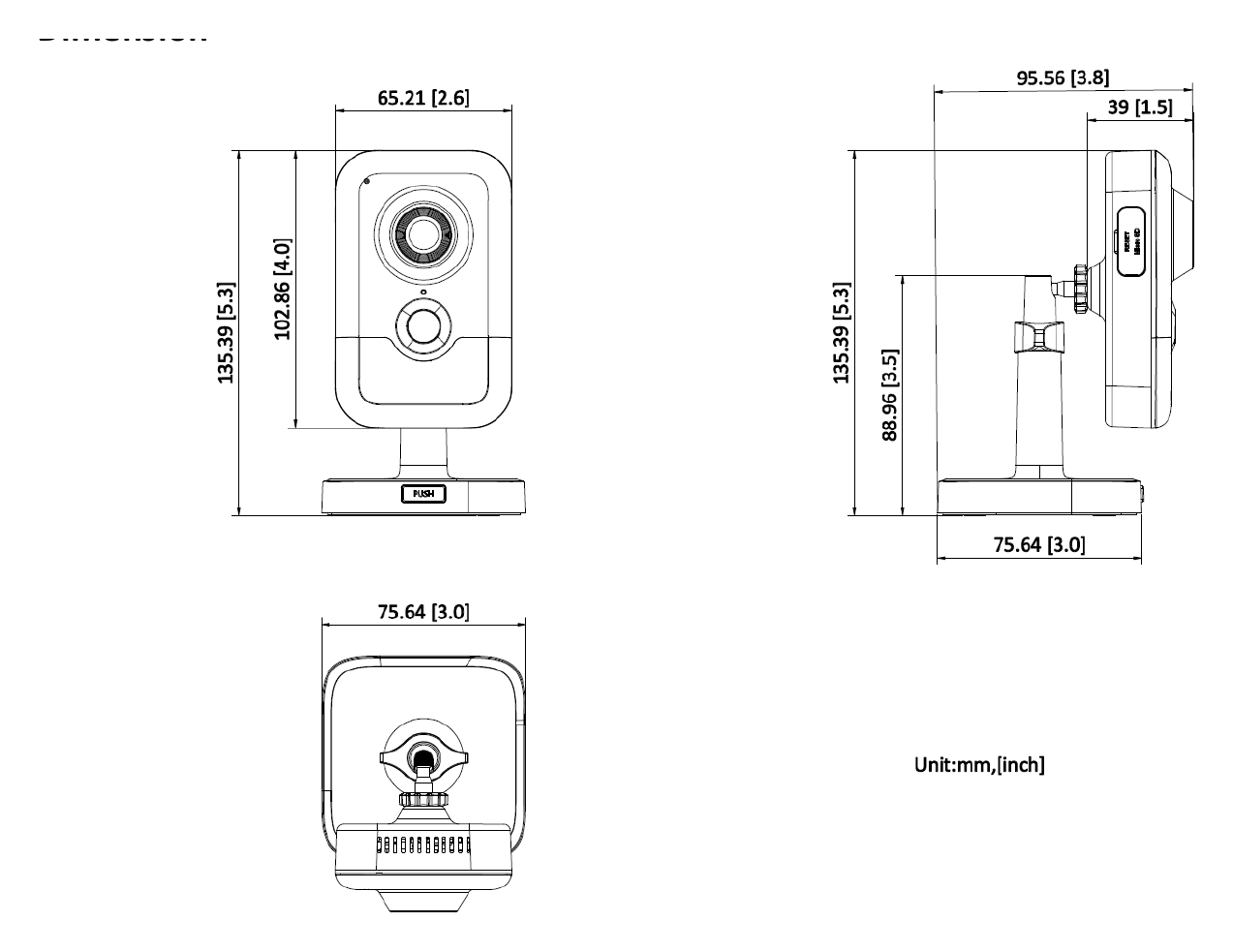

尺寸	102.9 mm × 65.2 mm × 32.9 mm (4.1" × 2.6" × 1.3")
包裝尺寸	150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")
重量	Approx. 120 g (0.3 lb.)
連包裝重量	Approx. 430 g (0.9 lb.) CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014) V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G))
Safety	CE-LVD (EN 62368-1:2014/A11:2017) CE-RoHS (2011/65/EU) WEEE (2012/19/EU)
