| 影像感測器 | 1/2.8" Progressive Scan CMOS |
|---|
| 最大解像度 | 1920 × 1080 |
|---|
| 最低照度 | Color: 0.001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR |
|---|
| 快門速度 | 1/3 s to 1/100,000 s |
|---|
| 日夜切換 | IR cut filter |
|---|
| 角度調節 | Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355° |
|---|
| 鏡頭類型 | Fixed focal lens, 2.8 and 4 mm optional 2.8 mm, horizontal FOV 106°, vertical FOV 56°, diagonal FOV 129° 4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 103° |
|---|
| 鏡頭接口 | M12 |
|---|
| 光圈類型 | Fixed |
|---|
| 光圈 | F1.0 2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m 4 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m |
|---|
| 補光類型 | IR,White Light |
|---|
| 補光距離 | Up to 30 m |
|---|
| 智能補光 | Yes |
|---|
| 紅外波長 | 850 nm 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
|---|
| 視頻碼率 | 32 Kbps to 8 Mbps |
|---|
| H.264 類型 | Baseline Profile,Main Profile,High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| 碼率控制 | CBR,VBR |
|---|
| 感興趣區域 ROI | 1 fixed region for main stream |
|---|
| Audio Type | Mono sound |
|---|
| 音訊壓縮 | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
|---|
| 音訊取樣率 | 8 kHz/16 kHz |
|---|
| 環境噪音過濾 | Yes TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP |
|---|
| 同時取流 | Up to 6 channels |
|---|
| API | Open Network Video Interface (Profile S, Profile T),ISAPI,SDK Password protection, complicated password, watermark, basic and digest |
|---|
| 安全 | authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) Up to 32 users 3 user levels: administrator, operator, and user |
|---|
| 客戶端 | iVMS-4200,HiLookVision Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
|---|
| 日夜模式 | Day,Night,Auto,Schedule |
|---|
| 寬動態 WDR | Digital WDR |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 影像增強 | BLC,HLC,3D DNR |
|---|
| 隱私遮蔽 | 4 programmable polygon privacy masks |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|
| 內置麥克風 | Yes,1 built-in microphone Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
|---|
| 聯動方式 | Upload to FTP,notify surveillance center,send email,trigger capture 12 VDC ± 25%, 0.5 A, max. 6 W,Ø 5.5 mm coaxial power plug,reverse polarity |
|---|
| 供電 | protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W Base: metal, cover: plastic |
|---|

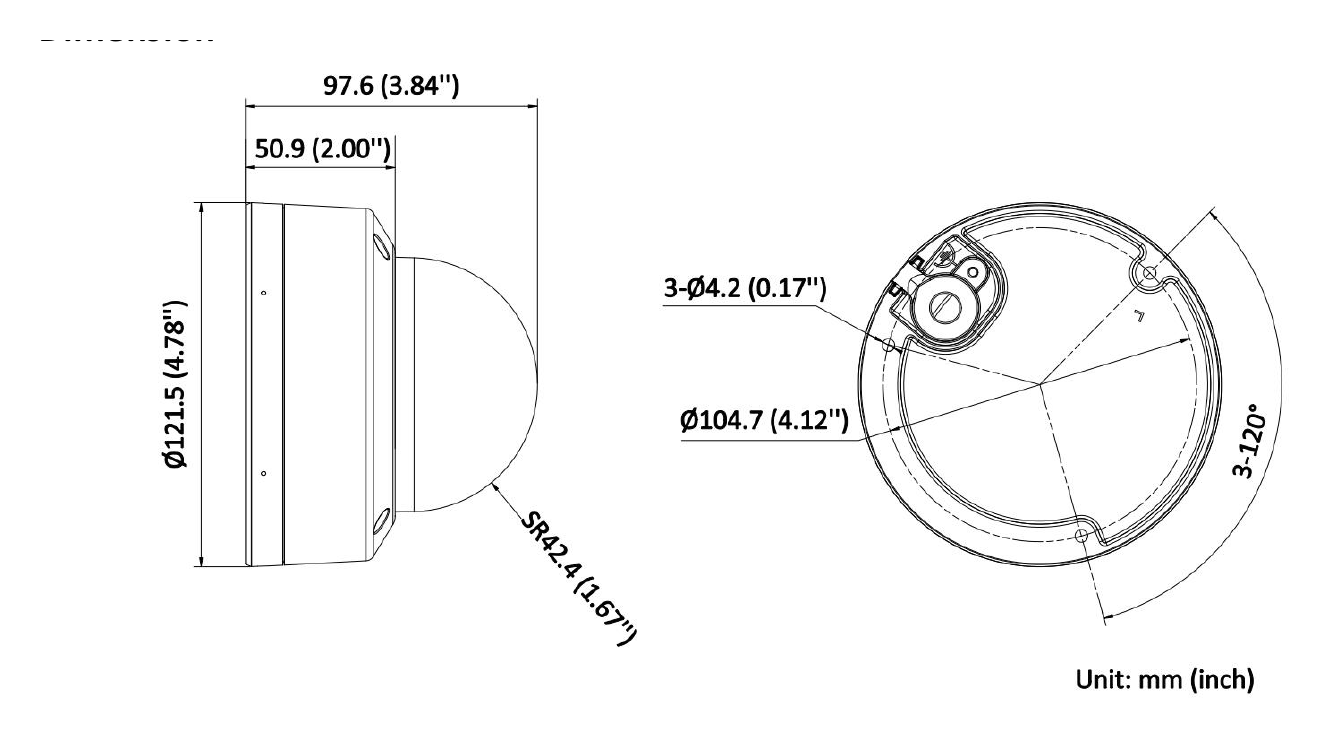

| 尺寸 | Ø 121.5 mm × 97.6 mm (Ø 4.78" × 3.84") |
|---|
| 包裝尺寸 | 150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55") |
|---|
| 重量 | Approx. 490 g (1.1 lb.) |
|---|
| 連包裝重量 | Approx. 710 g (1.6 lb.) |
|---|
| 儲存環境 | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|---|
| 語言 | English, Ukrainian |
|---|
| 一般功能 | Heartbeat, anti-banding, mirror, password protection,password reset by email CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 |
|---|
| Safety | CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 CE-RoHS: 2011/65/EU, |
|---|
| Environment | WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
|---|
| 防護等級 | IP67: IEC 60529-2013,IK08: IEC 62262:2002 |
|---|
