HILOOK IPC-D180H 安裝、保養、維修

Name: HILOOK IPC-D180H 4K超高清紅外半球網絡攝影機
Brand: HiLook
SKU: IPC-D180H

產品簡介

HiLook IPC-D180H 為4K超高清紅外半球網絡攝影機，適合需要極高畫質嘅場所如大堂、停車場、貨倉出入口。4K解像度令車牌、人臉細節更加清晰，配合30米紅外夜視同120dB寬動態，日夜都應付得到。HKEZIT提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務，歡迎查詢 IPC-D180H 香港價格連安裝報價。

4K超高清畫質：3840×2160解像度，車牌同人臉細節都睇得清
30米紅外夜視：夜晚黑暗環境都有清晰畫面
120dB寬動態(WDR)：出入口逆光位一樣清楚
2.8/4mm焦距可選：大堂、走廊唔同空間都揀到啱鏡頭
支援移動偵測同影像遮擋警報：異常情況即時提示
IP67防水配IK10防撞：室外惡劣環境都頂得住

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

影像感測器	1/2.8" Progressive Scan CMOS
最大解像度	3840 × 2160
最低照度	Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
快門速度	1/3 s to 1/100,000 s
日夜切換	IR cut filter
角度調節	Pan: 0° to 355°, tilt: 0° to 75°
鏡頭類型	Fixed focal lens, 2.8 and 4 mm optional 2.8 mm, horizontal FOV 108°, vertical FOV 60°, diagonal FOV 127° 4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102°
鏡頭接口	M12
光圈類型	Fixed
光圈	F2.0 2.8 mm, D: 81 m, O: 32 m, R: 16 m, I: 8 m 4 mm, D: 106 m, O: 42 m, R: 21 m, I: 11 m
補光類型	IR
補光距離	Up to 30 m
智能補光	Yes
紅外波長	850 nm 50 Hz: 12.5 fps (3840 × 2160), 20 fps (2592 × 1944), 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (3840 × 2160), 20 fps (2592 × 1944), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
視頻碼率	32 Kbps to 16 Mbps
H.264 類型	Baseline Profile/Main Profile/High Profile
H.265 類型	Main Profile
碼率控制	CBR/VBR
感興趣區域 ROI	1 fixed region for main stream Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, host authentication (MAC address)
同時取流	Up to 6 channels
API	Open Network Video Interface (Profile S), ISAPI, SDK TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP User/Host 3 levels: Administrator, Operator and User
客戶端	iVMS-4200, HiLookVision Plug-in required live view: IE 10, IE 11 Web Browser Local service: Chrome 57.0+, Firefox 52.0+
寬動態 WDR	120 dB
信噪比 SNR	≥ 52 dB
日夜模式	Day, Night, Auto, Schedule
影像增強	BLC, HLC, 3D DNR Mirror, rotate, saturation, brightness, contrast, sharpness, gain, white balance Image Settings adjustable by client software or web browser
隱私遮蔽	4 regions of privacy mask
網絡接口	1 RJ45 10 M/100 M self-adaptive Ethernet port
基本事件	Motion detection, video tampering alarm, exception
聯動方式	Notify surveillance center, trigger capture 12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug Power PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
材質	Metal & Plastic

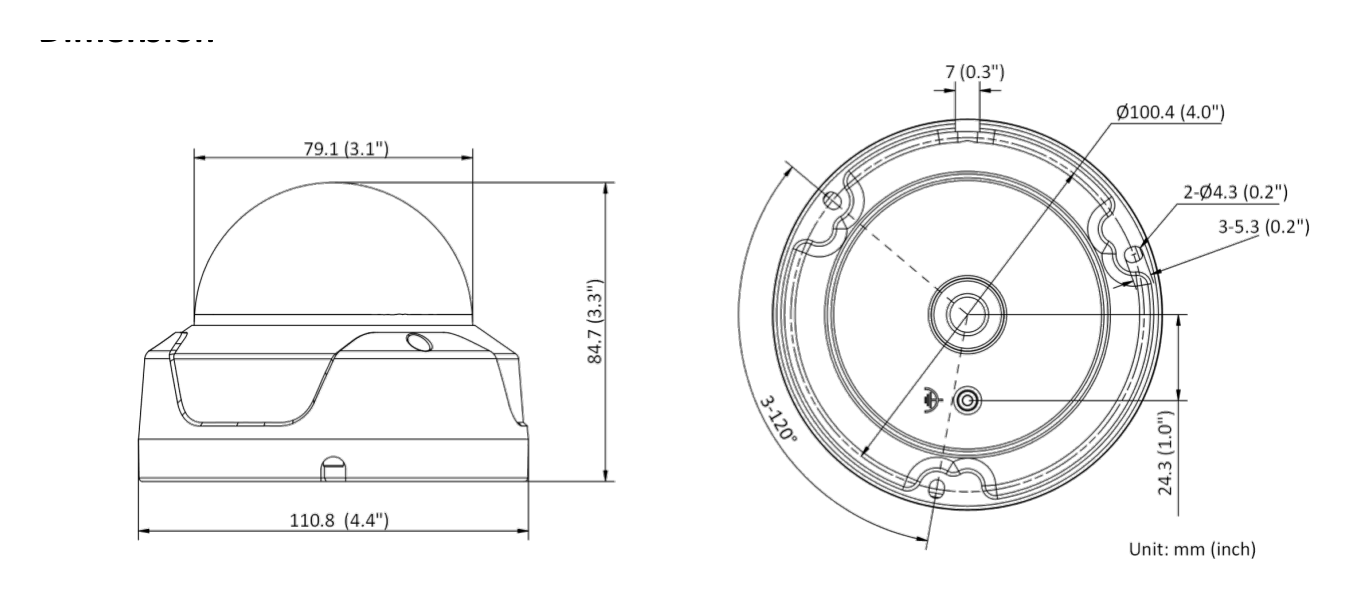

尺寸	Ø 110.8 mm × 84.7 mm (4.4" × 3.3")
包裝尺寸	134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
重量	Approx. 520 g (1.1 lb.)
連包裝重量	Approx. 720 g (1.6 lb.)
儲存環境	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Conditions
語言	English, Ukrainian
一般功能	Anti-flicker, heartbeat, password protection, password reset via email FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015) CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017) CE-RoHS (2011/65/EU);
Environment	WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
防護等級	IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
