HILOOK IPC-D620HA-Z 安裝、保養、維修

Name: HILOOK IPC-D620HA-Z 2MP電動變焦紅外半球網絡攝影機
Brand: HiLook
SKU: IPC-D620HA-Z

產品簡介

HiLook IPC-D620HA-Z 為2MP電動變焦紅外半球網絡攝影機，配備2.8-12mm電動變焦鏡頭，適合停車場、大範圍空地等需要放大睇清楚遠距離目標嘅場景。可遙距調校焦距，配合紅外夜視同IK10防撞外殼，室外惡劣環境都應付到。HKEZIT提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務，歡迎查詢 IPC-D620HA-Z 香港價格連安裝報價。

2.8-12mm電動變焦：遠近範圍都可以遙控調校焦距
30米紅外夜視：夜晚黑暗環境都睇得清
支援人車分類偵測：減少誤報，警報更精準
內置記憶卡插槽最大256GB：斷網一樣可以本地錄影
IP67防水配IK10防撞：室外惡劣環境都頂得住
PoE供電：一條網線搞掂電力同數據傳輸

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

影像感測器	1/2.9" Progressive Scan CMOS
最大解像度	1920 × 1080
最低照度	Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
快門速度	1/3 s to 1/100,000 s
日夜切換	IR cut filter
角度調節	Pan: 0° to 355°, tilt: 0° to 70°, rotate: 0° to 355°
鏡頭類型	Varifocal lens, motorized lens, 2.8 to 12 mm 2.8 to 12 mm, horizontal FOV 102.4° to 31.2°, vertical FOV 54.4° to 17.5°, diagonal FOV 121.8° to 35.7°
鏡頭接口	Ø 14
光圈類型	Fixed
光圈	F1.6
補光類型	IR
補光距離	Up to 30 m
智能補光	Yes
紅外波長	850 nm 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
視頻碼率	32 Kbps to 8 Mbps
H.264 類型	Baseline Profile, Main Profile, High Profile
H.265 類型	Main Profile
感興趣區域 ROI	1 fixed region(s) for main stream
網絡協議	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
同時取流	Up to 6 channels
API	Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK Password protection, complicated password, watermark, basic and digest
安全	authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) Up to 32 users 3 user levels: administrator, operator, and user
客戶端	iVMS-4200, HiLookVision Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+ Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
日夜模式	Day, Night, Auto, Schedule
寬動態 WDR	Digital WDR
影像增強	BLC, HLC, 3D DNR
網絡接口	1 RJ45 10 M/100 M self-adaptive Ethernet port
機身儲存	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
重設鍵	Yes Motion detection (support alarm triggering by specified target types (human and Basic Event vehicle)), video tampering alarm, exception Upload to FTP/memory card, notify surveillance center, send email, trigger recording, Linkage trigger capture 12 VDC ± 25%, 0.8 A, max. 9.6 W, Ø 5.5 mm coaxial power plug, reverse polarity
供電	protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W
材質	Metal

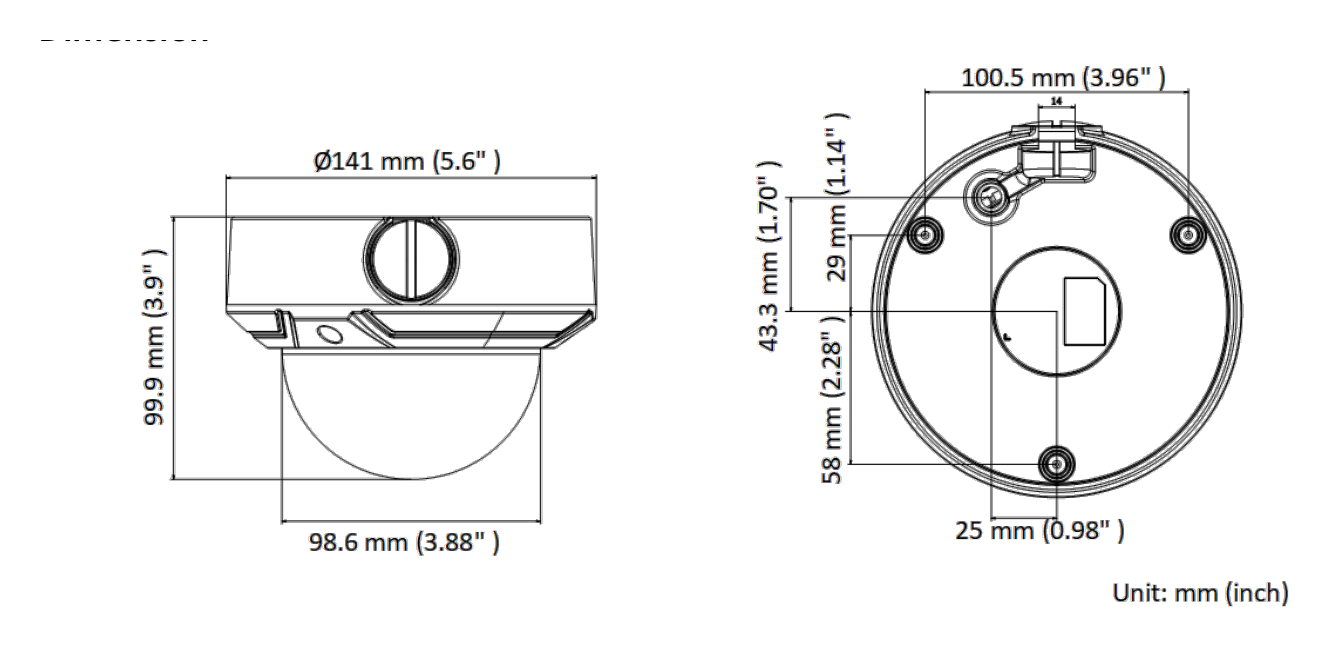

尺寸	Ø 141 mm × 99.9 mm (Ø 5.6" × 3.9")
包裝尺寸	140 mm × 140 mm × 154 mm (5.5" × 5.5" × 6.1")
重量	Approx. 820 g (1.8 lb.)
連包裝重量	Approx. 1200 g (2.6 lb.)
儲存環境	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Conditions
語言	English, Ukrainian
一般功能	Heartbeat, anti-banding, mirror, password protection, privacy mask, watermark FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN
EMC	50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, CE-RoHS: 2011/65/EU,
Environment	WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
防護等級	IP67: IEC 60529-2013, IK10: IEC 62262:2002
