HILOOK IPC-T220HA-LU 安裝、保養、維修

Name: HILOOK IPC-T220HA-LU 2MP全彩紅外槍型網絡攝影機
Brand: HiLook
SKU: IPC-T220HA-LU

產品簡介

HiLook IPC-T220HA-LU 為2MP全彩紅外槍型網絡攝影機，2.8/4mm雙焦距可選，適合舖面出入口、後巷、停車場等場景。紅外同白光雙補光可切換黑白紅外或全彩模式，配合內置咪高峰同步收音，支援人車分類減少誤報。HKEZIT提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務，歡迎查詢 IPC-T220HA-LU 香港價格連安裝報價。

2MP高清畫質：槍型設計適合固定方向長期監控
30米紅外+白光雙補光：夜晚黑白紅外或全彩模式任切換
2.8/4mm焦距可選：出入口、走廊唔同空間都揀到啱視角
支援人車分類偵測：只針對人同車輛警報，減少誤觸發
內置咪高峰：畫面聲音同步紀錄
IP67防水等級：室外簷篷、後巷都適合安裝

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

影像感測器	1/2.9" Progressive Scan CMOS
最大解像度	1920 × 1080
最低照度	Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
快門速度	1/3 s to 1/100,000 s
日夜切換	IR cut filter
角度調節	Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
鏡頭類型	Fixed focal lens, 2.8 and 4 mm optional 2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121° 4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°
鏡頭接口	M12
光圈類型	Fixed
光圈	F1.6 2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m 4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m
補光類型	IR,White Light
補光距離	Up to 30 m
智能補光	Yes
紅外波長	850 nm 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
視頻碼率	32 Kbps to 8 Mbps
H.264 類型	Baseline Profile,Main Profile,High Profile
H.265 類型	Main Profile
碼率控制	CBR,VBR
感興趣區域 ROI	1 fixed region for main stream
Audio Type	Mono sound
環境噪音過濾	Yes
音訊取樣率	8 kHz/16 kHz
音訊壓縮	G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC 64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) Password protection, complicated password, watermark, basic and digest
安全	authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
同時取流	Up to 6 channels
API	Open Network Video Interface (Profile S, Profile T),ISAPI,SDK
網絡協議	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP Up to 32 users 3 user levels: administrator, operator, and user
客戶端	iVMS-4200,HiLookVision Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+
寬動態 WDR	Digital WDR
信噪比 SNR	≥ 52 dB
日夜模式	Day,Night,Auto,Schedule
影像增強	BLC,HLC,3D DNR Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
隱私遮蔽	4 programmable polygon privacy masks
網絡接口	1 RJ45 10 M/100 M self-adaptive Ethernet port
內置麥克風	Yes Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
聯動方式	Upload to FTP,send email,notify surveillance center,trigger capture 12 VDC ± 25%, 0.4 A, max. 5 W,Ø 5.5 mm coaxial power plug,reverse polarity
供電	protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W
材質	Metal & Plastic

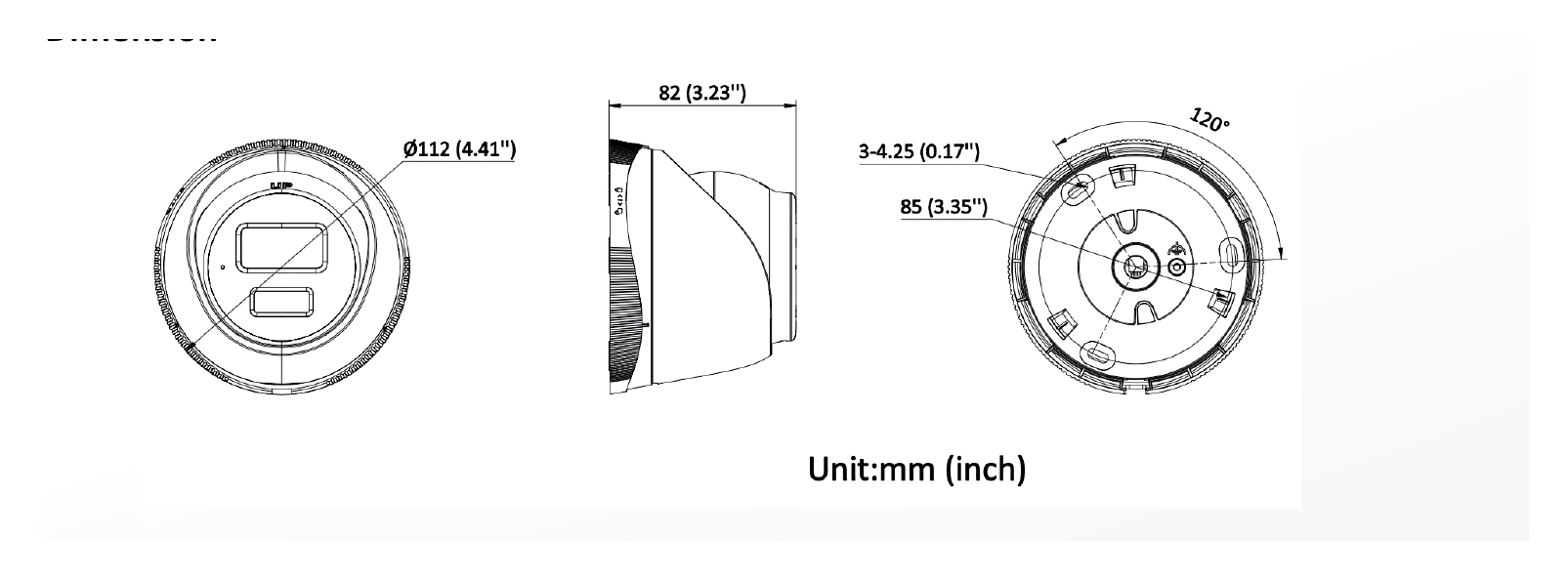

尺寸	Ø 112 mm × 82 mm (Ø 4.41" × 3.23")
包裝尺寸	150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
重量	Approx. 340 g (0.7 lb.)
連包裝重量	Approx. 560 g (1.2 lb.)
儲存環境	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
語言	English, Ukrainian
一般功能	Heartbeat,anti-banding,mirror,password protection,password reset via email FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN
EMC	50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment	WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
防護等級	IP67: IEC 60529-2013
