HILOOK IPC-T220HA 安裝、保養、維修

Name: HILOOK IPC-T220HA 2MP紅外槍型網絡攝影機
Brand: HiLook
SKU: IPC-T220HA

產品簡介

HiLook IPC-T220HA 為2MP紅外槍型網絡攝影機，2.8/4mm雙焦距可選，適合出入口、後巷、停車場等固定方向長期監控嘅場景。30米紅外夜視配合IR Cut Filter日夜自動切換，槍型外殼室外耐用。HKEZIT提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務，歡迎查詢 IPC-T220HA 香港價格連安裝報價。

2MP高清畫質：槍型設計適合固定方向長期監控
30米紅外夜視：夜晚黑暗環境都有清晰畫面
2.8/4mm焦距可選：出入口、走廊唔同空間都揀到啱鏡頭
支援移動偵測同影像遮擋警報：異常情況即時提示
IP67防水等級：室外簷篷、後巷風吹雨打都適合
PoE供電：一條網線搞掂電力同數據傳輸

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

影像感測器	1/2.9" Progressive Scan CMOS
最大解像度	1920 × 1080
快門速度	1/3 s to 1/100,000 s
最低照度	Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
日夜切換	IR cut filter
角度調節	Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
鏡頭類型	Fixed focal lens, 2.8 and 4 mm optional 2.8 mm, horizontal FOV 104°, vertical FOV 58°, diagonal FOV 123° 4 mm, horizontal FOV 81°, vertical FOV 43°, diagonal FOV 96°
鏡頭接口	M12
光圈類型	Fixed
光圈	F2.0 2.8 mm, D: 42 m, O: 16 m, R: 8 m, I: 4 m 4 mm, D: 57 m, O: 22 m, R: 11 m, I: 5 m
補光類型	IR
補光距離	Up to 30 m
智能補光	Yes
紅外波長	850 nm 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
視頻碼率	32 Kbps to 8 Mbps
H.264 類型	Baseline Profile/Main Profile/High Profile
H.265 類型	Main Profile
碼率控制	CBR/VBR
感興趣區域 ROI	1 fixed region for main stream Password protection, complicated password, watermark, basic and digest
安全	authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
同時取流	Up to 6 channels
API	Open Network Video Interface (Profile S, Profile T), ISAPI, SDK
網絡協議	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP Up to 32 users 3 user levels: administrator, operator, and user
客戶端	iVMS-4200, HiLookVision Web Browser Local service: Chrome 57.0+, Firefox 52.0+
寬動態 WDR	Digital WDR
信噪比 SNR	≥ 52 dB
日夜模式	Day, Night, Auto, Schedule
影像增強	BLC, HLC, 3D DNR Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, Image Settings adjustable by client software or web browser
隱私遮蔽	4 programmable polygon privacy masks
網絡接口	1 RJ45 10 M/100 M self-adaptive Ethernet port Motion detection (support alarm triggering by specified target types (human and Basic Event vehicle)), video tampering alarm, exception
聯動方式	Upload to FTP, notify surveillance center, trigger capture, send email 12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug Power PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
材質	Metal & Plastic

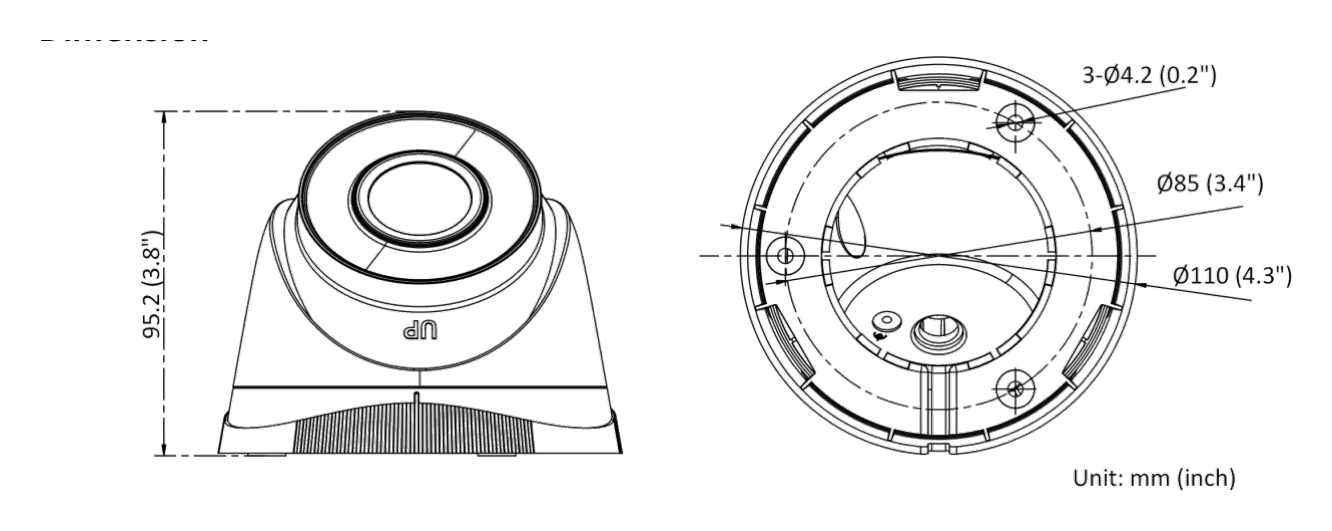

尺寸	Ø 110 mm × 95.2 mm (Ø 4.3" × 3.8")
包裝尺寸	150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
重量	Approx. 360 g (0.8 lb.)
連包裝重量	Approx. 570 g (1.3 lb.)
儲存環境	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Conditions
語言	English, Ukrainian
一般功能	Heartbeat, anti-banding, mirror, password protection, password reset via email FCC SDoC: 47 CFR Part 15, Subpart B CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014 RCM: AS/NZS CISPR 32: 2015 CB: IEC 62368-1: 2014 + A11 CE-LVD: EN 62368-1: 2014/A11: 2017 CE-RoHS: 2011/65/EU
Environment	WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006
防護等級	IP67: IEC 60529-2013
