HILOOK IPC-T229HA 安裝、保養、維修

Name: HILOOK IPC-T229HA 2MP大光圈白光全彩槍型網絡攝影機
Brand: HiLook
SKU: IPC-T229HA

產品簡介

HiLook IPC-T229HA 為2MP大光圈（F1.0）白光全彩槍型網絡攝影機，2.8/4mm雙焦距可選，適合舖面出入口、後巷等需要全天候彩色監控嘅場景。大光圈配合白光補光，夜晚一樣睇到真實顏色。HKEZIT提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務，歡迎查詢 IPC-T229HA 香港價格連安裝報價。

F1.0大光圈：進光量更多，畫面更光更清晰
24小時全彩影像：內置白光補光，夜晚都睇到真實顏色
2.8/4mm焦距可選：出入口、走廊唔同空間都揀到啱鏡頭
支援移動偵測同影像遮擋警報：異常情況即時提示
IP67防水等級：室外簷篷、後巷都適合
PoE供電：一條網線搞掂電力同數據傳輸

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

影像感測器	1/2.8" Progressive Scan CMOS
最大解像度	1920 × 1080
快門速度	1/3 s to 1/100, 000 s
最低照度	Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light
日夜切換	24/7 color imaging
角度調節	Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
鏡頭類型	Fixed focal lens, 2.8 and 4 mm optional 2.8 mm, horizontal FOV: 106°, vertical FOV: 57°, diagonal FOV: 126° 4 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99°
鏡頭接口	M12
光圈類型	Fixed
光圈	F1.0 2.8 mm: 1.5 m to ∞ 4 mm: 2.1 m to ∞ 2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m 4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m
補光類型	White Light
補光距離	Up to 30 m
智能補光	Yes 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
視頻碼率	32 Kbps to 8 Mbps
H.264 類型	Baseline Profile, Main Profile, High Profile
H.265 類型	Main Profile
碼率控制	CBR, VBR
感興趣區域 ROI	1 fixed region(s) for main stream
網絡協議	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
同時取流	Up to 6 channels
API	Open Network Video Interface (Profile S, Profile T), ISAPI, SDK Up to 32 users 3 user levels: administrator, operator, and user
安全	authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
客戶端	iVMS-4200, Hik-Connect Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+
寬動態 WDR	Digital WDR
信噪比 SNR	≥ 52 dB
日夜模式	Day, Night, Auto, Schedule
影像增強	BLC, HLC, 3D DNR Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
隱私遮蔽	4 programmable polygon privacy masks
網絡接口	1 RJ45 10 M/100 M self-adaptive Ethernet port Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
聯動方式	Upload to FTP, send email, notify surveillance center, trigger capture 12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug, PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
材質	Metal & Plastic

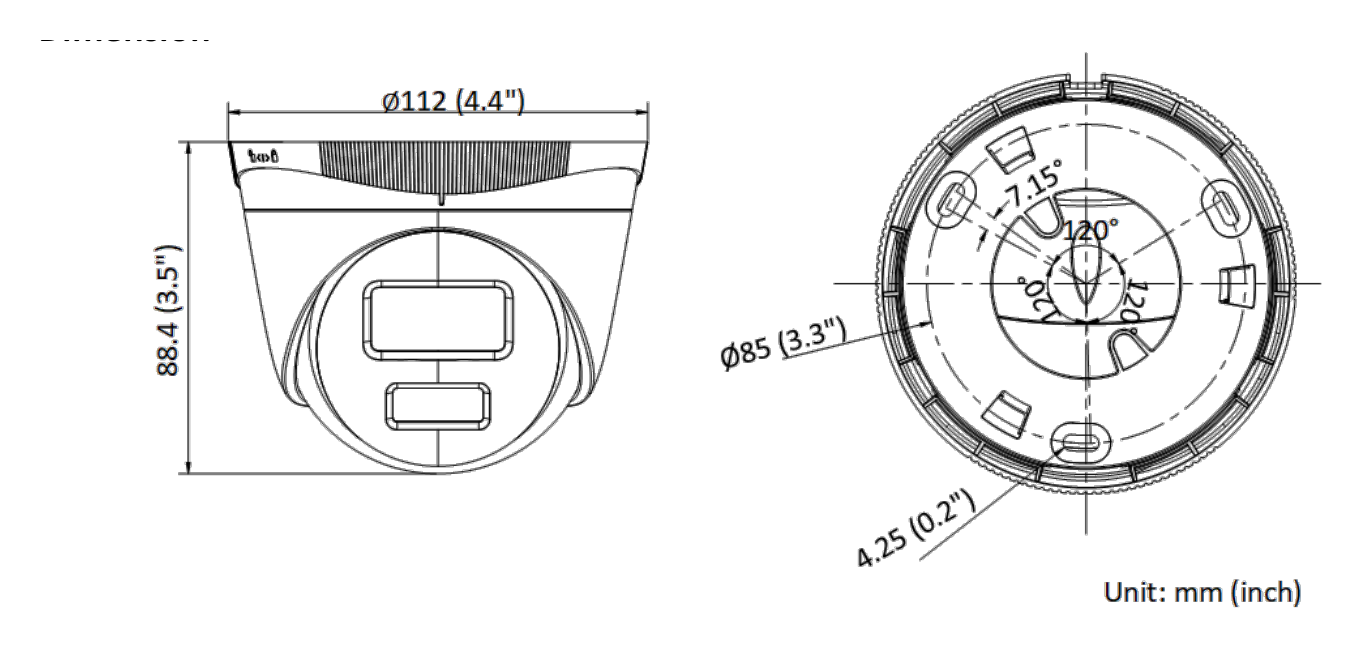

尺寸	Ø 112 mm × 88.4 mm (Ø 4.4" × 3.5")
包裝尺寸	150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
重量	Approx. 340 g (0.7 lb.)
連包裝重量	Approx. 570 g (1.3 lb.)
儲存環境	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
語言	English, Ukrainian
一般功能	Heartbeat, anti-banding, mirror, password protection, password reset via email FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN
EMC	50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, KC: KN32: 2015, KN35: 2015 CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 CE-RoHS: 2011/65/EU,
Environment	WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
防護等級	IP67: IEC 60529-2013
