| 影像感測器 | 1/2.8" Progressive Scan CMOS |
|---|
| 最大解像度 | 3840 × 2160 |
|---|
| 最低照度 | Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR |
|---|
| 快門速度 | 1/3 s to 1/100, 000 s |
|---|
| 日夜切換 | IR cut filter |
|---|
| 角度調節 | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
|---|
| 鏡頭類型 | Fixed focal lens, 2.8 and 4 mm optional 2.8 mm, horizontal FOV 108°, vertical FOV 60°, diagonal FOV 127° 4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102° |
|---|
| 鏡頭接口 | M12 |
|---|
| 光圈類型 | Fixed |
|---|
| 光圈 | F2.0 2.8 mm, D: 81 m, O: 32 m, R: 16 m, I: 8 m 4 mm, D: 106 m, O: 42 m, R: 21 m, I: 11 m |
|---|
| 補光類型 | IR |
|---|
| 補光距離 | Up to 30 m |
|---|
| 智能補光 | Yes |
|---|
| 紅外波長 | 850 nm 50 Hz: 12.5 fps (3840 × 2160), 20 fps (2592 × 1944), 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (3840 × 2160), 20 fps (2592 × 1944), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
|---|
| 視頻碼率 | 32 Kbps to 16 Mbps |
|---|
| H.264 類型 | Baseline Profile/Main Profile/High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| 碼率控制 | CBR/VBR |
|---|
| 感興趣區域 ROI | 1 fixed region for main stream Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, host authentication (MAC address) |
|---|
| 同時取流 | Up to 6 channels |
|---|
| API | Open Network Video Interface (Profile S), ISAPI, SDK UDP, QoS, Bonjour, FTP, SMTP Up to 32 users 3 levels: Administrator, Operator and User |
|---|
| 客戶端 | iVMS-4200, HiLookVision Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+ |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 日夜模式 | Day, Night, Auto, Schedule |
|---|
| 影像增強 | BLC, HLC, 3D DNR Mirror, rotate, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
|---|
| 隱私遮蔽 | 4 regions of privacy mask |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|
| 基本事件 | Motion detection, video tampering alarm, exception |
|---|
| 聯動方式 | Notify surveillance center, trigger capture 12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W |
|---|
| 材質 | Metal & Plastic |
|---|

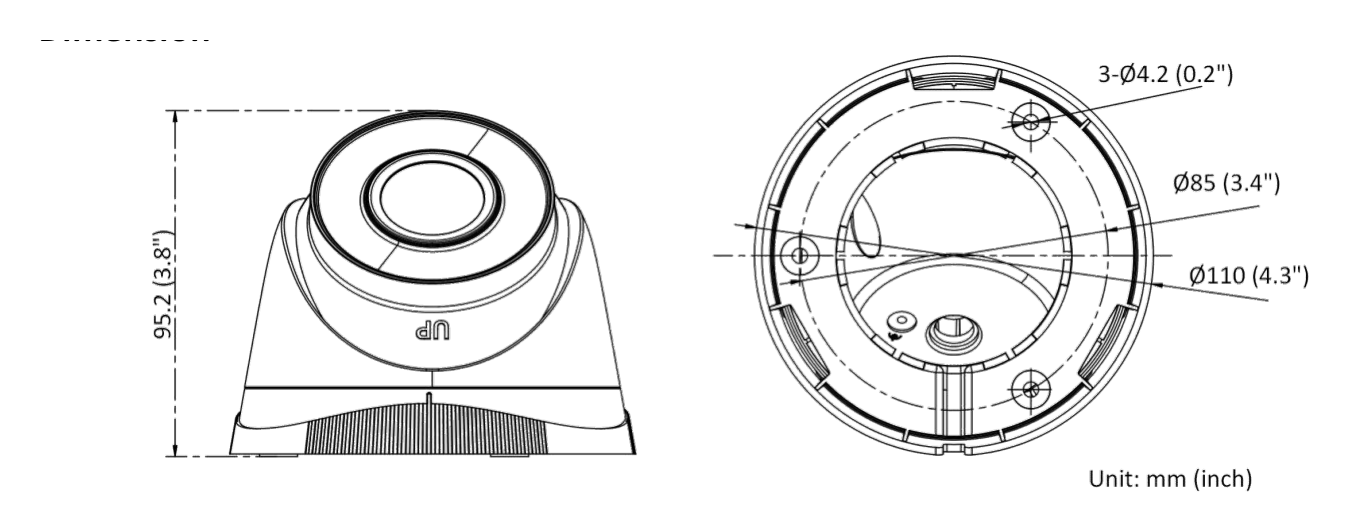

| 尺寸 | Ø 110 mm × 95.2 mm (Ø 4.3" × 3.8") |
|---|
| 包裝尺寸 | 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
|---|
| 重量 | Approx. 320 g (0.7 lb.) |
|---|
| 連包裝重量 | Approx. 530 g (1.2 lb.) |
|---|
| 儲存環境 | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|---|
| 語言 | English, Ukrainian |
|---|
| 一般功能 | Anti-flicker, heartbeat, password protection, password reset via email FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015) CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017) CE-RoHS (2011/65/EU); |
|---|
| Environment | WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
|---|
| 防護等級 | IP67 (IEC 60529-2013) |
|---|
