| 影像感測器 | 1/3" Progressive Scan CMOS |
|---|
| 最大解像度 | 2560 × 1440 |
|---|
| 最低照度 | Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR |
|---|
| 快門速度 | 1/3 s to 1/100,000 s |
|---|
| 日夜切換 | IR cut filter |
|---|
| 角度調節 | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
|---|
| 鏡頭類型 | Varifocal Lens, motorized lens, 2.8 to 12 mm 2.8 to 12 mm, horizontal FOV 95.9° to 29.2°, vertical FOV 50.6° to 16.4°, diagonal FOV 114.7° to 33.5° |
|---|
| 鏡頭接口 | Ø 14 |
|---|
| 光圈類型 | Fixed |
|---|
| 光圈 | F1.6 |
|---|
| 補光類型 | IR |
|---|
| 補光距離 | Up to 30 m |
|---|
| 紅外波長 | 850 nm |
|---|
| 智能補光 | Yes 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720) 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
|---|
| 視頻碼率 | 32 Kbps to 8 Mbps |
|---|
| H.264 類型 | Baseline Profile/Main Profile/High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| 感興趣區域 ROI | 1 fixed region for main stream |
|---|
| 網絡協議 | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
|---|
| 同時取流 | Up to 6 channels |
|---|
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK |
|---|
| 用戶管理 | Up to 32 users. 3 levels: administrator, operator and user |
|---|
| 客戶端 | iVMS-4200, HiLookVision Password protection, complicated password, watermark, basic and digest |
|---|
| 安全 | authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+ Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
|---|
| 日夜模式 | Auto, Schedule, Day, Night |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 影像增強 | BLC, HLC, 3D DNR |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
|---|
| 重設鍵 | Yes Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture 12 VDC ± 25%, 0.75 A, max. 9 W, Ø 5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.27 A to 0.17 A, max. 10 W |
|---|
| 材質 | Cover: plastic, main body: metal |
|---|

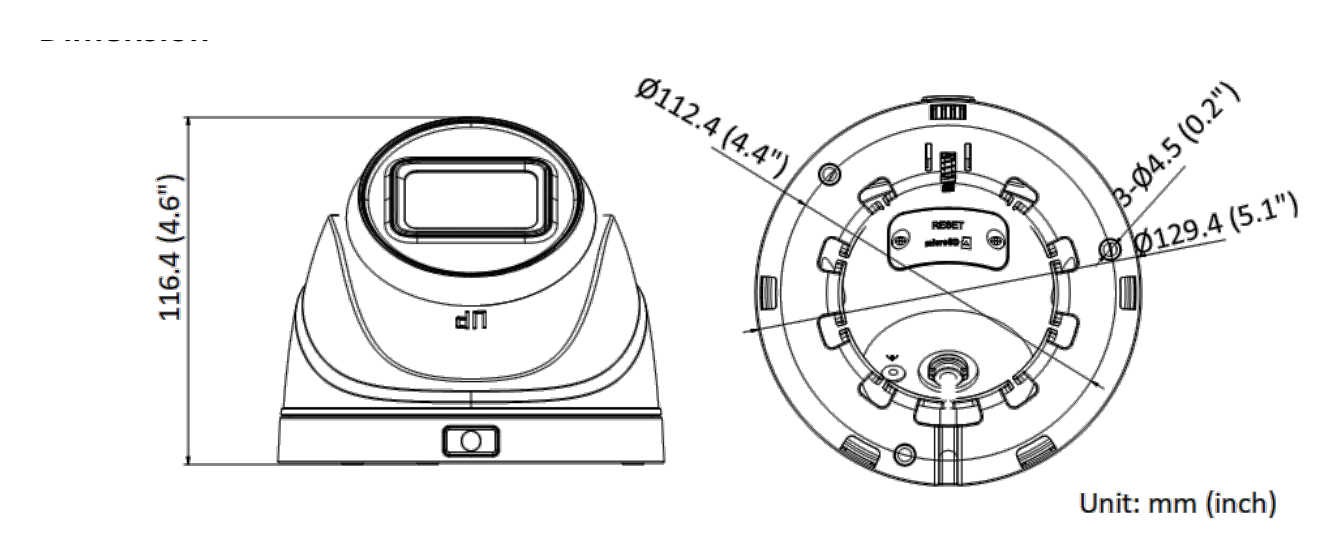

| 尺寸 | Ø 129.4 mm × 116.4 mm (Ø 5.1" × 4.6") |
|---|
| 包裝尺寸 | 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9") |
|---|
| 重量 | Approx. 570 g (1.2 lb.) |
|---|
| 連包裝重量 | Approx. 850 g (1.9 lb.) |
|---|
| 儲存環境 | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|---|
| 語言 | English, Ukrainian |
|---|
| 一般功能 | Anti-banding, heartbeat, mirror, password protection, privacy mask, watermark FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN |
|---|
| EMC | 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 CE-RoHS: 2011/65/EU, |
|---|
| Environment | WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
|---|
| 防護等級 | IP67: IEC 60529: 2013 |
|---|
