HIWATCH HWI-T240HA-LU 安裝、保養、維修

Name: HIWATCH HWI-T240HA-LU 4MP智能雙光警戒炮塔型網絡攝影機
Brand: HiWatch
SKU: HWI-T240HA-LU

產品簡介

HiWatch HWI-T240HA-LU 為4MP智能雙光警戒炮塔型網絡攝影機，配備紅外連白光雙補光同人車分類偵測技術，發現可疑人車可即時觸發閃光警示同語音喊話嚇阻，內置咪高峰同喇叭雙向通話。120dB寬動態配合IP67防水，適合舖頭、貨倉出入口等需要主動防盜警戒嘅場景。HKEZIT提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務，歡迎聯絡我們查詢 HWI-T240HA-LU 香港價格連安裝報價。

人車智能偵測：可分辨真人同車輛先觸發警報，大減誤報
閃光燈+語音警示：發現可疑人車可自動閃燈同播放警示聲音嚇阻
內置咪高峰同喇叭：支援雙向對講，遠程可即時同現場人士溝通
紅外+白光雙補光：夜晚可切換全彩或紅外模式，靈活應付唔同場景
4MP高清畫質：2560x1440解像度，貨倉出入口監控夠清晰
IP67防水等級：室外長期安裝耐用可靠

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

HWI-T240HA-LU HiWatch 4MP智能雙光警戒炮塔型網絡攝影機產品圖片

詳細規格

影像感測器	1/3" Progressive Scan CMOS
最大解像度	2560 × 1440
最低照度	Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
快門速度	1/3 s to 1/100, 000 s
日夜切換	IR cut filter
角度調節	Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
鏡頭類型	Fixed focal lens, 2.8 and 4 mm optional 2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114° 4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°
鏡頭接口	M12
光圈類型	Fixed
光圈	F1.6 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
補光類型	IR, White Light
補光距離	Up to 30 m
智能補光	Yes
紅外波長	850 nm 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720) 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
視頻碼率	32 Kbps to 8 Mbps
H.264 類型	Baseline Profile, Main Profile, High Profile
H.265 類型	Main Profile
碼率控制	CBR, VBR
感興趣區域 ROI	1 fixed region for main stream
SVC 分級編碼	H.264 and H.265 encoding
Audio Type	Mono sound
音訊取樣率	8 kHz/16 kHz
環境噪音過濾	Yes
音訊壓縮	G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC (MP2L2)/16 to 64 Kbps (AAC-LC) Password protection, complicated password, watermark, basic and digest
安全	authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
同時取流	Up to 6 channels
API	Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI, SDK TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP Up to 32 users 3 user levels: administrator, operator, and user
客戶端	iVMS-4200, Hik-Connect Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
寬動態 WDR	120 dB
信噪比 SNR	≥ 52 dB
日夜模式	Day, Night, Auto, Schedule
影像增強	BLC, HLC, 3D DNR Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
隱私遮蔽	4 programmable rectangle privacy masks
網絡接口	1 RJ45 10 M/100 M self-adaptive Ethernet port
機身儲存	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
內置麥克風	Yes, 1 built-in microphone
Built-in Speaker	Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
重設鍵	Yes Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light 12 VDC ± 25%, 0.66 A, max. 8 W, Ø 5.5 mm coaxial power plug, reverse polarity
供電	protection, PoE: IEEE 802.3af, Class 3, max. 9.5 W
材質	Metal & Plastic

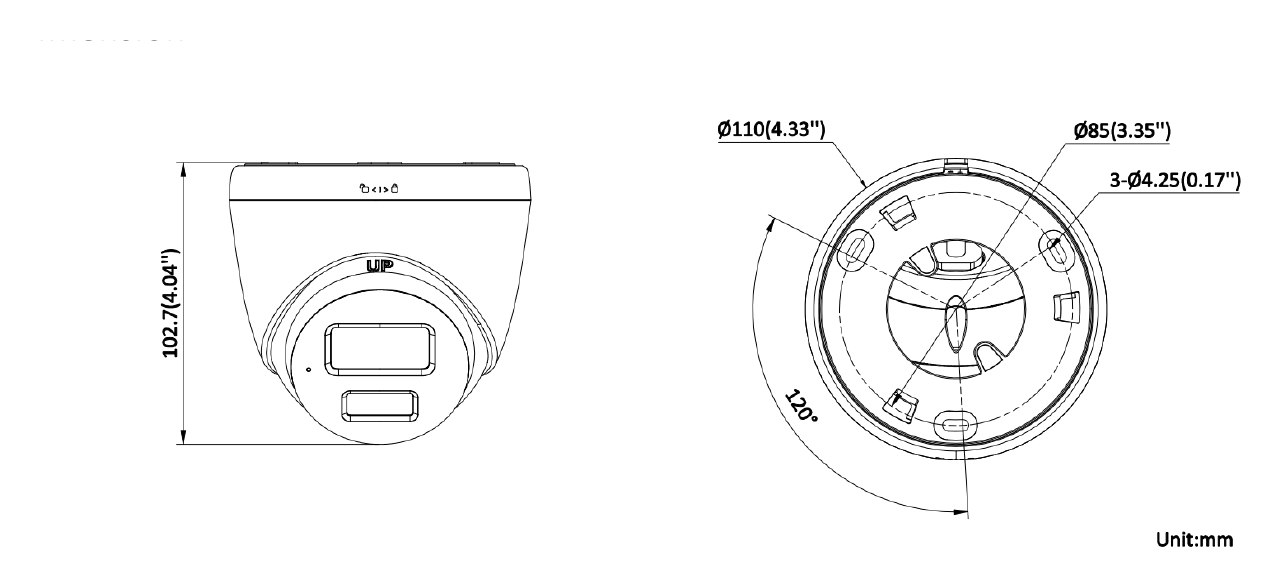

尺寸	Ø 110 mm × 102.7 mm (Ø 4.33" × 4.04")
包裝尺寸	150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
重量	Approx. 340 g (0.7 lb.)
連包裝重量	Approx. 560 g (1.2 lb.)
儲存環境	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
語言	English, Ukrainian
一般功能	Heartbeat, anti-banding, mirror, password protection, password reset via email
Flashing Light	Yes CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Safety	CE-LVD: EN 62368-1: 2014/A11: 2017 CE-RoHS: 2011/65/EU,
Environment	WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
防護等級	IP67: IEC 60529-2013
