| 工作溫度 | –40°C to 66°C (–40°F to 151°F) |
|---|
| Strobe Flash Rate | 1 flash per second |
|---|
| Nominal Voltage | Regulated 12 DC/FWR or regulated 24 DC/FWR1 |
|---|
| Operating Voltage Range2 | 8 to 17.5 V (12 V nominal) or 16 to 33 V (24 V nominal) Operating Voltage Range with MDL3 Sync Module 8.5 to 17.5V (12 V nominal) or 16.5 to 33V (24 V nominal) |
|---|
| Input Terminal Wire Gauge | 12 to 18 AWG |
|---|
| Ceiling-Mount Dimensions (including lens) | 6.8˝ diameter × 2.5˝ high (173 mm diameter × 64 mm high) |
|---|
| Horn Dimensions | 5.6˝ L × 4.7˝ W × 1.3˝ D (142 mm L × 119 mm W × 33 mm D) Ceiling-Mount Weatherproof Back Box Dimensions (SA-WBBC) 7.1˝ diameter × 2.0˝ high (180 mm diameter × 51 mm high) Notes: 1. Full Wave Rectified (FWR) voltage is a non-regulated, time-varying power source that is used on some power supply and panel outputs. 2. P, S, PC, and SC products will operate at 12 V nominal only for 15 and 15/75 cd. |
|---|
| ULC Max. Strobe Current Draw (mA RMS) | ULC Max. Horn Current Draw (mA RMS) 8–17.5 Volts 16–33 Volts 8–17.5 Volts 16–33 Volts |
|---|
| Candela DC | FWR DC FWR Sound Pattern dB DC FWR DC FWR |
|---|
| 標準 | 15 123 128 66 71 Temporal High 57 55 69 75 |
|---|
| Candela | 15/75 142 148 77 81 Temporal Medium 44 49 58 69 |
|---|
| Range | 30 NA NA 94 96 Temporal Low 38 44 44 48 75 NA NA 158 153 Non-Temporal High 57 56 69 75 95 NA NA 181 176 Non-Temporal Medium 42 50 60 69 110 NA NA 202 195 Non-Temporal Low 41 44 50 50 115 NA NA 210 205 Coded High 57 55 69 75 |
|---|
| High | 135 NA NA 228 207 Coded Medium 44 51 56 69 |
|---|
| DC Input | 15 15/75 15 15/75 30 75 95 110 115 |
|---|
| Temporal High | 137 147 79 90 107 176 194 212 218 |
|---|
| Temporal Medium | 132 144 69 80 97 157 182 201 210 |
|---|
| Temporal Low | 132 143 66 77 93 154 179 198 207 |
|---|
| Non-Temporal High | 141 152 91 100 116 176 201 221 229 |
|---|
| Non-Temporal Medium | 133 145 75 85 102 163 187 207 216 |
|---|
| Non-Temporal Low | 131 144 68 79 96 156 182 201 210 |
|---|
| Candela Derating | Horn Tones and Sound Output Data 8–17.5 16–33 |
|---|
| Switch | Sound Volts Volts Reverberant Anechoic |
|---|
| Strobe Output (cd) | Position Pattern dB DC FWR DC FWR DC FWR DC FWR |
|---|
| Listed Candela | Candela rating at –40°F 1 Temporal High 78 78 84 84 88 88 99 98 Temporal 78 78 85 85 90 90 98 98 75 75 81 81 88 84 96 92 |
|---|
| Coded | High 82 82 88 88 93 92 101 101 Settings 7, 8, and 9 are not available on 2-wire horn strobe. AVDS11401 Dia. 2.5˝ |
|---|

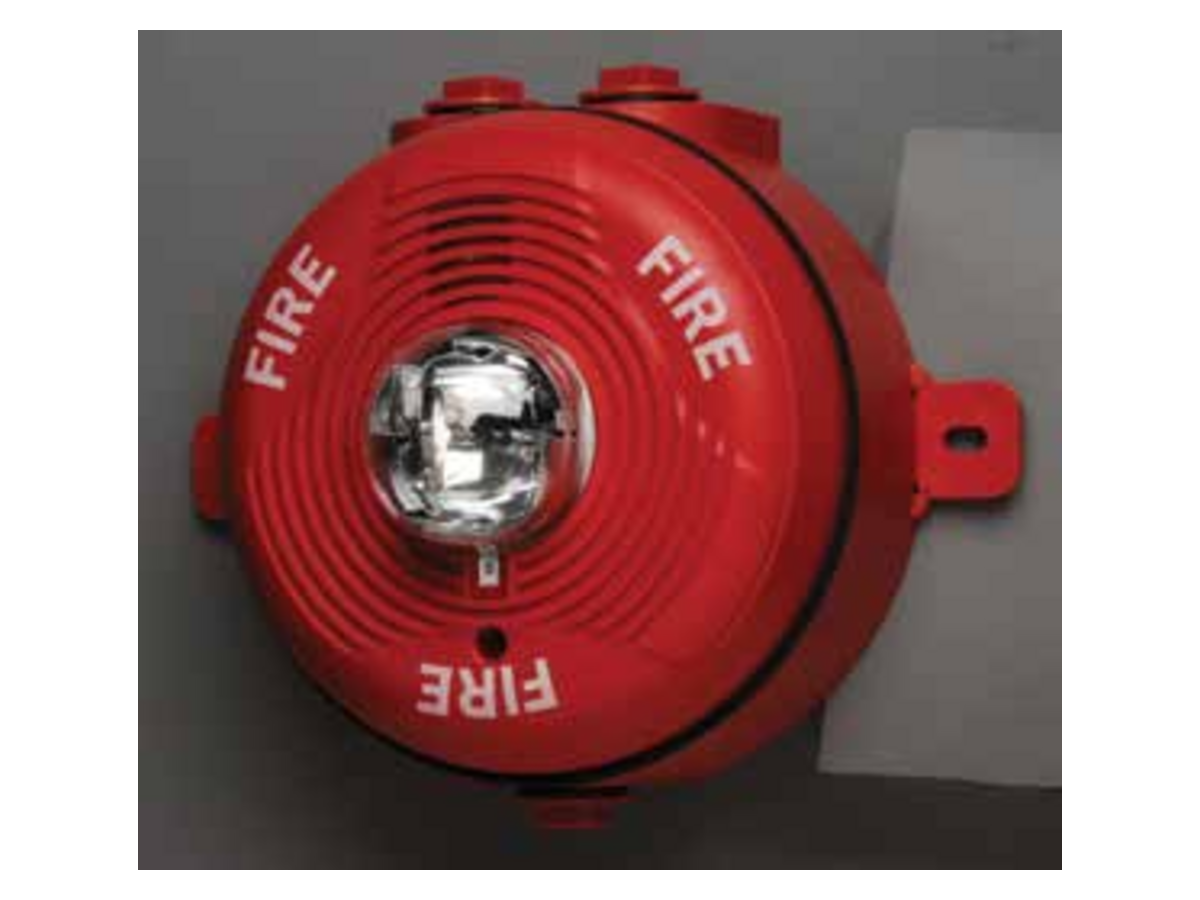

| Ceiling-Mount Horn Strobes | Ceiling Plastic Weatherproof Back Box Ceiling-Mount Horn Strobe with Plastic Weatherproof Back Box SpectrAlert Advance Ordering Information Ceiling Horn Strobes |
|---|
| PC2RKA | 2-Wire Horn Strobe, Standard cd, Red, Outdoor (includes plastic weatherproof back box) Ceiling Strobes |
|---|
| SCRKA | Strobe, Standard cd, Red, Outdoor (includes plastic weatherproof back box) |
|---|
| SCRHKA | Strobe, High cd, Red, Outdoor (includes plastic weatherproof back box) Accessories |
|---|
| SA-WBBC | Red, Metal Weatherproof Back Box Notes: “Standard cd” refers to strobes that include 15, 15/75, 30, 75, 95, 110, and 115 candela settings. “High cd” refers to strobes that include 135, 150, 177, and 185 candela settings. When replacing standard outdoor units, both the device and back box must be replaced. 6-6581 Kitimat Rd • Mississauga, ON L5N 3T5 ©2012 System Sensor. |
|---|
| Phone: 800-SENSOR2 • Fax: 905-812-0771 | Product specifications subject to change without notice. Visit systemsensor.com for current product information, including the latest version of this data sheet. |
|---|
| www.systemsensor.ca | AVDS11401A • 09/12 |
|---|
