Name: HONEYWELL CS-2471 Six-Circuit Addressable Control Module
Brand: honeywell
SKU: CS-2471

產品簡介

honeywell CS-2471 為Six-Circuit Addressable Control Module，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 CS-2471 香港價格連安裝報價。

Product Line Information：Standby current 2.25 mA (SLC current draw with all decreases
Mounting the SYNC-1 accessory card：• 0.5 A @ 30 VDC maximum,
to the SCM-SS module.：inductive (L/R = 5 ms), coded. • 0.9 A @ 70.7 VAC maximum (U
required to sound in temporal pattern.：coded. Compatible devices Contact Gamewell.
Page 2 of 6：SCM-SS and SYNC-1 CS-2471 09/01/06 6924wir1.wmf FIGURE 2: Ex

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝ALARM、裝防盜、裝警鐘工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

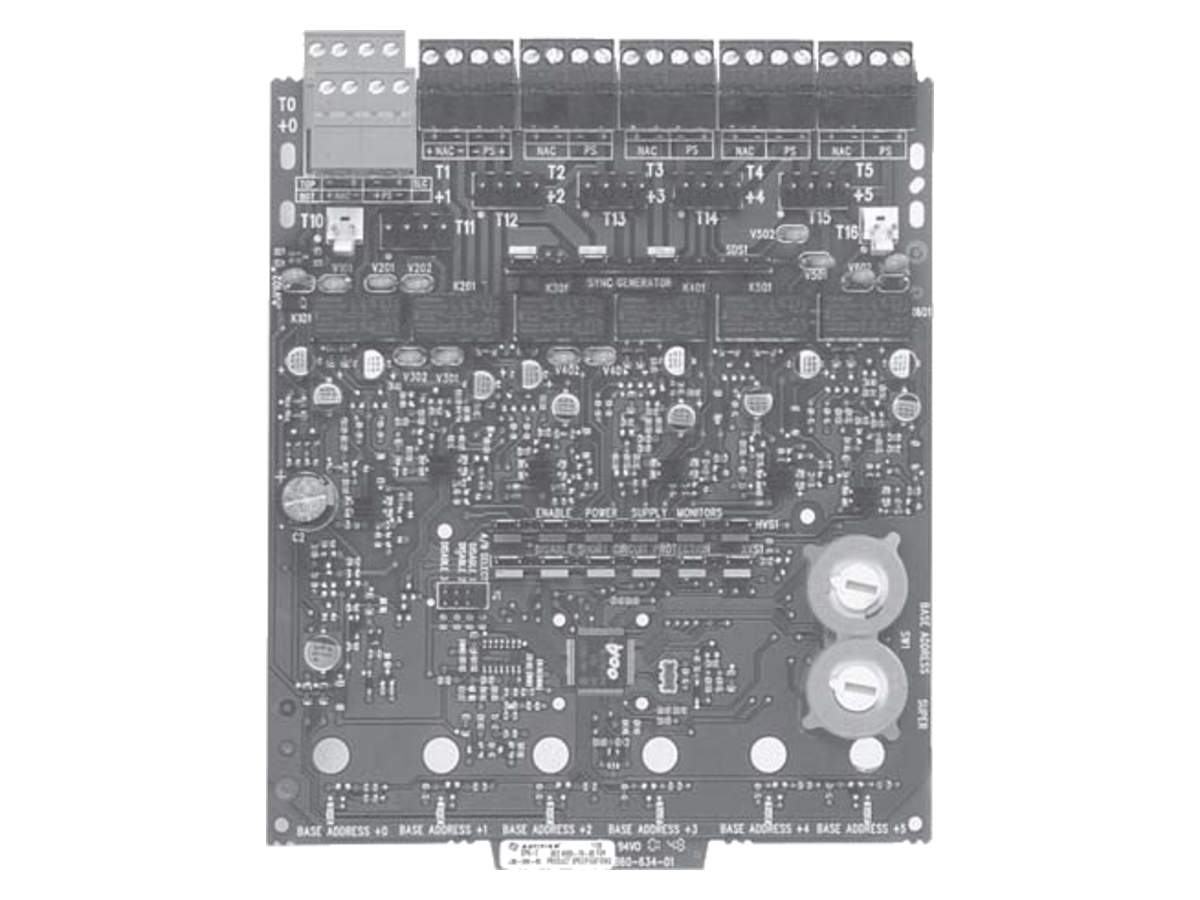

CS-2471 honeywell Six-Circuit Addressable Control Module 產品圖片

詳細規格

Product Line Information	Standby current 2.25 mA (SLC current draw with all decreases). Alarm current 35 mA (assumes all six relays have been switched once and all six LEDs solid ON). 32°F to 120°F (0°C to 49°C) for UL applications. Humidity 10% to 85% noncondensing for UL applications. Dimensions 6.8" (172.72 mm) high x 5.8" (147.32 mm) wide x 1.25" (31.75 mm) deep. Shipping weight 1.1 lb. (0.499 kg) including packag- in
Mounting the SYNC-1 accessory card	• 0.5 A @ 30 VDC maximum,
to the SCM-SS module.	inductive (L/R = 5 ms), coded. • 0.9 A @ 70.7 VAC maximum (UL
required to sound in temporal pattern.	coded. Compatible devices Contact Gamewell.

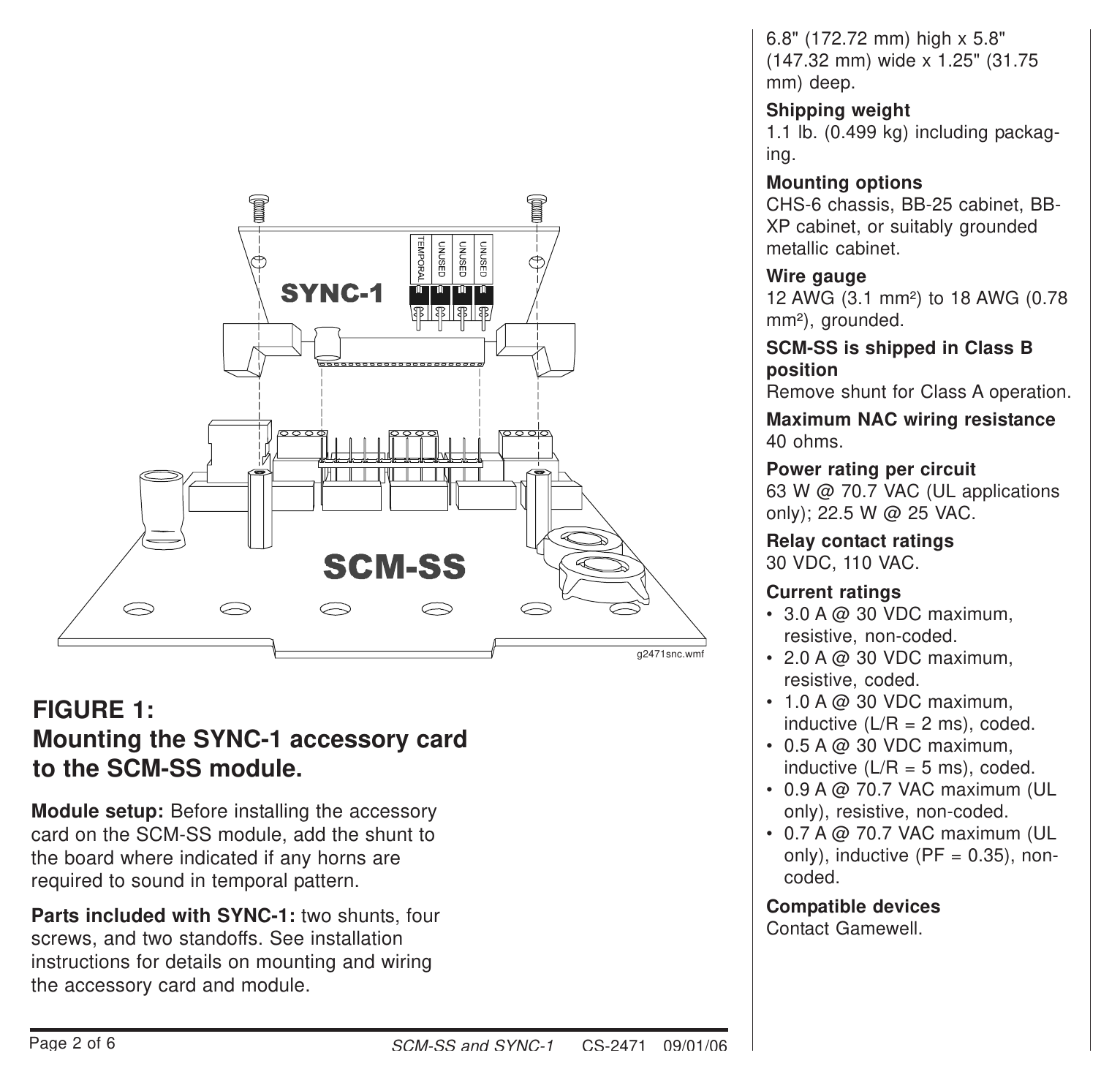

Page 2 of 6	SCM-SS and SYNC-1 CS-2471 09/01/06 6924wir1.wmf FIGURE 2: Example of Class B, Style Y NAC configuration with a single supply dedicated to a single NAC. NOTE: EOL relay coil connections must be made using EOL relay con- nector assemblies on T10 – T16 in event that all NACs on the PCB have dedicated supplies. 6924wir2.wmf
SCM-SS and SYNC-1	CS-2471 09/01/06 Page 3 of 6 FIGURE 4: Example of Class A, Style Z NAC configuration with a single supply dedicated to a single NAC. 6924wir4.wmf
Page 4 of 6	SCM-SS and SYNC-1 CS-2471 09/01/06 Example of Class B, Style Y audio NAC configuration. 6924wir5.wmf 6924wir6.wmf FIGURE 7: Example of Class A, Style Z audio NAC configuration. FIGURE 8: Example of multiple boards sharing the same external power supply. Supply is shared by NACs +0 and +1 (on PCB #1) as well as +3, +4, and +5 (on PCB # 2). Refer to figures 1 through 4 for typical NAC wiring. Make c
Phone: 203-484-7161	Specifications and wiring information are provided for information only and are believed
Fax: 203-484-7118	to be accurate. Gamewell-FCI assumes no responsibility for their use.
www.gamewell-fci.com	Data and design are subject to change without notice. Installation and wiring instructions shipped with the product shall always be used for actual installation. For more
A Honeywell Company	information, contact Gamewell-FCI. © 2006 Gamewell-FCI
Page 6 of 6	SCM-SS and SYNC-1 CS-2471 09/01/06
