| PARAMETER | SPECIFICATION |
|---|
| Input Voltage (H3/H4) | 12VDC |
|---|
| Current Consumption | 300mA |
|---|
| Digital Inputs and Outputs (H5) | 4 open-collector digital outputs, 4 (0 - 5 VDC) Dry Contact Digital Input |
|---|
| Indicator LED’s | Diagnostic led, status indication for analog and digital inputs and digital outputs. |
|---|
| Communications | S5bus |
|---|
| 尺寸 | 86.2 X 78.4 X 60 mm (L X W X H) |
|---|

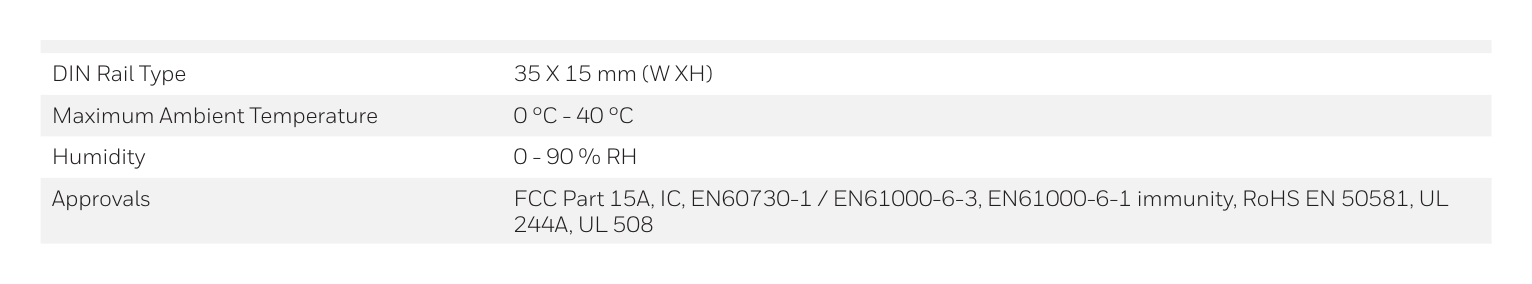

| DIN Rail Type | 35 X 15 mm (W XH) |
|---|
| Maximum Ambient Temperature | 0 °C - 40 °C |
|---|
| Humidity | 0 - 90 % RH |
|---|
| Approvals | FCC Part 15A, IC, EN60730-1 / EN61000-6-3, EN61000-6-1 immunity, RoHS EN 50581, UL 244A, UL 508 |
|---|
| ORDERING | SYSTEM OVERVIEW |
|---|
| PART | FUNCTION DESCRIPTION DESCRIPTION |
|---|
| NUMBER | Lighting Relay driven lighting circuits. 201-837-R8 X45R8 ASSEMBLY - PROGRAMMED Occupancy Inputs PIR motion sensors, entry door switch, balcony/window switch, common / |
|---|
| HDR-30-12 | PS567 (MEAN WELL DR-30-12 12V 2A OUTPUT Versn2) connected door logic. X45R8 S5BUS AND DC INPUT INCOMM X45R8 Product Data Sheet | www.honeywell.com | 2 INCOMM X45R8 Product Data Sheet | www.honeywell.com | 3 IINCOMM X45R8 Product Data Sheet | www.honeywell.com | 4 |
|---|
| With the X45R8 housing cover in place, | FUNCTIONS Using the INNCOM thermostat service mode or PC configuration tool, send a “Device |
|---|
| indicator to press SW1. The X45R8 can | Address Teach” or “IOMap Teach” command to the X45R8.. |
|---|
| be reset by pressing and holding SW1 | Observe the X45R8 Diag LED change to a Fast Blink pattern (3 blinks per second), indicating |
|---|
| for more than 4 seconds. The following | it is ready to accept the new configuration.. |
|---|
| address teaches instructions assuming | Press SW1 on the X45R8.. |
|---|
| the product installer has a working | The Diag LED will change to a medium blink pattern for 8 seconds, the X45R8 will Reset , and |
|---|
| knowledge of the INNCOM system or is | on startup rapidly blink the Diag LED for 4 seconds.. |
|---|
| an INNCOM by Honeywell installer. For | Listen for the thermostat to beep or look for an indication on the PC configuration tool |
|---|
| more help commissioning the X45R8, | confirming that the configuration was successfully changed on the X45R8.. |
|---|
| LED BEHAVIOUR | DESCRIPTION |
|---|
| Off | X45R8 is not powered. |
|---|
| On for 1 second, Off for 1 second, and | The X45R8 is powered but has not received a “Central Status Broadcast” from the Room |
|---|
| repeating | Gateway so it does not think the room is online/connected to the Inncom server. |
|---|
| A blink once per second and repeating | The X45R8 is powered and has received a “Central Status Broadcast” from the Room Gateway so it thinks the room is online/connected to the Inncom server.. |
|---|
| Steady Rapid Blink (3 blinks per second) | The X45R8 has received an Address or I/O Map teach command. Press the SW1 button on the X45R8 to accept the teach command. Eight blinks 1/2 seconds apart, followed by a The X45R8 was just taught and accepted an Address or I/O Map and then Reset. very rapid blink for 4 seconds On for 1 second , followed by a very rapid blink The X45R8 just had power applied or was Reset , or the SW1 switch was pres |
|---|
| for 4 seconds | X45R8 sent a reverse bind command but never received a Bind/Configuration offer INCOMM X45R8 Product Data Sheet | www.honeywell.com | 5 |
|---|
| PIN | SIGNAL FUNCTION 1 P1 100-240 VAC 50/60Hz Input (Phase 1- Common) 2 P2 100-240 VAC 50/60Hz Input (Phase 2- Common) 3 K1 K1 Relay Output 4 K2 K2 Relay Output 5 K3 K3 Relay Output 6 K4 K4 Relay Output |
|---|
| PIN SIGNAL | FUNCTION 1 P3 100 - 240 VAC 50/60 Hz Input (Phase 1- Common) 2 P4 100-240 VAC 50/60 Hz Input (Phase 2- Common) 3 K5 K5 Relay Output 4 K6 K6 Relay Output 5 K7 K7 Relay Output 6 K8 K8 Relay Output |
|---|
| H3, H4 S5BUS IN / S5 OUT | H1 IN CIRCUIT PROGRAMMING H5 DIGITAL INPUT / OUTPUT HEADER -MAIN MICRO |
|---|
| Bus | Contact Input 4 In2 0-5 VDC Dry D2 Contact Input 5 In3 0-5 VDC Dry D3 Contact Input 6 In4 0-5 VDC Dry D4 Contact Input 7 Out5 Open-Collector D5 Output 8 Out6 Open-Collector D6 Output 9 Out7 Open-Collector D7 Output 10 Out8 Open-Collector D8 Output @U.S. Registered Trademark |
|---|
| Atlanta, Georgia 30308 | © 2023 Honeywell International Inc. |
|---|
| buildings.honeywell.com | 31-00595-01 | Rev. 03-23 |
|---|
