HONEYWELL HBT-SEC-60SERIES 防盜報警安裝・保養

Name: HONEYWELL HBT-SEC-60SERIES HC60WZ2R40
Brand: honeywell
SKU: HBT-SEC-60SERIES

產品簡介

honeywell HBT-SEC-60SERIES 為HC60WZ2R40，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 HBT-SEC-60SERIES 香港價格連安裝報價。

IR Light Number：18
音訊壓縮：G.711 / G.726
Backlight Compensation：WDR, BLC, HLC
Audio Stream：2-Way, Full duplex
White Balance：Auto / Fixed Current / Manual

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝ALARM、裝防盜、裝警鐘工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

HBT-SEC-60SERIES honeywell HC60WZ2R40 產品圖片

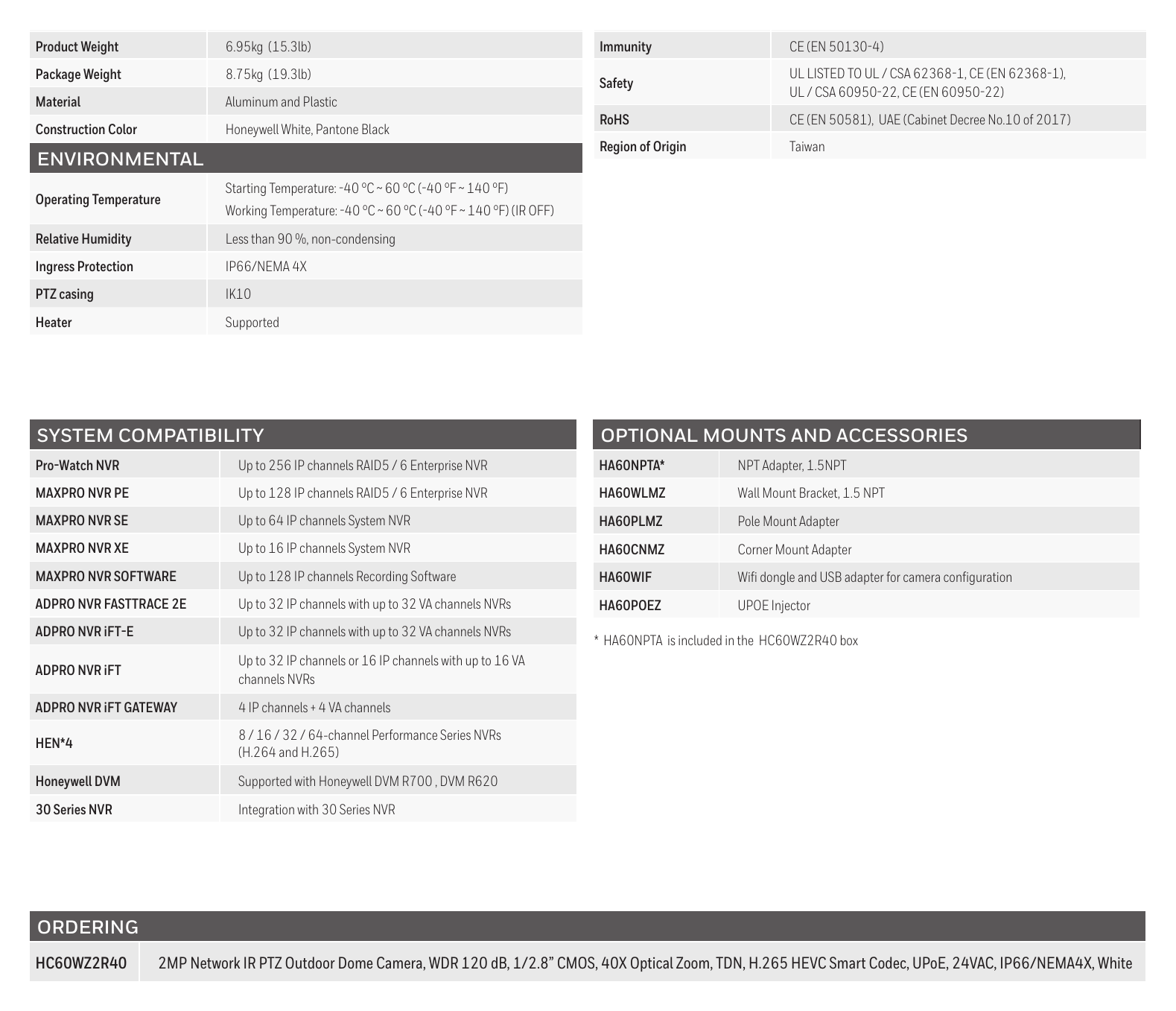

詳細規格

IR Light Number	18
音訊壓縮	G.711 / G.726
Backlight Compensation	WDR, BLC, HLC
Audio Stream	2-Way, Full duplex
White Balance	Auto / Fixed Current / Manual
Audio Interface	Line In / Out
Gain Control	0 ~ 100 %
寬動態 WDR	120 dB
Ethernet	10 Base-T / 100 Base-TX Ethernet (RJ-45)
Noise Reduction	3D DNR
Supported Web Browsers	Chrome 79.0 Internet Explorer 11 40x Optical Zoom , Auto Focus , 4.25mm ~ 170mm, DC-IRIS, F1.6
鏡頭	Supported OS Microsoft Windows 10 ~ F4.95
Electronic Image Stabilization	Support IPv4, IPv6, TCP / IP, HTTP, HTTPS, UPnP, RTSP / RTP / RTCP, IGMP
Protocols*	/ Multicast, CIFS / SMB, SMTP, DHCP, NTP, DNS, DDNS, CoS, QoS,
Angle Of View	H: 65.66° ~ 1.88° V:39.4° ~ 1.09° SNMP, 802.1X, UDP, ICMP, ARP, TLS
G-Sensor	Support G-Sensor XYZ OSD Display (Default - Off) Interoperability ONVIF Profile G / S
Privacy Masking	Off / On (24 Areas) Maximum Users Access 10 Users
除霧	Support User account and password protection, HTTPS, IP Filter,
Encryption Chipset	FIPS 140-2 Certified Chipset Built-in Digest authentication, TLS1.2 only, Stream encryption, AES128 / Security 256, SSH / Telnet closed, PCIDSS compliance, FIPS 140-2 Certified
本機儲存	Micro SD / SDHC / SDXC card slot (up to 256 GB) Chipset Built-in
Micro USB	Support Wifi Dongle for configuration English, French, German, Italian, Japanese, Portuguese, Russian, Languages Supported
Alarm Inputs / Outputs	2 In / 1 Out Spanish, Traditional Chinese
PTZ	EVENTS / ANALYTICS
水平速度	0.05° ~ 440°/sec Intrusion, Loiter, Line crossing, Unattended object, Missing object, Video Analytics
Pan Range	360° endless Face detection
垂直速度	0.05° ~ 350° / sec. Video motion detection, Periodically, Alarm input, System boot, Event type Recording notification, Camera tampering detection
Tilt Range	220° (-110° ~ + 110°) Event notification using digital output, HTTP, Email and MicroSD
Preset Locations	256 preset locations, 128 presets per tour Event linkage card
Preset Accuracy	0.1° Region Of Interest 5
Auto Pan Scan	Support ELECTRICAL
Auto Tracking	Support
供電	AC 24 V~, 3 A, 50-60 Hz ; or UPoE 42.5-57 V , MAX 51 W
Support	Power Consumption MAX 51 W
MECHANICAL	REGULATORY
Dimensions (Ø x H)	Ø243.92 mm x 455.28 mm (Ø9.6”x17.9”) Emissions FCC PART 15, CE (EN 55032)
Product Weight	6.95kg (15.3lb) Immunity CE (EN 50130-4)
Package Weight	8.75kg (19.3lb) UL LISTED TO UL / CSA 62368-1, CE (EN 62368-1), UL / CSA 60950-22, CE (EN 60950-22)
材質	Aluminum and Plastic
RoHS	CE (EN 50581), UAE (Cabinet Decree No.10 of 2017)
Construction Color	Honeywell White, Pantone Black
Region of Origin	Taiwan Starting Temperature: -40 °C ~ 60 °C (-40 °F ~ 140 °F) Working Temperature: -40 °C ~ 60 °C (-40 °F ~ 140 °F) (IR OFF)
相對濕度	Less than 90 %, non-condensing
防護等級	IP66/NEMA 4X
PTZ casing	IK10
Heater	Supported
SYSTEM COMPATIBILITY	OPTIONAL MOUNTS AND ACCESSORIES
Pro-Watch NVR	Up to 256 IP channels RAID5 / 6 Enterprise NVR HA60NPTA* NPT Adapter, 1.5NPT
MAXPRO NVR PE	Up to 128 IP channels RAID5 / 6 Enterprise NVR HA60WLMZ Wall Mount Bracket, 1.5 NPT
MAXPRO NVR SE	Up to 64 IP channels System NVR HA60PLMZ Pole Mount Adapter
MAXPRO NVR XE	Up to 16 IP channels System NVR HA60CNMZ Corner Mount Adapter
MAXPRO NVR SOFTWARE	Up to 128 IP channels Recording Software HA60WIF Wifi dongle and USB adapter for camera configuration
ADPRO NVR FASTTRACE 2E	Up to 32 IP channels with up to 32 VA channels NVRs HA60POEZ UPOE Injector
ADPRO NVR iFT-E	Up to 32 IP channels with up to 32 VA channels NVRs * HA60NPTA is included in the HC60WZ2R40 box Up to 32 IP channels or 16 IP channels with up to 16 VA channels NVRs
ADPRO NVR iFT GATEWAY	4 IP channels + 4 VA channels 8 / 16 / 32 / 64-channel Performance Series NVRs (H.264 and H.265)
Honeywell DVM	Supported with Honeywell DVM R700 , DVM R620
HC60WZ2R40	2MP Network IR PTZ Outdoor Dome Camera, WDR 120 dB, 1/2.8” CMOS, 40X Optical Zoom, TDN, H.265 HEVC Smart Codec, UPoE, 24VAC, IP66/NEMA4X, White HA60NPTA (HA60NPTA is included in the HC60WZ2R4 box) ONVIF and the ONVIF logo are trademarks of ONVIF Inc.
Honeywell Commercial Security	HEVC Advance logo is a trademark of HEVC Advance Honeywell reserves the right, without notification, to
www.honeywell.com	© 2021 Honeywell International Inc.
