| Image Sensor | 1/2.49" CMOS sensor; default video resolution 4512x2512 (12 Megapixels) at 20 fps |
|---|
| Lens | f=4.0mm; F=1.6, with IR-cut filter |
|---|
| Video Compression | H.265 |
|---|
| Field of View | Horizontal: 93°; Vertical: 49° |
|---|
| Day & Night | Auto-switching with IR-cut filter |
|---|
| Night Vision | Up to 30m (100ft) (LED: 2pcs/28mil/850nm) |
|---|
| Color Night Vision | Spotlight: 1pcs/4.3W/6500K/700 Lumens |
|---|
| Audio | Two-way audio, built-in microphone and speaker |
|---|
| PoE | IEEE 802.3af, 48V active |
|---|
| DC Power | DC 12.0V 1A, <12W |
|---|
| Power Interface | DC power port |
|---|
| System | Reset button; microSD card slot (up to 256GB) |
|---|
| Ethernet | One 10M/100Mbps RJ45 port |
|---|
| Frame Rate | Mainstream: 2fps-20fps (default 20fps); Substream: 4fps-20fps (default 10fps) |
|---|
| Code Rate | Mainstream: 3072Kbps-10240Kbps (default 8192Kbps); Substream: 128Kbps-1024Kbps (default 768Kbps) |
|---|
| Supported Browsers | Edge, Chrome, Firefox, Safari |
|---|
| Supported OS | PC: Windows, Mac OS; Mobile: iOS, Android |
|---|
| Smart Alarm | Motion detection, person detection, vehicle detection, pet detection |
|---|
| Record Mode | Motion-triggered recording (default), scheduled recording |
|---|
| Standard Protocols | HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P |
|---|
| Max User Access | 20 users (1 admin account + 19 user accounts); supports up to 12 simultaneous video streams (10 substreams + 2 mainstreams) |
|---|
| Smart Home | Google Assistant |
|---|
| Operating Temperature | -10°C ~ +55°C (14°F ~ 131°F) |
|---|
| Operating Humidity | 10% ~ 90% |
|---|
| Waterproof | IP67 |
|---|

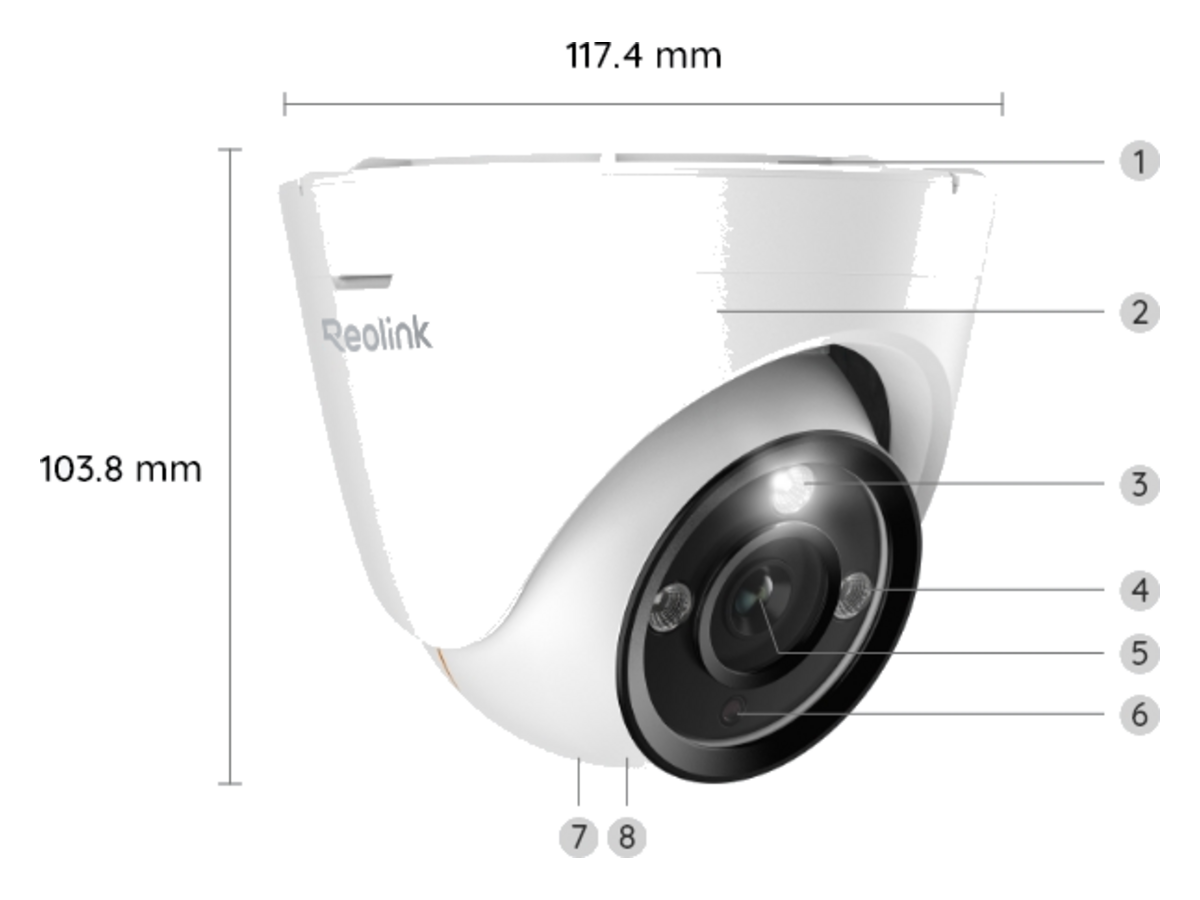

| Dimension | Φ117.4*103.8mm |
|---|
| Weight | 515g |
|---|
| Limited Warranty | 2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/ |
|---|
