| 影像感測器 | 1/2.8" CMOS sensor Default: 3840*2160 (8 megapixels) Video Resolution @25FPS |
|---|
| 鏡頭 | f=2.8-8mm, F=1.6, with IR Cut |
|---|
| 視頻壓縮 | H.265 • Horizontal: 94°- 50° Field of View • Vertical: 53°- 30° |
|---|
| 日夜切換 | IR-cut filter with auto-switching |
|---|
| Infrared Night Vision | 30 meters (2pcs/28mil/850nm) |
|---|
| Color Night Vision | 1pcs/4.7W/6500K/700lm |
|---|
| Audio | Two-way audio Power |
|---|
| PoE | IEEE 802.3af, 48V active |
|---|
| DC Power | 93 1A, <12W DC 12.0V 23 |
|---|
| 供電 | DC power port |
|---|
| System | Reset button |
|---|
| Ethernet | One 10M/100Mbps RJ45 |
|---|
| Storage | microSD card slot (max. 256GB) |
|---|
| Frame Rate | 25fps) • Substream: 4fps - 15fps (default: 10fps) • Mainstream: 4096Kbps -8192Kbps (default: 6144Kbps) • Substream: 64Kbps - 512Kbps (default: 256Kbps) |
|---|
| Browser Supported | Edge, Chrome, Firefox, Safari PC: Windows, Mac OS; Smartphone: iOS, Android Motion detection, person detection, vehicle detection, pet detection Motion recording (default), scheduled recording, 24/7 recording HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, |
|---|
| Protocols & Standards | UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P 20 users (1 admin account and 19 user accounts); 12 simultaneous video streams (10 substreams and 2 mainstreams) |
|---|
| Work with | Google Assistant |
|---|
| 工作溫度 | -10°C~+50°C (14°F~122°F) |
|---|
| 工作濕度 | 10% ~ 90% |
|---|
| Weatherproof | IP67 |
|---|
| 尺寸 | Φ117.4 x 103.8mm |
|---|
| 重量 | 510g 2-year limited warranty. For support, |
|---|

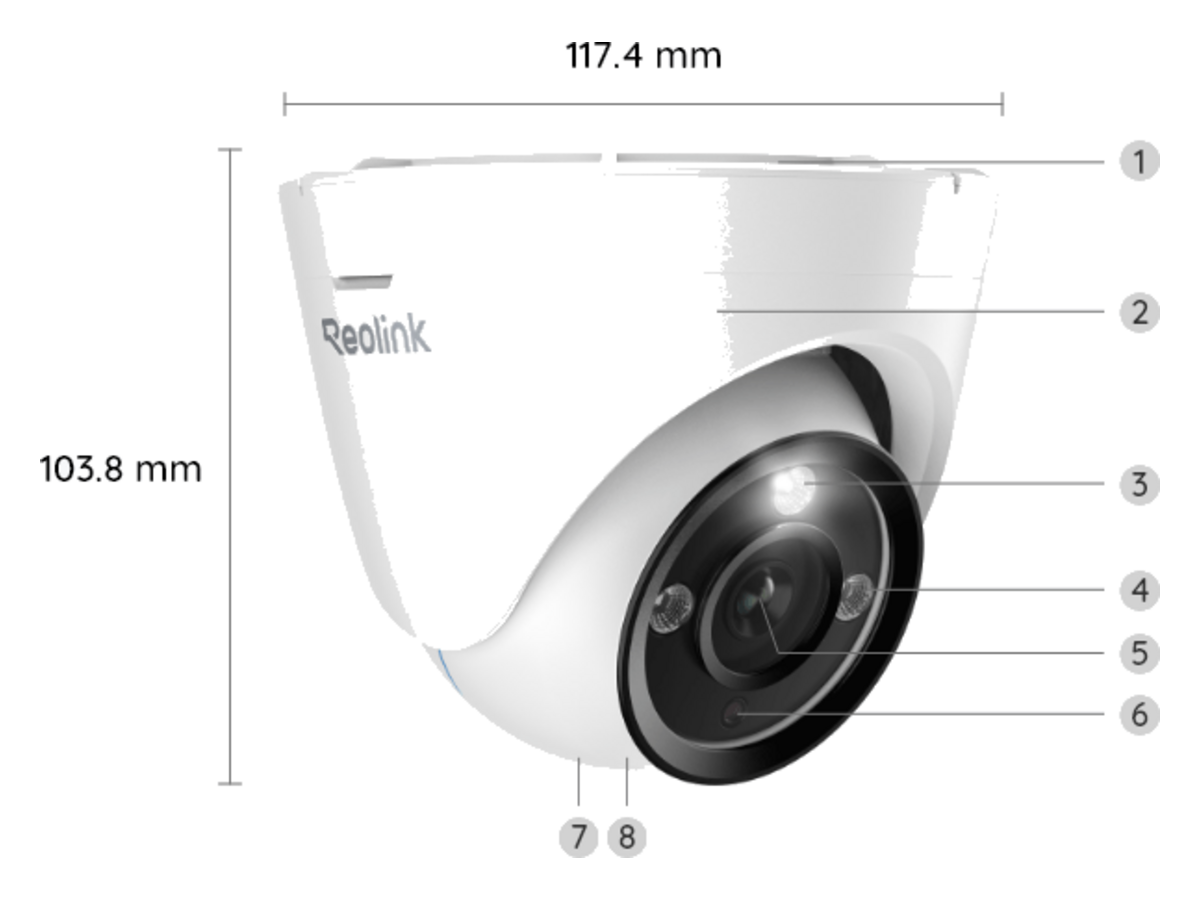

| Limited Warranty | visit https://support.reolink.com/hc/en- us/ Gallery & Specs 1. Mount 2. Metal Aluminum Case 3. Spotlight 4. IR LEDs 5. High Definition Lens 6. Daylight Sensor 7. Built-in Mic 8. Speaker Manual rotation only. 1. Micro SD Card Slot
Tip: Rotate the lens to find the micro SD card slot on the bottom. www.reolink.com |
|---|
