| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
|---|
| Interfaces | 4 combo gigabit SFP Slots Up to 4 10G SFP+ Slots (2 fixed and 2 optional 10G SFP+ Slots) 1 Console Port 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 100BASE-FX: MMF, SMF Network Media 1000BASE-X: MMF, SMF 10GBASE-LR 10GBASE-SR |
|---|
| Dimensions ( W x D x H ) | 17.32*13*1.73 in. (440*330*44 mm) |
|---|

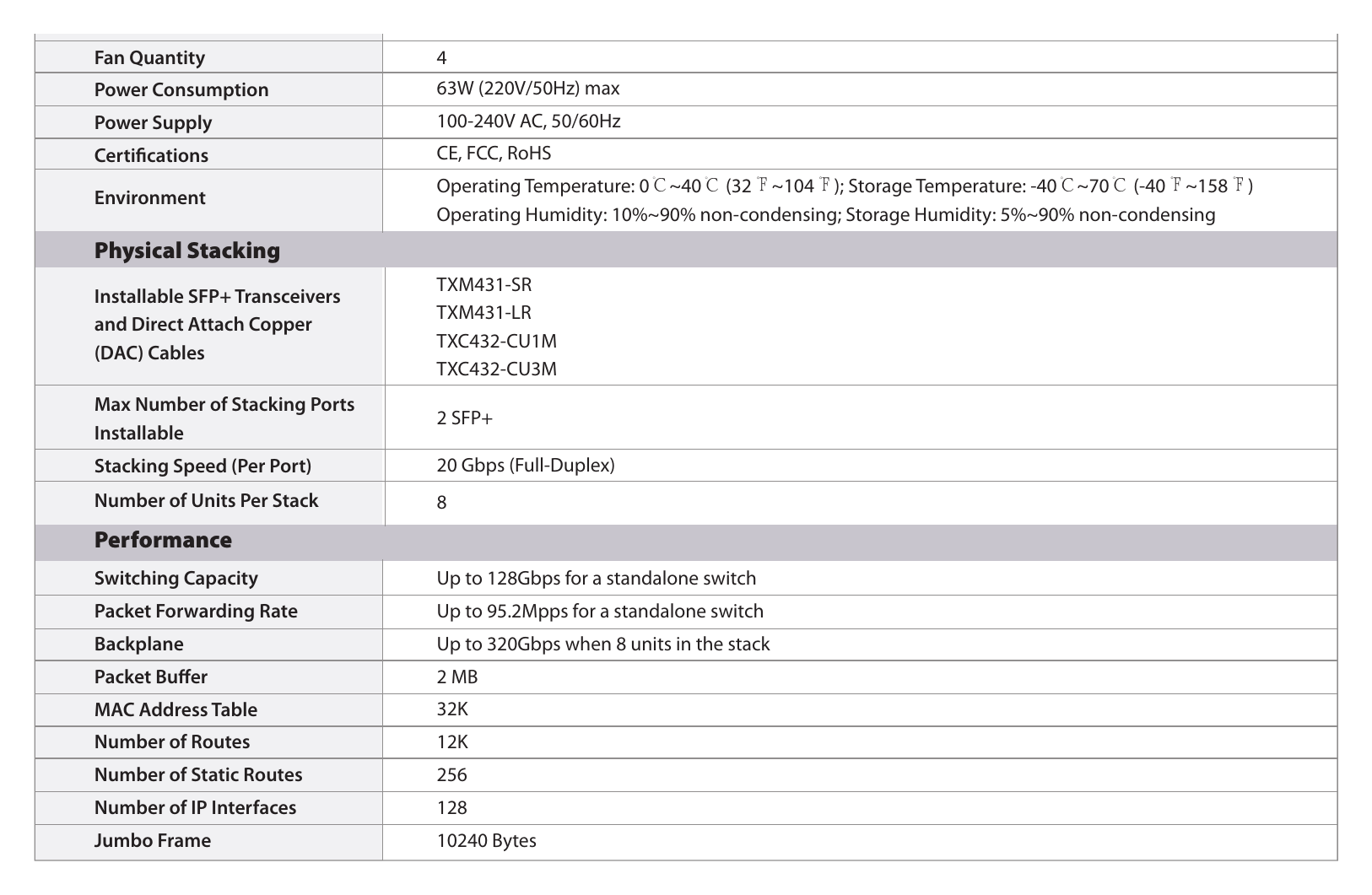

| Fan Quantity | 4 |
|---|
| 功耗 | 63W (220V/50Hz) max |
|---|
| 供電 | 100-240V AC, 50/60Hz |
|---|
| Certifications | CE, FCC, RoHS Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing Physical Stacking TXM431-SR Installable SFP+ Transceivers TXM431-LR and Direct Attach Copper TXC432-CU1M (DAC) Cables TXC432-CU3M Max Number of Stacking Ports 2 SFP+ Installable |
|---|
| Stacking Speed (Per Port) | 20 Gbps (Full-Duplex) |
|---|
| Number of Units Per Stack | 8 Performance |
|---|
| 交換容量 | Up to 128Gbps for a standalone switch |
|---|
| 包轉發率 | Up to 95.2Mpps for a standalone switch |
|---|
| Backplane | Up to 320Gbps when 8 units in the stack |
|---|
| Packet Buffer | 2 MB |
|---|
| MAC 位址表 | 32K |
|---|
| Number of Routes | 12K |
|---|
| Number of Static Routes | 256 |
|---|
| Number of IP Interfaces | 128 |
|---|
| Jumbo Frame | 10240 Bytes |
|---|
| www.tp-link.com | Specifications are subject to change without notice. TP-LINK is a registered trademark of TP-LINK Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. Copyright @ 2015 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved. Software Features |
|---|
| Stackability | – Support 802.3ad LACP |
|---|
| Physical Stacking | – Up to 32 aggregation groups, containing 8 ports per – Up to 320Gbps of Backplane when 8 units in the stack group |
|---|
| – Up to 8 units per Stack | Spanning Tree Protocol(STP) |
|---|
| Virtual Stacking | – IEEE 802.1D Spanning Tree Protocol |
|---|
| – Single IP Management(Cluster) | – IEEE 802.1s Multiple Spanning Tree Protocol |
|---|
| – Up to 32 units per Virtual Stack | – IEEE 802.1w Rapid Spanning Tree Protocol – STP Security: Loop back detection, TC Protect, BPDU |
|---|
| Basic L3 Routing Features | Filter/Protect, Root Protect |
|---|
| L3 Routing | Multicast – Up to 12K entries (all route entries combined) – Support IGMP Snooping V1/V2/V3, up to 1K groups |
|---|
| – Up to 12K dynamic route entries | – Support multicast VLANs, IGMP Immediate Leave, |
|---|
| – Up to 256 static route entries | Unknown IGMP Throttling, IGMP Filtering, Static |
|---|
| – Up to 128 IP Interfaces | Multicast IP |
|---|
| L3 Forwarding | VLAN – Up to 8K entries (all L3 Hardware Forwarding Entries – Support IEEE802.1Q with 4K VLAN groups and 4K VIDs |
|---|
| Combined) | – Support Port VLAN, Protocol VLAN, and Private VLAN |
|---|
| RIP v1, v2 | – Support GARP/GVRP feature |
|---|
| DHCP Server/Relay | IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode |
|---|
| Advanced L3 Routing Features | LLDP (License required) |
|---|
| OSPF | Quality of Service (QoS) |
|---|
| – OSPF v2 | Support 802.1p CoS/DSCP priority Support 8 priority queues – OSPF Passive Interface Queue scheduling: SP, WRR, SP+WRR – OSPF NSSA (Not So Stubby Area) Port/Flow- based Rate Limiting – OSPF Equal Cost Route Voice VLAN assure voice applications much IGMP v1,v2,v3 smoother performance Multicast Routing – Static Multicast Route Advanced Security Strategies – PIM-DM/SM IP-MAC-Port-VID Binding |
|---|
| – PIM SSM | Static/Dynamic Port Security (MAC-based) |
|---|
| ARP Proxy | DoS defend feature |
|---|
| Gratuitous ARP | Dynamic ARP Inspection |
|---|
| VRRP | 802.1x authentication – Support 802.1x port/MAC based authentication |
|---|
| L2 Switching Features | Support Radius authentication and accountability Link Aggregation – Guest VLAN – Support static link aggregation |
|---|
| Access Control List (ACL) | Ethernet Protocols – L2~L4 package _ltering based on source and IEEE 802.3i 10BASE-T destination MAC address, IP address, TCP/UDPports, IEEE 802.3u 100BASE-TX/FX 802.1p, DSCP, protocol and VLAN ID IEEE 802.3ab 1000BASE-T |
|---|
| – Time based ACL | IEEE 802.3z 1000BASE-X |
|---|
| Support Broadcast, Multicast and Unknown | IEEE 802.3ae 10GBASE-SR/LR |
|---|
| unicast Storm Control | IEEE 802.3av GVRP |
|---|
| Secure web management through HTTPS and | IEEE 802.3ad Link Aggregation |
|---|
| SSLv2/v3/TLSv1 | IEEE 802.3x Flow control |
|---|
| Secure remote command line interface(CLI) | IEEE 802.1p QoS |
|---|
| management with SSH v1/V2 | IEEE 802.1q VLANs / VLAN tagging IEEE 802.1v Protocol VLAN |
|---|
| Management | IEEE 802.1d Spanning Tree Protocol (STP) |
|---|
| Support Web-based GUI management mode | IEEE 802.1s Multiple Spanning Tree (MSTP) Support Command Line Interface(CLI) through IEEE 802.1w Rapid Spanning Tree (RSTP) |
|---|
| console port, telnet management mode | IEEE 802.1x Network Login Security SNMP v1/v2c/v3 |
|---|
| RMON (1, 2, 3, 9 groups) | MIBs |
|---|
| DHCP/BOOTP Client | MIB II (RFC1213) |
|---|
| DHCP Snooping | Interface MIB (RFC2233) |
|---|
| DHCP Option 82 | Bridge MIB (RFC1493) |
|---|
| CPU Monitoring | P/Q-Bridge MIB (RFC2674) |
|---|
| Port Mirroring (Many to One) | RMON MIB (RFC2819) |
|---|
| Cable Diagnostics feature | RMON2 MIB (RFC2021) |
|---|
| Ping/Tracert feature | Radius Accounting Client MIB (RFC2620) |
|---|
| SNTP | Radius Authentication Client MIB (RFC2618) |
|---|
| Integrated NDP/NTDP feature | Remote Ping, Traceroute MIB (RFC2925) |
|---|
| 系統日誌 | Support TP-LINK private MIBs Dual Image |
|---|
| Product Model | Description |
|---|
| T2700G-28TQ | JetStream 28-Port Gigabit Stackable L2+ Managed Switch Auxiliary Products Product Model Specifications are subject to change without notice. TP-LINK is a registered trademark of TP-LINK Technologies Co., Ltd. Other brands and product Description names are trademarks or registered trademarks of their respective holders. Copyright @ 2014 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved. |
|---|
| T2700G-28TQ-L1000 | T2700G-28TQ Layer 3 License Upgrade |
|---|
| TX432 | 10-Gigabit 2-Port SFP + Module |
|---|
| TXM431-SR | 10GBase-SR SFP+ LC Transceiver |
|---|
| TXM431-LR | 10GBase-LR SFP+ LC Transceiver |
|---|
| TXC432-CU1M | 1M Direct Attach SFP+ Cable |
|---|
| TXC432-CU3M | 3M Direct Attach SFP+ Cable |
|---|
| RPS150 | 150W Redundant Power Supply |
|---|
| RPS2 | Dual Bay Rackmountable RPS Shelf |
|---|
| PSM150-AC | 150W AC Power Supply Modul SFP Modules |
|---|
| TL-SM311LS | Gigabit SFP module, Single-mode, LC interface, Up to 10km distance |
|---|
| TL-SM311LM | Gigabit SFP module, Multi-mode, LC interface, Up to 550m distance |
|---|
| TL-SM321A | Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX:1550nm/RX:1310nm, 10km |
|---|
| TL-SM321B | Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX:1310nm/RX:1550nm, 10km |
|---|
