| Standard and Protocols | IEEE 802.3ad Link Aggregation IEEE 802.1v Protocol VLAN IEEE 802.1d Spanning Tree Protocol (STP) IEEE 802.1s Rapid Spanning Tree (RSTP) IEEE 802.1w Multiple Spanning Tree (MSTP) IEEE 802.1q VLANs / VLAN tagging |
|---|
| General | IEEE 802.1x Network Login Security IEEE 802.1p QoS 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) |
|---|
| Network Media | 1000BASE-X: MMF, SMF 10GBASE-LR 10GBASE-SR 48 10/100/1000Mbps RJ45 ports 4 combo Gigabit SFP Slots |
|---|
| Interfaces | 1 RJ45 Console Port 1 Micro-USB Console Port 1 RJ45 out-of-band Management Port 1 USB 2.0 Storage Port |
|---|
| 交換容量 | 176Gbps |
|---|
| 包轉發率 | 130.9Mpps |
|---|
| Performance | MAC Address Table 32K 32Mbit |
|---|
| Jumbo Frame | 12KB |
|---|
| 供電 | 100-240V AC, 50/60Hz |
|---|
| Max Power Consumption | 58.82W (220V/50Hz) |
|---|
| Max Heat Dissipation | 200.69 BTU/h |
|---|
| Dimensions (W × D × H) | 17.3 × 16.5 × 1.7 in. (440 × 420 × 44 mm) |
|---|
| Fan Quantity | 1 removable fan module |
|---|
| 工作溫度 | 0°C~40°C (32°F~104°F) |
|---|
| 儲存溫度 | -40°C~70°C (-40°F~158°F) |
|---|
| 工作濕度 | 10% ~ 90%RH, non-condensing |
|---|
| Storage Humidity | 5%~90%RH, non-condensing CE, FCC TXM431-SR |
|---|
| Installable SFP+ Transceivers and Direct | TXM431-LR |
|---|
| Attach Copper (DAC) Cables | TXC432-CU1M TXC432-CU3M |
|---|

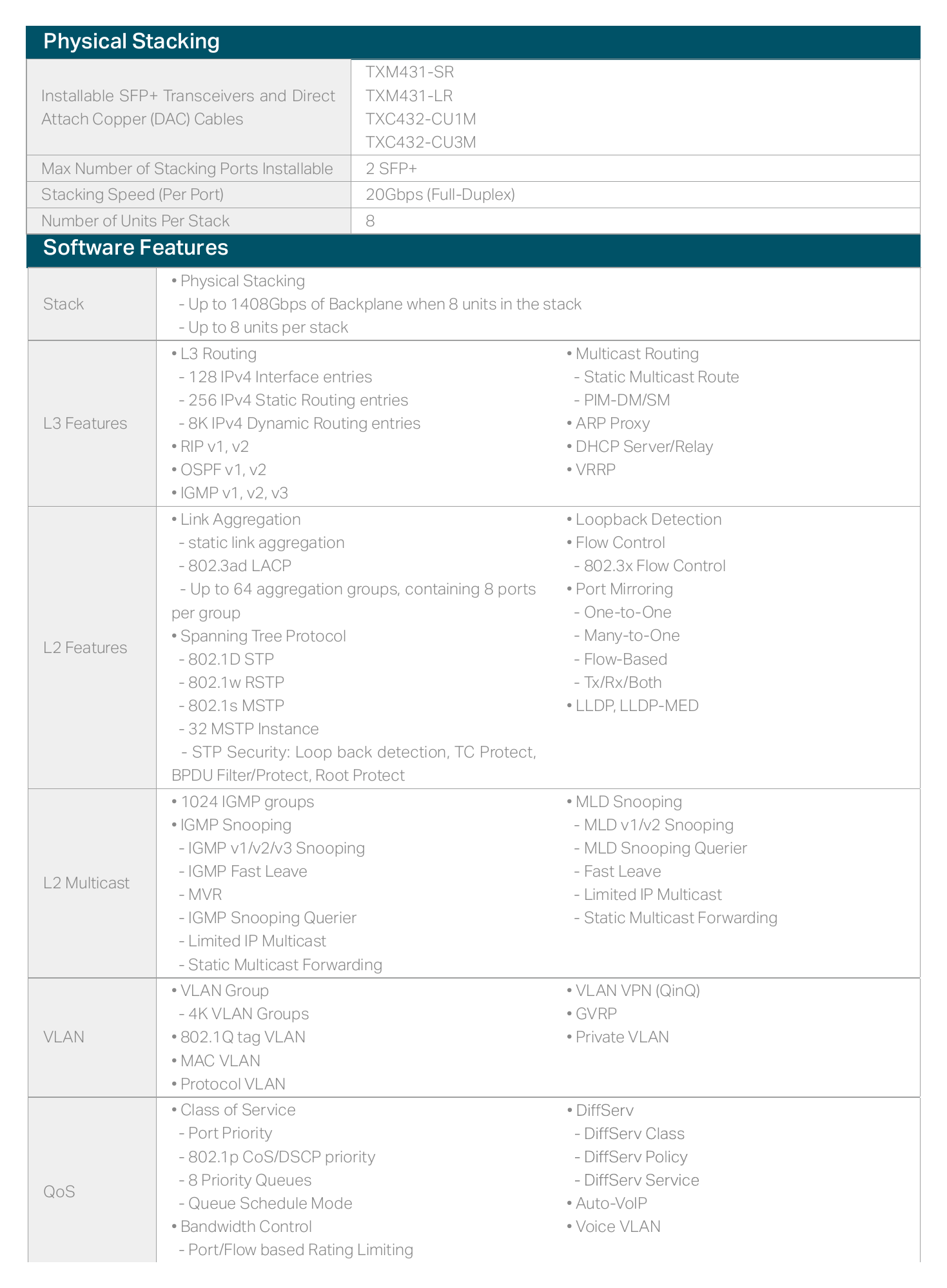

| Max Number of Stacking Ports Installable | 2 SFP+ |
|---|
| Stacking Speed (Per Port) | 20Gbps (Full-Duplex) |
|---|
| Number of Units Per Stack | 8 • Physical Stacking |
|---|
| Stack | - Up to 1408Gbps of Backplane when 8 units in the stack - Up to 8 units per stack |
|---|
| • L3 Routing | • Multicast Routing |
|---|
| - 128 IPv4 Interface entries | - Static Multicast Route |
|---|
| - 256 IPv4 Static Routing entries | - PIM-DM/SM |
|---|
| L3 Features | - 8K IPv4 Dynamic Routing entries • ARP Proxy |
|---|
| • RIP v1, v2 | • DHCP Server/Relay |
|---|
| • OSPF v1, v2 | • VRRP • IGMP v1, v2, v3 |
|---|
| • Link Aggregation | • Loopback Detection |
|---|
| - static link aggregation | • Flow Control |
|---|
| - 802.3ad LACP | - 802.3x Flow Control - Up to 64 aggregation groups, containing 8 ports • Port Mirroring |
|---|
| per group | - One-to-One |
|---|
| • Spanning Tree Protocol | - Many-to-One |
|---|
| - 802.1D STP | - Flow-Based |
|---|
| - 802.1w RSTP | - Tx/Rx/Both |
|---|
| - 802.1s MSTP | • LLDP, LLDP-MED - 32 MSTP Instance - STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect |
|---|
| • 1024 IGMP groups | • MLD Snooping |
|---|
| • IGMP Snooping | - MLD v1/v2 Snooping |
|---|
| - IGMP v1/v2/v3 Snooping | - MLD Snooping Querier |
|---|
| - IGMP Fast Leave | - Fast Leave |
|---|
| - MVR | - Limited IP Multicast |
|---|
| - IGMP Snooping Querier | - Static Multicast Forwarding - Limited IP Multicast - Static Multicast Forwarding |
|---|
| • VLAN Group | • VLAN VPN (QinQ) |
|---|
| - 4K VLAN Groups | • GVRP |
|---|
| VLAN | • 802.1Q tag VLAN • Private VLAN • MAC VLAN • Protocol VLAN • Class of Service - Port Priority - 802.1p CoS/DSCP priority - 8 Priority Queues |
|---|
| - Queue Schedule Mode | • Auto-VoIP |
|---|
| • Bandwidth Control | • Voice VLAN - Port/Flow based Rating Limiting - Storm Control |
|---|
| • Supports up to 3328 entries | • Extended IP ACL |
|---|
| • MAC ACL | - Source IP |
|---|
| - Source MAC | - Destination IP |
|---|
| - Destination MAC | - Fragment |
|---|
| - VLAN ID | - IP Protocol |
|---|
| ACL | - User Priority - TCP Flag |
|---|
| - EtherType | - TCP/UDP Port |
|---|
| • Standard IP ACL | - DSCP/IP TOS - Source IP - Destination IP • Time based ACL |
|---|
| • AAA | • 802.1X |
|---|
| • DHCP Snooping | - Port based authentication |
|---|
| • IP-MAC-Port Binding | - MAC(Host) based authentication |
|---|
| - Up to 32768 entries | - Guest VLAN |
|---|
| • ARP Inspection | - Support Radius authentication and accountability |
|---|
| • IP Source Guard | • MAC Filtering |
|---|
| 安全 | - Up to 1020 entries • Secure web management through HTTPS with |
|---|
| • Static/Dynamic Port Security | SSLv3/TLS1.0 |
|---|
| - Up to 64 MAC addresses per port | • Secure Command Line Interface(CLI) • Broadcast/Multicast/Unicast Storm Control management with SSHv1/SSHv2 - kbps/ratio/pps control mode • IP/Port/MAC based access control • DoS Defend |
|---|
| • Web-based GUI | • CPU Monitoring • Command Line Interface(CLI) through console • Cable Diagnostics |
|---|
| port, telnet | • Access Control |
|---|
| • SNMPv1/v2c/v3 | • SNTP |
|---|
| Management | • SNMP Trap/Inform • System Log |
|---|
| • RMON (1,2,3,9 groups) | • Dual Image |
|---|
| • DHCP Option82 | • IPv6 Management • PPPoE Circuit ID • HTTP/TFTP File Transfer |
|---|
| • MIB II (RFC1213) | • RMON2 MIB (RFC2021) |
|---|
| • Interface MIB (RFC2233) | • Radius Accounting Client MIB (RFC2620) |
|---|
| • Ethernet Interface MIB (RFC1643) | • Radius Authentication Client MIB (RFC2618) MIBs |
|---|
| • Bridge MIB (RFC1493) | • Remote Ping, Traceroute MIB (RFC2925) |
|---|
| • P/Q-Bridge MIB (RFC2674) | • Support TP-Link private MIBs • RMON MIB (RFC2819) |
|---|
