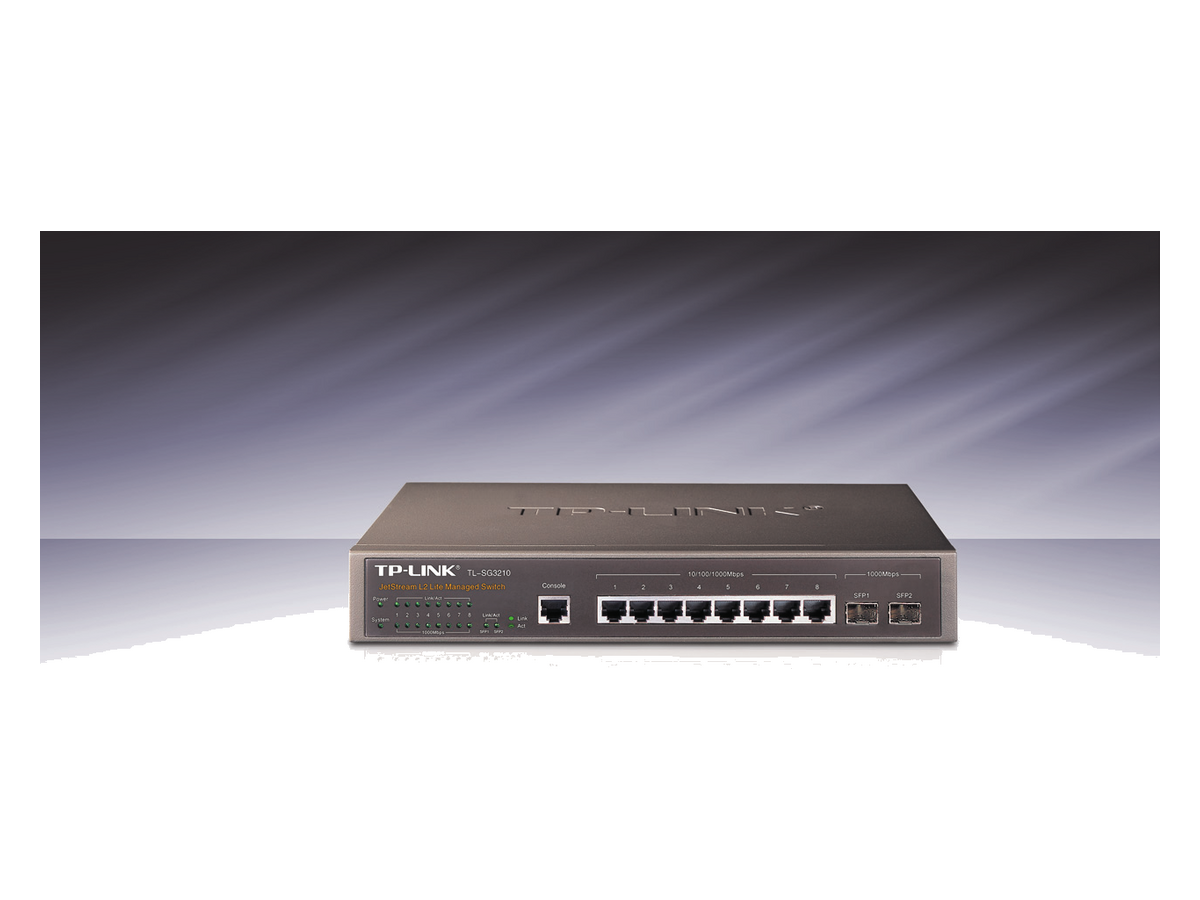

TP-LINK TL-SG3210-V1 網絡設備安裝・保養

Name: TP-LINK TL-SG3210-V1 TM
Brand: tp-link
SKU: TL-SG3210-V1

產品簡介

tp-link TL-SG3210-V1 為TM，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 TL-SG3210-V1 香港價格連安裝報價。

Connector：Gigabit SFP slots 2
Console Port：1
供電：100-240VAC, 50/60Hz
FAN Quantity：0
Certification：CE, FCC 11.7 × 7.1 × 1.7 in. (294 × 180 × 44 mm) Dimensions

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝WIFI、裝ROUTER、裝FIREWALL工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

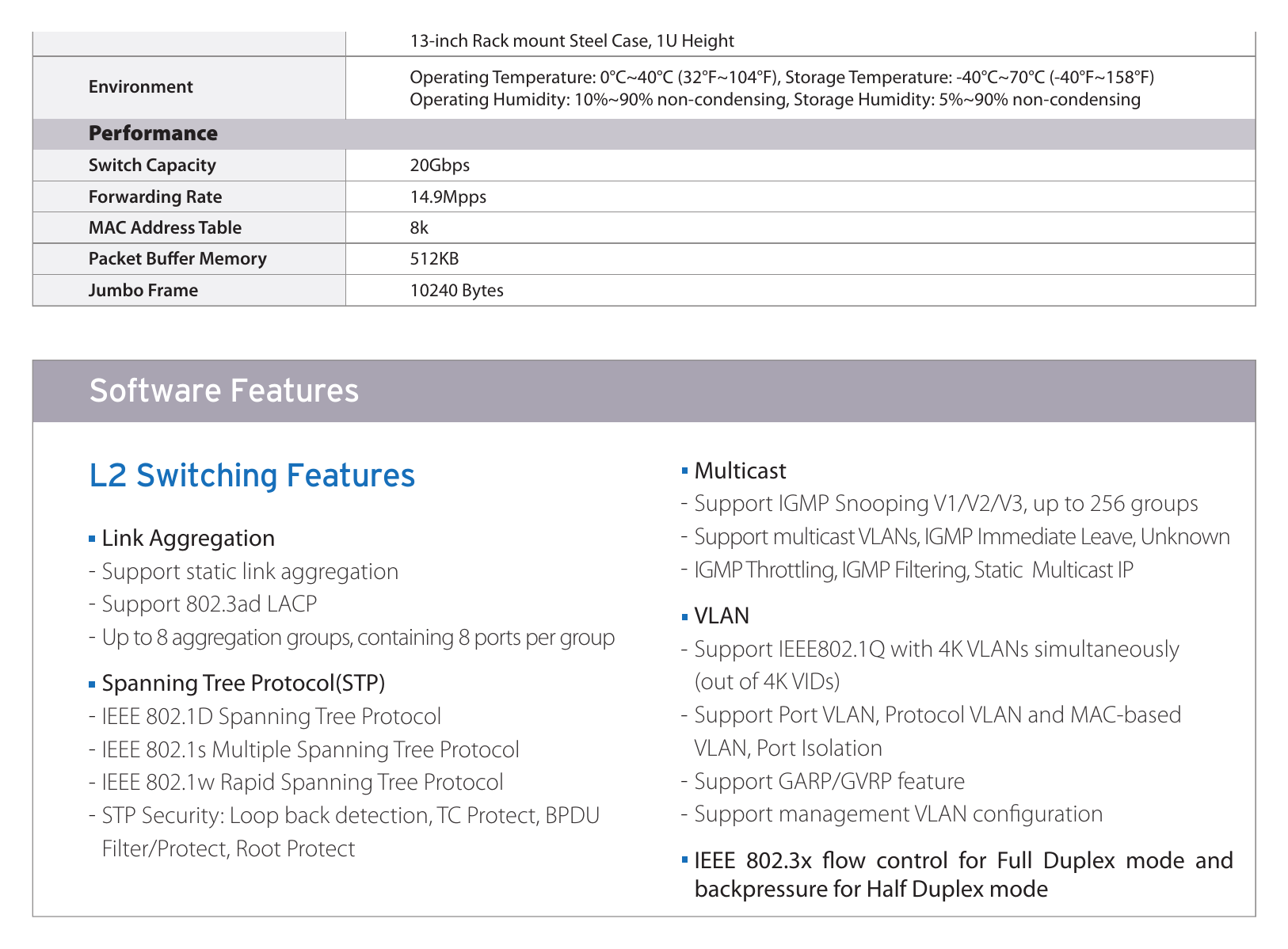

詳細規格

Connector	Gigabit SFP slots 2
Console Port	1
供電	100-240VAC, 50/60Hz
FAN Quantity	0
Certification	CE, FCC 11.7 × 7.1 × 1.7 in. (294 × 180 × 44 mm) Dimensions (W × D × H) 13-inch Rack mount Steel Case, 1U Height
Environment	Operating Temperature: 0°C~40°C (32°F~104°F), Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing Performance
Switch Capacity	20Gbps
Forwarding Rate	14.9Mpps
MAC 位址表	8k
Packet Buffer Memory	512KB
Jumbo Frame	10240 Bytes Software Features
L2 Switching Features	Multicast - Support IGMP Snooping V1/V2/V3, up to 256 groups
Link Aggregation	- Support multicast VLANs, IGMP Immediate Leave, Unknown
- Support static link aggregation	- IGMP Throttling, IGMP Filtering, Static Multicast IP - Support 802.3ad LACP VLAN - Up to 8 aggregation groups, containing 8 ports per group - Support IEEE802.1Q with 4K VLANs simultaneously
Spanning Tree Protocol(STP)	(out of 4K VIDs)
- IEEE 802.1D Spanning Tree Protocol	- Support Port VLAN, Protocol VLAN and MAC-based - IEEE 802.1s Multiple Spanning Tree Protocol VLAN, Port Isolation - IEEE 802.1w Rapid Spanning Tree Protocol - Support GARP/GVRP feature - STP Security: Loop back detection, TC Protect, BPDU - Support management VLAN configuration
Filter/Protect, Root Protect	IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
www.tp-link.com	Copyright © 2013 TP-LINK Technologies Co., Ltd. All rights reserved.
Quality of Service (QoS)	DHCP Option 82 CPU Monitoring
Support 802.1p CoS/DSCP priority	Port Mirroring (Many to One)
Support 4 priority queues	Cable Diagnostics feature
Queue scheduling: SP, WRR, SP+WRR	Ping/Tracert feature
Port/Flow- based Rate Limiting	SNTP Voice VLAN assure voice applications much smoother Integrated NDP/NTDP feature
performance	System Log
Advanced Security Strategies	Ethernet Protocols IP-MAC-Port-VID Binding IEEE 802.3i 10BASE-T Static/Dynamic Port Security (MAC-based) IEEE 802.3u 100BASE-TX/FX DoS defend feature IEEE 802.3ab 1000BASE-T Dynamic ARP Inspection IEEE 802.3z 1000BASE-X 802.1x authentication IEEE 802.3av GVRP - Support 802.1x port/MAC based authentication IEEE 802.3ad Link Aggregation - Support Radius authentication and accountability IEEE 802.3x
management with SSH v1/V2	MIB II (RFC1213) Interface MIB (RFC2233) Ethernet Interface MIB (RFC1643)
Management	Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) Support Web-based GUI management mode RMON MIB (RFC2819) Support Command Line Interface(CLI) through RMON2 MIB (RFC2021) console port, telnet management mode Radius Accounting Client MIB (RFC2620) SNMP v1/v2c/v3 Radius Authentication Client MIB (RFC2618) RMON (1, 2, 3, 9 groups) Remote Ping, Traceroute MIB (RFC2925) DHCP/BOOTP Client Support TP-LINK pr
Product Model	Description
TL-SG3210	JetStreamTM 8-Port Gigabit L2 Managed Switch with 2 SFP Slots SFP Modules
TL-SM311LS	Gigabit SFP module, Single-mode, LC interface, Up to 10km distance
TL-SM311LM	Gigabit SFP module, Multi-mode, LC interface, Up to 550m distance
TL-SM321A	Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX:1550nm/RX:1310nm, 10km
TL-SM321B	Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX:1310nm/RX:1550nm, 10km Media Converter
MC210CS	Gigabit single-mode SC SFP Transceiver, up to 15Km, chassis mountable
MC200CM	Gigabit multi-mode SC SFP Transceiver, up to 550m, chassis mountable
MC220L	Gigabit SFP slot supporting mini-GBIC modules, chassis mountable
MC1400	14-slot power supply chassis for TP-LINK Media Converter, 19-inch rack-mountable
