| Sensor | 1/2.9", progressive scan , 2.0 megapixel, CMOS Colour: 0.01 lux (F2.0, AGC ON) Min. Illumination 0 lux with IR |
|---|
| Day/Night | IR-cut filter with auto switch (ICR) |
|---|
| Shutter | Auto/Manual, 1~1/100000 s |
|---|
| Adjustment angle | Pan: 0°~352° Tilt: 0°~70° Rotate: 0°~350° |
|---|
| S/N | >52dB |
|---|
| WDR | DWDR |
|---|
| 鏡頭類型 | 2.8mm @F2.0 |
|---|
| Iris | Fixed |
|---|
| Field of View (H) | 101.1° |
|---|
| Field of View (V) | 55.0° |
|---|
| Field of View (D) | 111.0° |
|---|
| 鏡頭 | Detect(m) Observe(m) Recognize(m) Identify(m) DORI Distance 2.8mm 45.0 18.0 9.0 4.5 |
|---|
| IR Range | Up to 30m (98 ft) IR range |
|---|
| Wavelength | 850nm |
|---|
| IR On/Off Control | Auto/Manual |
|---|
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG |
|---|
| H.264 code profile | Baseline profile, Main profile, High profile Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; |
|---|
| Frame Rate | Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
|---|
| 視頻碼率 | 128 Kbps~6 Mbps |
|---|
| U-code | Support |
|---|
| OSD | Up to 4 OSDs |
|---|
| 隱私遮蔽 | Up to 4 areas |
|---|
| ROI | Up to 8 areas |
|---|
| Video stream | Dual streams |
|---|
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
|---|
| Digital noise reduction | 2D/3D DNR |
|---|
| Smart IR | Support |
|---|
| Flip | Normal/Vertical/Horizontal/180° |
|---|
| Dewarping | N/A |
|---|
| HLC | Support |
|---|
| BLC | Support |
|---|
| 除霧 | Digital Defog |
|---|
| Basic Detection | Human body detection, Motion detection, tampering alarm, audio detection |
|---|
| 一般功能 | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication |
|---|
| 音訊壓縮 | G.711U, G.711A |
|---|
| Audio Bitrate | 64 Kbps |
|---|
| 雙向語音 | N/A |
|---|
| Suppression | Support |
|---|
| 取樣率 | 8KHZ |
|---|
| Edge Storage | Micro SD, up to 128GB |
|---|
| 網絡儲存 | ANR,NAS(NFS) IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP |
|---|
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK |
|---|
| 用戶管理 | Up to 32 users. 2 user levels: administrator and common user |
|---|
| 安全 | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF EZStation |
|---|
| 客戶端 | EZView EZLive Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
|---|
| Wireless Standards | IEEE802.11b/g/n |
|---|
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
|---|
| Channel Bandwidth | 20 MHz Support 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM/HT |
|---|
| Transmit Power | 802.11g: 14±1.5dBm @54Mbps 802.11n: 12.5±1.5dBm @150Mbps 802.11b: -90dBm @11Mbps (Typical) |
|---|
| Receive Sensitivity | 802.11g: -75dBm @54Mbps (Typical) 802.11n: -74dBm @150Mbps(Typical) 802.11b: 11Mbps |
|---|
| Transmission Rate | 802.11g: 54Mbps 802.11n: up to 150Mbps |
|---|
| Audio I/O | N/A |
|---|
| Alarm I/O | N/A |
|---|
| RS485 | N/A |
|---|
| Built-in Mic | Support |
|---|
| Built-in Speaker | N/A |
|---|
| WIFI | Support |
|---|
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
|---|
| Video Output | N/A CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: |
|---|
| EMC | 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) FCC ID (FCC CFR 47 part15 C) CE RED (EN 62311: 2008, EN 300 328 V2.2.2(2019-07), EN 301489-1 V2.2.3(2019-11), ETSI EN 301 489-17 V3.2.4(2020-09)) CE LVD (EN 62368-1:2014+A11:2017) |
|---|
| Safety | CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
|---|
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) Protection IK10 (IEC 62262:2002) DC 12V±25% Power Power consumption: Max 4.0W |
|---|
| 電源接口 | Ø 5.5mm coaxial power plug |
|---|

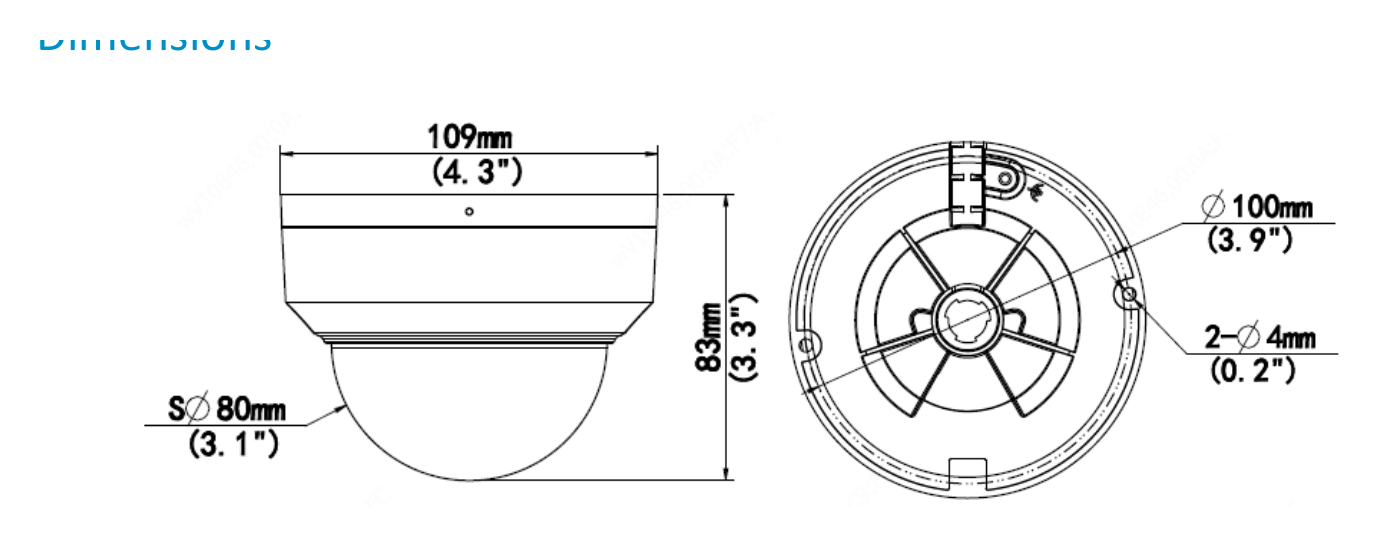

| Dimensions (Ø x H) | Φ109 x 83 mm (Ø 4.29” x 3.3”) |
|---|
| 重量 | 0.32 kg (0.71 lb) |
|---|
| 材質 | Metal + Plastic |
|---|
| Working Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing) |
|---|
| Strorage Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing) |
|---|
| 防雷 | 4KV |
|---|
| Reset Button | Support |
|---|
| TR-JB03-G-IN | TR-JB07/WM03-G-IN TR-WM03-D-IN TR-UM06-E-IN |
|---|
| Junction Box | Wall Mount Wall Mount cline Ceiling Mount |
|---|
| TR-UP06-IN | TR-A01-IN TR-SE24-IN TR-SE24-A-IN |
|---|
| Pole Mount | Waterproof Joint Pendant Mount Pendant Mount TR-CM24-IN Pendant Mount |
|---|
| Junction Mount | Pole Mount |
|---|
| TR-UM06-E-IN | TR-JB07/WM03-G-IN+TR-UP06-IN TR-CM24-IN+TR-JB03-G-IN |
|---|
