UNIVIEW EXC2614S-X33-W-VD2 CCTV攝影機安裝・保養

Name: UNIVIEW EXC2614S-X33-W-VD2 Bullet Camera
Brand: Uniview
SKU: EXC2614S-X33-W-VD2

產品簡介

Uniview EXC2614S-X33-W-VD2 為Bullet Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 EXC2614S-X33-W-VD2 香港價格連安裝報價。

Max Resolution：4 MP
Sensor：1/1.8" CMOS Colour: 0.002 lux (F1.5, AGC ON)
最低照度：B/W: 0.001 lux(F1.5,AGC ON) 0 lux with IR
Day/Night：IR-cut filter with auto switch (ICR)
Shutter：Auto/Manual, 1 to 1/100000 s

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

EXC2614S-X33-W-VD2 Uniview Bullet Camera 產品圖片

詳細規格

Max Resolution	4 MP
Sensor	1/1.8" CMOS Colour: 0.002 lux (F1.5, AGC ON)
最低照度	B/W: 0.001 lux(F1.5,AGC ON) 0 lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
S/N	> 56 dB
WDR	120 dB
焦距	6.5 to 214.5 mm
Optical Zoom	33X
Iris	F1.5 to F5.19
Field of View (H)	56.7°(W)~2.60°(T)
Field of View (V)	33.8°(W)~1.46°(T)
Field of View (D)	66.9°(W)~3.20°(T)
DORI Distance (Detect)	110.2 m ~ 2668.2 m (361.5 ft ~ 8753.9 ft)
DORI Distance (Observe)	44.1 m ~ 1067.3 m (144.6 ft ~ 3501.6 ft)
DORI Distance (Recognize)	22.0 m ~ 533.6 m (72.3 ft ~ 1750.8 ft)
DORI Distance (Identify)	11.0 m ~ 266.8 m (36.1 ft ~ 875.4 ft)
Light On/Off Control	Auto/Manual
Illumination Distance (IR)	200 m (656.2 ft.) Main Stream: 4MP (2688×1520): Max.30fps; Sub Stream: 2MP (1920×1080): Max.30fps;
Video Resolution	Third Stream: D1(720 x 576): Max.30fps; Fourth Stream: D1(720 x 576): Max.30fps; Fifth Stream: D1(720 x 576): Max.30fps;
視頻壓縮	H.265, H.264, MJPEG
視頻碼率	128 Kbps to 16 Mbps
OSD	Up to 10 OSDs
隱私遮蔽	24 areas, up to 8 areas per scene
ROI	Support
U-code	Support
Video Stream	Triple streams
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
HLC	Support
BLC	Support
除霧	Digital defog
防抖	EIS (Gyroscope) Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
音訊壓縮	G.711U, G.711A
Audio Bitrate	128 Kbps
雙向語音	Support
Suppression	Support
取樣率	8 kHz, 16 kHz
Basic Detection	Motion detection, Tampering alarm, Audio detection, Custom Event Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output Micro SD, up to 512 GB*You are recommended to purchase memory card together with the
Edge Storage	product if needed. After ordering, the memory card will be installed to product during manufacturing.
網絡儲存	ANR, NAS (NFS) IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH
Compatible Integration	SDK, ONVIF (Profile S, Profile G, Profile T, Profile M)
客戶端	EZStation, UNV-Link, UNV-Link Pro
瀏覽器	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
用戶管理	Up to 32 users. 3 user levels: administrator, common user and operator
Home Position	Support
Number of Patrol	16
Number of Presets (IPC)	1024
Serial Port	1 × RS485
Audio I/O	1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O	7/2
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Storage Environment	-40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
供電	AC220V(100~240V),POE(IEEE802.3at)
功耗	25.3 W
電源接口	Wires with cold-pressed terminal
尺寸	395.4 mm× 265.9 mm× 150 mm ( 15.57"× 10.47"× 5.91")
重量	9.79 kg（21.58 lb）
Working Environment	-40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
防雷	6 KV
Reset Button	Support
RTC	Support
防護等級	IP68 CE EMC: EN 55032 EN IEC 61000-3-2 EN 61000-3-3 EN 50130 CE LVD: EN IEC 62368-1 ATEX: EN IEC 60079-0 EN 60079-1 IEC 60079-31 IECEX: IEC 60079-0 IEC 60079-1 IEC 60079-31 CE RoHS: 2011/65/EU (EU) 2015/863 WEEE: 2012/19/EU
Maximum Bandwidth	50 Mbps
OSD Character Number	40
Maximum Bitstream	35
Plugin Free	Support
OSD Font	Vector
OSD Color	Support
NDAA Compliant	Support
TR-WM06-L-H	TR-JB13-L TR-JB16-L
Explosion-proof Control Box	Explosion-proof Control Box Bullet(316L) TR-FP10-L Explosion-proof Flexible Tube(316L,M25-M25,1m) Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China

* 規格以原廠最新 Datasheet 為準。

下載完整PDF規格書 →

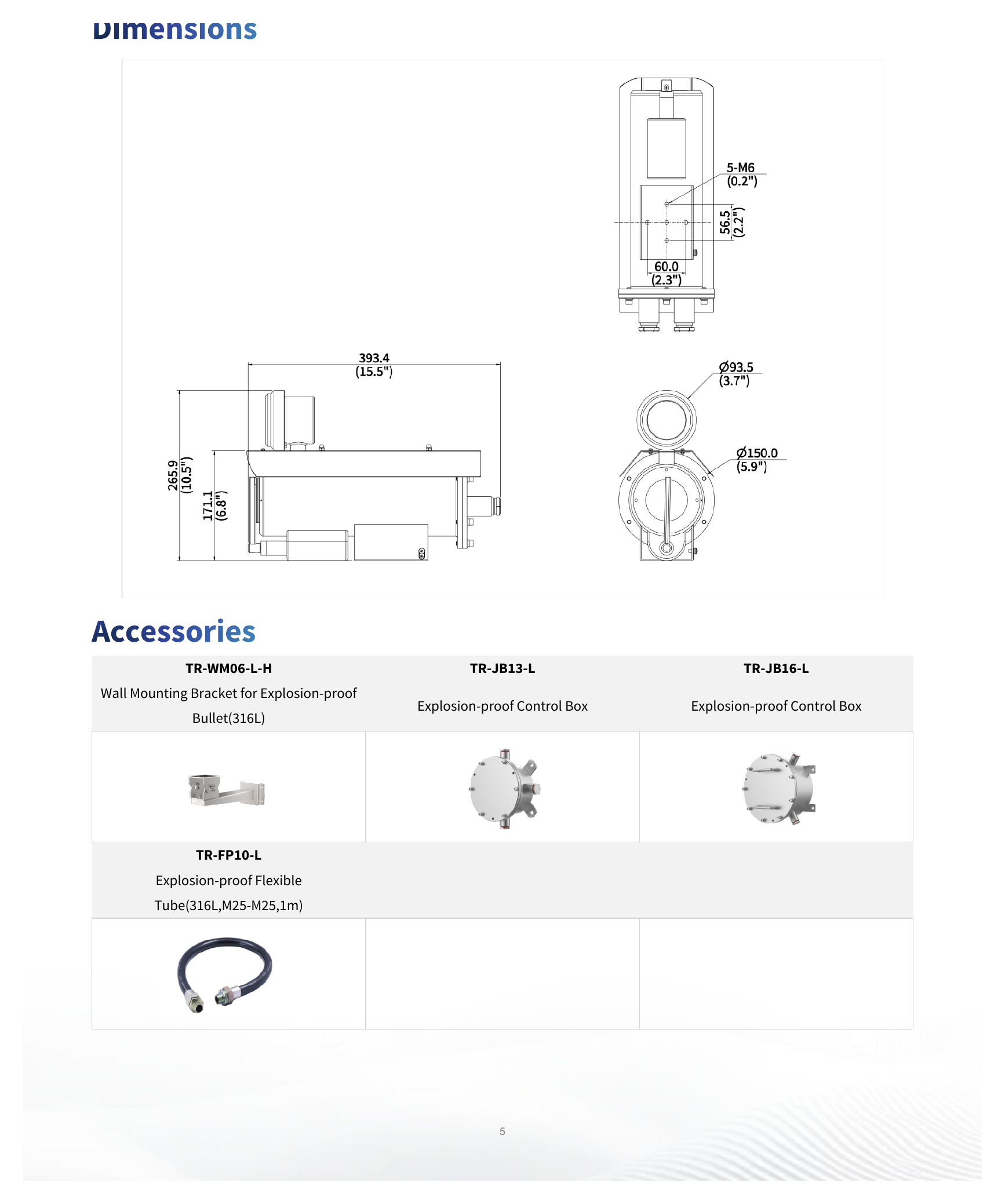

外形尺寸

395.4 mm× 265.9 mm× 150 mm ( 15.57"× 10.47"× 5.91")｜重量 9.79 kg（21.58 lb）｜Unit: mm

CCTV 監控安裝工程服務

HKEZIT 專營裝CAM、裝CCTV、裝監控工程，EXC2614S-X33-W-VD2 由我們供貨、安裝、調試到使用教學一站式完成。無論裝CAM、裝CCTV或裝監控，均由自家工程團隊上門施工，品質有保證。

裝CAM 裝CCTV 裝監控

CCTV 監控適合邊類專業客戶

EXC2614S-X33-W-VD2 Uniview Bullet Camera亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。

律師事務所

客戶機密文件與會議記錄保安需求高，門禁分級、CCTV存證、通話錄音缺一不可。

WhatsApp 查詢 →

私人銀行／財富管理

貴賓客戶室高保安等級佈點，配合監管合規存證，出入口身份記錄嚴謹。

WhatsApp 查詢 →

牙科診所

診症室私隱合規佈點、X光及貴重牙科儀器防盜，配合預約系統減少候診糾紛。

WhatsApp 查詢 →

獸醫診所

手術室同住院動物籠舍監控，主人可遠端查看住院寵物，醒晚更觀察狀態。

WhatsApp 查詢 →

保險經紀行

客戶會面室簽單過程存證，減少銷售爭議，配合保監局合規要求。

WhatsApp 查詢 →

兒科診所

候診區同診症室監控兼顧家長安心同私隱，貴重醫療儀器防盜。

WhatsApp 查詢 →

常見問題

EXC2614S-X33-W-VD2 香港哪裡有代理？

HKEZIT 提供原廠行貨連保養，EXC2614S-X33-W-VD2 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。

此型號如何供電及駁線？

支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。

錄影可以儲存多久、如何遠程監看？

儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。

EXC2614S-X33-W-VD2 定 PKC1150-4-Z28-C-P 邊個好？

兩者主要規格分別：Shutter方面，EXC2614S-X33-W-VD2 係 Auto/Manual, 1 to 1/100000 s，PKC1150-4-Z28-C-P 係 1/100000 to 1/25s；焦距方面，EXC2614S-X33-W-VD2 係 6.5 to 214.5 mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens；視頻壓縮方面，EXC2614S-X33-W-VD2 係 H.265, H.264, MJPEG，PKC1150-4-Z28-C-P 係 H.264 (default), H.265。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
