| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS Colour: 0.01lux (F2.0, AGC ON) 0 lux with IR on |
|---|
| Day/Night | IR-cut filter with auto switch (ICR) |
|---|
| Shutter | Auto/Manual, 1 ~ 1/100000s |
|---|
| Adjustment angle | Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360° |
|---|
| WDR | 120dB |
|---|
| S/N | >56dB |
|---|
| 鏡頭類型 | 1.68mm@F2.0 |
|---|
| Iris | Fixed |
|---|
| Field of View (H) | 180° |
|---|
| Field of View (V) | 100° |
|---|
| Field of View (O) | 180° |
|---|
| Lens (mm) | Detect (m) Observe (m) Recognize (m) Identify (m) 1.68 37.8(124.0ft) 15.1(49.6ft) 7.6(24.8ft) 3.8(12.4ft) |
|---|
| IR Range | Up to 20m (66ft) IR range |
|---|
| Wavelength | 850nm |
|---|
| IR On/Off Control | Auto/Manual |
|---|
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG |
|---|
| H.264 code profile | Baseline profile, Main profile, High profile Main Stream: 5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 1280*720 Max 30fps |
|---|
| Frame Rate | Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
|---|
| 視頻碼率 | 128 Kbps~16 Mbps |
|---|
| U-code | Support |
|---|
| OSD | Up to 8 OSDs |
|---|
| 隱私遮蔽 | Up to 4 areas |
|---|
| ROI | Up to 8 areas |
|---|
| Video Stream | Triple streams |
|---|
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
|---|
| Digital Noise Reduction | 2D/3D DNR |
|---|
| Smart IR | Support |
|---|
| Flip | Normal/ Flip Vertical/ Flip Horizontal/180° |
|---|
| Dewarping | Support |
|---|
| HLC | Support |
|---|
| BLC | Support |
|---|
| 除霧 | Digital Defog |
|---|
| Smart intrusion prevention | Support false alarm filtering: Line crossing detection, Intrusion detection, Enter Area detection, Leave Area detection |
|---|
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
|---|
| 一般功能 | Watermark, IP address filtering, Tampering alarm, Access policy, ARP protection, RTSP authentication, User authentication |
|---|
| 音訊壓縮 | G.711U, G.711A |
|---|
| Audio Bitrate | 64 Kbps |
|---|
| 雙向語音 | N/A |
|---|
| Suppression | Support |
|---|
| 取樣率 | 8KHZ |
|---|
| Edge Storage | Micro SD, up to 256GB |
|---|
| 網絡儲存 | ANR, NAS(NFS) IPv4,IPv6, IGMP,, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
|---|
| Compatible Integration | ONVIF (Profile S, Profile T, Profile G), API,SDK |
|---|
| 用戶管理 | Up to 32 users. 3 user levels: administrator, common user and operator Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2 , WSSE and digest authentication for ONVIF EZStation |
|---|
| 客戶端 | EZView EZLive Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
|---|
| Audio I/O | N/A |
|---|
| Alarm I/O | N/A |
|---|
| Serial Port | N/A |
|---|
| Built-in Mic | Support |
|---|
| Built-in Speaker | N/A |
|---|
| WIFI | N/A |
|---|
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
|---|
| Video Output | N/A CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) CE LVD (EN 62368-1) |
|---|
| Safety | CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
|---|
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
|---|
| 防護等級 | IP67 (IEC 60529) DC 12V±25%, PoE (IEEE 802.3af) Power Power consumption: Max 5.5W |
|---|
| 電源接口 | Ø 5.5mm coaxial power plug |
|---|

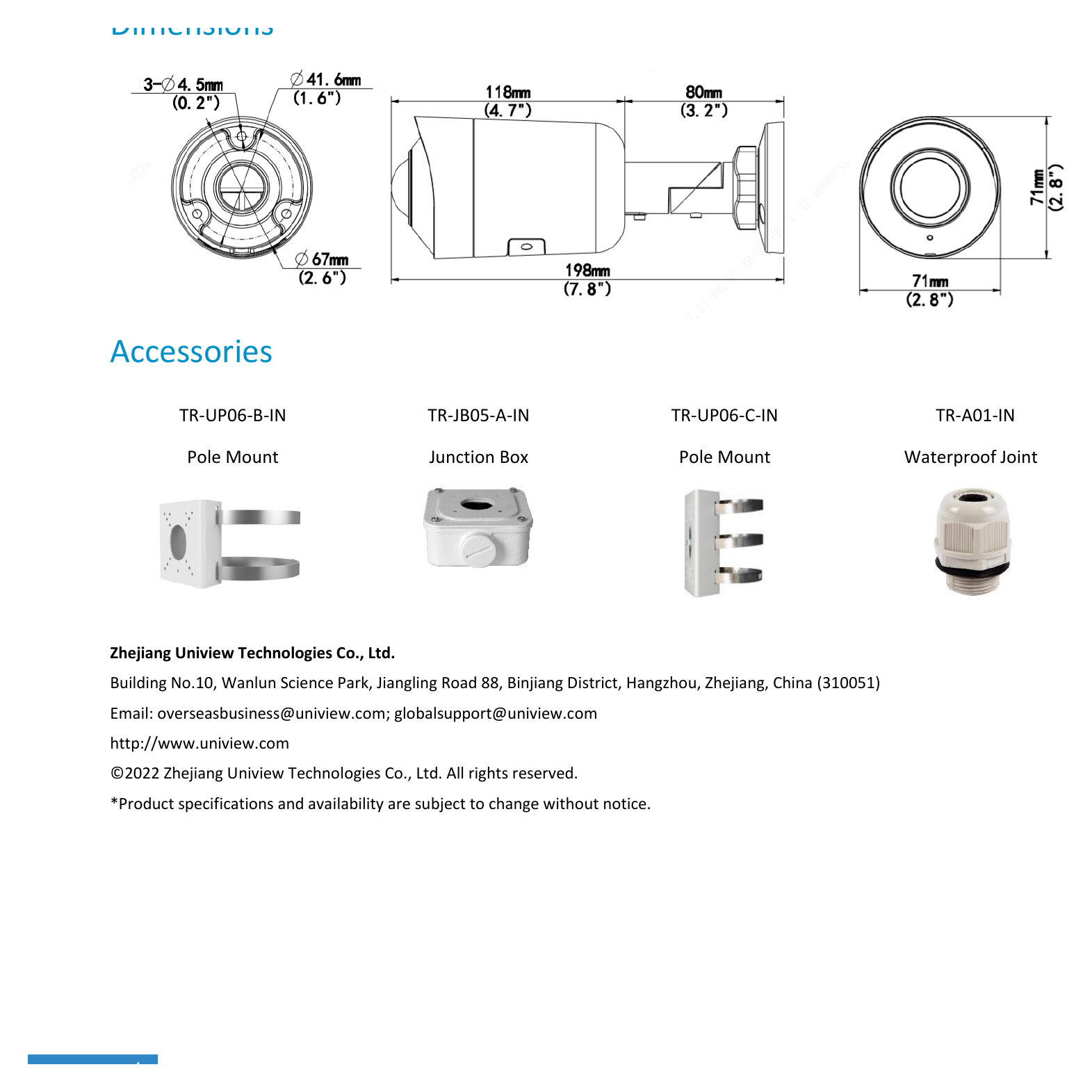

| Dimensions (L × W × H) | 198× 71 × 71mm (7.8” × 2.8” × 2.8”) |
|---|
| 重量 | 0.42kg (0.93lb) |
|---|
| 材質 | Metal |
|---|
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
|---|
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
|---|
| 防雷 | 4KV |
|---|
| Reset Button | Support |
|---|
| TR-UP06-B-IN | TR-JB05-A-IN TR-UP06-C-IN TR-A01-IN |
|---|
| Pole Mount | Junction Box Pole Mount Waterproof Joint |
|---|
