| IPC2124SB-ADF28KM-I0 | IPC2124SB-ADF40KM-I0 |
|---|
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS Colour: 0.002 lux (F1.6, AGC ON) 0 lux with IR on |
|---|
| Day/Night | IR-cut filter with auto switch (ICR) |
|---|
| Shutter | Auto/Manual, 1 ~ 1/100000s |
|---|
| Adjustment angle | Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360° |
|---|
| WDR | 120dB |
|---|
| S/N | >56dB |
|---|
| 鏡頭 | 2.8mm@F1.6 4.0mm@F1.6 |
|---|
| Iris | Fixed |
|---|
| Field of View (H) | 101.1° 83.7° |
|---|
| Field of View (V) | 55.3° 44.9° |
|---|
| Field of View (D) | 111.1° 89.2° |
|---|
| Lens (mm) | Detect (m) Observe (m) Recognize (m) Identify (m) |
|---|
| DORI Distance | 2.8 63.0 25.2 12.6 6.3 4.0 90.0 36.0 18.0 9.0 |
|---|
| IR Range | Up to 40m (131 ft) IR range |
|---|
| Wavelength | 850nm |
|---|
| IR On/Off Control | Auto/Manual |
|---|
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG |
|---|
| H.264 code profile | Baseline profile, Main profile, High profile Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
|---|
| 視頻碼率 | 128 Kbps~16 Mbps |
|---|
| U-code | Support |
|---|
| OSD | Up to 8 OSDs |
|---|
| 隱私遮蔽 | Up to 4 areas |
|---|
| ROI | Up to 8 areas |
|---|
| Video Stream | Triple streams |
|---|
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
|---|
| Digital Noise Reduction | 2D/3D DNR |
|---|
| Smart IR | Support |
|---|
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
|---|
| Dewarping | N/A |
|---|
| HLC | Support |
|---|
| BLC | Support |
|---|
| 除霧 | Digital Defog |
|---|
| Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection |
|---|
| Statistical Analysis | People counting, support people flow counting and crowd density monitoring |
|---|
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
|---|
| 一般功能 | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, User authentication |
|---|
| 音訊壓縮 | G.711U, G.711A |
|---|
| Audio Bitrate | 64 Kbps |
|---|
| 雙向語音 | N/A |
|---|
| Suppression | Support |
|---|
| 取樣率 | 8KHZ |
|---|
| Edge Storage | Micro SD, up to 256GB |
|---|
| 網絡儲存 | ANR, NAS(NFS) IPv4, IPv6 ,IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH |
|---|
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK |
|---|
| 用戶管理 | Up to 32 users. 2 user levels: administrator and common user Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF EZStation |
|---|
| 客戶端 | EZView EZLive Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
|---|
| Audio I/O | N/A |
|---|
| Alarm I/O | N/A |
|---|
| RS485 | N/A |
|---|
| Built-in Mic | Support |
|---|
| Built-in Speaker | N/A |
|---|
| WIFI | N/A |
|---|
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
|---|
| Video Output | N/A CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: |
|---|
| EMC | 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) CE LVD (EN 62368-1:2014+A11:2017) |
|---|
| Safety | CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
|---|
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
|---|
| 防護等級 | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 4.0W |
|---|
| 電源接口 | Ø 5.5mm coaxial power plug |
|---|

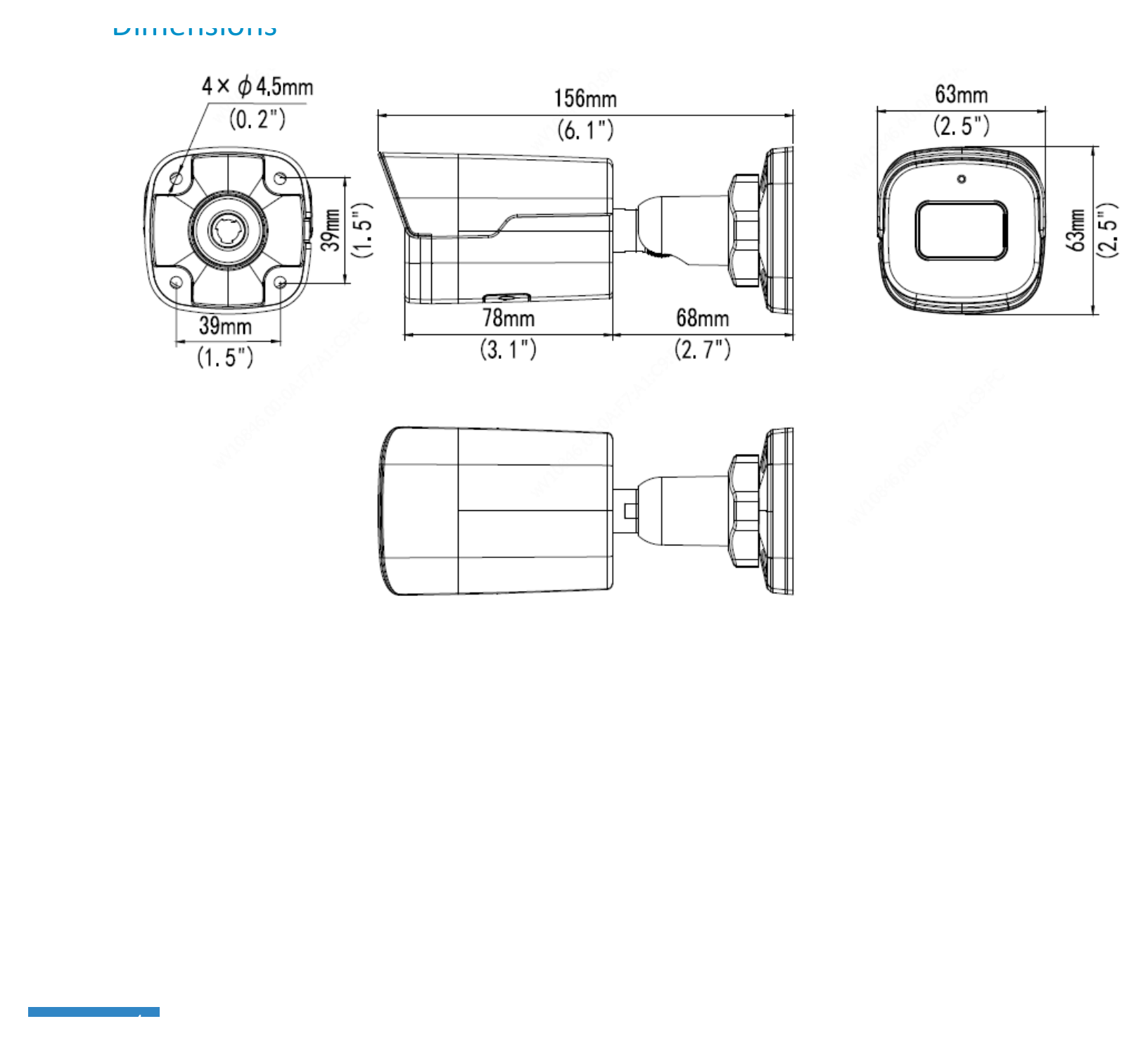

| Dimensions (L × W × H) | 155.9 × 63.1 × 62.7mm (6.1” × 2.5” × 2.5”) |
|---|
| 重量 | 0.42kg (0.93lb) |
|---|
| 材質 | Metal |
|---|
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
|---|
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
|---|
| 防雷 | 4KV |
|---|
| Reset Button | Support |
|---|
| TR-UP06-B-IN | TR-JB05-A-IN TR-UP06-C-IN TR-A01-IN |
|---|
| Pole Mount | Junction Box Pole Mount Waterproof Joint |
|---|
