| IPC2124SR3-ADF28KMC-DL | IPC2124SR3-ADF40KMC-DL |
|---|
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS Colour: 0.003Lux ( F1.6, AGC ON) 0Lux with light |
|---|
| Day/Night | IR-cut filter with auto switch (ICR) |
|---|
| Shutter | Auto/Manual, 1 ~ 1/100000s |
|---|
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
|---|
| S/N | >52dB |
|---|
| WDR | 120dB |
|---|
| 鏡頭類型 | 2.8mm and 4.0mm @1.6, Fixed-focal |
|---|
| 鏡頭接口 | M12 |
|---|
| Angle Of View (H) | 112.9° 91.2° |
|---|
| Angle Of View (V) | 59.1° 47.9° |
|---|
| Angle Of View (O) | 121.2° 95.9° |
|---|
| Lens (mm) | Detect (m) Observe (m) Recognize (m) Identify (m) |
|---|
| DORI Distance | 2.8 63.0 25.2 12.6 6.3 4.0 90.0 36.0 18.0 9.0 |
|---|
| IR Range | Up to 30m (98ft) IR range |
|---|
| 白光距離 | Up to 30m (98ft) white light range |
|---|
| Wavelength | IR：850nm |
|---|
| IR On/Off Control | Auto/Manual |
|---|
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG |
|---|
| H.264 Code Profile | Baseline profile, Main profile, High profile Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P |
|---|
| Frame Rate | (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; |
|---|
| 視頻碼率 | 128 Kbps~16 Mbps |
|---|
| U-code | Supported Up to 4 OSDs |
|---|
| 隱私遮蔽 | Up to 4 areas |
|---|
| ROI | Up to 8 areas |
|---|
| Motion Detection | Up to 4 areas |
|---|
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
|---|
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser |
|---|
| Digital Noise Reduction | 2D/3D DNR |
|---|
| Smart IR | Supported |
|---|
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
|---|
| Dewarping | N/A |
|---|
| HLC | Supported |
|---|
| BLC | Supported |
|---|
| 除霧 | Digital Defog Cross line, intrusion(based on human body detection) motion detection, tampering alarm, audio detection |
|---|
| 一般功能 | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication |
|---|
| 音訊壓縮 | G.711 |
|---|
| Suppression | Supported |
|---|
| 取樣率 | 8KHZ |
|---|
| Edge Storage | Micro SD, up to 128GB |
|---|
| 網絡儲存 | ANR, NAS(NFS) IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP |
|---|
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK |
|---|
| 用戶管理 | Up to 32 users. 2 user levels: administrator and common user |
|---|
| 安全 | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF EZStation |
|---|
| 客戶端 | EZView EZLive Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ |
|---|
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
|---|
| Built-in Mic | Supported |
|---|
| Built-in Speaker | Supported |
|---|
| EMC | FCC: FCC Part 15 CE: EN 60950-1 |
|---|
| Safety | UL: UL60950-1 IEC 60950-1 DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 9.0W |
|---|
| 電源接口 | Ø 5.5mm coaxial power plug |
|---|

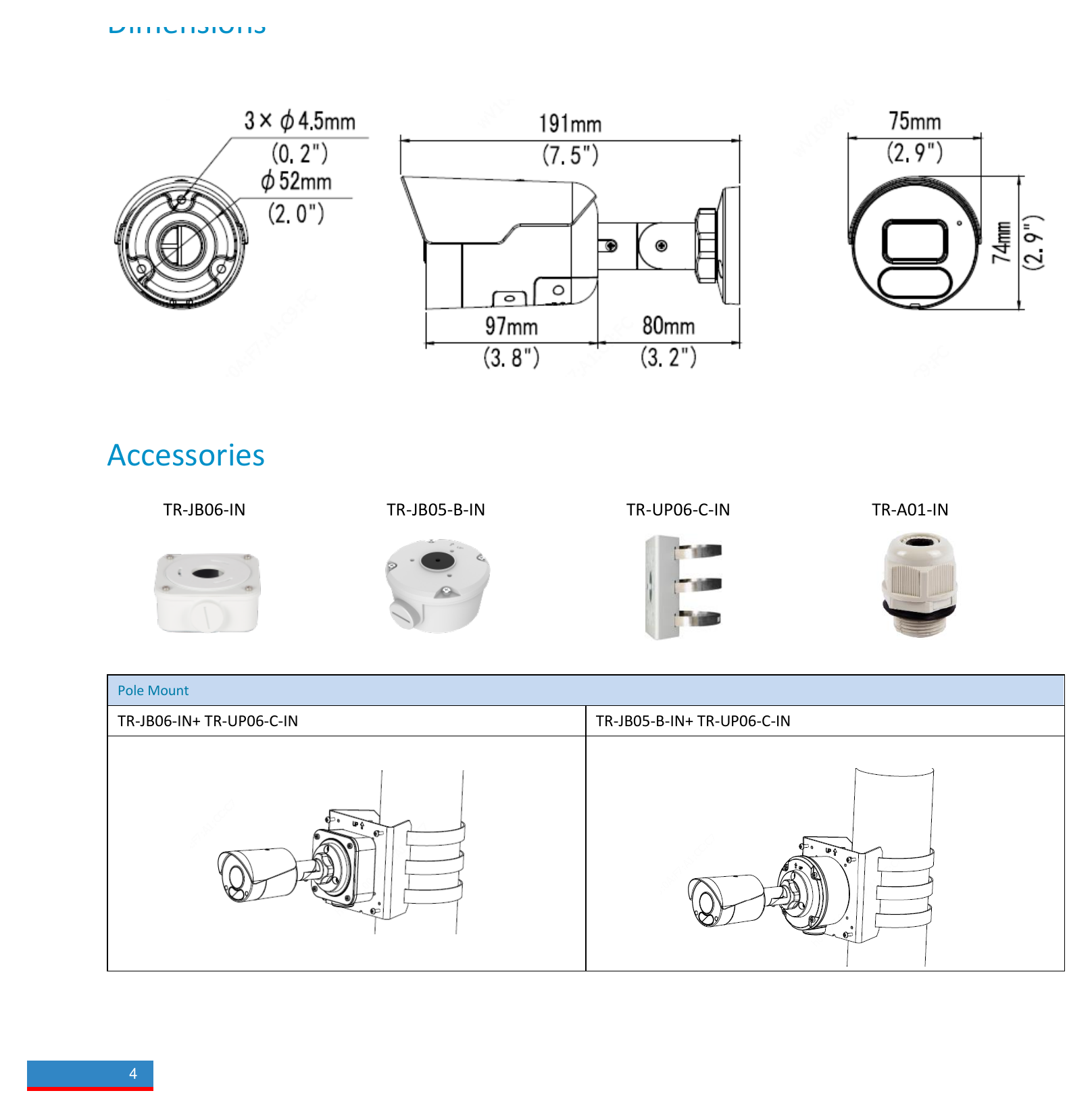

| Dimensions(L × W × H) | 191×75×74mm (7.5”×2.9”×2.9”) |
|---|
| 重量 | 0.41kg (0.90lb) |
|---|
| 材質 | Metal |
|---|
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
|---|
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
|---|
| 防雷 | 4KV |
|---|
| Reset Button | N/A |
|---|
| 防護等級 | Ingression protection: IP67 |
|---|
| TR-JB06-IN | TR-JB05-B-IN TR-UP06-C-IN TR-A01-IN |
|---|
| TR-JB06-IN+ TR-UP06-C-IN | TR-JB05-B-IN+ TR-UP06-C-IN |
|---|
