UNIVIEW IPC268EA-AHDZK-I1 CCTV攝影機安裝・保養

Name: UNIVIEW IPC268EA-AHDZK-I1 IPC268EA
Brand: Uniview
SKU: IPC268EA-AHDZK-I1

產品簡介

Uniview IPC268EA-AHDZK-I1 為IPC268EA，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC268EA-AHDZK-I1 香港價格連安裝報價。

Max Resolution：8 MP
Sensor：1/1.8" CMOS Color: 0.001 Lux (F1.2, AGC ON), BW: 0.0005 Lux
Day/Night：IR-cut filter with auto switch (ICR)
Shutter：Auto/Manual, 1 to 1/100000 s
WDR：140 dB

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

Max Resolution	8 MP
Sensor	1/1.8" CMOS Color: 0.001 Lux (F1.2, AGC ON), BW: 0.0005 Lux Color: 0.003 Lux (F1.6, AGC ON), BW: 0.002 Lux (F1.2, AGC ON), 0 Lux with IR (F1.6, AGC ON), 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
WDR	140 dB
S/N	>56 dB
焦距	2.8 to 12 mm 8 to 32 mm
Optical Zoom	4X
Iris	F1.2 F1.6
Field of View (H)	102.5° to 48.5° 42° to 15.3°
Field of View (V)	55.1° to 27.2° 22.6° to 8.8°
Field of View (D)	126.08° to 59.66° 51.66° to 18.05°
光圈類型	P-iris
DORI Distance (Detect)	108.0 m to 180.0 m (354.3 ft. to 590.6 ft.) 240.3 m to 644.4 m (788.4 ft. to 2114.2 ft.)
DORI Distance (Observe)	43.2 m to 72.0 m (141.7 ft. to 236.2 ft.) 96.1 m to 257.8 m (315.4 ft. to 845.7 ft.)
DORI Distance (Recognize)	21.6 m to 36.0 m (70.9 ft. to 118.1 ft.) 48.1 m to 128.9 m (157.7 ft. to 422.8 ft.)
DORI Distance (Identify)	10.8 m to 18.0 m (35.4 ft. to 59.1 ft.) 24.0 m to 64.4 m (78.7 ft. to 211.4 ft.)
視頻壓縮	Ultra 265, H.265, H.264, MJPEG
視頻碼率	128 Kbps to 16 Mbps
ROI	Support
Video Stream	Triple streams
隱私遮蔽	Up to 8 areas (8 blacks / 8 mosaics)
OSD	Up to 10 OSDs
Frame Rate-Main Stream	8 MP (3840 × 2160), max. 60 fps
Frame Rate-Sub Stream	1080P (1920 × 1080), max. 60 fps
Frame Rate-Third Stream	D1 (720 × 576), max. 60 fps
Recognition	Face recognition: Max support 16 face libraries; Max supports 100000 faces in face library Support human body, human face, motor vehicle and non-motor vehicle image capture and attribute collection Object Removed,Object Left Behind\|Scene
Exception Detection	Object Removed,Object Left Behind change\|Defocus detection
Metadata of Multi-target	Gender (face), Age range (face), Glasses (face), Gender (pedestrian), Mask (pedestrian), Uppper
Detection	garment color (pedestrian), Lower garment color (pedestrian), Uppper garment style (pedestrian), Lower garment style (pedestrian), Bag style (pedestrian), Uppper garment color (non-montor vehicle), Uppper garment style (non-montor vehicle), Vehicle type (non-montor vehicle), Vehicle type (motor vehicle), Vehicle color (motor vehicle), Vehicle brand (motor vehicle), Plate number (motor vehicle) Cro
People Counting	Support people flow counting and crowd density detection Support human body, human face, motor vehicle and non-motor vehicle image capture and attribute collection North America: United States, Canada;South America: Mexico, Brazil; EU: France, Spain, Portugal, Germany, UK, Ireland, Bulgaria, Latvia, Romania, Slovenia, Poland, Hungary, Serbia, Czech Republic, Slovakia, Bosnia and Herzegovina, Greec
Supports Multiple Countries	Pacific: South Korea, Indonesia, Malaysia, Singapore, Viet Nam, Bangladesh, India, Nepal, Philippines, Thailand, Cambodia;Middle East: Iraq, Saudi Arabia, United Arab Emirates, Egypt, Qatar, Tunisia, Yemen; Kuwait, Oman, Bahrain; Middle Asia: Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Turkmenistan
White Balance	Auto&Outdoor&Fine Tune&Sodium Lamp&Locked&Auto2
Digital Noise Reduction	2D/3D DNR
Flip	Normal&Flip Vertical&Flip Horizontal&180°&90°Clockwise&90°Anti-clockwise
HLC	Support
BLC	Support
Smart IR	Support
除霧	Digital defog
EIS	Support Motion detection\|Tampering alarm\|Audio Motion detection\|Tampering alarm\|Audio
Basic Detection	detection\|Object removed\|Object Left detection\|Object removed\|Object Left Behind Behind\|Scene change\|Defocus detection Watermark&IP Address Filtering&Access Policy&ARP Protection&RTSP Authentication&User Authentication&HTTP authentication&Alarm input&Alarm output
音訊壓縮	G.711U&G.711A
Audio Bitrate	128 Kbps
雙向語音	Support
Suppression	Support
取樣率	16KHZ
Edge Storage	MicroSD, up to 512 GB
網絡儲存	ANR, NAS (NFS) IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH, TLS1.3
Compatible Integration	ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
用戶管理	Up to 32 users. 3 user levels: administrator, common user and operator Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and
安全	Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, TLS 1.3
客戶端	EZStation, UNV-Link, UNV-Link Pro Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79
瀏覽器	and above&Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Illumination Distance (IR)	60 m (196.9 ft.) 120 m (393.7 ft.)
IR On/Off Control	Auto/Manual
Wavelength	850 nm
Audio I/O	2 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I/O	3/2
Serial Port	1 × RS485
Built-in Mic	Support, built-in mic*2
Built-in Speaker	Support
Network	1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1:
EMC	2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 3rd Ed., 2021-10-22 )
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002)
供電	DC 12 V (±25%), PoE+ (IEEE 802.3at)
功耗	Max. 16 W Max. 19 W
電源接口	Ø5.5 mm coaxial power plug
Built-in DC12V Output	Support
尺寸	406 mm × 126 mm × 130 mm (16.0" × 5.0" × 5.1") (L × W × H)
重量	1.92 kg (4.23 lb.)
Working Environment	-40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
防雷	6 KV
Reset Button	Support
RTC	Support Sun shield：Plastic
材質	Front cover：Metal Body：Metal
Heater	Support
Maximum Bitstream	35
Corridor Mode	Support
TR-UC08-C	TR-UP06-C-IN-V2 Pole Mounting Bracket for Bullet Junction Bullet&Dome Corner Mounting Bracket Box Only Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China

* 規格以原廠最新 Datasheet 為準。

下載完整PDF規格書 →

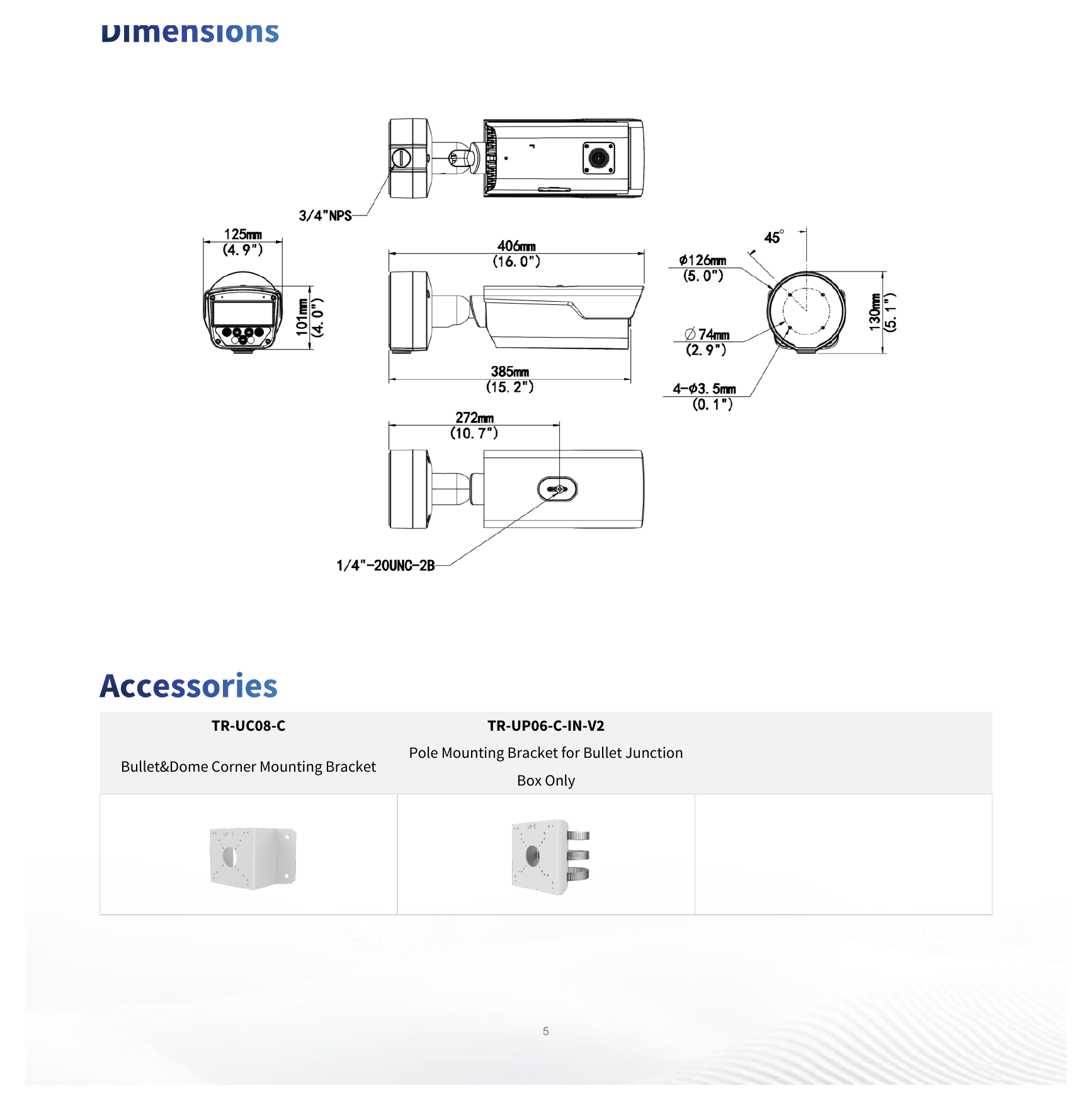

外形尺寸

406 mm × 126 mm × 130 mm (16.0" × 5.0" × 5.1") (L × W × H)｜重量 1.92 kg (4.23 lb.)｜Unit: mm

CCTV 監控安裝工程服務

HKEZIT 專營裝CAM、裝CCTV、裝監控工程，IPC268EA-AHDZK-I1 由我們供貨、安裝、調試到使用教學一站式完成。無論裝CAM、裝CCTV或裝監控，均由自家工程團隊上門施工，品質有保證。

裝CAM 裝CCTV 裝監控

CCTV 監控適合邊類專業客戶

IPC268EA-AHDZK-I1 Uniview IPC268EA亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。

測量師行／則師樓

現場勘察資料同客戶物業圖則屬機密，辦公室網絡同門禁保安係基本要求。

WhatsApp 查詢 →

婦產科診所

診症室及超聲波室私隱要求極高，出入口記錄配合門禁分級管理。

WhatsApp 查詢 →

建築工程顧問公司

圖則模型檔案室保密，配合工地現場監控延伸管理，項目資料防外洩。

WhatsApp 查詢 →

珠寶鑑定／拍賣行

高值品鑑定過程近攝存證，配合保險公司要求，防止調換或盜取。

WhatsApp 查詢 →

律師事務所

客戶機密文件與會議記錄保安需求高，門禁分級、CCTV存證、通話錄音缺一不可。

WhatsApp 查詢 →

私人銀行／財富管理

貴賓客戶室高保安等級佈點，配合監管合規存證，出入口身份記錄嚴謹。

WhatsApp 查詢 →

常見問題

IPC268EA-AHDZK-I1 香港哪裡有代理？

HKEZIT 提供原廠行貨連保養，IPC268EA-AHDZK-I1 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。

此型號如何供電及駁線？

支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。

錄影可以儲存多久、如何遠程監看？

儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。

IPC268EA-AHDZK-I1 定 PKC1150-4-Z28-C-P 邊個好？

兩者主要規格分別：Shutter方面，IPC268EA-AHDZK-I1 係 Auto/Manual, 1 to 1/100000 s，PKC1150-4-Z28-C-P 係 1/100000 to 1/25s；焦距方面，IPC268EA-AHDZK-I1 係 2.8 to 12 mm 8 to 32 mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens；視頻壓縮方面，IPC268EA-AHDZK-I1 係 Ultra 265, H.265, H.264, MJPEG，PKC1150-4-Z28-C-P 係 H.264 (default), H.265。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
