| Sensor | 1/2.7" CMOS |
|---|
| 最低照度 | Color: 0.0025 Lux (F1.6, AGC ON), 0 Lux with IR on |
|---|
| Day/Night | IR-cut filter with auto switch (ICR) |
|---|
| Shutter | Auto/Manual, 1 ~ 1/100000s |
|---|
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360° |
|---|
| WDR | 120 dB |
|---|
| S/N | >52 dB |
|---|
| 焦距 | 2.8 mm 4.0 mm |
|---|
| Iris | F1.6 |
|---|
| Field of View (H) | 112.4° 86.5° |
|---|
| Field of View (V) | 60.1° 44.1° |
|---|
| Field of View (D) | 146.1° 112.5° |
|---|
| 鏡頭類型 | Fixed |
|---|
| DORI Distance (Lens) | 2.8 mm 4 mm |
|---|
| DORI Distance (Detect) | 84.0 m (275.6 ft.) 120.0 m (393.7 ft.) |
|---|
| DORI Distance (Observe) | 33.6 m (110.2 ft.) 48.0 m (157.5 ft.) |
|---|
| DORI Distance (Recognize) | 16.8 m (55.1 ft.) 24.0 m (78.7 ft.) |
|---|
| DORI Distance (Identify) | 8.4 m (27.6 ft.) 12.0 m (39.4 ft.) |
|---|
| Illumination Distance (IR) | 30 m (98.4 ft.) |
|---|
| IR On/Off Control | Auto/Manual |
|---|
| Wavelength | 850 nm |
|---|
| Supplemental Light | IR |
|---|
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG |
|---|
| H.264 Code Profile | Baseline profile, Main profile, High profile Main Stream: 8 MP (3840 × 2160), max. 20 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; Sub Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; Third Stream: D1 |
|---|
| 視頻碼率 | 128 Kbps to 16 Mbps |
|---|
| U-code | Support |
|---|
| OSD | Up to 8 OSDs |
|---|
| 隱私遮蔽 | Up to 4 areas |
|---|
| ROI | Support |
|---|
| Video Stream | Triple streams |
|---|
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
|---|
| Smart IR | Support |
|---|
| Digital Noise Reduction | 2D/3D DNR |
|---|
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
|---|
| Dewarping | Support |
|---|
| HLC | Support |
|---|
| BLC | Support |
|---|
| 除霧 | Digital defog Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
|---|
| Statistical Analysis | N/A |
|---|
| People Counting | Support people flow counting and crowd density detection |
|---|
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
|---|
| 音訊壓縮 | G.711U, G.711A, AAC-LC |
|---|
| Audio Bitrate | G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps |
|---|
| 雙向語音 | N/A |
|---|
| Suppression | Support |
|---|
| 取樣率 | G.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz |
|---|

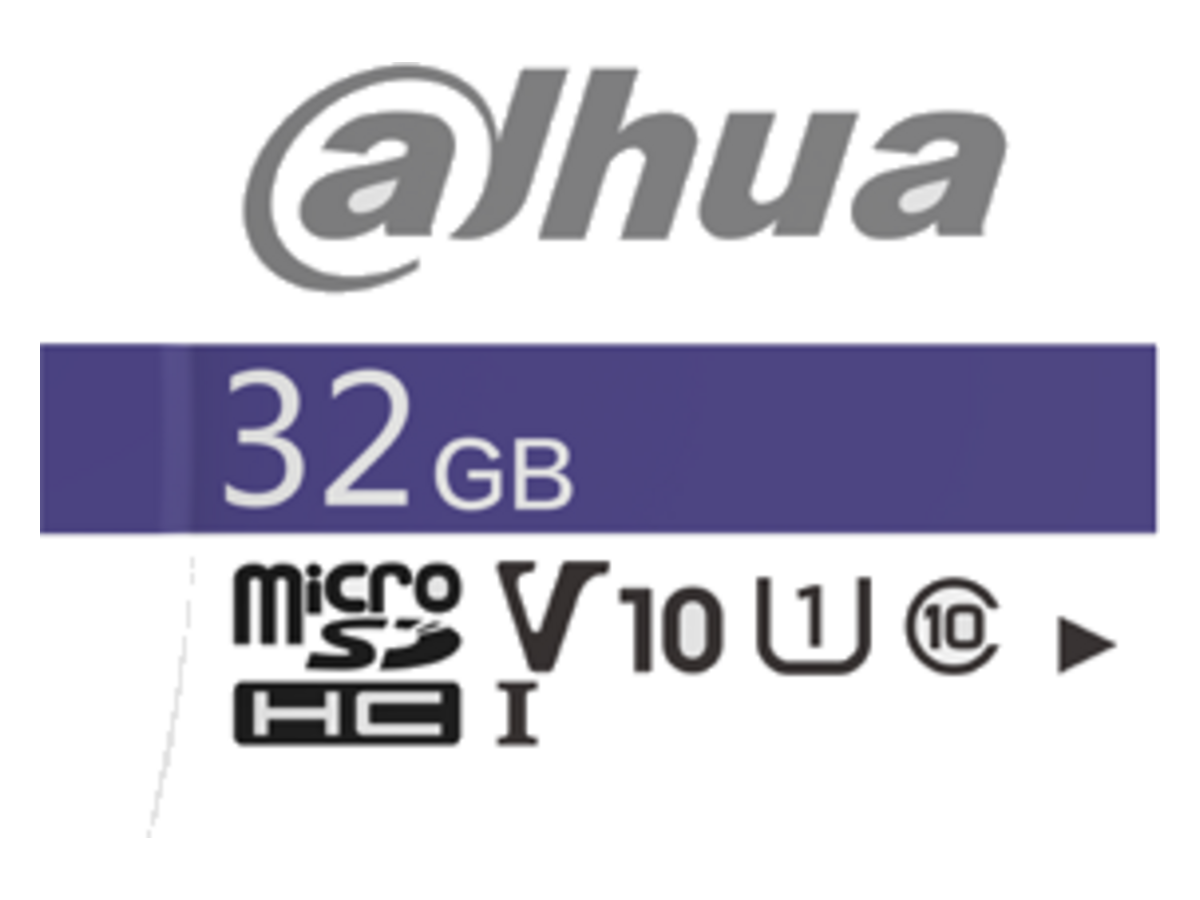

| Edge Storage | MicroSD, up to 512 GB |
|---|
| 網絡儲存 | ANR, NAS (NFS) IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
|---|
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
|---|
| 用戶管理 | Up to 32 users. 3 user levels: administrator, common user and operator Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and |
|---|
| 安全 | Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
|---|
| 客戶端 | EZStation, APP Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
|---|
| Audio I/O | N/A |
|---|
| Alarm I/O | N/A |
|---|
| Serial Port | N/A |
|---|
| Built-in Mic | Support |
|---|
| Built-in Speaker | N/A |
|---|
| WIFI | N/A |
|---|
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
|---|
| Video Output | N/A CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) CE LVD (EN 62368-1) |
|---|
| Safety | CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
|---|
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
|---|
| 防護等級 | IP67 (IEC 60529) |
|---|
| 供電 | DC 12 V±25%, PoE (IEEE 802.3af) |
|---|
| 功耗 | Max. 6.0 W |
|---|
| 電源接口 | Ø5.5 mm coaxial power plug |
|---|

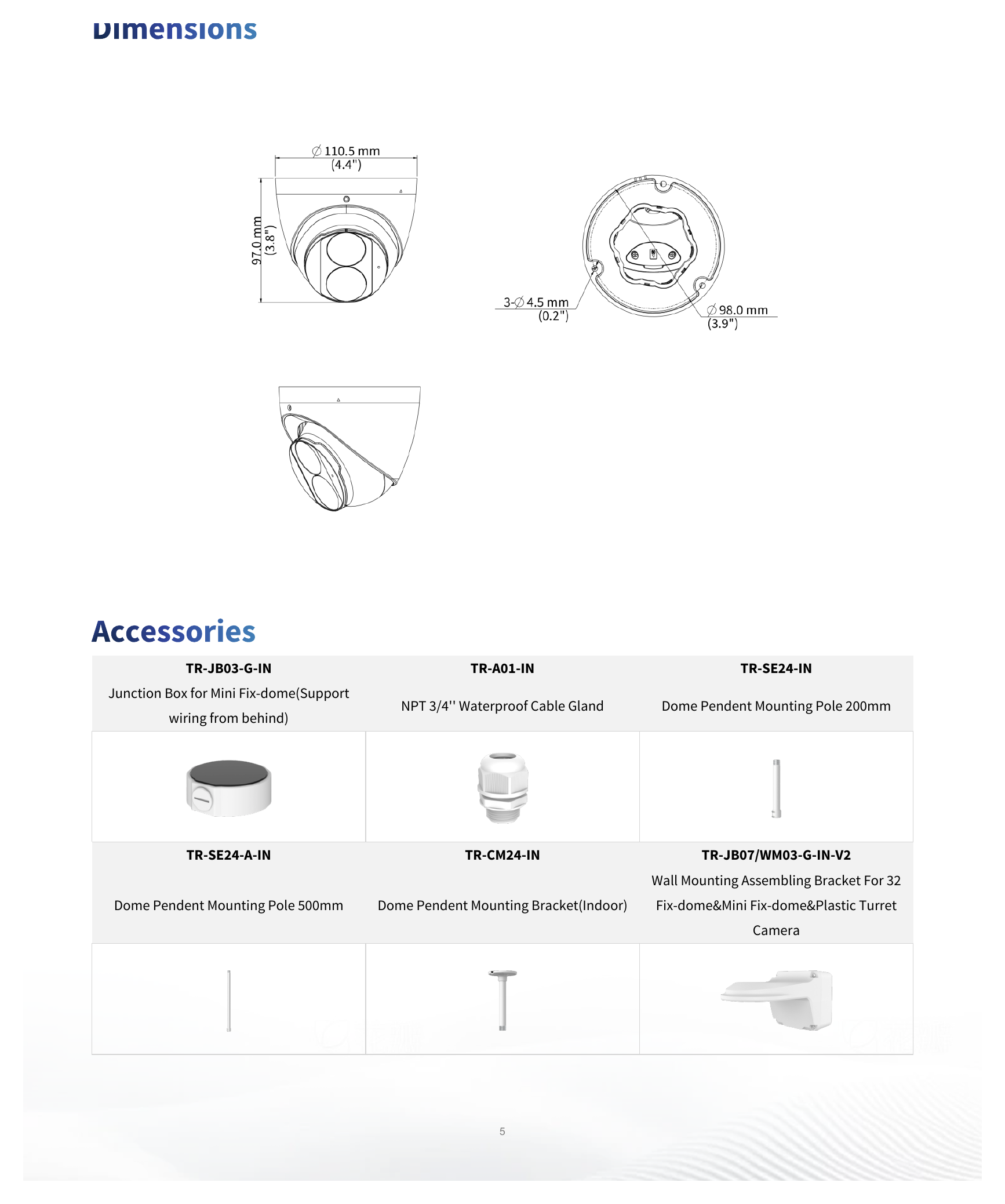

| 尺寸 | Ø111 mm × 95 mm (Ø4.4" × 3.7") (Ø × H) |
|---|
| 重量 | 0.41 kg (0.90 lb.) |
|---|
| 材質 | Metal |
|---|
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
|---|
| Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
|---|
| 防雷 | 4 KV |
|---|
| Reset Button | N/A 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, |
|---|
| 介面語言 | Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
|---|
| TR-JB03-G-IN | TR-A01-IN TR-SE24-IN Junction Box for Mini Fix-dome(Support |
|---|
| NPT 3/4'' Waterproof Cable Gland | Dome Pendent Mounting Pole 200mm wiring from behind) |
|---|
| TR-SE24-A-IN | TR-CM24-IN TR-JB07/WM03-G-IN-V2 Wall Mounting Assembling Bracket For 32 |
|---|
| Dome Pendent Mounting Pole 500mm | Dome Pendent Mounting Bracket(Indoor) Fix-dome&Mini Fix-dome&Plastic Turret |
|---|
| TR-WM03-D-IN-V2 | TR-UC08-C-V2 TR-UP06-C-IN-V2 Wall Mounting Bracket for 32 Pole Mounting Bracket for Bullet Junction |
|---|
| Fix-dome&Mini Fix-dome&Plastic Turret | Bullet&Dome Corner Mounting Bracket Box Only Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
|---|
