Uniview TIC2624S-F25-4F12AC-I3 為TIC2624S-F25-4F12AC-I3，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 TIC2624S-F25-4F12AC-I3 香港價格連安裝報價。
| Channel | Optical Thermal |
|---|---|
| Max Resolution | 4 MP 1080P |
| Original Resolution | N/A 400 × 300 |
| Sensor | 1/2.7" CMOS Vanadium oxide uncooled focal plane arrays Colour: 0.005 lux (F1.6, AGC ON) |
| 最低照度 | B/W: 0.003 lux(F1.6,AGC ON) N/A 0 lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) N/A |
| Pixel Size | N/A 12 um |
| NETD | < 30 mk@F1.0@25 ℃ |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | >56 dB |
| Case Type | Bullet |
| 焦距 | 12mm 25mm |
| Iris | F1.6 F1.0 |
| Field of View (H) | 24.5° 10.9° |
| Field of View (V) | 13.9° 8.3° |
| Field of View (D) | 30.1° 13.4° |
| DORI Distance (Detect) | 270.0 m( 885.8 ft ) N/A |
| DORI Distance (Observe) | 108.0 m( 354.4 ft ) N/A |
| DORI Distance (Recognize) | 54.0 m( 177.2 ft ) N/A |
| DORI Distance (Identify) | 27 m( 88.6 ft ) N/A |
| Wavelength | 750 nm N/A |
| Illumination Distance (IR) | 100m N/A |
| Light On/Off Control | Auto/Manual N/A |
| Frame Rate | 4MP(2688*1520), Max 30fps 1080P(1920*1080), Max 30fps |
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG |
| 視頻碼率 | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Five streams |
| OSD | Up to 10 OSDs |
| 隱私遮蔽 | Up to 8 areas (8 blacks/ 8 mosaics) N/A |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, N/A Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support N/A |
| BLC | Support N/A |
| 除霧 | Digital defog N/A lava, medical, fusion, arctic, mazarine, rain, puce, white hot, iron oxide red, hot iron, |
| Palette | N/A rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, red hot, green hot, color 1, color 2 LightHunter Cross line detection, intrusion detection, enter Cross line detection, intrusion detection, enter area detection, leave area detection (support area detection, leave area detection (support false alarm filtering and the classification of false alarm filtering and the classification |
| human, non-motor vehicle and vehicle) | human and vehicle) |
| Temperature Range | -20℃ ~150℃ (-4 ℉ to 302℉) |
| N/A | 250m |
| Fire Detection | N/A Support Motion detection, Tampering alarm, Audio |
| Basic Detection | N/A detection Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
| 音訊壓縮 | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| 雙向語音 | Support |
| Suppression | Support |
| 取樣率 | 16KHZ |
| Edge Storage | MicroSD, up to 512 GB |
| 網絡儲存 | ANR IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH ONVIF (Profile S, Profile G, Profile M),SDK, API |
| 用戶管理 | Up to 32 users. 3 user levels: administrator, common user and operator |
| 客戶端 | EZStation, UNV-Link, UNV-Link Pro |
| 瀏覽器 | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| WIFI | N/A |
| Audio I/O | 2 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 3/2 |
| Serial Port | 1 × RS485 |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A 1 BNC (for debugging) CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130-4) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) CE LVD (EN IEC 62368-1) UL (UL 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| 防護等級 | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| 供電 | DC12V (± 25% ), PoE (IEEE802.3 at ) |
| 功耗 | 22.4W |
| 電源接口 | Ø5.5 mm coaxial power plug |
| 尺寸 | 406.0 x 130.0 x 130.0 mm (16.0" x 5.1" x 5.1")(L x W x H) |
| 重量 | 2.18 kg |
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| 防雷 | 6 KV |
| Reset Button | Support |
| RTC | Support 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, |
| 介面語言 | Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
| Maximum Bitstream | 35 |
| Maximum Bandwidth | 50 Mbps |
| Plugin Free | Support |
| OSD Font | Vector |
| OSD Color | Support |
| OSD Character Number | 40 |
| Corridor Mode | Support |
| Detection Ran | Detection Ran Recognition R Recognition R Identification R Identification Ran |
| 鏡頭 | ge (Vehicles:4. ge (Humans:1. ange (Vehicles ange (Humans ange (Vehicles ge (Humans: 1.8 0 × 1.4 m) 8 × 0.5 m) : 4.0 × 1.4 m) : 1.8 × 0.5 m) : 1.4 × 4.0 m) × 0.5 m) |
| TR-UP06-C-IN-V2 | TR-UC08-C-V2 Pole Mounting Bracket for Bullet Junction Bullet&Dome Corner Mounting Bracket Box Only Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

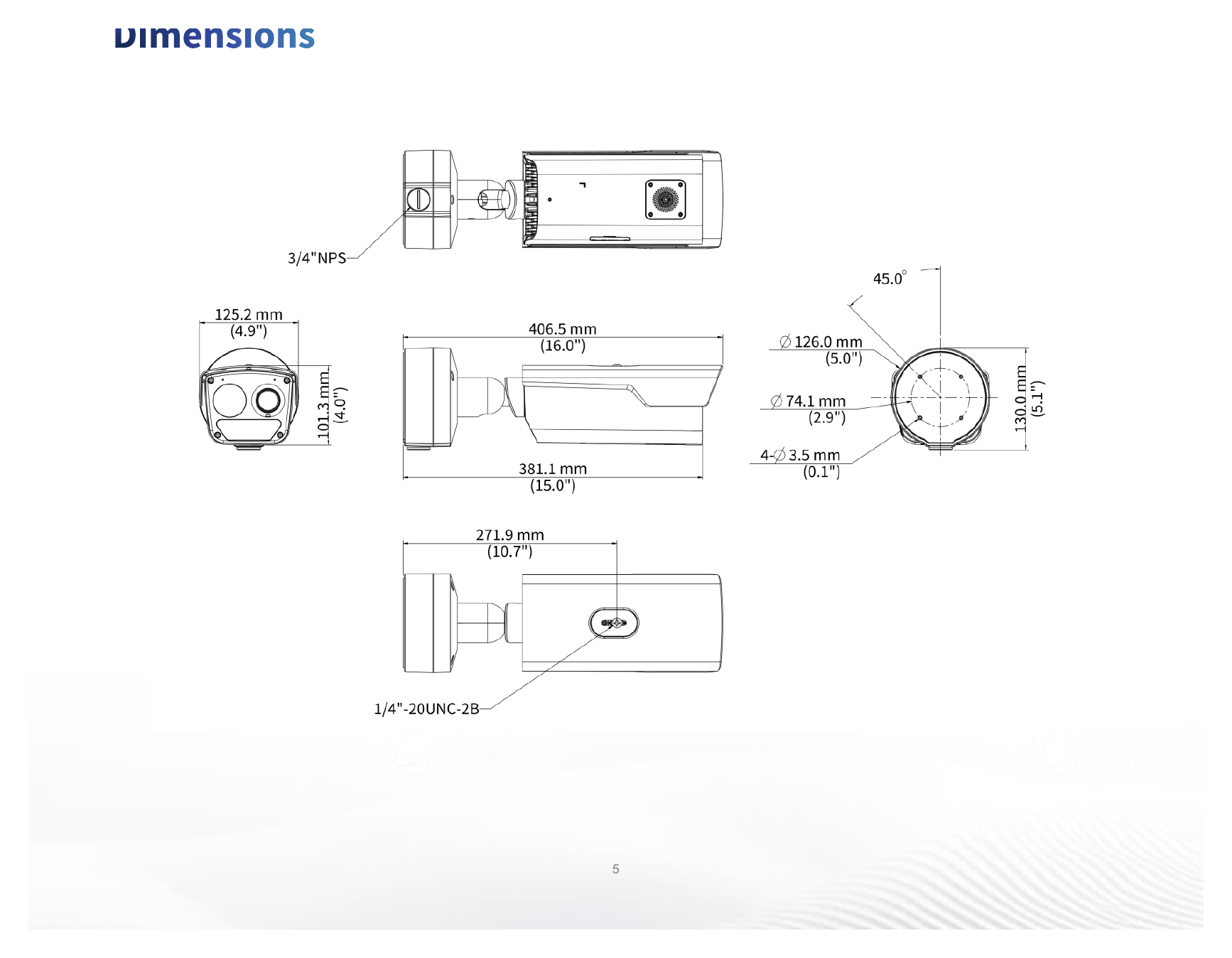

406.0 x 130.0 x 130.0 mm (16.0" x 5.1" x 5.1")(L x W x H)｜重量 2.18 kg｜Unit: mm
TIC2624S-F25-4F12AC-I3 Uniview TIC2624S-F25-4F12AC-I3亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，TIC2624S-F25-4F12AC-I3 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：Shutter方面，TIC2624S-F25-4F12AC-I3 係 Auto/Manual, 1 to 1/100000 s，PKC1150-4-Z28-C-P 係 1/100000 to 1/25s；焦距方面，TIC2624S-F25-4F12AC-I3 係 12mm 25mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens；視頻壓縮方面，TIC2624S-F25-4F12AC-I3 係 Ultra 265, H.265, H.264, MJPEG，PKC1150-4-Z28-C-P 係 H.264 (default), H.265。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 TIC2624S-F25-4F12AC-I3 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 TIC2624S-F25-4F12AC-I3 Uniview TIC2624S-F25-4F12AC-I3供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：上水CCTV 閉路電視安裝、中環CCTV 閉路電視安裝、九龍城CCTV 閉路電視安裝、九龍灣CCTV 閉路電視安裝、佐敦CCTV 閉路電視安裝、元朗CCTV 閉路電視安裝、北角CCTV 閉路電視安裝、土瓜灣CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 TIC2624S-F25-4F12AC-I3 香港價格連安裝報價。
TIC2624S-F25-4F12AC-I3 Uniview TIC2624S-F25-4F12AC-I3適合多種場景使用，以下為部分常見安裝場景，歡迎查詢是否適合您的現場環境。
商場裝 CCTV 大範圍 4K 人流監控、中庭與各出入口覆蓋，配停車場車牌識別。商場閉路電視客流統計分析旺場時段、周界越界即時 WhatsApp 通知保安。大型方案報價、免費上門評估，旺角、觀塘商場廣場工程一併規劃。即約免費勘察、透明報價無隱藏，
WhatsApp 查詢 →地盤裝 CCTV 臨時監控、防盜防搬料，安全帽偵測與危險區域越界警報守護工人安全。工地閉路電視可選太陽能 4G 流動方案，無固定電源網絡照樣覆蓋偏遠地盤。流動方案報價、免費上門勘察，荃灣、沙田新發展區地盤即日約期。免費上門睇位、專業報價跟進，
WhatsApp 查詢 →銀行裝 CCTV 高保安監控櫃位、金庫及出入口無死角覆蓋，配防劫掣與門禁聯動。找換店閉路電視高清錄影保留長時段、符合金融場所合規取證。高保安方案、合規取證規劃，港島、香港銀行找換店歡迎洽談。免費評估現場、報價快而清，香港、新界一帶即日上門。
WhatsApp 查詢 →髮型屋裝 CCTV 監控收銀區及座位、防盜防糾紛，保障員工與顧客安全。美甲店閉路電視星光夜視覆蓋打烊時段、老闆手機遠程睇舖。明碼實價、免費上門勘察，香港、港島髮型屋美甲店即約報價。上門勘察免費、報價公開實在，
WhatsApp 查詢 →車房裝 CCTV 監控工場及客戶車輛停泊區、防盜防爭議、記錄維修過程取證。車房閉路電視出入口車牌識別管理進出車輛、保障客戶愛車。免費上門勘察、按工場規模報價，觀塘、將軍澳車房維修中心即約。專業團隊免費上門評估，
WhatsApp 查詢 →工廈單位裝 CCTV 守護迷你倉、共享辦公空間防盜，24小時無人值守時段遠端監控更安心。工商大廈閉路電視配門禁聯動記錄進出、保障租戶財物。免費上門勘察、按單位數報價，港島、新界工廈單位迷你倉即約。免費現場勘察、報價清晰透明，香港、新界一帶即日上門。
WhatsApp 查詢 →查看更多CCTV 監控適用場景，請參閱 CCTV 監控安裝工程。
如需整套CCTV 監控方案，請參閱 CCTV 監控安裝工程。
