| Max Resolution | 8 MP |
|---|
| Sensor | 1/2.8" CMOS Color: 0.002 Lux (F1.6, AGC ON), 0 Lux with IR |
|---|
| Day/Night | IR-cut filter with auto switch (ICR) |
|---|
| Shutter | Auto/Manual, 1 ~ 1/100000s |
|---|
| Adjustment Angle | Pan: 0° to 352°, Tilt: 0° to 70°, Rotate: 0° to 350° |
|---|
| S/N | >56 dB |
|---|
| WDR | 130 dB |
|---|
| 焦距 | 4.0 mm |
|---|
| 光圈類型 | Fixed |
|---|
| Iris | F1.6 |
|---|
| Field of View (H) | 88.35° |
|---|
| Field of View (V) | 49.61° |
|---|
| Field of View (D) | 94.19° |
|---|
| 鏡頭類型 | Fixed |
|---|
| DORI Distance (Lens) | 4 mm |
|---|
| DORI Distance (Detect) | 124.1 m (407.2 ft.) |
|---|
| DORI Distance (Observe) | 49.7 m (163.1 ft.) |
|---|
| DORI Distance (Recognize) | 24.8 m (81.4 ft.) |
|---|
| DORI Distance (Identify) | 12.4 m (40.7 ft.) |
|---|
| Illumination Distance (IR) | 40 m (131.2 ft.) |
|---|
| IR On/Off Control | Auto/Manual |
|---|
| Wavelength | 850 nm |
|---|
| 視頻壓縮 | Ultra 265|H.265|H.264|MJPEG |
|---|
| H.264 Code Profile | Baseline profile, Main profile, High profile Main Stream: 8 MP (3840 × 2160), max. 30 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; |
|---|
| Frame Rate | Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; Third Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; |
|---|
| 視頻碼率 | 128 Kbps to 16 Mbps |
|---|
| U-code | Support |
|---|
| OSD | Up to 8 OSDs |
|---|
| 隱私遮蔽 | Up to 4 areas |
|---|
| ROI | Support |
|---|
| Video Stream | Triple streams |
|---|
| Auto Scene Match (ASM) | Support (only WDR) Auto|Outdoor|Fine tune|Sodium lamp|Locked|Auto2 |
|---|
| Smart IR | Support |
|---|
| Digital Noise Reduction | 2D/3D DNR Normal|Flip vertical|Flip horizontal|180°|90° Clockwise|90° Anti-clockwise |
|---|
| Dewarping | N/A |
|---|
| HLC | Support |
|---|
| BLC | Support |
|---|
| 除霧 | Digital defog Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
|---|
| Statistical Analysis | N/A Support people flow counting and crowd density detection |
|---|
| Attribute Collection | SIP with color retrieval Motion detection|Ultra motion |
|---|
| Basic Detection | detection|Tampering alarm|Audio detection|Object removed|Object Left Behind Watermark|IP address filtering|Access policy|ARP protection|RTSP authentication|User authentication|HTTP |
|---|
| 音訊壓縮 | G.711U|G.711A|AAC-LC |
|---|
| Audio Bitrate | G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps |
|---|
| 雙向語音 | N/A |
|---|
| Suppression | Support |
|---|
| 取樣率 | G.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz |
|---|
| Edge Storage | MicroSD, up to 512 GB |
|---|
| 網絡儲存 | ANR|NAS (NFS) IPv4|IPv6|IGMP|ICMP|ARP|TCP|UDP|DHCP|PPPo E|RTP|RTSP|RTCP|RTMP|DNS|DDNS|NTP|FTP|U PnP|HTTP|HTTPS|SMTP|802.1x|SNMP|QoS|SSL/ TLS|SSH API|SDK|ONVIF (Profile S, Profile G, Profile T, Profile M) Up to 32 users. 3 user levels: administrator, common user and operator Password Protection|Strong Password|HTTPS Encryption|Export Operation Logs|Basic and |
|---|
| 安全 | Digest Authentication for RTSP|Digest Authentication for HTTP|TLS 1.2|WSSE and Digest Authentication for ONVIF |
|---|
| 客戶端 | EZStation|APP Plug-in required live view: IE 10+, Chrome 45+, |
|---|
| 瀏覽器 | Firefox 52+, Edge 79+|Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
|---|
| Audio I/O | N/A |
|---|
| Alarm I/O | N/A |
|---|
| Serial Port | N/A |
|---|
| Built-in Mic | Support |
|---|
| Built-in Speaker | N/A |
|---|
| WIFI | N/A |
|---|
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
|---|
| Video Output | N/A CE-EMC (EN 55032, EN 61000-3-3, EN IEC |
|---|
| EMC | 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) CE-LVD (EN 62368-1) |
|---|
| Safety | UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
|---|
| 防護等級 | IP67 (IEC 60529) |
|---|
| 供電 | DC 12 V±25%, PoE (IEEE 802.3af) |
|---|
| 功耗 | Max. 7.0 W |
|---|
| 電源接口 | Ø5.5 mm coaxial power plug |
|---|

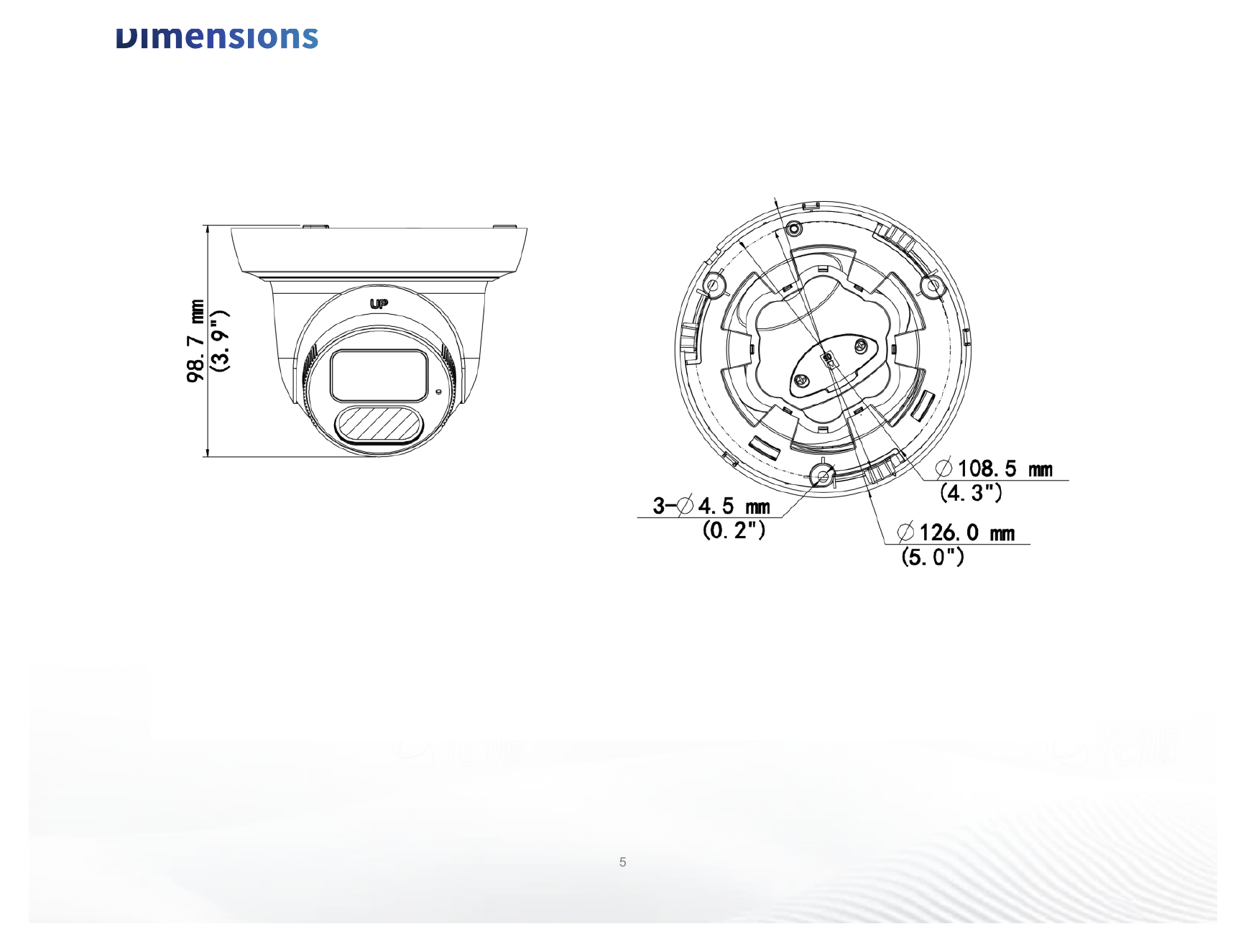

| 尺寸 | Ø129 mm × 110 mm (Ø5.1" × 4.3") (Ø × H) |
|---|
| 重量 | 0.42 kg (0.93 lb.) |
|---|
| 材質 | Metal + Plastic -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
|---|
| 防雷 | 4 KV |
|---|
| Reset Button | N/A 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
|---|
| TR-JB03-H-IN-V2 | TR-JB07/WM03-F-IN-V2 TR-WM03-B-IN-V2 |
|---|
| Junction Box for Metal Turret | Wall Mounting Assembling Bracket with Wall Mounting Assembling Bracket for 3 |
|---|
| Camera(Support wiring from behind) | Back Hole for 3 Inch Hemisphere Inch Hemisphere |
|---|
| TR-A01-IN | TR-UC08-C-V2 TR-UP06-C-IN-V2 Pole Mounting Bracket for Bullet Junction |
|---|
| NPT 3/4'' Waterproof Cable Gland | Bullet&Dome Corner Mounting Bracket Box Only |
|---|
| TR-SE24-IN | TR-CM24-IN TR-SE24-A-IN |
|---|
| Dome Pendent Mounting Pole 200mm | Dome Pendent Mounting Bracket(Indoor) Dome Pendent Mounting Pole 500mm Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
|---|
