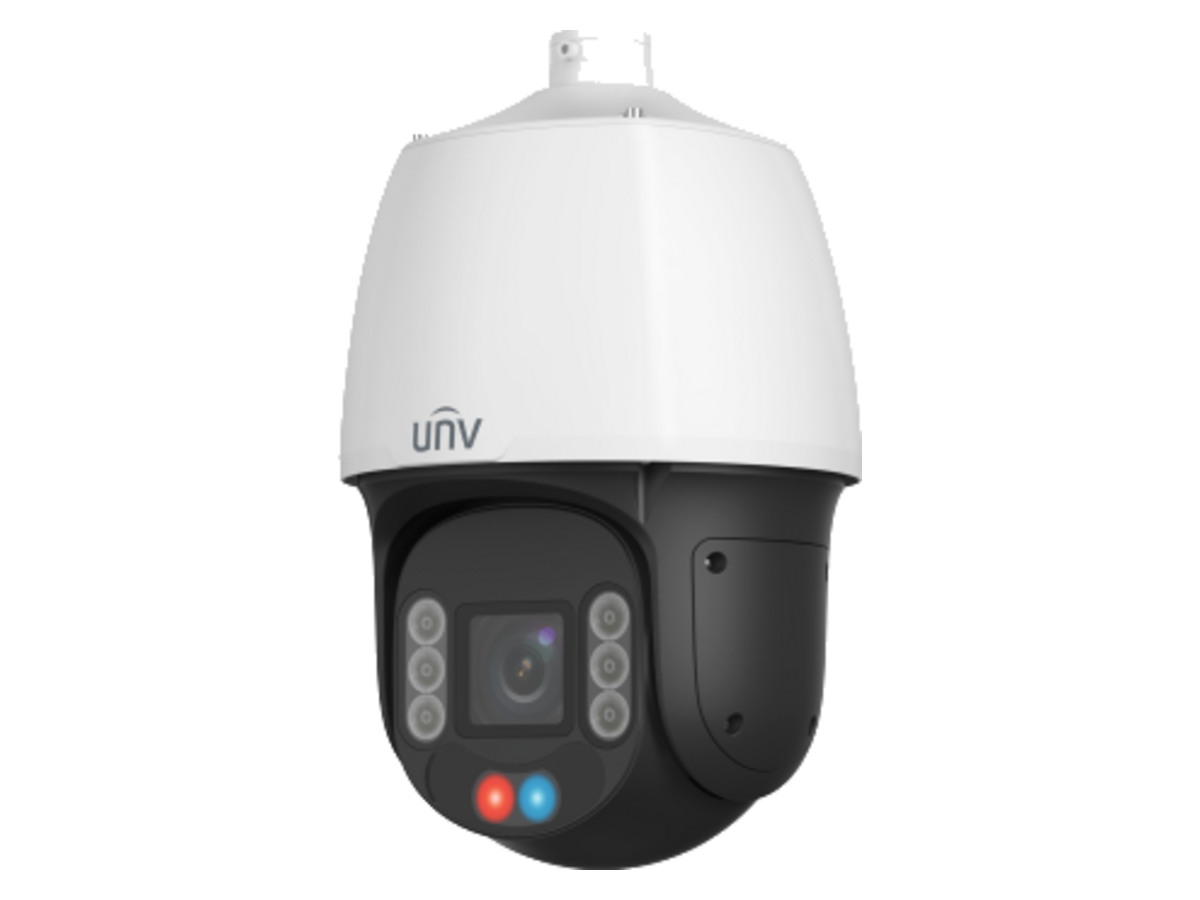

Uniview IPC6624SFW-X25-C-VD2 為IPC6624SFW-X25-C-VD2，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC6624SFW-X25-C-VD2 香港價格連安裝報價。
| Max Resolution | 4 MP |
|---|---|
| Sensor | 1/2.8" CMOS |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | > 56 dB Color: 0.003 Lux (F1.65, AGC ON), |
| 最低照度 | B/W: 0.002 Lux (F1.65, AGC ON), 0 Lux with Light, |
| Case Type | PT |
| 焦距 | 4.8 to 120 mm |
| Digital Zoom | 8X |
| Optical Zoom | 25X |
| Iris | F1.65 to F3.8 |
| Field of View (H) | 53.90° to 3.00° |
| Field of View (V) | 31.92° to 1.69° |
| Field of View (D) | 63.60° to 3.69° |
| DORI Distance (Detect) | 119.9 m to 2407.5 m (393.5 ft. to 7898.6 ft.) |
| DORI Distance (Observe) | 48.0 m to 963.0 m (157.4 ft. to 3159.4 ft.) |
| DORI Distance (Recognize) | 24 m to 481.5 m (78.7 ft. to 3159.4 ft.) |
| DORI Distance (Identify) | 12 m to 240.8 m (39.3 ft. to 789.9 ft.) |
| 視頻壓縮 | H.265, H.264, MJPEG, Ultra 265 Main Stream Max: 4 MP (2688 × 1520), 30 fps Main Stream Default: 4 MP (2560 × 1440), 25 fps Sub Stream Max: 1080P (1920 × 1080), 30 fps Third Stream Max: D1 (720 × 576), 30 fps Fourth Stream Max: D1 (720 × 576), 30 fps Fifth Stream Max: D1 (720 × 576), 30 fps |
| 視頻碼率 | 128 Kbps to 16 Mbps |
| 隱私遮蔽 | 24 areas, up to 8 areas per scene |
| U-code | Support |
| ROI | Up to 8 areas |
| Video Stream | Five streams |
| OSD | Up to 10 OSDs |
| 一般功能 | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output, HTTP authentication |
| 音訊壓縮 | G.711U, G.711A, AAC-LC |
| 雙向語音 | Support |
| Suppression | Support |
| 取樣率 | 8 kHz, 16 kHz |
| Edge Storage | MicroSD, up to 512 GB |
| 網絡儲存 | NAS (NFS) IGMP, SMTP, IPv6, ARP, TCP, UDP, ICMP, DHCP, RTSP, DNS, DDNS, NTP, UPnP, HTTP, SNMP, 802.1x, QoS, SSL/TLS, SSH, IPv4, RTP, RTCP, RTMP, HTTPS, PPPoE |
| Compatible Integration | SDK, API, ONVIF (Profile S, Profile G, Profile T, Profile M) |
| 用戶管理 | Up to 32 users. 3 user levels: administrator, common user and operator Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and |
| 安全 | Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, TLS 1.3 |
| 客戶端 | EZStation, UNV-Link, UNV-Link Pro Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Patrol Stay Time | 15 s to 1800 s |
| Preset Image Freeze | Support |
| Home Position | Support |
| Number of Presets | 1024 |
| Pan Range | 360° (endless) |
| 水平速度 | 0.1°/s to 288°/s |
| Tilt Range | -15° to 90° (auto flip) |
| 垂直速度 | 0.1°/s to 288°/s |
| Snow Removal Mode | Support |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance |
| Digital Noise Reduction | 2D/3D DNR |
| BLC | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| 除霧 | Digital defog ColorHunter with wise-ISP |
| 防抖 | DIS |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 2/1 |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Built-in Speaker | Support |
| Serial Port | 1 × RS485 |
| Exception Detection | Object removed, Object Left Behind |
| Auto Tracking | UNV Large Model Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | Support people flow counting and crowd density detection 100 m (328.1 ft.) |
| Illumination Distance (IR) | 250 m (820.2 ft.) UL (UL 62368-1) |
| Safety | CUL (CAN/CSA C22.2 No. 62368-1) CE-LVD (EN IEC 62368-1) CE-EMC (EN 55032; EN IEC 61000-3-2; EN 61000-3-3; EN 50130) FCC SDoC (47 CFR Part 15; Subpart B) |
| Environment | CE-ROHS (2011/65/EU; (EU) 2015/863) WEEE (2012/19/EU) IP67 (IEC 60529) ; IK10 (IEC62262; Anti-Vandalism Except for the Front Window) |
| 電源接口 | Wires with cold-pressed terminal |
| 尺寸 | Ø226 mm × 390 mm (Ø8.9" × 15.4") (Ø × H) |
| 重量 | 5.2 kg (11.46 lb.) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| 防雷 | 6 KV |
| Reset Button | Support |
| 供電 | DC 24 V±25%, AC 24 V±25%, PoE (IEEE 802.3at) |
| 功耗 | Max. 23.52 W |
| LED 指示燈 | 1, red/blue |
| NDAA Compliant | Support Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

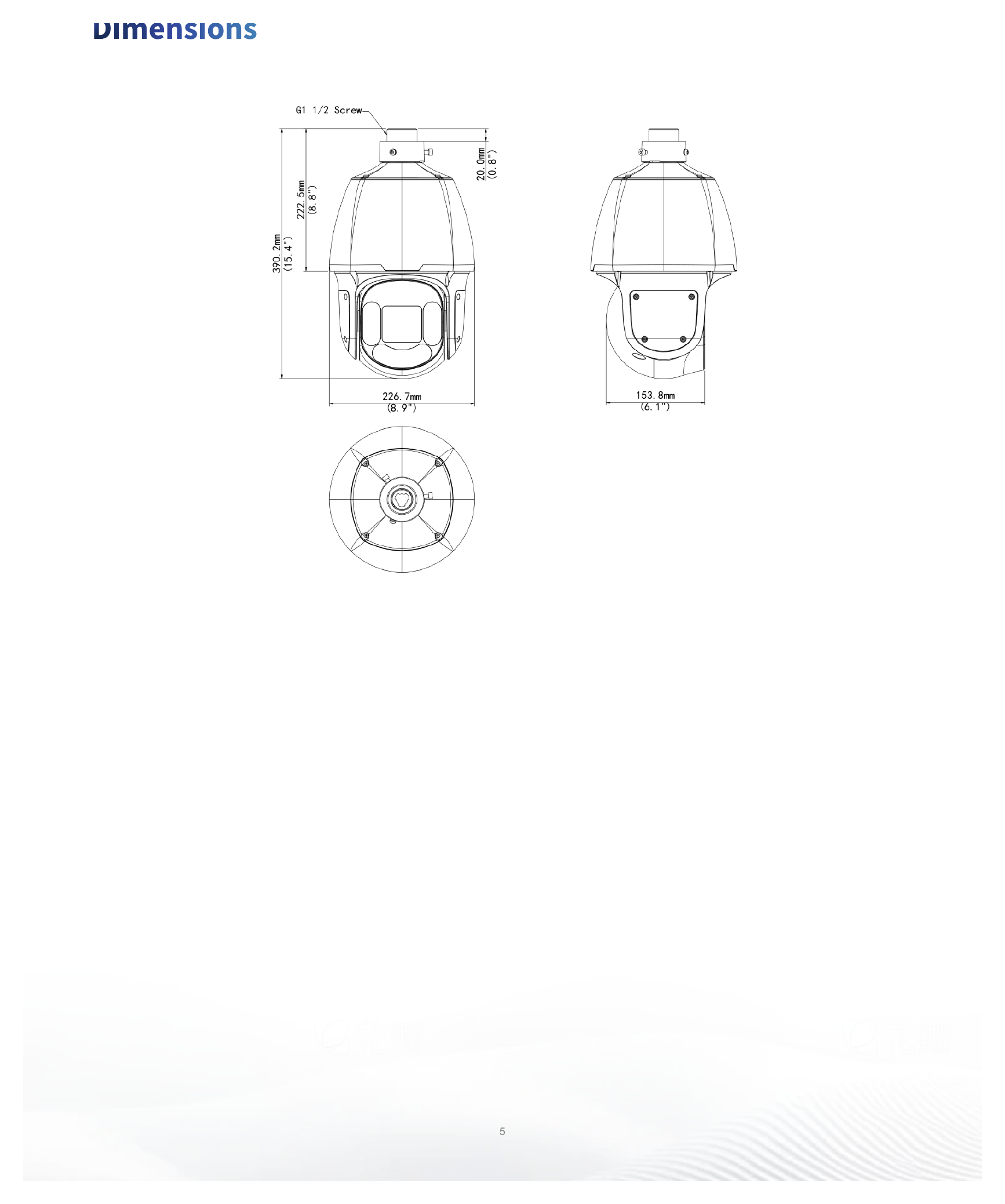

Ø226 mm × 390 mm (Ø8.9" × 15.4") (Ø × H)｜重量 5.2 kg (11.46 lb.)｜Unit: mm
IPC6624SFW-X25-C-VD2 Uniview IPC6624SFW-X25-C-VD2亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，IPC6624SFW-X25-C-VD2 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：Sensor方面，IPC6624SFW-X25-C-VD2 係 1/2.8" CMOS，PKC1150-4-Z28-C-P 係 1/2.7" 5MP CMOS；Shutter方面，IPC6624SFW-X25-C-VD2 係 Auto/Manual, 1 to 1/100000 s，PKC1150-4-Z28-C-P 係 1/100000 to 1/25s；焦距方面，IPC6624SFW-X25-C-VD2 係 4.8 to 120 mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 IPC6624SFW-X25-C-VD2 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
