Uniview IPC6824ER-X42-W-VH2 為IPC6824ER-X42-W-VH2，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC6824ER-X42-W-VH2 香港價格連安裝報價。
| Sensor | 1/1.8" CMOS |
|---|---|
| 最低照度 | Color: 0.0003 Lux (F1.2, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 150 dB |
| S/N | > 56 dB |
| 焦距 | 6 to 252 mm |
| Optical Zoom | 42X |
| Digital Zoom | 8X |
| Iris | F1.2 to F4.6 |
| Field of View (H) | 59.47° (W) to 2.20° (T) |
| Field of View (V) | 35.62° (W) to 1.24° (T) |
| Field of View (D) | 73.14° (W) to 2.59° (T) |
| DORI Distance (Detect) | 93.1 m to 4310.3 m (305.5 ft. to 14143.7 ft.) |
| DORI Distance (Observe) | 37.2 m to 1564.1 m (122.1 ft. to 6116.1 ft.) |
| DORI Distance (Recognize) | 18.6 m to 782.1 m (61.0 ft. to 2894.1 ft.) |
| DORI Distance (Identify) | 9.3 m to 391.0 m (30.5 ft. to 1610.6 ft.) |
| 視頻壓縮 | H.265, H.264, MJPEG, Ultra 265 Main Stream: 4 MP (2688 × 1520), max. 60 fps |
| Frame Rate | Sub Stream: 1080P (1920 × 1080), max. 60 fps Third Stream: D1 (720 × 576), max. 60 fps |
| 視頻碼率 | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Up to 8 areas |
| Video Stream | Triple streams |
| 隱私遮蔽 | 24 areas, up to 8 areas per scene |
| OSD | Up to 10 OSDs Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output |
| Audio Bitrate | 128 Kbps |
| 雙向語音 | Support |
| Suppression | Support |
| 音訊壓縮 | G.711U, G.711A |
| 取樣率 | 8 kHz, 16 kHz |
| Edge Storage | MicroSD, up to 512 GB |
| 網絡儲存 | ANR, NAS (NFS) |
| 用戶管理 | Up to 32 users. 3 user levels: administrator, common user and operator SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, FTP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), SDK, API Strong Password, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS |
| 安全 | 1.2, TLS 1.3, WSSE and Digest Authentication for ONVIF, Password protection, HTTPS encryption, Export operation logs |
| 客戶端 | EZStation, UNV-Link, UNV-Link Pro |
| 瀏覽器 | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Auto Tracking | Support, target filtering: human, non-motor vehicle and vehicle |
| Multi-target Detection | N/A |
| People Counting | Support people flow counting and crowd density detection Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| Recognition | Face Recognition: Max support 16 face libraries, Max supports 100000 faces in face library |
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
| Preset Image Freeze | Support |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Patrol Stay Time | 15 s to 1800 s |
| Home Position | Support |
| Tilt Range | -15° to 90° (Upward tilt is negative) |
| 水平速度 | 0.1°/s to 300°/s |
| Pan Range | 0° to 360° (endless) |
| 垂直速度 | 0.1°/s to 180°/s |
| Number of Presets | 1024 |
| BLC | Support |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip horizontal, Flip vertical, 180° |
| HLC | Support |
| 除霧 | Digital defog, Optical defog |
| 防抖 | EIS (Gyroscope) |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 7/2 |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Serial Port | 1 × RS485 |
| Video Output | 1 BNC |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
| Illumination Distance (IR) | 500 m (1640.4 ft.) CE LVD (EN IEC 62368-1+ A11) |
| Safety | UL (UL 62368-1) CUL (CAN/CSA C22.2 No. 62368-1) CE-EMC (EN 55032; EN IEC 61000-3-2; EN 61000-3-3; EN 50130) FCC SDoC (47 CFR Part 15; Subpart B) |
| Environment | CE ROHS (2011/65/EU; (EU)2015/863) IP67 (IEC 60529+ AMD1+ AMD2) IK10 (IEC 62262, Anti-Vandalism Except for the Front Window) |
| 供電 | DC 24 V±25%, AC 24 V±25%, PoE (IEEE802.3bt) |
| 功耗 | ≤ 65.5W |
| 電源接口 | Wires with cold-pressed terminal |
| 尺寸 | Ø227 mm × 414 mm (Ø8.94" × 16.30") (Ø × H) |
| 重量 | 6.9 kg |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| 防雷 | 6 KV |
| Reset Button | Support |
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Heater | Support |
| NDAA Compliant | Support |
| TR-UF45-A-IN | TR-SE45-A-IN TR-UC08-B-IN |
| Dome Indoor Ceiling Mounting Pedestal | Dome Ceiling Mounting Pole 500 Aluminium Alloy Corner Mounting Bracket |
| TR-UC08-A-IN | TR-UP08-B-IN TR-UP08-A-IN |
| Dome Corner Mounting Bracket | Aluminium Alloy Pole Mounting Bracket Dome Pole Mounting Bracket |
| TR-WE45-B-IN | TR-JB12-IN TR-CE45-IN |
| Dome Gooseneck Bracket | Dome Junction Box Dome Indoor Ceiling Mounting Bracket |
| TR-WE45-A-IN | TR-SE45-IN |
| Long Wall Mounting Bracket for Dome | Dome Ceiling Mounting Pole 200 Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

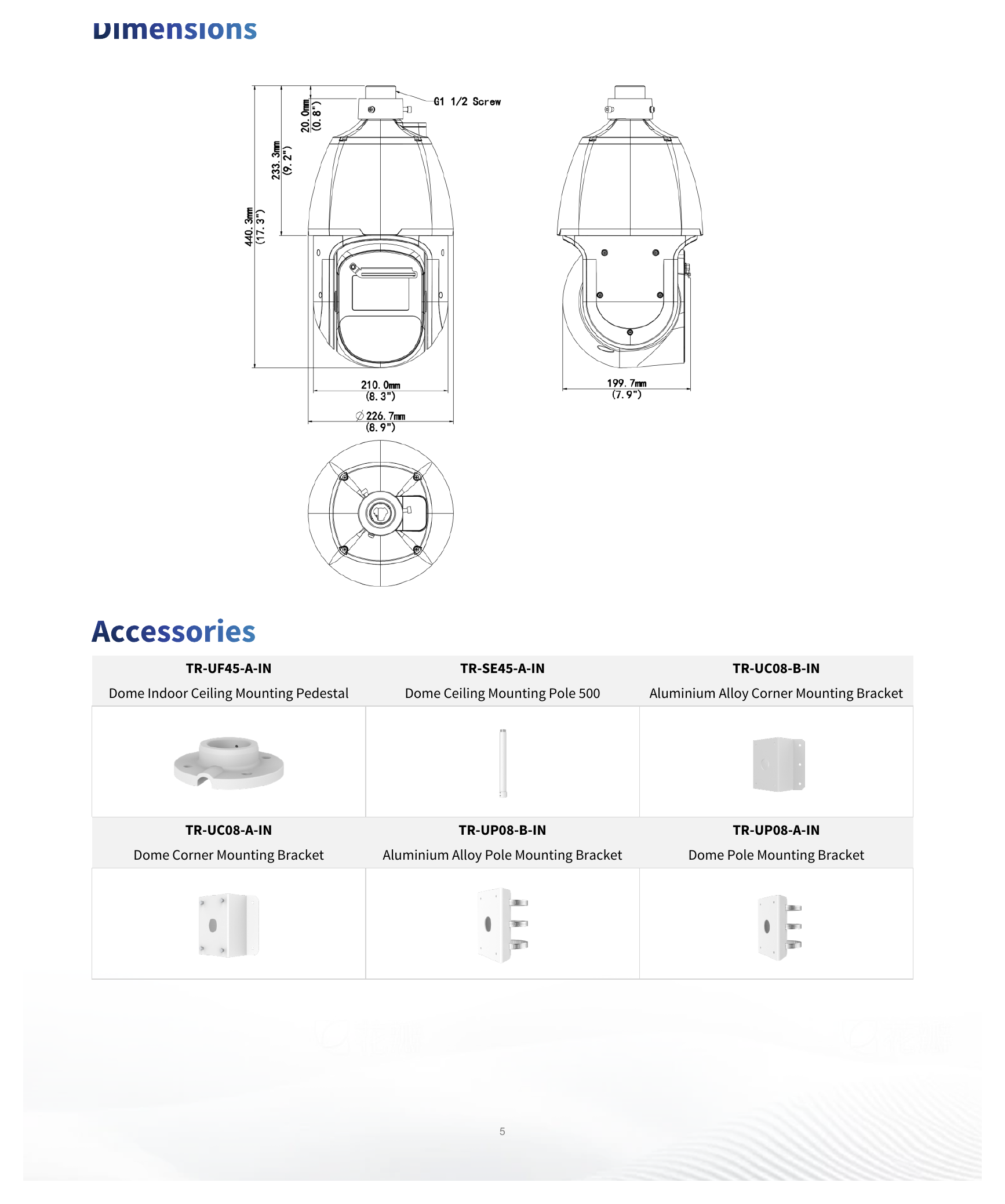

Ø227 mm × 414 mm (Ø8.94" × 16.30") (Ø × H)｜重量 6.9 kg｜Unit: mm
IPC6824ER-X42-W-VH2 Uniview IPC6824ER-X42-W-VH2亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，IPC6824ER-X42-W-VH2 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：Sensor方面，IPC6824ER-X42-W-VH2 係 1/1.8" CMOS，PKC1150-4-Z28-C-P 係 1/2.7" 5MP CMOS；Shutter方面，IPC6824ER-X42-W-VH2 係 Auto/Manual, 1 to 1/100000 s，PKC1150-4-Z28-C-P 係 1/100000 to 1/25s；焦距方面，IPC6824ER-X42-W-VH2 係 6 to 252 mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 IPC6824ER-X42-W-VH2 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 IPC6824ER-X42-W-VH2 Uniview IPC6824ER-X42-W-VH2供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：沙田CCTV 閉路電視安裝、油麻地CCTV 閉路電視安裝、深水埗CCTV 閉路電視安裝、灣仔CCTV 閉路電視安裝、筲箕灣CCTV 閉路電視安裝、紅磡CCTV 閉路電視安裝、荃灣CCTV 閉路電視安裝、葵涌CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 IPC6824ER-X42-W-VH2 香港價格連安裝報價。
