| Channel | Channel 1 (Panorama) Channel 2 (Detail) |
|---|
| Sensor | 1/2.8" CMOS Color: 0.002 Lux (F1.6, AGC ON), 0 Lux with |
|---|
| 最低照度 | Color: 0.002 Lux (F1.6, AGC ON), 0 lux with IR IR/Warm light |
|---|
| Day/Night | IR-cut filter with auto switch (ICR) |
|---|
| Shutter | Auto/Manual, 1 to 1/100000 s |
|---|
| WDR | 120 dB |
|---|
| S/N | >52 dB |
|---|
| 焦距 | 2.8 mm 2.8 to 12 mm |
|---|
| Optical Zoom | N/A 4X |
|---|
| Iris | F1.6 |
|---|
| Field of View (H) | 102.4° 106.6° to 30.6° |
|---|
| Field of View (V) | 54.9° 56.5° to 17.4° |
|---|
| Field of View (D) | 133.1° 138.6° to 37.6° |
|---|
| DORI Distance (Detect) | 43.4 m (142.4 ft.) 43.4 m to 162.9 m (142.4 ft. to 534.5 ft.) |
|---|
| DORI Distance (Observe) | 17.4 m (57.1 ft.) 17.4 m to 65.2 m (57.1 ft. to 213.9 ft.) |
|---|
| DORI Distance (Recognize) | 8.7 m (28.5 ft.) 8.7 m to 32.6 m (28.5 ft. to 106.9 ft.) |
|---|
| DORI Distance (Identify) | 4.3 m (14.1 ft.) 4.3 m to 16.3 m (14.1 ft. to 53.5 ft.) |
|---|
| 隱私遮蔽 | 24 areas, up to 4 areas per scene 1080P (1920 × 1080)@25 fps (default) |
|---|
| Frame Rate-Main Stream | 1080P (1920 × 1080), max. 25 fps 720P (1280 × 720), max. 25 fps 720P (1280 × 720), max. 25 fps D1 (720 × 576), max. 25 fps |
|---|
| Frame Rate-Sub Stream | 640 × 360, max. 25 fps 2CIF (704 × 288), max. 25 fps CIF (325 × 288), max. 25 fps |
|---|
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG |
|---|
| 視頻碼率 | 128 Kbps to 16 Mbps |
|---|
| U-code | Support (main stream) |
|---|
| ROI | Support |
|---|
| Video Stream | Dual streams |
|---|
| OSD | Up to 4 OSDs |
|---|
| Linkage Function | Support. Triggered by fixed lens via smart intrusion prevention function to track target Cross line detection, intrusion detection, enter |
|---|
| Smart Intrusion Prevention | N/A area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
|---|
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
|---|
| Digital Noise Reduction | 2D/3D DNR |
|---|
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
|---|
| HLC | Support |
|---|
| BLC | Support |
|---|
| Smart IR | Support |
|---|
| 除霧 | Digital defog |
|---|
| Light On/Off Control | Auto/Manual |
|---|
| Wavelength | 850 nm |
|---|
| Illumination Distance (IR) | 10 m (32.8 ft.) 50 m (164.0 ft.) |
|---|
| N/A | 10 m (32.8 ft.) |
|---|
| Basic Detection | Motion detection, Audio detection Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User |
|---|
| 音訊壓縮 | G.711U, G.711A |
|---|
| Audio Bitrate | 128 Kbps |
|---|
| 雙向語音 | Support |
|---|
| Suppression | Support |
|---|
| 取樣率 | 16KHz |
|---|
| Edge Storage | MicroSD, up to 512 GB |
|---|
| 網絡儲存 | ANR, NAS (NFS) SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
|---|
| Compatible Integration | ONVIF (Profile S, Profile G, Profile M), API, SDK |
|---|
| 用戶管理 | Up to 32 users. 3 user levels: administrator, common user and operator TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic |
|---|
| 安全 | and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
|---|
| 客戶端 | EZStation, UNV-Link, UNV-Link Pro |
|---|
| 瀏覽器 | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
|---|
| Number of Presets | N/A 256 |
|---|
| Preset Patrol | N/A 16 patrols, up to 64 presets for each patrol |
|---|
| Patrol Stay Time | 1000 s to 1800 s |
|---|
| Home Position | N/A Support |
|---|
| Pan Range | N/A 0° to 345° |
|---|
| Tilt Range | 18°±5° -10° to 100° |
|---|
| 水平速度 | N/A 1°/s to 40°/s |
|---|
| 垂直速度 | N/A 2°/s to 50°/s |
|---|
| Built-in Mic | Built-in dual-mic |
|---|
| Built-in Speaker | Support |
|---|
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet CE-EMC (EN55032:2015; EN55024:2010+A1:2015; EN61000-3-2:2014; EN61000-3-3:2013) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) CE LVD (EN 62368-1:2014+A11:2017; EN 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
|---|
| Environment | CE-ROHS (2011/65/EU) |
|---|
| 防護等級 | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
|---|
| 供電 | DC 12 V, PoE+ (IEEE 802.3at) |
|---|
| 功耗 | Max. 16 W |
|---|

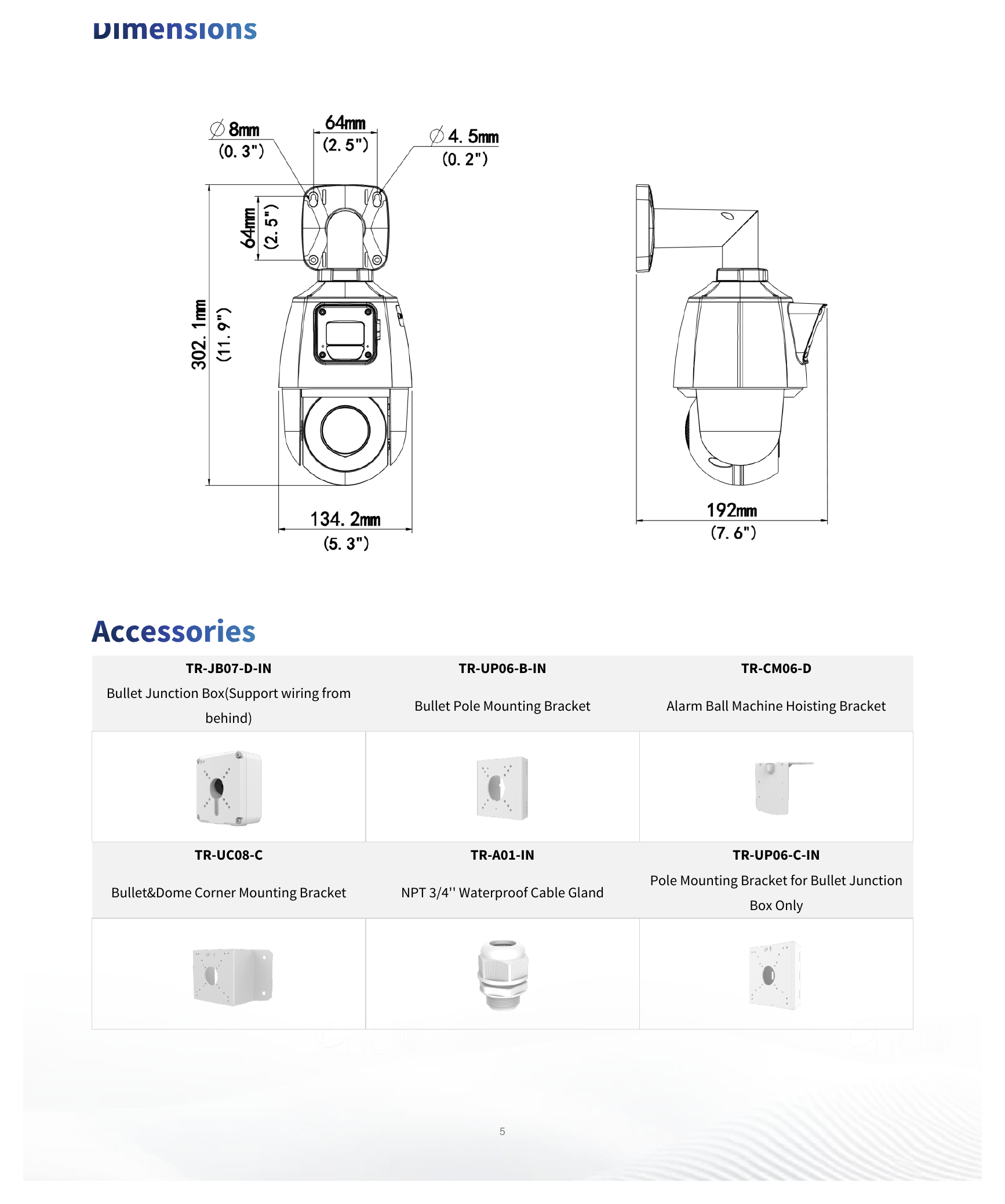

| 電源接口 | Ø5.5 mm coaxial power plug Wall Mount: 192 mm × 134 mm × 302 mm (7.6" × 5.3" × 11.9") (L × W × H) Ceiling Mount: 154 mm × 134 mm × 363 mm (6.1" × 5.3" × 14.3") (L × W × H) |
|---|
| 重量 | 1.03 kg (2.27 lb.) |
|---|
| Working Environment | -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
|---|
| Storage Environment | -30 ℃ to 70 ℃ (-22 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
|---|
| 防雷 | 2 KV |
|---|
| Reset Button | Support 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, |
|---|
| 介面語言 | Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
|---|
| TR-JB07-D-IN | TR-UP06-B-IN TR-CM06-D Bullet Junction Box(Support wiring from |
|---|
| Bullet Pole Mounting Bracket | Alarm Ball Machine Hoisting Bracket behind) |
|---|
| TR-UC08-C | TR-A01-IN TR-UP06-C-IN Pole Mounting Bracket for Bullet Junction |
|---|
| Bullet&Dome Corner Mounting Bracket | NPT 3/4'' Waterproof Cable Gland Box Only Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
|---|
