| Input Type | AC 100 V to 240 V 3-pin Connector, For the final installation, a UL 489-certified, 20-ampere circuit breaker must be be installed at the front end. |
|---|
| Socket | 1-ch 5A, US socket 1-ch 5A, EU socket |
|---|
| DC 12V | 1-ch 2.5A, DC5521, Used for powering the router |
|---|
| PoE | 8 RJ45 10M/100M self adaptive Ethernet Interface |
|---|
| PoE Power | Max 30 W for single port, Max 75 W in total |
|---|
| PoE 標準 | IEEE 802.3at, IEEE 802.3af |
|---|
| Fan Power Interface | DC12V, 2.5A |
|---|
| Heater Power Interface | AC 100 ~ 240V to DC 12V, 8A |
|---|
| NVR Power Interface | AC 100 ~ 240V to DC 48V, 2.3A |
|---|
| Router Power Interface | DC12V, 2.5A |
|---|
| Warning Light Power Interface | DC12V, 2.5A Overvoltage and Overload Protection,Power Information Collection,Power Switch Detection,Power Switch Control,Thermostatic Fan,Thermostatic Heater,Automatic Network Restart,Door Open Detection,Warning Light,Fault Reporting and Analysis |
|---|
| 解碼格式 | Ultra 265, H.265, H.264 Smart Off: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30 Smart On: 2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30 |
|---|
| 音訊壓縮 | G.711A, G.711U |
|---|
| Bandwidth | 80 Mbps |
|---|
| 網絡協議 | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4 |
|---|
| IP 視頻輸入 | 8-ch 4-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution) |
|---|
| 錄影解像度 | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF Face Detection,Face Comparison,Vehicle Detection,SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area),Ultra Motion Detection (UMD),Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection),People Counting (People Flow Counting, Crowd Density Monitoring),Video Metad |
|---|
| Smart by SMBOX | Face Detection,Face Comparison,Ultra Motion Detection (UMD),Smart Intrusion Prevention (SIP) Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle |
|---|
| VCA Search | Search, Human Body Search, General Search, People Counting Report, Heat Map, SmartSearch+, AcuSearch |
|---|
| by SMBOX with face detection | 8-ch 2-ch |
|---|
| Vehicle Picture Library | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total |
|---|
| SIP by SMBOX | 4-ch |
|---|
| UMD by SMBOX | 8-ch |
|---|
| Capacity of Snapshot Records | 500 thousand records for face snapshot, One and a half millions records for SIP and vehicle Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, |
|---|
| General Alarm | Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space |
|---|
| Alert Alarm | Low, Hard Disk Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
|---|
| USB | 1 × USB2.0, 1 × USB3.0 |
|---|
| Alarm In | 4-ch |
|---|
| Alarm Out | 2-ch |
|---|
| ONVIF | Support |
|---|
| Hard Disk | 1 x SATA interface, up to 16TB HDD (2.5" or 3.5"), or up to 4TB SSD (2.5") |
|---|
| Maximum discharge current | 40 kA |
|---|
| Rated discharge current | 20 kA |
|---|
| Response time | L-PE ≤ 25 ns, N-PE ≤ 25 ns |
|---|
| 防雷 | 6 kV |
|---|
| When using HDDs: -40 ℃ | to 60 ℃ (-40 ℉ to 140 ℉); When using SSDs: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
|---|
| 工作濕度 | ≤ 90% RH (non condensing) |
|---|
| Weight (Without Camera) | ≤ 16 kg (35.27 lb) |
|---|

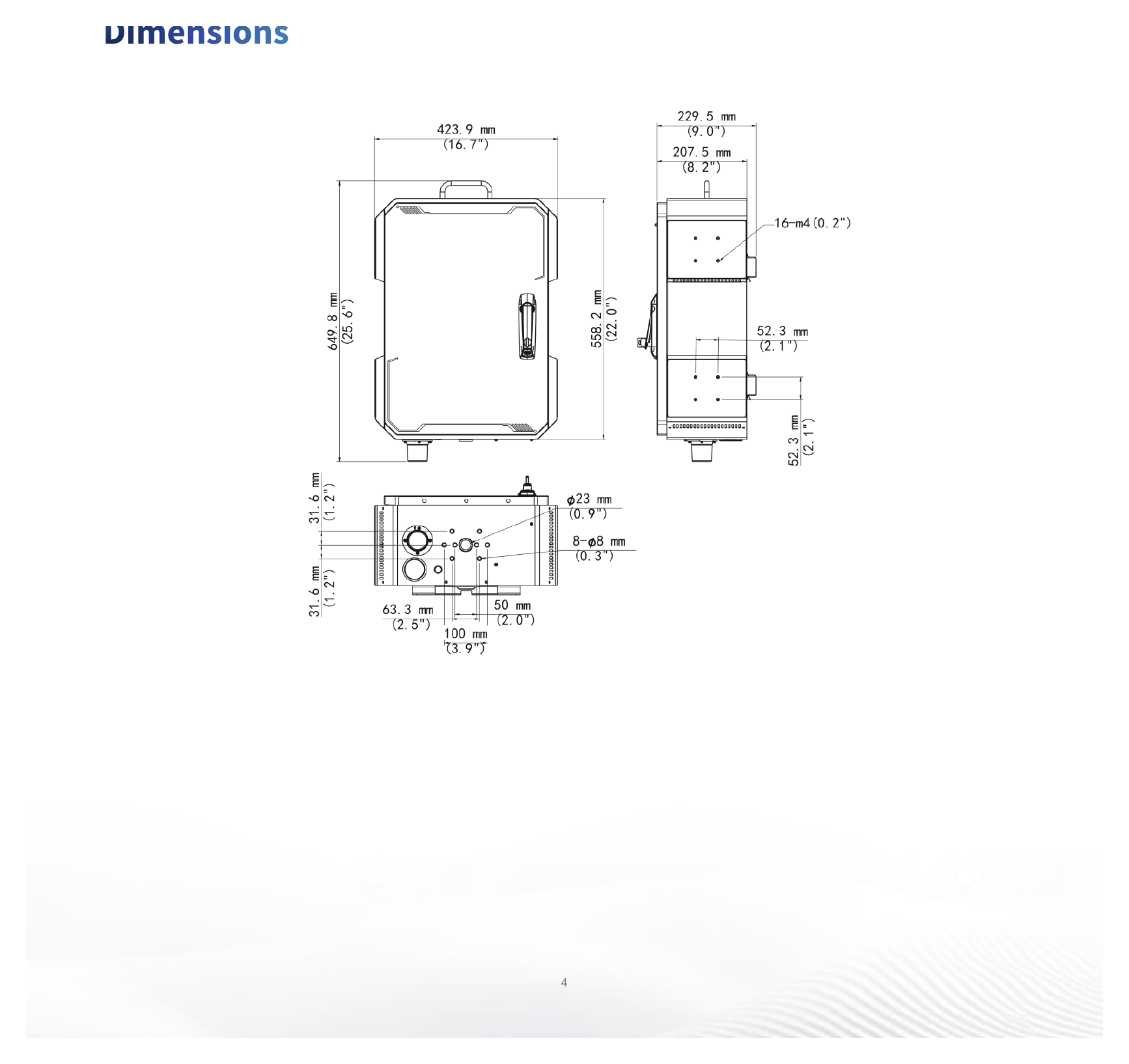

| 尺寸 | 650 (H) × 424 (W) × 230 (D) mm The space has a depth of 55mm and a width of 190mm for installing a 4G router, Select a 4G |
|---|
| Slot dimensions | router with DC 12V round plug power supply, total power consumption not exceeding 30W, and at least 2 LAN ports. |
|---|
| Rating | IP56, Custom stainless-steel enclosures available to meet NEMA 4X requirements. |
|---|
| Certification | CE-EMC, FCC At ambient temperature of 25°C: 13.7 W (No HDD, No HDD heating, No Heater, No Fan, No Alarm Light) At ambient temperature of 25°C: 247.2 W (16T HDD, HDD Heating, Heater, Full POE Output (75W), Fan, Alarm Light) |
|---|
| SMSERVER power | At ambient temperature of 25°C: |
|---|
| 功耗 | ≤8W (No HDD+ No POE Output) 96.5W (Full POE Output + 16T HDD) 122.2W (Full POE Output + 16T HDD + Heating Film) Up to 2 units can be installed, supporting TR-JB07/WM03-F-IN-V2, TR-JB07/WM03-G-IN-V2, TR-JB07/WM03-H-IN-V2, TR-JB07/WM04-B-IN-V2, TR-JB05-B-IN or TR-JB07-D-IN-V2 Up to 2 units can be installed, supporting TR-JB07/WM03-F-IN-V2, TR-JB07/WM03-G-IN-V2, TR-JB07/WM03-H-IN-V2, TR-JB07/WM04-B-I |
|---|
| supports | TR-UF45-A-IN (Only 4-inch PTZ) |
|---|
