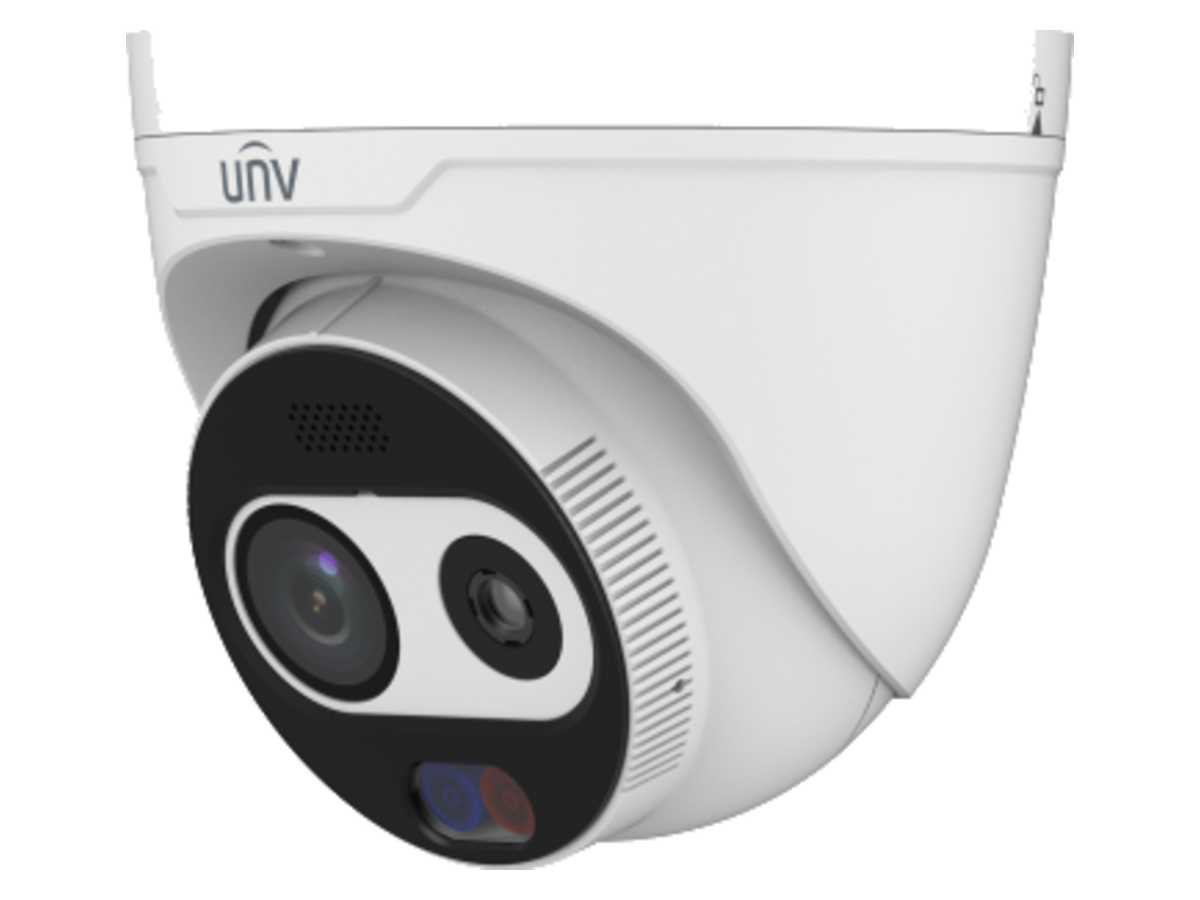

Uniview TIC3612SA-F3-4F4AC-I1 為TIC3612SA-F3-4F4AC-I1，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 TIC3612SA-F3-4F4AC-I1 香港價格連安裝報價。
| Channel | Optical Thermal |
|---|---|
| Max Resolution | 4 MP 960P |
| Original Resolution | N/A 256 × 192 |
| Sensor | 1/2.8" CMOS Vanadium oxide uncooled focal plane arrays Colour: 0.003 lux (F1.6, AGC ON) |
| 最低照度 | B/W: 0.002lux(F1.6,AGC ON) N/A 0 lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) N/A |
| Pixel Size | N/A 12 um |
| NETD | < 50 mk@F1.0@25 ℃ |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | >56 dB |
| 焦距 | 4mm 3 mm |
| Iris | F1.6 F1.0 |
| Field of View (H) | 74.9° 58.0° |
| Field of View (V) | 44.4° 42.5° |
| Field of View (D) | 97.4° 72° |
| DORI Distance (Detect) | 90.0m(295.3ft) N/A |
| DORI Distance (Observe) | 36.0m(118.1ft) N/A |
| DORI Distance (Recognize) | 18.0m(59.1ft) N/A |
| DORI Distance (Identify) | 9.0m(29.5ft) N/A |
| Wavelength | 750 nm N/A |
| Illumination Distance (IR) | 30m N/A |
| Light On/Off Control | Auto/Manual N/A |
| Frame Rate | 4MP(2688*1520), Max 30fps 960P(1280*960), Max 30fps |
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG |
| 視頻碼率 | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple streams |
| OSD | Up to 8 OSDs |
| 隱私遮蔽 | Up to 8 areas (8 blacks/ 8 mosaics) N/A Auto, Outdoor, Fine tune, Sodium lamp, |
| White Balance | N/A Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| HLC | Support N/A |
| BLC | Support N/A |
| 除霧 | Digital defog N/A puce, rain, fusion, mazarine, medical, arctic, lava, color 2, color 1, green hot, red hot, |
| Palette | N/A black hot, ice hot, depict hot, rainbow 3, rainbow 2, rainbow 1, hot iron, iron oxide red, white hot Cross line detection, intrusion detection, enter Cross line detection, intrusion detection, enter area detection, leave area detection (support area detection, leave area detection (support false alarm filtering and the classification of false alarm filtering and the classification of |
| human, non-motor vehicle and vehicle) | human and vehicle) |
| Smoke Detection | Support N/A ±8 ℃ (±14.4 ℉) or ±8% (whichever is greater) Selectable between -20 ℃ to 150 ℃ (-4 ℉ to |
| Temperature Range | 302 ℉) and 100 ℃ to 550 ℃ (212 ℉ to 1022 60m 30m |
| Fire Detection | N/A Support Motion detection, Tampering alarm, Audio |
| Basic Detection | N/A detection Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
| N/A | 13m |
| 音訊壓縮 | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| 雙向語音 | Support |
| Suppression | Support |
| 取樣率 | 16KHZ |
| Edge Storage | MicroSD, up to 512 GB |
| 網絡儲存 | ANR IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| 用戶管理 | Up to 32 users. 3 user levels: administrator, common user and operator |
| 客戶端 | EZStation, UNV-Link, UNV-Link Pro |
| 瀏覽器 | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 2/2 |
| Serial Port | 1 × RS485 |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A 1 BNC (for debugging) CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: |
| EMC | 2021,EN 50130-4:2011+A1:2014) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) CE LVD (EN IEC 62368-1:2020+A11:2020) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| 防護等級 | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| 供電 | DC12V(±25%), PoE(IEEE802.3af) |
| 功耗 | Max 12W |
| 電源接口 | Ø5.5 mm coaxial power plug |
| 尺寸 | Φ129 x 114 mm(Φ5.08" x 4.49")(Φ x H) |
| 重量 | 0.72kg(1.6lb) |
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| 防雷 | 6 KV |
| Reset Button | Support |
| RTC | Support 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, |
| 介面語言 | Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
| Maximum Bitstream | 35 |
| Maximum Bandwidth | 50 Mbps |
| OSD Font | Vector |
| OSD Color | Support |
| OSD Character Number | 40 |
| Corridor Mode | Support |
| Software Version | Q6202 |
| Detection Ran | Detection Ran Recognition R Recognition R Identification R Identification Ran |
| 鏡頭 | ge (Vehicles:4. ge (Humans:1. ange (Vehicles ange (Humans ange (Vehicles ge (Humans: 1.8 0 × 1.4 m) 8 × 0.5 m) : 4.0 × 1.4 m) : 1.8 × 0.5 m) : 1.4 × 4.0 m) × 0.5 m) |
| TR-JB03-H-IN | TR-A01-IN TR-JB07/WM03-F-IN |
| Junction Box for Metal Turret | Wall Mounting Assembling Bracket with NPT 3/4'' Waterproof Cable Gland |
| Camera(Support wiring from behind) | Back Hole for 3 Inch Hemisphere |
| TR-WM03-B-IN | TR-UP06-IN TR-UC08-C Wall Mounting Assembling Bracket for 3 |
| Universal Pole Mounting Bracket | Bullet&Dome Corner Mounting Bracket Inch Hemisphere Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

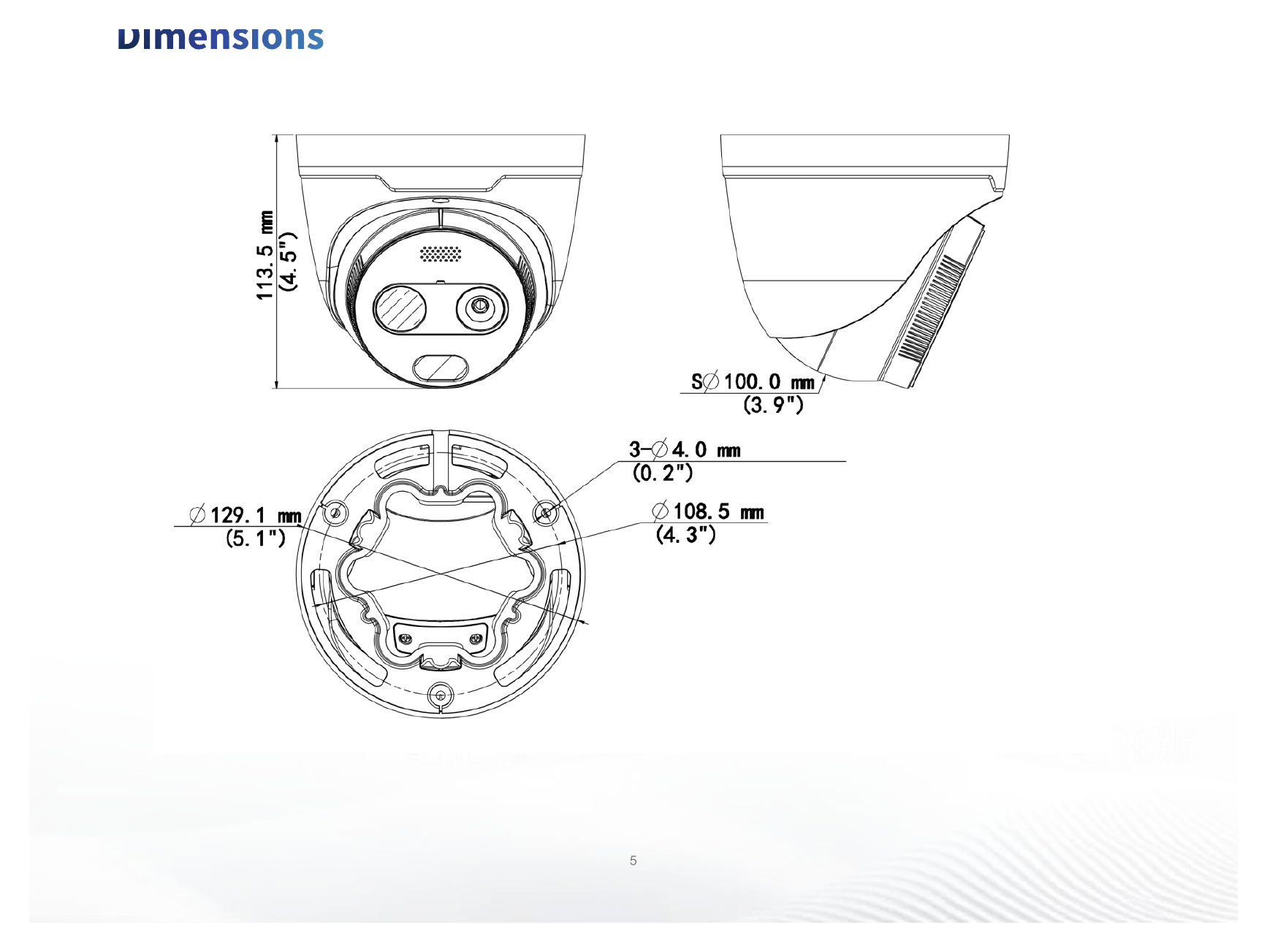

Φ129 x 114 mm(Φ5.08" x 4.49")(Φ x H)｜重量 0.72kg(1.6lb)｜Unit: mm
TIC3612SA-F3-4F4AC-I1 Uniview TIC3612SA-F3-4F4AC-I1亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，TIC3612SA-F3-4F4AC-I1 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：Shutter方面，TIC3612SA-F3-4F4AC-I1 係 Auto/Manual, 1 to 1/100000 s，PKC1150-4-Z28-C-P 係 1/100000 to 1/25s；焦距方面，TIC3612SA-F3-4F4AC-I1 係 4mm 3 mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens；視頻壓縮方面，TIC3612SA-F3-4F4AC-I1 係 Ultra 265, H.265, H.264, MJPEG，PKC1150-4-Z28-C-P 係 H.264 (default), H.265。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 TIC3612SA-F3-4F4AC-I1 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 TIC3612SA-F3-4F4AC-I1 Uniview TIC3612SA-F3-4F4AC-I1供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：大圍CCTV 閉路電視安裝、大埔CCTV 閉路電視安裝、大角咀CCTV 閉路電視安裝、將軍澳CCTV 閉路電視安裝、尖沙咀CCTV 閉路電視安裝、屯門CCTV 閉路電視安裝、旺角CCTV 閉路電視安裝、柴灣CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 TIC3612SA-F3-4F4AC-I1 香港價格連安裝報價。
