Uniview TIC3612SA-F7-4F6AC-I1 為TIC3612SA-F7-4F6AC-I1，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 TIC3612SA-F7-4F6AC-I1 香港價格連安裝報價。
| Channel | Optical Thermal |
|---|---|
| Max Resolution | 4 MP 960P |
| Original Resolution | N/A 256 × 192 |
| Sensor | 1/2.8" CMOS Vanadium oxide uncooled focal plane arrays Colour: 0.003 lux (F1.6, AGC ON) |
| 最低照度 | B/W: 0.002lux(F1.6,AGC ON) N/A 0 lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) N/A |
| NETD | < 50 mk@F1.0@25 ℃ |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | >56 dB |
| 焦距 | 6.0 mm 7.0 mm |
| Iris | F1.6 F1.0 |
| Field of View (H) | 49.1° 25.2° |
| Field of View (V) | 26.9° 19.3° |
| Field of View (D) | 60.4° 31° |
| DORI Distance (Detect) | 135.0m(442.9ft) N/A |
| DORI Distance (Observe) | 54.0m(177.2ft) N/A |
| DORI Distance (Recognize) | 27.0m(88.6ft) N/A |
| DORI Distance (Identify) | 13.5m(44.3ft) N/A |
| Wavelength | 750 nm N/A |
| Illumination Distance (IR) | 30m N/A |
| Light On/Off Control | Auto/Manual N/A |
| Frame Rate | 4MP(2688*1520), Max 30fps 960P(1280*960), Max 30fps |
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG |
| 視頻碼率 | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple streams |
| OSD | Up to 8 OSDs |
| 隱私遮蔽 | Up to 8 areas (8 blacks/ 8 mosaics) N/A |
| Digital Noise Reduction | 2D/3D DNR |
| 除霧 | Digital defog N/A |
| Palette | N/A lava, medical, arctic, mazarine, fusion, rain, puce, white hot, iron oxide red, hot iron, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, red hot, green hot, color 1, color 2 Cross line detection, intrusion detection, enter Cross line detection, intrusion detection, enter area detection, leave area detection (support area detection, leave area detection (support false alarm fi |
| human, non-motor vehicle and vehicle) | human and vehicle) |
| Smoke Detection | Support N/A ±8 ℃ (±14.4 ℉) or ±8% (whichever is greater) Selectable between -20 ℃ to 150 ℃ (-4 ℉ to |
| Temperature Range | 302 ℉) and 100 ℃ to 550 ℃ (212 ℉ to 1022 140m 70m |
| Fire Detection | N/A Support Motion detection, Tampering alarm, Audio |
| Basic Detection | N/A detection Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
| N/A | 29m |
| 音訊壓縮 | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| 雙向語音 | Support |
| Suppression | Support |
| 取樣率 | 16KHZ |
| Edge Storage | MicroSD, up to 512 GB |
| 網絡儲存 | ANR IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| 用戶管理 | Up to 32 users. 3 user levels: administrator, common user and operator |
| 客戶端 | EZStation, UNV-Link, UNV-Link Pro |
| 瀏覽器 | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 2/2 |
| Serial Port | 1 × RS485 |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A 1 BNC (for debugging) |
| 供電 | DC12V(±25%), PoE(IEEE802.3af) |
| 功耗 | Max 12W |
| 電源接口 | Ø5.5 mm coaxial power plug |
| 尺寸 | Φ129 x 114 mm(Φ5.08" x 4.49")(Φ x H) |
| 重量 | 0.73kg (1.6lb) |
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| 防雷 | 6 KV |
| Reset Button | Support |
| RTC | Support |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| 防護等級 | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| Maximum Bitstream | 35 |
| Maximum Bandwidth | 50 Mbps |
| OSD Font | Vector |
| OSD Color | Support |
| OSD Character Number | 40 |
| Corridor Mode | Support |
| Detection Ran | Detection Ran Recognition R Recognition R Identification R Identification Ran |
| 鏡頭 | ge (Vehicles:4. ge (Humans:1. ange (Vehicles ange (Humans ange (Vehicles ge (Humans: 1.8 0 × 1.4 m) 8 × 0.5 m) : 4.0 × 1.4 m) : 1.8 × 0.5 m) : 1.4 × 4.0 m) × 0.5 m) |
| TR-JB03-H-IN | TR-A01-IN TR-JB07/WM03-F-IN |
| Junction Box for Metal Turret | Wall Mounting Assembling Bracket with NPT 3/4'' Waterproof Cable Gland |
| Camera(Support wiring from behind) | Back Hole for 3 Inch Hemisphere |
| TR-WM03-B-IN | TR-UP06-IN TR-UC08-C Wall Mounting Assembling Bracket for 3 |
| Universal Pole Mounting Bracket | Bullet&Dome Corner Mounting Bracket Inch Hemisphere Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

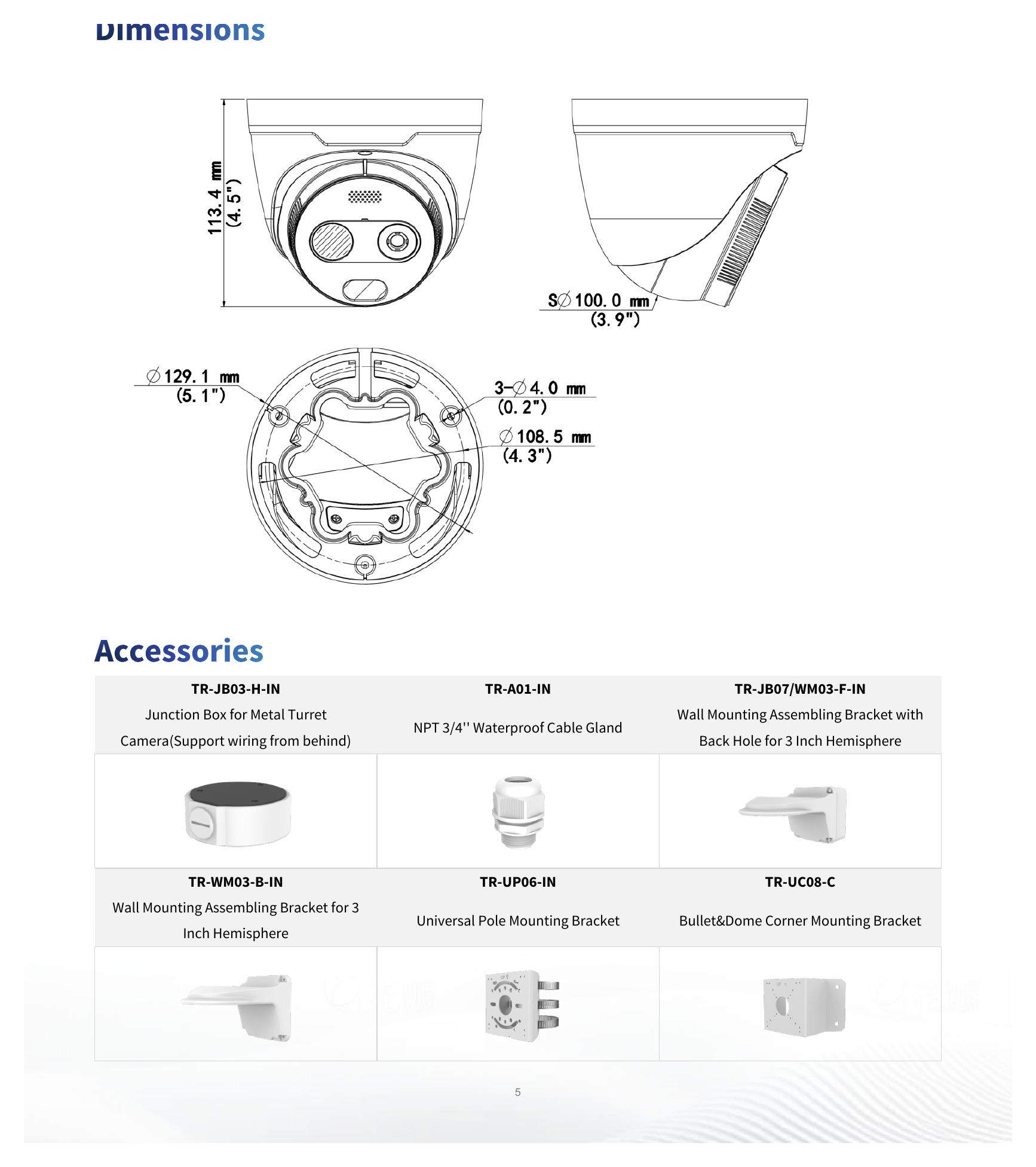

Φ129 x 114 mm(Φ5.08" x 4.49")(Φ x H)｜重量 0.73kg (1.6lb)｜Unit: mm
TIC3612SA-F7-4F6AC-I1 Uniview TIC3612SA-F7-4F6AC-I1亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，TIC3612SA-F7-4F6AC-I1 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：Shutter方面，TIC3612SA-F7-4F6AC-I1 係 Auto/Manual, 1 to 1/100000 s，PKC1150-4-Z28-C-P 係 1/100000 to 1/25s；焦距方面，TIC3612SA-F7-4F6AC-I1 係 6.0 mm 7.0 mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens；視頻壓縮方面，TIC3612SA-F7-4F6AC-I1 係 Ultra 265, H.265, H.264, MJPEG，PKC1150-4-Z28-C-P 係 H.264 (default), H.265。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 TIC3612SA-F7-4F6AC-I1 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 TIC3612SA-F7-4F6AC-I1 Uniview TIC3612SA-F7-4F6AC-I1供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：上水CCTV 閉路電視安裝、中環CCTV 閉路電視安裝、九龍城CCTV 閉路電視安裝、九龍灣CCTV 閉路電視安裝、佐敦CCTV 閉路電視安裝、元朗CCTV 閉路電視安裝、北角CCTV 閉路電視安裝、土瓜灣CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 TIC3612SA-F7-4F6AC-I1 香港價格連安裝報價。
