| receive sensitivity | • Water and Dust - Zigbee: up to 8 dBm transmit power and -97dBm receive - IP66/67 |
|---|
| 靈敏度 | • Salt Tolerance - Up to 4dBm transmit power (class 2) and -91 dBm - Tested to ASTM B117-07A Salt Spray 200hrs |
|---|
| • USB-C console interface | • FCC/ISED • CE Marked |
|---|
| MOUNTING | • RED Directive 2014/53/EU |
|---|
| • Optional mounting kits: | • EMC Directive 2014/30/EU • AP-OUT-MNT-V1A: Outdoor Pole/Wall Long Mount Kit • Low Voltage Directive 2014/35/EU • AP-270-MNT-V2: Outdoor Pole/Wall Short Mount Kit • UL/IEC/EN 60950 • AP-270-MNT-H1: Outdoor AP Hanging or Tilt Install Mount • EN 60601-1-1, EN60601-1-2 |
|---|
| Kit | • Railway Certs: • AP-270-MNT-H2: Outdoor Flush Wall or Ceiling Mount - EN 50155:2017 – Railway Applications • AP-270-MNT-H3: Outdoor AP Hanging or Dual-Tilt Install - EN 50121-1:2017 – Railway EMC |
|---|
| Mount Kit | - EN 50121-3-2 – Railway EMC - EN 50121-4:2016 – Railway Immunity |
|---|
| MECHANICAL | - IEC 61373 ed2:2008 – Railway Shock and Vibration |
|---|

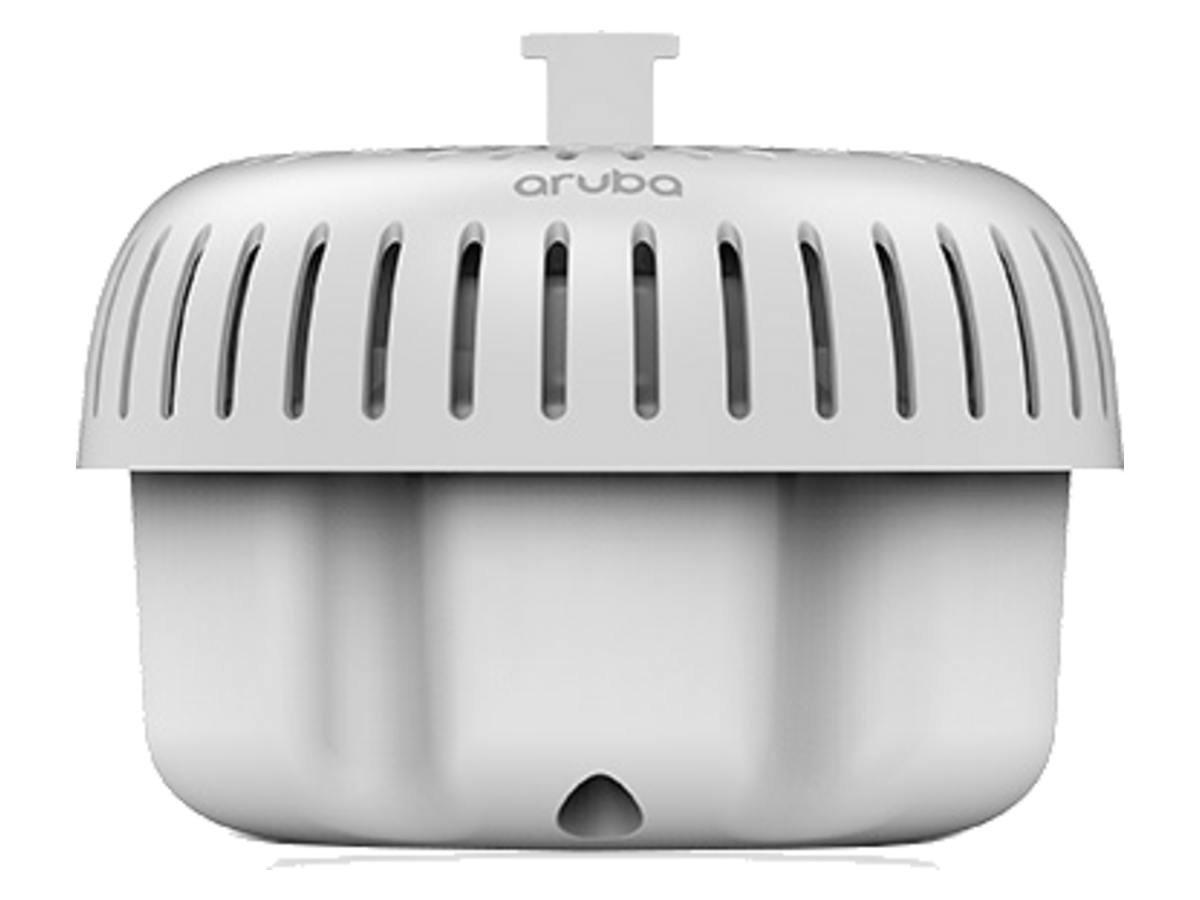

| AP-574 | For more country-specific regulatory information and |
|---|
| • Dimensions/weight (excluding mount): | approvals, please see your Aruba representative. - 24 cm (W) x 24 cm (D) x 19 cm (H)/ 9.4” (W) x 9.4” (D) x 7.5” (H) REGULATORY MODEL NUMBER |
|---|
| - 2.7kg/6.0lbs | • AP-574: APEX0574 |
|---|
| AP-575 | • AP-575: APEX0575 |
|---|
| - 2.5kg/5.6lbs | • CB Scheme Safety, cTUVus |
|---|
| AP-577 | • UL2043 plenum rating |
|---|
| - 23 cm (W) x 22 cm (D) x 14 cm (H) | • Wi-Fi CERTIFIED™ 6 (802.11ax) |
|---|
| - 9.0” (W) x 8.7” (D) x 5.6” (H) | • Wi-Fi CERTIFIED™ ac (with Wave 2 features) |
|---|
| - 2.1 kg/4.6 lbs | • Passpoint® (Release 2) with ArubaOS and Instant |
|---|
| ENVIRONMENTAL | WARRANTY |
|---|
| • Operating: | • Limited Lifetime Warranty - Temperature: -40° C to +65° C (-40° F to +149° F) with MINIMUM OPERATING SYSTEM SOFTWARE full solar loading • ArubaOS & Aruba InstantOS 8.7.0.0 - Humidity: 5% to 93% non-condensing internal - Rated for operation in all weather conditions • Storage and transportation: - Temperature: -40° C to +70° C (-40° F to +158° F) ARUBA 570 SERIES WIRELESS ACCESS POINTS RF PERFORM |
|---|

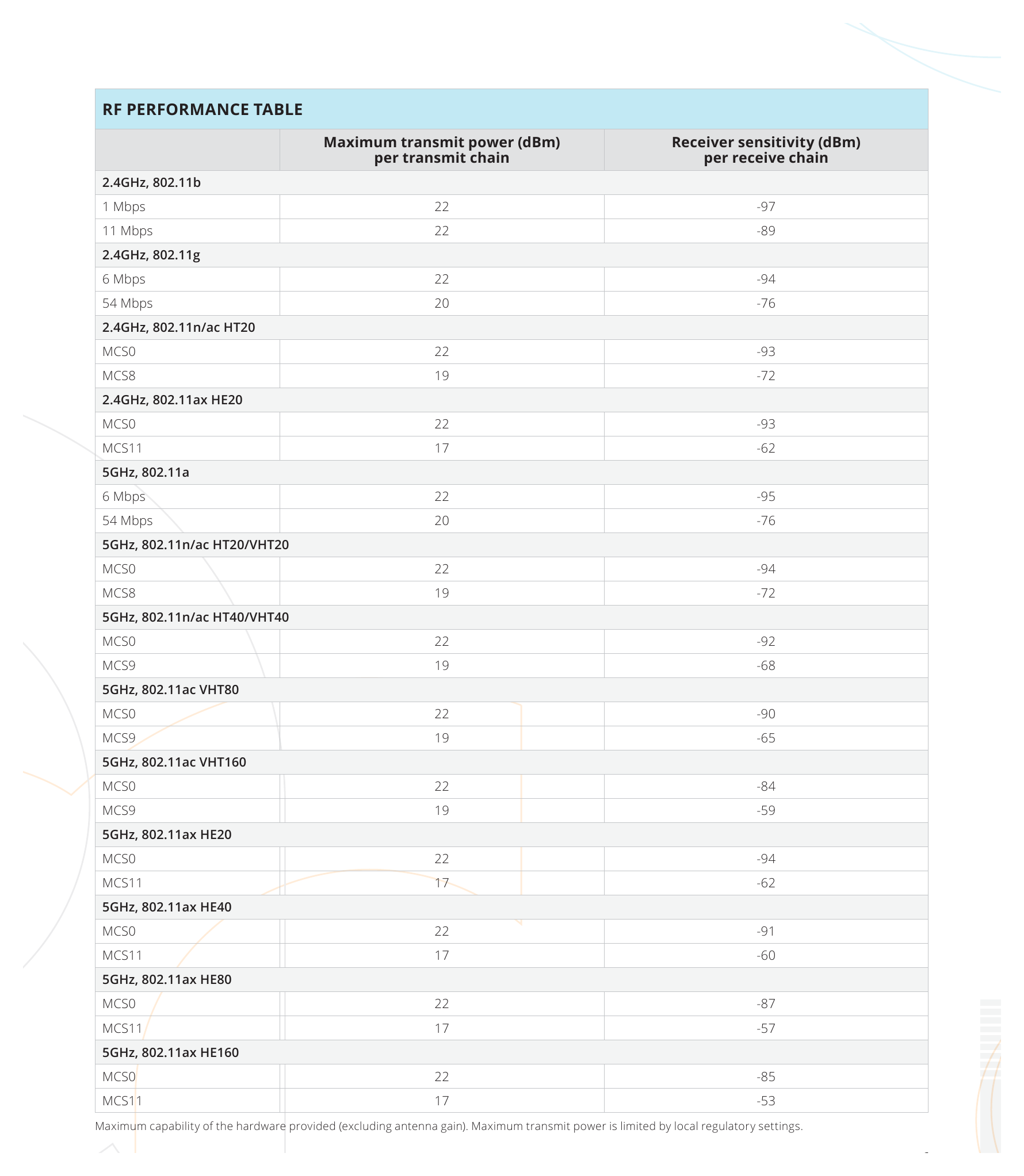

| Maximum transmit power (dBm) | Receiver sensitivity (dBm) |
|---|
| per transmit chain | per receive chain 2.4GHz, 802.11b 1 Mbps 22 -97 11 Mbps 22 -89 2.4GHz, 802.11g 6 Mbps 22 -94 54 Mbps 20 -76 2.4GHz, 802.11n/ac HT20 |
|---|
| MCS0 | 22 -93 |
|---|
| MCS8 | 19 -72 2.4GHz, 802.11ax HE20 |
|---|
| MCS11 | 17 -62 5GHz, 802.11a 6 Mbps 22 -95 54 Mbps 20 -76 5GHz, 802.11n/ac HT20/VHT20 |
|---|
| MCS9 | 19 -68 5GHz, 802.11ac VHT80 |
|---|
| Part Number | Description AP-570 Series Unified Outdoor Access Points |
|---|
| R4H09A | Aruba AP-574 (EG) 802.11ax 2x2:2/4x4:4 Dual Radio 6xNf Connectorized Outdoor AP |
|---|
| R4H10A | Aruba AP-574 (IL) 802.11ax 2x2:2/4x4:4 Dual Radio 6xNf Connectorized Outdoor AP |
|---|
| R4H11A | Aruba AP-574 (JP) 802.11ax 2x2:2/4x4:4 Dual Radio 6xNf Connectorized Outdoor AP |
|---|
| R4H12A | Aruba AP-574 (RW) 802.11ax 2x2:2/4x4:4 Dual Radio 6xNf Connectorized Outdoor AP |
|---|
| R4H13A | Aruba AP-574 (US) 802.11ax 2x2:2/4x4:4 Dual Radio 6xNf Connectorized Outdoor AP |
|---|
| R4H14A | Aruba AP-575 (EG) 802.11ax 2x2:2/4x4:4 Dual Radio Integrated Omni Antenna Outdoor AP |
|---|
| R4H15A | Aruba AP-575 (IL) 802.11ax 2x2:2/4x4:4 Dual Radio Integrated Omni Antenna Outdoor AP |
|---|
| R4H16A | Aruba AP-575 (JP) 802.11ax 2x2:2/4x4:4 Dual Radio Integrated Omni Antenna Outdoor AP |
|---|
| R4H17A | Aruba AP-575 (RW) 802.11ax 2x2:2/4x4:4 Dual Radio Integrated Omni Antenna Outdoor AP |
|---|
| R4H18A | Aruba AP-575 (US) 802.11ax 2x2:2/4x4:4 Dual Radio Integrated Omni Antenna Outdoor AP |
|---|
| R4H19A | Aruba AP-577 (EG) 802.11ax 2x2:2/4x4:4 Dual Radio Integrated Directional Antenna Outdoor AP |
|---|
| R4H20A | Aruba AP-577 (IL) 802.11ax 2x2:2/4x4:4 Dual Radio Integrated Directional Antenna Outdoor AP |
|---|
| R4H21A | Aruba AP-577 (JP) 802.11ax 2x2:2/4x4:4 Dual Radio Integrated Directional Antenna Outdoor AP |
|---|
| R4H22A | Aruba AP-577 (RW) 802.11ax 2x2:2/4x4:4 Dual Radio Integrated Directional Antenna Outdoor AP |
|---|
| R4H23A | Aruba AP-577 (US) 802.11ax 2x2:2/4x4:4 Dual Radio Integrated Directional Antenna Outdoor AP AP-570 Series Unified Outdoor Access Points FIPS/TAA |
|---|
| R4H24A | Aruba AP-574 (EG) TAA 802.11ax 2x2:2/4x4:4 Dual Radio 6xNf Connectorized Outdoor AP |
|---|
| R4H25A | Aruba AP-574 (IL) TAA 802.11ax 2x2:2/4x4:4 Dual Radio 6xNf Connectorized Outdoor AP |
|---|
| R4H26A | Aruba AP-574 (JP) TAA 802.11ax 2x2:2/4x4:4 Dual Radio 6xNf Connectorized Outdoor AP |
|---|
| R4H27A | Aruba AP-574 (RW) TAA 802.11ax 2x2:2/4x4:4 Dual Radio 6xNf Connectorized Outdoor AP |
|---|
| R4H28A | Aruba AP-574 (US) TAA 802.11ax 2x2:2/4x4:4 Dual Radio 6xNf Connectorized Outdoor AP |
|---|
| R4H29A | Aruba AP-575 (EG) TAA 802.11ax 2x2:2/4x4:4 Dual Radio Integrated Omni Antenna Outdoor AP |
|---|
| R4H30A | Aruba AP-575 (IL) TAA 802.11ax 2x2:2/4x4:4 Dual Radio Integrated Omni Antenna Outdoor AP |
|---|
| R4H31A | Aruba AP-575 (JP) TAA 802.11ax 2x2:2/4x4:4 Dual Radio Integrated Omni Antenna Outdoor AP |
|---|
| R4H32A | Aruba AP-575 (RW) TAA 802.11ax 2x2:2/4x4:4 Dual Radio Integrated Omni Antenna Outdoor AP |
|---|
| R4H33A | Aruba AP-575 (US) TAA 802.11ax 2x2:2/4x4:4 Dual Radio Integrated Omni Antenna Outdoor AP |
|---|
| R4H34A | Aruba AP-577 (EG) TAA 802.11ax 2x2:2/4x4:4 Dual Radio Integ Directional Antenna Outdoor AP |
|---|
| R4H35A | Aruba AP-577 (IL) TAA 802.11ax 2x2:2/4x4:4 Dual Radio Integ Directional Antenna Outdoor AP |
|---|
| R4H36A | Aruba AP-577 (JP) TAA 802.11ax 2x2:2/4x4:4 Dual Radio Integ Directional Antenna Outdoor AP |
|---|
| R4H37A | Aruba AP-577 (RW) TAA 802.11ax 2x2:2/4x4:4 Dual Radio Integ Directional Antenna Outdoor AP |
|---|
| R4H38A | Aruba AP-577 (US) TAA 802.11ax 2x2:2/4x4:4 Dual Radio Integ Directional Antenna Outdoor AP © Copyright 2022 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein s |
|---|
