| Hardware variants | • Up to 256 associated client devices per radio |
|---|
| • AP-565 | • Up to 16 BSSIDs per radio |
|---|
| – Built-in Omni Directional Antennas | • Supported frequency bands (country-specific |
|---|
| – 5 GHz Antennas 5.4 dBi | restrictions apply): |
|---|
| – 2.4 GHz Antennas 3.2 dBi | – 2.400 to 2.4835 GHz (ISM) |
|---|
| – BLE/802.15.4 Antennas 3.3 dBi | – 5.150 to 5.250 GHz (U-NII-1) |
|---|
| • AP-567 | – 5.250 to 5.350 GHz (U-NII-2A) |
|---|
| Data sheet | Page 4 |
|---|
| – 5.470 to 5.725 GHz (U-NII-2C) | – 5 GHz band: +23 dBm per chain, +26 dBm aggregate (2x2) – 5.725 to 5.850 GHz (U-NII-3/ISM) – Note: conducted transmit power levels exclude |
|---|
| – 5.850 to 5.875 GHz (U-NII-4) | antenna gain. • Available channels: Dependent on configured • Maximum EIRP (limited by local regulatory |
|---|
| regulatory domain | requirements): • Dynamic frequency selection (DFS) optimizes the use – 2.4 GHz band: |
|---|
| of available RF spectrum | à 565: 29.2 dBm EIRP |
|---|
| • Supported radio technologies: | à 567: 33 dBm EIRP – 802.11b: Direct-sequence spread-spectrum (DSSS) – 5 GHz band: – 802.11a/g/n/ac: Orthogonal frequency-division à 565: 31.4 dBm EIRP multiplexing (OFDM) à 567: 32.7 dBm EIRP – 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 16 resource units (RU) • Advanced Cellular Coexistence (ACC) minimizes the impact of interference from cellular networks • Support |
|---|
| VHT20/40/80/160 | • Transmit beam-forming (TxBF) for increased signal |
|---|
| • 802.11ax high efficiency (HE) support: | reliability and range |
|---|
| HE20/40/80/160 | • 802.11mc Fine Timing Measurement (FTM) for |
|---|
| • Supported data rates (Mbps): | precision distance ranging |
|---|
| – 802.11b: 1, 2, 5.5, 11 | Power • Maximum (worst-case) power consumption: 15.6W – 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 • Maximum (worst case) power consumption in idle – 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to mode: 4.2W HT40), 400 with 256-QAM • Maximum (worst case) power consumption in – 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, deep‑sleep mode: 1.7 VHT20 to VHT80), 1,083 with 1024-QAM • Power sources sold |
|---|
| NSS = 1 to 2, HE20 to HE40) | • Power over Ethernet (PoE+): 802.3at-compliant • 802.11n/ac/ax packet aggregation: A-MPDU, A-MSDU • When powered by 1x 802.3at, there are no restrictions • Transmit power: Configurable in increments of • When powered by 1x 802.3af with IPM enabled, 0.5 dBm the AP will start up in unrestricted mode, but may dynamically apply restrictions depending on the POE • Maximum (conducted) transmit power (l |
|---|
| regulatory requirements): | be programmed – 2.4 GHz band: +23 dBm per chain, +26 dBm • When powered by 1x 802.3af with IPM disabled, the |
|---|
| aggregate (2x2) | AP will lower the 2.4Ghz radio to 1x1:1 |
|---|
| Additional Interfaces | • Storage and transportation: • E0: 10/100/1000BASE-T (RJ-45) – Temperature: -40° C to +70° C (-40° F to +158° F) – Auto-sensing link speed and MDI/MDX • Operating Altitude: 3,000 m – PoE-PD: 48Vdc (nominal) 802.3at/bt (Class 3 |
|---|
| or higher) | • Water and Dust |
|---|
| – 802.3az Energy Efficient Ethernet (EEE) | – IP66/67 |
|---|
| • Bluetooth 5 and 802.15.4 radio | • Salt Tolerance |
|---|
| – 2.4 GHz | – Tested to ASTM B117-07A Salt Spray 200hrs – Bluetooth 5: up to 8 dBm transmit power and • Wind Survival: Up to 165 Mph -95 dBm receive sensitivity • Shock and Vibration ETSI 300-19-2-4 – Zigbee: up to 8 dBm transmit power and -97 dBm |
|---|
| receive sensitivity | Regulatory – Up to 4 dBm transmit power (class 2) and -91 dBm • FCC/ISED |
|---|
| Mounting | • RED Directive 2014/53/EU |
|---|
| • Optional mounting kits: | • EMC Directive 2014/30/EU |
|---|
| – AP-OUT-MNT-V1A: Outdoor Pole/Wall Long | • Low Voltage Directive 2014/35/EU Mount Kit • IEC/EN/UL 62368-1 – AP-270-MNT-V2: Outdoor Pole/Wall Short Mount Kit • EN 60601-1-1, EN60601-1-2 – AP-270-MNT-H1: Outdoor AP Hanging or Tilt Install |
|---|
| Mount Kit | • Railway Certs: |
|---|
| – AP-270-MNT-H2: Outdoor Flush Wall or | – EN 50155:2017—Railway Applications |
|---|
| Ceiling Mount | – EN 50121-1:2017—Railway EMC – AP-270-MNT-H3: Outdoor AP Hanging or Dual-Tilt – EN 50121-3-2—Railway EMC Install Mount Kit – EN 50121-4:2016—Railway Immunity – IEC 61373 ed2:2008—Railway Shock and Vibration • AP-565 |
|---|
| – Dimensions/weight (excluding mount): | For more country-specific regulatory information and approvals, please see your HPE Aruba Networking à 16.5 cm (W) x 16.5 cm (D) x 13 cm (H) representative. à 6.5” (W) x 6.5” (D) x 5.1” (H) Regulatory model numbers |
|---|
| à 1.03 kg/2.27 lbs | • AP-565: APEX0565 |
|---|

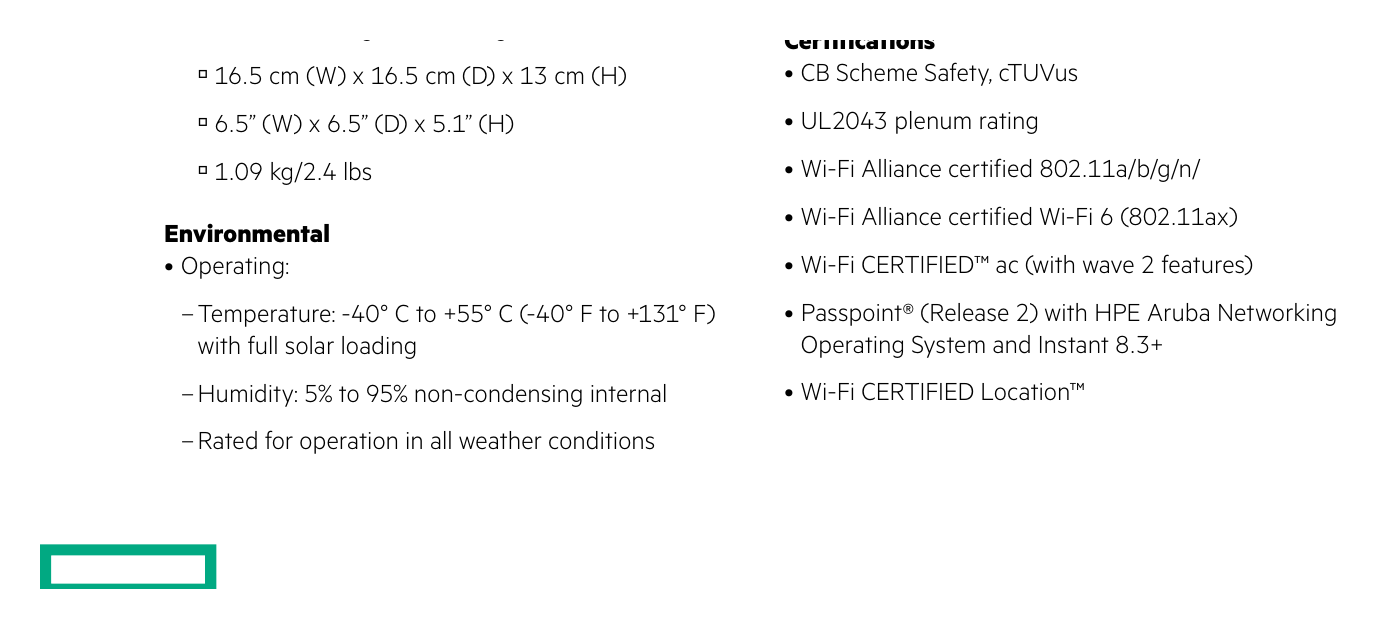

| à 16.5 cm (W) x 16.5 cm (D) x 13 cm (H) | • CB Scheme Safety, cTUVus |
|---|
| à 6.5” (W) x 6.5” (D) x 5.1” (H) | • UL2043 plenum rating |
|---|
| à 1.09 kg/2.4 lbs | • Wi-Fi Alliance certified 802.11a/b/g/n/ • Wi-Fi Alliance certified Wi-Fi 6 (802.11ax) Environmental |
|---|
| • Operating: | • Wi-Fi CERTIFIED™ ac (with wave 2 features) – Temperature: -40° C to +55° C (-40° F to +131° F) • Passpoint® (Release 2) with HPE Aruba Networking |
|---|
| with full solar loading | Operating System and Instant 8.3+ – Humidity: 5% to 95% non-condensing internal • Wi-Fi CERTIFIED Location™ – Rated for operation in all weather conditions |
|---|
| Band rate | Maximum transmit power (dBm) Receiver sensitivity (dBm) |
|---|
| per transmit chain | per receive chain 2.4 GHz, 802.11b 1 Mbps 22 -97 11 Mbps 22 -89 2.4 GHz, 802.11g 6 Mbps 22 -93 54 Mbps 20 -76 2.4 GHz, 802.11n/ac HT20 |
|---|
| MCS0 | 22 -93 |
|---|
| MCS8 | 19 -75 2.4 GHz, 802.11ax HE20 |
|---|
| MCS11 | 17 -62 5 GHz, 802.11a 6 Mbps 22 -92 54 Mbps 20 -75 5 GHz, 802.11n/ac HT20/VHT20 |
|---|
| MCS9 | 19 -65 |
|---|
| Part number | Description |
|---|
| R4W40A | HPE Aruba Networking AP-565 (EG) 802.11ax Dual 2x2:2 Radio Integrated Omni Antenna Outdoor AP |
|---|
| R4W41A | HPE Aruba Networking AP-565 (IL) 802.11ax Dual 2x2:2 Radio Integrated Omni Antenna Outdoor AP |
|---|
| R4W42A | HPE Aruba Networking AP-565 (JP) 802.11ax Dual 2x2:2 Radio Integrated Omni Antenna Outdoor AP |
|---|
| R4W43A | HPE Aruba Networking AP-565 (RW) 802.11ax Dual 2x2:2 Radio Integrated Omni Antenna Outdoor AP |
|---|
| R4W44A | HPE Aruba Networking AP-565 (US) 802.11ax Dual 2x2:2 Radio Integrated Omni Antenna Outdoor AP |
|---|
| R4W45A | HPE Aruba Networking AP-567 (EG) 802.11ax Dual 2x2:2 Radio Integrated Directional Antenna Outdoor AP |
|---|
| R4W46A | HPE Aruba Networking AP-567 (IL) 802.11ax Dual 2x2:2 Radio Integrated Directional Antenna Outdoor AP |
|---|
| R4W47A | HPE Aruba Networking AP-567 (JP) 802.11ax Dual 2x2:2 Radio Integrated Directional Antenna Outdoor AP |
|---|
| R4W48A | HPE Aruba Networking AP-567 (RW) 802.11ax Dual 2x2:2 Radio Integrated Directional Antenna Outdoor AP |
|---|
| R4W49A | HPE Aruba Networking AP-567 (US) 802.11ax Dual 2x2:2 Radio Integrated Directional Antenna Outdoor AP |
|---|
| R4W50A | HPE Aruba Networking AP-565 (EG) TAA 802.11ax Dual 2x2:2 Radio Integrated Omni Antenna Outdoor AP |
|---|
| R4W51A | HPE Aruba Networking AP-565 (IL) TAA 802.11ax Dual 2x2:2 Radio Integrated Omni Antenna Outdoor AP |
|---|
| R4W52A | HPE Aruba Networking AP-565 (JP) TAA 802.11ax Dual 2x2:2 Radio Integrated Omni Antenna Outdoor AP |
|---|
| R4W53A | HPE Aruba Networking AP-565 (RW) TAA 802.11ax Dual 2x2:2 Radio Integrated Omni Antenna Outdoor AP |
|---|
| R4W54A | HPE Aruba Networking AP-565 (US) TAA 802.11ax Dual 2x2:2 Radio Integrated Omni Antenna Outdoor AP |
|---|
| R4W55A | HPE Aruba Networking AP-567 (EG) TAA 802.11ax Dual 2x2:2 Radio Integ Directional Antenna Outdoor AP |
|---|
| R4W56A | HPE Aruba Networking AP-567 (IL) TAA 802.11ax Dual 2x2:2 Radio Integ Directional Antenna Outdoor AP |
|---|
| R4W57A | HPE Aruba Networking AP-567 (JP) TAA 802.11ax Dual 2x2:2 Radio Integ Directional Antenna Outdoor AP |
|---|
| R4W58A | HPE Aruba Networking AP-567 (RW) TAA 802.11ax Dual 2x2:2 Radio Integ Directional Antenna Outdoor AP |
|---|
| R4W59A | HPE Aruba Networking AP-567 (US) TAA 802.11ax Dual 2x2:2 Radio Integ Directional Antenna Outdoor AP Make the right purchase decision. Contact our presales specialists. Contact us Visit ArubaNetworks.com © Copyright 2024 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and ser |
|---|
