| Pan/Tilt/Zoom | Pan: 360° endless, 0.05° - 450°/s Casing IP66-, NEMA 4X- and IK10-rated |
|---|
| Tilt: 220°, 0.05°-450°/s | Metal casing (aluminum), polycarbonate (PC) clear dome, 32x optical zoom and 12x digital zoom, total 384x zoom sunshield (PC/ASA) E-flip, 256 preset positions, Tour recording, Guard tour, Control queue, On-screen directional indicator, Set new pan 0°, Memory 512 MB RAM, 256 MB Flash |
|---|
| Adjustable zoom speed | Power 24 V DC |
|---|
| Video | Camera consumption: min 65 W |
|---|
| compression | Motion JPEG Connectors IP66-rated multiconnector for DC power, RJ45 |
|---|
| 解像度 | HDTV 1080p 1920x1080 to 320x180 10BASE-T/100BASE-TX and I/O, including 7 m (23 ft) |
|---|
| HDTV 720p 1280x720 to 320x180 | cable |
|---|
| Frame rate | Storage Support for SD/SDHC/SDXC card Up to 50/60 fps (50/60 Hz) in HDTV 720p |
|---|
| Up to 25/30 fps (50/60 Hz) in HDTV 1080p | Support for SD card encryption Support for recording to network-attached storage (NAS) JPEG |
|---|
| Axis Zipstream technology | Operating -20 °C to 75 °C (-4 °F to 167 °F) |
|---|
| Controllable frame rate and bandwidth | conditions Humidity 10–100% RH (condensing) |
|---|
| VBR/MBR H.264 | Storage -40 °C to 65 °C (-40 °F to 149 °F) |
|---|
| 圖像設定 | Manual shutter time, compression, color, brightness, sharpness, conditions white balance, exposure control, exposure zones, fine tuning of Approvals EMC behavior at low light, rotation: 0°, 180°, text and image overlay, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, 32 individual 3D privacy masks, image freeze on PTZ, automatic EN 61000-6-2, EN 55024, FCC Part 15 Subpart B Class A, |
|---|
| defog, backlight compensation | ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, Wide Dynamic Range (WDR): Up to 120 dB depending on scene, KCC KN32 Class A, KN35 |
|---|
| highlight compensation | Safety |
|---|
| Network | IEC/EN/UL 60950-1 IEC/EN/UL 60950-22 |
|---|
| 安全 | Password protection, IP address filtering, HTTPSa encryption, Environment IEEE 802.1Xa network access control, Digest authentication, User EN 50121-4, IEC 62236-4, IEC 60068-2-1, IEC 60068-2-2, access log, Centralized Certificate Management, Brute force IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, |
|---|
| delay protection | NEMA 250 Type 4X |
|---|
| Supported | IPv4, IPv6 USGv6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, IEC/EN 60529 IP66 |
|---|
| 網絡協議 | FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 MIL-STD-810G 500.5 - Low pressure, 501.5 - High temperature, (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, UDP, 502.5 - Low temperature, 503.5 - Temperature shock, 505.5 - IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, LLDP Solar radiation, 506.5 - Rain, 507.5 - Humidity, 509.5 - Salt fog, 510.5 - Sand and dustb |
|---|
| System integration | Network |
|---|
| Application | Open API for software integration, including VAPIX® NIST SP500-267 |
|---|
| Programming | and AXIS Camera Application Platform; specifications at Weight |
|---|
| 接口 | www.axis.com 6 kg (13 lb) |
|---|
| One-click cloud connection | Dimensions Ø302 x 330 mm (Ø11 7/8 x 13 in) ONVIF® Profile S and ONVIF® Profile G, specification at onvif.org |
|---|
| Included | AXIS T8607 Media Converter Switch, 7 m (23 ft) IP66-rated |
|---|
| Event triggers | Detectors: live stream accessed, video motion detection, shock accessories multicable |
|---|
| detection | Installation Guide, Windows decoder 1-user license Object removed, enter/exit detector, fence detector, object |
|---|
| counter | Optional AXIS T8008 PS24, SFP modules, smoked dome cover |
|---|
| Hardware: fan, network, temperature | accessories AXIS T91 Mounting Accessories, AXIS T8415 Wireless Installation PTZ: autotracking, error, moving, ready, preset reached Tool, AXIS T90 Illuminators, AXIS T8310 Video Surveillance |
|---|
| Storage: disruption, recording | Control Board, multi-user decoder license pack |
|---|
| System: system ready | Video AXIS Companion, AXIS Camera Station, Video management |
|---|
| Time: recurrence, use schedule | management software from Axis’ Application Development Partners available Input signal: manual trigger, virtual input, digital input software on www.axis.com/vms |
|---|
| Event actions | Day/night mode, overlay text, video recording to edge storage, Languages English, German, French, Spanish, Italian, Russian, Simplified pre- and post-alarm video buffering, send SNMP trap Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
|---|
| PTZ: PTZ preset, start/stop guard tour | Warranty 5-year warranty, see axis.com/warranty File upload via FTP, SFTP, HTTP, HTTPS network share and email Notification via email, HTTP, HTTPS and TCP OpenSSL Toolkit. (www.openssl.org), and cryptographic software written by Eric to be replaced if exposed to sandblasts. Young (eay@cryptsoft.com). |
|---|
| www.axis.com | T10086904/EN/M11.4/2102 AXIS T8607 Media Converter Switch |
|---|
| Casing | Metal Color: White NCS S 1002-B |
|---|
| 供電 | 24 V DC, max 4 W (power supply not included) |
|---|
| Connectors | 2x RJ45 connectors (10/100 Mbps) (Use shielded cables (STP) CAT5 or higher.) 2x SFP connectors (100/1000 Mbps) for SFP fiber optic modules or SFP to copper modules 1x power 2x configurable alarm input/output ports Camera multicable |
|---|
| Display and | Power LED indicator |
|---|
| indicators | Camera network LED indicator Network LED indicator (4x) |
|---|
| Compliance | RoHS, REACH, WEEE, CE, EN 50022, IEC 60715, AS 2756 |
|---|
| Mounting | DIN Rail mount |
|---|
| Environment | Indoor/Cabinet |
|---|
| Operating | -40 °C to 75 °C (-40 °F to 167 °F) |
|---|
| conditions | Humidity 10-85% RH (non-condensing) |
|---|
| Storage | -40 °C to 75 °C (-40 °F to 167 °F) |
|---|
| Approvals | EMC EN 55022 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 55024, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 22, KCC KN22 Class A, KN24 IEC/EN 60950-1 |
|---|
| 尺寸 | 150 x 100 x 30 mm (5 15/16 x 3 15/16 x 1 3/16 in) |
|---|

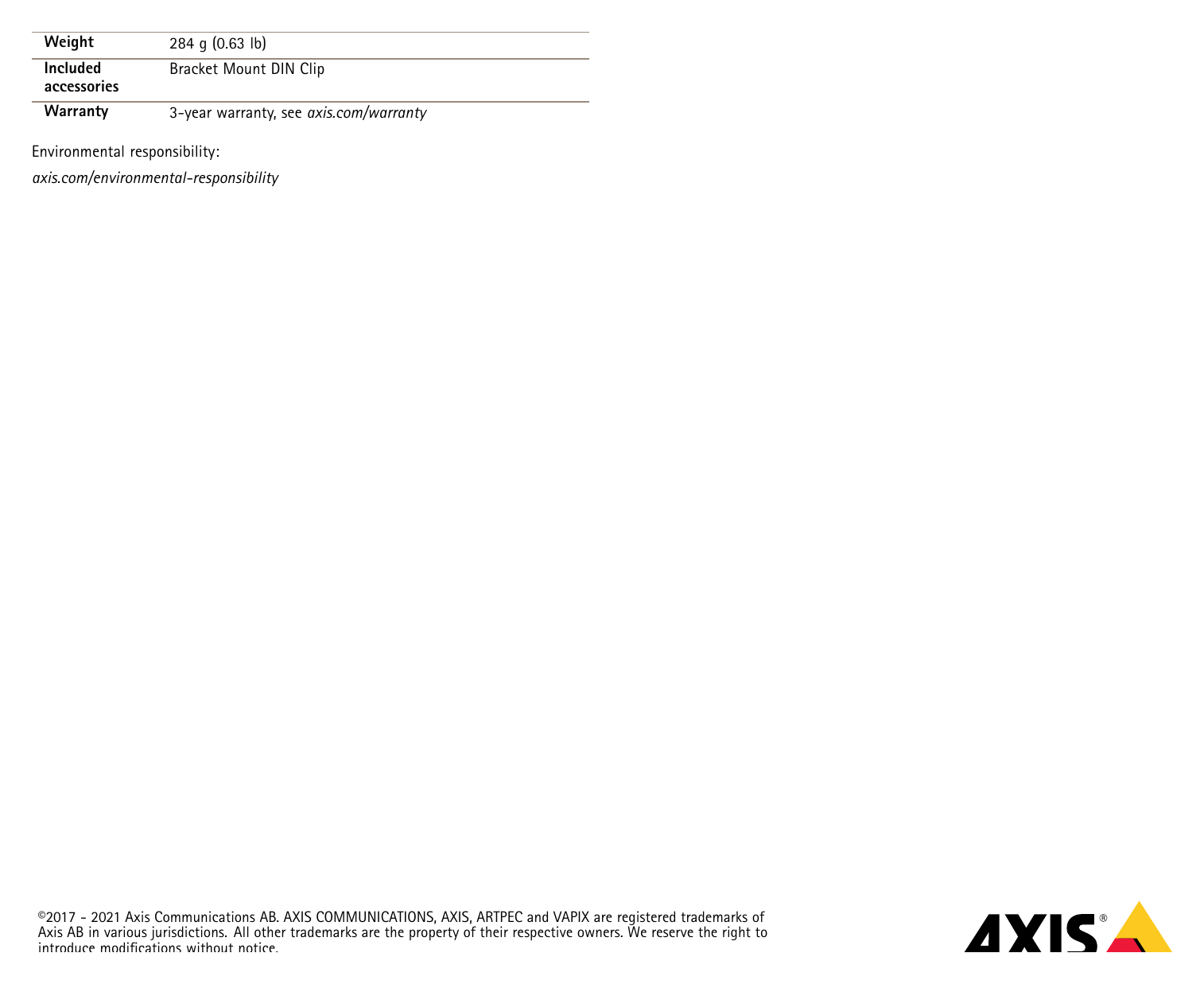

| 重量 | 284 g (0.63 lb) |
|---|
| Warranty | 3-year warranty, see axis.com/warranty |
|---|
