| Short detection | < 90 Ω (L+ to L-) Electrical |
|---|
| Open detection | > 360 kΩ (L+ to L-) |
|---|
| DC Power supply | 19 - 30 VDC, nominal 30 VDC (only T‑branch with EOL monitoring) Functional: (interfacing) |
|---|
| Status indicators | 2 x two-color LED (orange/blue), 1 x |
|---|
| Idle current | 100 µA continuous output to optional external fault LED |
|---|
| 最大功耗 | 20 mW User buttons Reset + EOL detection switch |
|---|
| LOOP connection | Fault report Open relays |
|---|
| DC | 30 V, max. cont. 130 mA Reset Manual, by FIM reset button or by LDB reset |
|---|
| AC Voltage | Max. cont. 100 VRMS, 300 VPP |
|---|
| Reset time | < 3s |
|---|
| AC Current | Max. cont. 8 A |
|---|
| Full charging time (from complete | < 50s |
|---|
| AC Frequency range | 40 Hz ~ 20 kHz (-3dB) discharge) Fault detection time |
|---|
| AC THD | Max.10% (according to EN 54-16) |
|---|
| Loop short, T-branch short | <1s |
|---|
| T-branch open (only with EOL | <5s |
|---|
| AC | Same as LOOP Audio recovery time |
|---|
| Maximum AC load | 50 W Loop short <4s |
|---|
| Wiring | 2-wire, max. 2.5 mm2, loop max. Other faults 0 s (no audio interruption) length 1 km, outer cable diameter max. 13 mm Environmental |
|---|
| Grounding | Optional earth loop through third connection pin |
|---|
| 工作溫度 | -25˚C ~ +55˚C |
|---|
| Loop relay contact rating | Max. 250 VAC / 8 A (Dual-state |
|---|
| 儲存溫度 | -20˚C ~ +70˚C type) |
|---|
| 相對濕度 | 15% - 93% |
|---|
| Maximum total loop load | 800 W |
|---|
| Loudspeaker type | Only with DC blocking capacitor |
|---|
| Maximum number of FIM’s, single | 200 |
|---|
| Housing | Plastic body (ABS/PC-V0 ) with transparent cover (PC-V0) |
|---|
| Protection rating | IP 33 |
|---|
| Dimensions (W x H x D) | IP 33 housing, 110 x 130 x 55 mm |
|---|

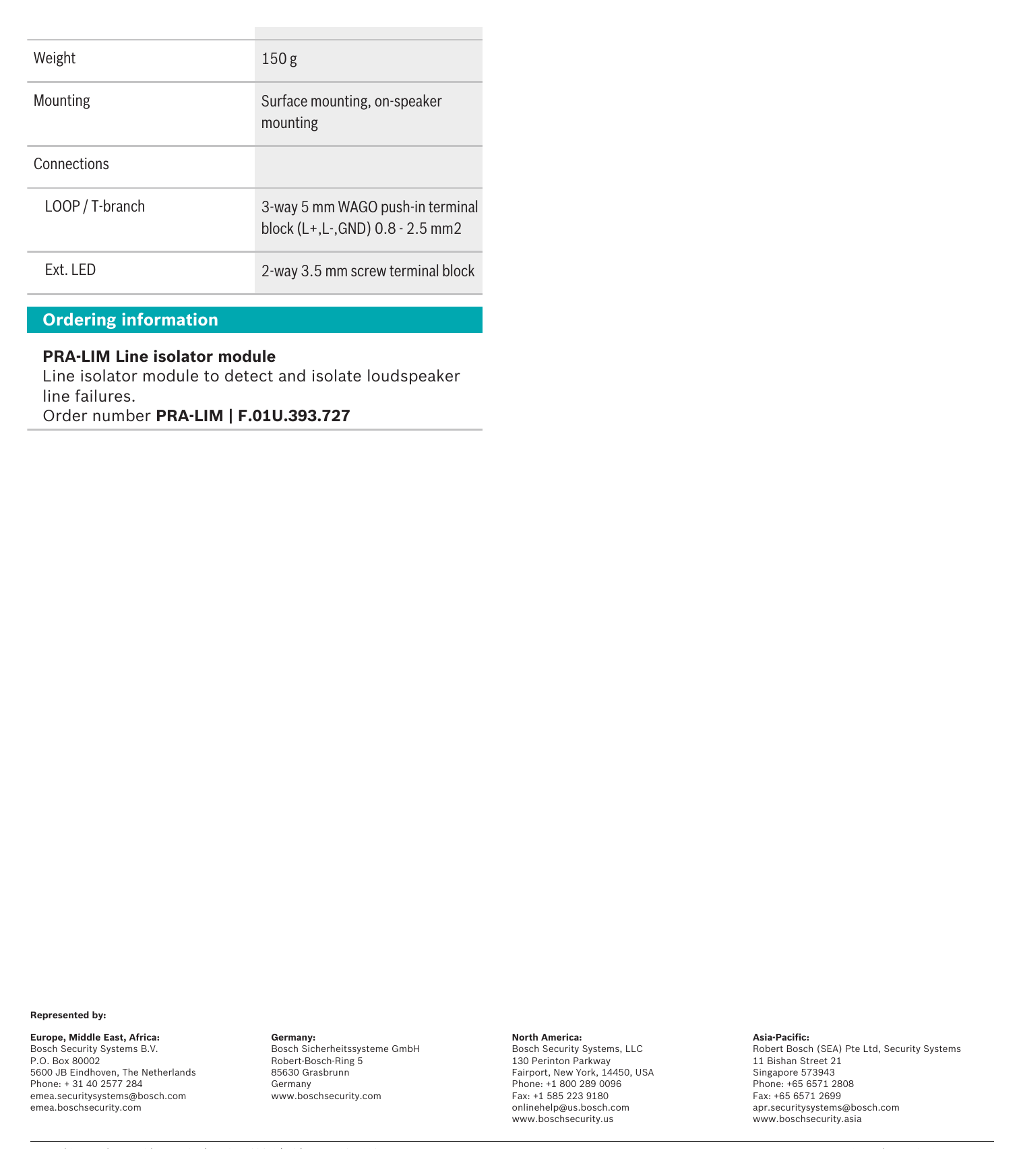

| 重量 | 150 g |
|---|
| Mounting | Surface mounting, on-speaker mounting |
|---|
| LOOP / T-branch | 3-way 5 mm WAGO push-in terminal block (L+,L-,GND) 0.8 - 2.5 mm2 |
|---|
| Ext. LED | 2-way 3.5 mm screw terminal block Ordering information PRA-LIM Line isolator module Line isolator module to detect and isolate loudspeaker line failures. Order number PRA-LIM | F.01U.393.727 |
|---|
