| ABOUT THIS USER GUIDE | SECURITY ADVICE PAGE 6 |
|---|---|
| • | The key features, typical uses, product variants and components of the ePMP are explained in Overview of ePMP on page 1-2. |
| Characteristic | Value |
| Topology | PMP or PTP |
| Wireless link condition | LOS, near LOS |
| Scheduler | TDD |
| Connectivity | Ethernet |
| Operating frequencies | Unlicensed bands, 5 GHz |
| Channel bandwidth | 20 MHz, 40 MHz, 80 MHz |
| Data rate | Up to 1+ Gbps Sector Throughput PAGE 1-3 |
| Environmental | IP67 |
| Temperature | -30°C to +60°C (-22°F to 140°F) PAGE 1-7 |
| CHAPTER 2: SYSTEM HARDWARE | SYSTEM MANAGEMENT |
| Cambium description | Cambium part number ePMP 3000 5 GHz Access Point Radio (FCC) (US cord) C058910A102A ePMP 3000 5 GHz Access Point Radio (IC) (Canada/US cord) C050910A104A ePMP 3000 5 GHz Access Point Radio (EU) (EU cord) C050910A203A ePMP 3000 5 GHz Access Point Radio (EU) (UK cord) C050910A303A ePMP 3000 5 GHz Access Point Radio (ROW) (no cord) C050910A001A ePMP 3000 5 GHz Access Point Radio (ROW) (US cord) C0509 |
| CABLE, UL POWER SUPPLY CORD SET, AUS/NZ | N000900L011 |
| CABLE, UL POWER SUPPLY CORD SET, Brazil | N000900L010 |
| CABLE, UL POWER SUPPLY CORD SET, CHINA | N000900L015 |
| CABLE, UL POWER SUPPLY CORD SET, EU | N000900L008 |
| CABLE, UL POWER SUPPLY CORD SET, INDIA | N000900L012 |
| CABLE, UL POWER SUPPLY CORD SET, UK | N000900L009 PAGE 2-22 |
| CABLE, UL POWER SUPPLY CORD SET, US | N000900L007 Figure 5 ePMP 3000 Access Point module mounting bracket The ePMP 3000 Access Point module is designed to be mounted with a sector antenna or pole-mounted using the mounting bracket provided in the box with the radio. |
| Port name | Connector Interface Description |
| PoE input | Power over Ethernet (PoE) |
| Eth | RJ45 100/1000BASE-T Ethernet Data |
| SFP | SFP Optical or Copper Gigabit Ethernet Management and/or data PAGE 2-23 |
| Category | Specification |
| Dimensions (Length x Width x Height) | 22.2 cm x 12.4 cm x 4.5 cm (8.75 in x 4.9 in x 1.75 in) without brackets |
| 重量 | 0.7 kg (1.5 lbs) without brackets |
| Wind loading | 124 mph (200 kph) maximum. See ePMP 3000 Access Point wind loading (Kg) on page 2-25 for a full description. |
| Humidity | 95% condensing |
| Initial Temperature | Startup time (from power on to operational) |
| -22° F (-30° C) | 20 minutes |
| -4° F (-20° C) | 6 minutes 14° F (-10° C) 2 minutes, 30 seconds PAGE 2-24 |
| Where: | Is: |
| a | the surface area in square meters |
| V | wind speed in meters per second Force (in pounds) = 0.0042Av2 |
| A | the surface area in square feet |
| v | wind speed in miles per hour |
| Type of ePMP device | Largest Wind speed (meters per second) surface area (square 40 50 60 meters) |
| ePMP 3000 Access Point | 0.13 21.74 Kg 33.96 Kg 48.91 Kg with Sector Antenna |
| ePMP 3000L Access | 0.13 21.74 Kg 33.96 Kg 48.91 Kg Point with Sector Antenna |
| ePMP 3000L Access Point | 1.4 37.63 lb 58.80 lb 84.67 lb with Sector Antenna |
| Dimensions (Diameter x Depth) | 47 cm x 31 cm (18.5 in x 12.2 in) |
| Force 300-25 Integrated | 0.15 25.08 Kg 39.2 Kg 56.43 Kg |
| ePMP 5GHz Force 300-19 SM (FCC) (US cord) | C058900C801A ePMP 5GHz Force 300-19 SM (IC) (Canada/US cord) C050900C801A |
| ePMP 5GHz Force 300-19 SM (EU) (EU cord) | C050900C802A |
| ePMP 5GHz Force 300-19 SM (EU) (UK cord) | C050900C803A |
| ePMP 5GHz Force 300-19 SM (ROW) (no cord) | C050900C804A |
| ePMP 5GHz Force 300-19 SM (ROW) (US cord) | C050900C805A |
| ePMP 5GHz Force 300-19 SM (ROW) (EU cord) | C050900C806A |
| ePMP 5GHz Force 300-19 SM (ROW) (UK cord) | C050900C807A ePMP 5GHz Force 300-19 SM (ROW) (India cord) C050900C808A ePMP 5GHz Force 300-19 SM (India) (India cord) C050900C809A PAGE 2-36 |
| ePMP 5GHz Force 300-19 SM (ROW) (No PSU) | C050900C815A |
| 尺寸 | 27.8 cm x 27.8 cm x 4.5cm (10.9 in x 10.9 in x 1.8 in) |
| 天線增益 | 19 dBi |
| Force 300-19 Integrated | 0.08 13.4Kg 20.9Kg 30.1Kg |
| Largest surface | 80 100 120 area (square feet) |
| ePMP 5GHz Force 300-19R SM (EU) (EU cord) | C050900C902A |
| ePMP 5GHz Force 300-19R SM (EU) (UK cord) | C050900C903A ePMP 5GHz Force 300-19R SM (ROW) (no cord) C050900C904A ePMP 5GHz Force 300-19R SM (ROW) (US cord) C050900C905A ePMP 5GHz Force 300-19R SM (ROW) (EU cord) C050900C906A ePMP 5GHz Force 300-19R SM (ROW) (UK cord) C050900C907A ePMP 5GHz Force 300-19R SM (ROW) (India cord) C050900C908A ePMP 5GHz Force 300-19R SM (India) (India cord) C050900C909A PAGE 2-41 |
| ePMP 5GHz Force 300-19R SM (ROW) (No PSU) | C050900C915A |
| Force 300-16 Integrated | 0.03 2.8 Kg 5 Kg 7.8 Kg |
| ePMP 5GHz Force 300-13 SM (FCC) (US cord) | C058900C701A ePMP 5GHz Force 300-13 SM (IC) (Canada/US cord) C050900C701A PAGE 2-50 |
| ePMP 5GHz Force 300-13 SM (EU) (EU cord) | C050900C702A |
| ePMP 5GHz Force 300-13 SM (EU) (UK cord) | C050900C703A |
| ePMP 5GHz Force 300-13 SM (ROW) (no cord) | C050900C704A |
| ePMP 5GHz Force 300-13 SM (ROW) (US cord) | C050900C705A |
| ePMP 5GHz Force 300-13 SM (ROW) (EU cord) | C050900C706A |
| ePMP 5GHz Force 300-13 SM (ROW) (UK cord) | C050900C707A ePMP 5GHz Force 300-13 SM (ROW) (India cord) C050900C708A ePMP 5GHz Force 300-13 SM (India) (India cord) C050900C709A ePMP 5GHz Force 300-13 SM (ROW) (China cord) C050900C710A ePMP 5GHz Force 300-13 SM (ROW) (Brazil cord) C050900C711A ePMP 5GHz Force 300-13 SM (ROW) (Argentina cord) C050900C712A ePMP 5GHz Force 300-13 SM (ROW) (ANZ cord) C050900C713A ePMP 5GHz Force 300-13 SM (ROW) (S |
| ePMP 5GHz Force 300-13 SM (ROW) (No PSU) | C050900C715A |
| ePMP 5GHz Force 300-CSM SM (EU) (EU cord) | C050910C223A |
| ePMP 5GHz Force 300-CSM SM (EU) (UK cord) | C050910C323A ePMP 5GHz Force 300-CSM SM (ROW) (no cord) C050910C021A ePMP 5GHz Force 300-CSM SM (ROW) (US cord) C050910C121A ePMP 5GHz Force 300-CSM SM (ROW) (EU cord) C050910C221A ePMP 5GHz Force 300-CSM SM (ROW) (UK cord) C050910C321A ePMP 5GHz Force 300-CSM SM (ROW) (India cord) C050910C421A ePMP 5GHz Force 300-CSM SM (India) (India cord) C050910C422A ePMP 5GHz Force 300-CSM SM (ROW) (China cor |
| ePMP 5GHz Force 300-CSM SM (ROW) (No PSU) | C050910CZ21A |
| Force 300-CSM | 0.03 2.82 Kg 5.02 Kg 7.84 Kg Integrated |
| Force 300-CSM Integrated | 0.28 7.53 lb 11.76 lb 16.93 lb PAGE 2-58 |
| ePMP Pwr Supply for GPS Radio - no cord | Force 300-25 N000900L001 (spare) Force 300-16 |
| POWER SUPPLY, 30W, 56V – Gbps support | N000000L034 ePMP 3000 Access Point Attention Each ePMP device must be powered by the corresponding power supply listed in Table 28. PAGE 2-60 |
| 接口 | Function |
| Power input | Mains power input. |
| 電源輸出 | 30V |
| Gigabit Data + Power | RJ45 socket for connecting Cat5e cable to the radio |
| Gigabit Data | RJ45 socket for connecting Cat5e cable to the network. |
| LED | Function |
| Power (green) | Power supply detection PAGE 2-61 |

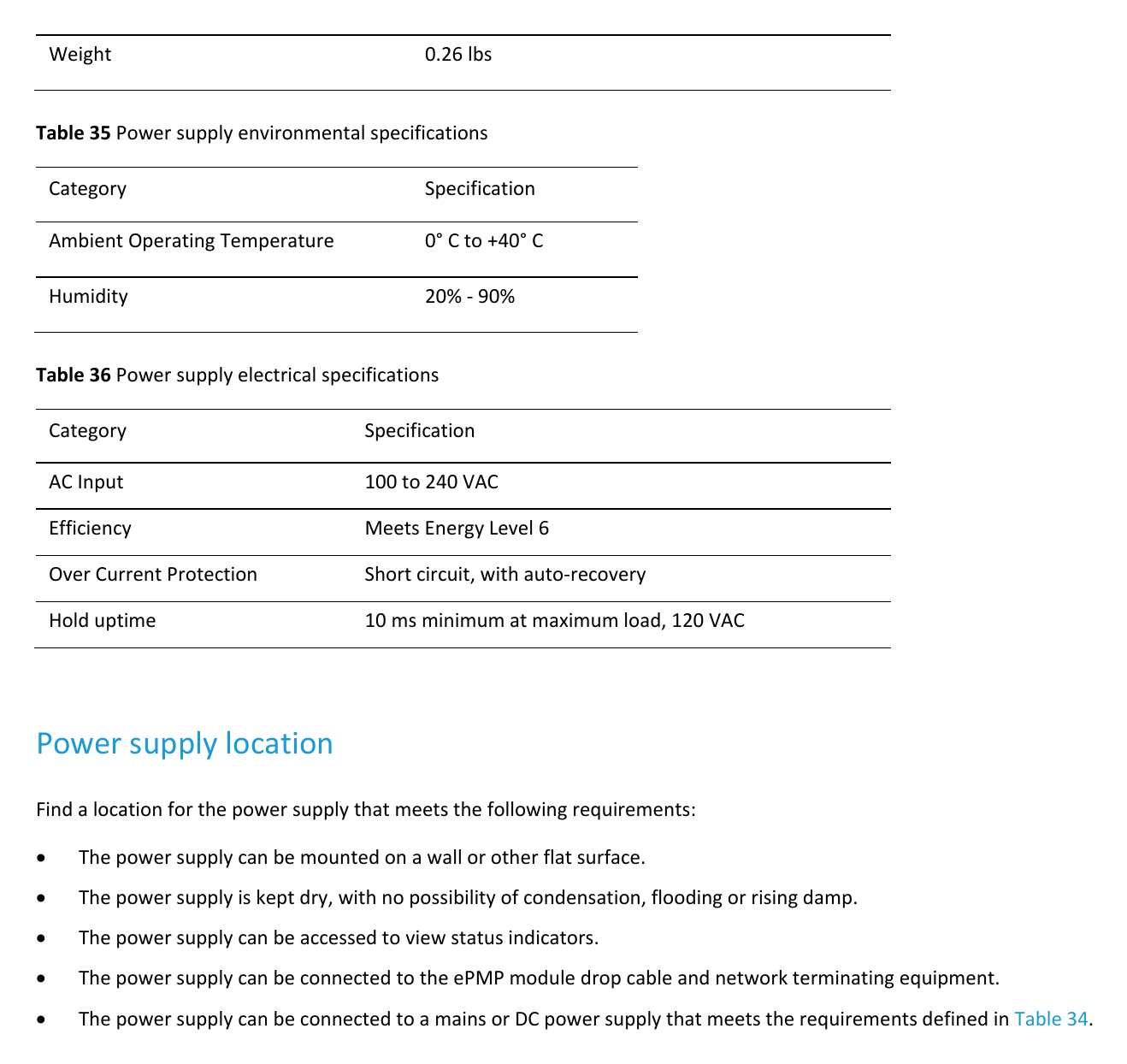

| Dimensions (H x W x D) | 14 x 6.5 x 3.6 cm (5.5 x 2.55 x 1.42 in) |
| Ambient Operating Temperature | 0° C to +40° C |
| AC Input | 100 to 240 VAC |
| Efficiency | Meets Energy Level 6 |
| Over Current Protection | Short circuit, with auto-recovery |
| Hold uptime | 10 ms minimum at maximum load, 120 VAC |
| Part number | Description Maximum cable length (*1) |
| N000900L001 | Power Supply for Radio with Gigabit 330 feet (100m) Ethernet (no cord) N000000L034 PAGE 2-63 |
| Industrial Grade RJ45 Connector 100 Pack | C000000L109A Termination Tool for C000000L109A RJ45 connectors C000000L110A PAGE 2-64 |
| Gigabit Surge Suppressor (30V) | C000000L065A Force 300-16 Force 300-13 |
| Gigabit Surge Suppressor (56V) | C000000L033A ePMP 3000 Access Point Attention Choose the 30V or 56V surge suppressor option based on your installed device power rating. Installing a 30V surge suppressor for a 56V device or a 56V surge suppressor for a 30V device may result in inadequate surge protection. Reference Table 37. PAGE 2-65 |
| CHAPTER 3: SYSTEM PLANNING | CNPULSE SYNC GENERATOR |
| Item | Specification Manual selection (fixed frequency) Channel selection Automatic Channel Selection To avoid interference with other users of the band, maximum power can be set Manual power control lower than the default power limit. ePMP 3000 Access Point: 33 dBm Force 300-25: 29 dBm |
| Maximum transmit power | Force 300-19(R): 28dBm Force 300-16: 29 dBm Force 300-13: 28dBm Force 300-25: Dish antenna Force 300-19(R): Integrated patch Integrated device antenna type Force 300-16: Integrated patch Force 300-13: Integrated patch |
| Duplex scheme | Adaptive TDD |
| Over-the-air encryption | AES |
| Error Correction | FEC PAGE 3-68 |
| RF band (GHz) | 4.910 – 5.970 MHz |
| Typical antenna gain | Integrated patch antenna – 16 dBi Sector antenna – 17 dBi Sector Antenna: 70° azimuth, 6° elevation |
| Antenna 3dB beamwidth (Integrated dish) | Integrated Dish: 6-10° azimuth, 6-10° elevation Integrated Patch: 15° azimuth, 30° elevation |
| L free _ space | Free Space Path Loss (dB) |
| Lexcess | Excess Path Loss (dB) |
| L fade | Fade Margin Required (dB) |
| Lseasonal | Seasonal Fading (dB) |
| Lcapability | Equipment Capability (dB) System Operating Margin (fade margin) dB = Rx signal level (dB) – Rx sensitivity (dB) PAGE 3-71 |
| Ethernet Bridging | Specification 10BASE-Te/100BASE-Tx/1000BASE-T IEEE 802.3 |
| Protocol | IEEE 802.3at (PoE) IEEE802.3u compliant Auto-negotiation |
| Maximum Ethernet Frame Size | 1700 bytes |
| Service classes for bridged traffic | 3 classes Note Practical Ethernet rates will depend on network configuration, higher layer protocols, and platforms used. Over the air, throughput will be capped to the rate of the Ethernet interface at the receiving end of the link. PAGE 3-73 |
| Attribute | Meaning |
| Device Name | The configured identifier used in an NMS such as cnMaestro |
| Backward | Enabled: 802.11n ePMP subscribers are able to register to the AP (requires subscriber software |
| Compatibility | upgrade). Disabled: 802.11n ePMP subscribers are not able to register to the AP. |
| SSID | SSID is a unique identifier for a wireless LAN which is specified in the Access Point’s beacon. (Access Point Mode). SSID must be the same at both ends and different to the site name. PAGE 4-6 |
| Country | Defines the country code being used by the device. The country code of the Subscriber Module follows the country code of the associated Access Point unless it is an FCC SKU in which case the country code is the United States or Canada. Country code defines the regulatory rules in use for the device. |
| Driver Mode | TDD: The device is operating in point-to-multipoint (PMP) mode using TDD scheduling. The AP is able to GPS synchronize in this mode. TDD PTP: The Access Point is operating in point-to-point (PTP) mode using TDD scheduling. The AP is able to GPS synchronize in this mode. |
| Downlink/Uplink Ratio | The schedule of downlink traffic to uplink traffic on the radio link. The three options, 75/25, 50/50 and 30/70, allow the radio to operate in a fixed ratio on every frame. In other words, this ratio represents the amount of the total radio link’s aggregate throughput that will be used for downlink resources, and the amount of the total radio link’s aggregate throughput that will be used for uplin |
| Max Range | This parameter represents the cell coverage radius. Subscriber Modules outside the configured radius will not be able to connect. It is recommended to configure Max Range to match the actual physical distance of the farthest subscriber. |
| Channel Bandwidth | Configure the channel size used by the radio for RF transmission. |
| Frequency Carrier | Configure the frequency carrier for RF transmission. This list is dynamically adjusted to the regional restrictions based on the setting of the Country parameter. Ensure that a thorough spectrum analysis has been completed prior to configuring this parameter. PAGE 4-7 |
| IP Assignment | Static: Device management IP addressing is configured manually in fields IP Address, Subnet Mask, Gateway, Preferred DNS Server, and Alternate DNS Server. DHCP: Device management IP addressing (IP address, Subnet Mask, Gateway, and DNS Server) is assigned via a network DHCP server, and parameters IP Address, Subnet Mask, Gateway, Preferred DNS Server, and Alternate DNS Server are not configurable. |
| IP Address | Internet protocol (IP) address. This address is used by the family of Internet protocols to uniquely identify this unit on a network. If IP Address Assignment is set to DHCP and the device is unable to retrieve IP address information via DHCP, the device management IP is set to fallback IP 192.168.0.1 (Access Point) or 192.168.0.2 (Subscriber Module). |
| Subnet Mask | Defines the address range of the connected IP network. For example, if the IP Address is configured to 192.168.2.1 and Subnet Mask is configured to 255.255.255.0, the device will belong to subnet 192.168.2.X. |
| Gateway | Configure the IP address of the device on the current network that acts as a gateway. A gateway acts as an entrance and exit to packets from and to other networks. |
| Preferred DNS Server | Configure the primary IP address of the server used for DNS resolution. |
| Alternate DNS Server | Configure the secondary IP address of the server used for DNS resolution. PAGE 4-8 |
| Wireless Security | Open: All Subscriber Module devices requesting network entry are allowed registration. WPA2: The WPA2 mechanism provides AES radio link encryption and Subscriber Module network entry authentication. When enabled, the Subscriber Module must register using the Authentication Pre-shared Key configured on the Access Point and Subscriber Module. RADIUS: Enables Subscriber Module authentication via a pr |
| WPA2 Pre-shared Key | Configure this key on the Access Point, then configure the Subscriber Module with this key to complete the authentication configuration. This key must be between 8 to 128 symbols. |
| Servers | Up to 3 RADIUS servers can be configured on the device with the following attributes: IP Address: IP Address of the RADIUS server on the network. Port: The RADIUS server port. The default is 1812. Secret: Secret key that is used to communicate with the RADIUS server. |
| GUI User | This parameter applies to both the AP and its registered SMs. PAGE 4-9 |
| Radio Mode | This parameter controls the function of the device – All ePMP devices may be configured to operate as an Access Point (AP) or a Subscriber Module (SM). PAGE 4-11 |
| Radio Frequency Scan | Configure the frequency carrier for RF transmission. This list is dynamically adjusted to the regional |
| List | restrictions based on the setting of the Country parameter. Ensure that a thorough spectrum analysis has been completed prior to configuring this parameter. PAGE 4-12 |
| Network Mode | NAT: The SM acts as a router and packets are forwarded or filtered based on their IP header (source or destination). Bridge: The SM acts as a switch and packets are forwarded or filtered based on their MAC destination address. Router: The SM acts as a router and packets are forwarded or filtered based on their IP header (source or destination) using specific static routes and IP aliases configured |
| EAP-TTLS Username | Configure the EAP-TTLS Username to match the credentials on the RADIUS server being used for the network. |
| Use Ethernet MAC | The device MAC Address can be used as the EAP-TTLS Username in either “:” or “-“ delimited format. |
| EAP-TTLS Password | Configure the EAP-TTLS Password to match the credentials on the RADIUS server being used for the network. |
| Authentication | Configure this Identity string to match the credentials on the RADIUS server being used for the |
| Identity String | network. The default value for this parameter is “anonymous”. |
| Identity Realm | network. The default value for this parameter is “cambiumnetworks.com”. PAGE 4-14 |
| Main menu | Menu option Web page information |
| Status | Status page on page 4-16 |
| 安裝 | Installation page on page 4-18 |
| Configuration | Configuration menu on page 4-18 |
| Radio | Configuration > Radio page on page 4-19 |
| System | Configuration > System page on page 4-26 |
| Network | Configuration > Network page on page 4-30 |
| 安全 | Configuration > Security page on page 4-45 |
| Monitor | Monitor menu on page 4-48 |
| Performance | Monitor > Performance page on page 4-49 |
| Wireless | Monitor > Wireless Page on page 4-55 |
| Throughput Chart | Monitor > Throughput Chart page on page 4-60 |
| GPS | Monitor > GPS page (Access Point Mode) on page 4-61 |
| 系統日誌 | Monitor > System Log Page on page 4-64 |
| Tools | Tools menu on page 4-64 |
| Software Upgrade | Tools > Software Upgrade page on page 4-64 |
| Backup / Restore | Tools > Backup/Restore page on page 4-66 |
| License Management | Tools > License Management page (Access Point Mode) on page 4-68 |
| Spectrum Analyzer | Tools > Spectrum Analyzer page on page 4-71 |
| eAlign | Tools > eAlign page on page 4-73 |
| Wireless Link Test | Tools > Wireless Link Test page on page 4-74 |
| Watchdog | Tools > Watchdog page on page 4-75 |
| Ping | Tools > Ping page on page 4-76 PAGE 4-15 |
| Traceroute | Tools > Traceroute page on page 4-78 |
| Operating Frequency | The current frequency carrier used for radio transmission, based on the configuration of the Frequency Carrier parameter (in DFS regions, if radar has been detected, this field may display either DFS Alternate Frequency Carrier 1 or DFS Alternate Frequency Carrier 2). |
| Operating Channel | The current channel bandwidth used for radio transmission, based on the configuration of the |
| Bandwidth | Channel Bandwidth parameter. |
| Transmitter Output | The current operating transmit power of the AP. Power |
| Access Point Mode | TDD: The Access Point is operating in point-to-multipoint (PMP) mode using TDD scheduling. The AP is able to GPS synchronize in this mode (except when in Flexible mode). ePTP Master: The Access Point is operating as a Master in point-to-point mode. The AP does not support GPS Synchronization in this mode but is able to provide significantly lower latency than other modes. QoS (MIR and traffic prio |
| Downlink/Uplink | The current configured schedule of downlink traffic to uplink traffic on the radio link. In other |
| Frame Ratio | words, this ratio represents the amount of the total radio link’s aggregate throughput that will be used for downlink resources and the amount of the total radio link’s aggregate throughput that will be used for uplink resources. |
| cnMaestro Remote | Indicates whether the device is currently configured to be managed by the Cambium cloud |
| Management | management system – cnMaestro™. |
| cnMaestro Connection | The current management status of the device with respect to the Cambium Cloud Server. When |
| cnMaestro Account ID | The ID that the device is currently using to be managed by the Cambium Cloud Server. |
| Wireless MAC Address | The MAC address of the device wireless interface. |
| Ethernet MAC Address | The MAC address of the device Ethernet (LAN) interface. |
| SFP Port MAC Address | The MAC address of the device SFP interface. |
| IPv6 Link Local Address | A link-local address is required for the IPv6-enabled interface (applications may rely on the link-local address even when there is no IPv6 routing). The IPv6 link-local address is comparable to the auto- configured IPv4 address 169.254.0.0/16. |
| IPv6 Address | The IPv6 address for device management. |
| Date and Time | The current date and time on the device, subject to the configuration of parameter Time Zone. |
| System Uptime | The total uptime of the radio since the last reset. |
| System Description | The current configured system description. |
| Sync Source Status | Displays the current status of sync timing for the AP. PAGE 4-17 |
| Device Coordinates | The current configured Latitude and Longitude coordinates in decimal format. |
| DFS Status | N/A: DFS operation is not required for the region configured in parameter Country Code. Channel Availability Check: Prior to transmitting, the device must check the configured Frequency Carrier for radar pulses for 60 seconds). If no radar pulses are detected, the device transitions to state In-Service Monitoring. In-Service Monitoring: Radio is transmitting and receiving normally while monitoring |
| Ethernet Status | Up: The Ethernet (LAN) interface is functioning properly. This also displays the current port speed and duplex mode to which the Ethernet port has auto-negotiated to or configured for. Down: The Ethernet (LAN) interface is either disconnected or has encountered an error and is not servicing traffic. |
| Wireless Status | Up: The radio (WAN) interface is functioning properly Down: The radio (WAN) interface has encountered an error and is not servicing traffic. |
| SFP Port | Displays the current port speed and duplex mode to which the SFP port has auto-negotiated, or displays the current port speed and duplex mode that have been configured manually. |
| SFP Port Type | Displays the type of SFP module connected to the device. |
| Registered Subscriber | The total number of SMs currently registered to the AP. Modules |
| Registered Elevate | The total number of ePMP Elevate (third-party software solution) subscribers registered to the AP. Subscriber Modules PAGE 4-18 PAGE 4-19 |
| Backward Compatibility | Enabled: 802.11n ePMP subscribers are able to register to the AP (requires subscriber software upgrade). (Access Point Mode) Disabled: 802.11n ePMP subscribers are not able to register to the AP. |
| MIMO Mode | Downlink beamforming modes based on channel measurement via sounding procedure: (Access Point Mode) OFF: Sounding and beamforming are disabled 4x2 Single-User: Enables Single User beamforming mode based on periodic sounding 4x4 Multi-User: Extends Single User beamforming mode with MU-MIMO to transmit data frames to 2 subscribers simultaneously Access Point Configuration (Access Point Mode) |
| Max Registrations | Based on sector/network planning and subscriber service level implementations, this parameter |
| Allowed | allows setting the maximum number of subscribers that are allowed to register/gain network entry. The maximum number of subscribers allowed for each channel bandwidth is as follows: (Access Point Mode) 20/40 MHz: 120 subscribers 10 MHz: 60 subscribers 5 MHz: 30 subscribers The maximum registrations allowed depending on the channel bandwidth of the current Operating Frequency which can be the prima |
| Frequency Reuse | The Frequency Reuse parameter allows operators to define which APs are co-located (or within radio range) with other APs. This definition results in an automatic radio network modification such (Access Point Mode) that self-interference is reduced amongst the co-located sectors. A network in which two frequencies “F1” and “F2” are reused throughout the installation is shown in Figure 13. Please no |
| F1 | F1 |
| F2 | F2 F2 |
| 供電 | chains and total transmit power sums the power from all chains. This does not include antenna (Access Point Mode) gain. Transmitter Output Power may be limited by regulatory rules for the country in use. |
| Subscriber Module | Defines the desired received power level at the Access Point from the registered Subscriber |
| Target Receive Level | Module. Access Points use this parameter to control the transmission power of the Subscriber (Access Point Mode) Module in order to reduce system self-interference. PAGE 4-23 |
| Threshold | This defines the Downlink RSSI threshold below which a Subscriber Module will not register to an (Subscriber Module Access Point. Mode) Network Entry SNR |
| Co-location Mode | Disabled: The ePMP device is able to synchronize only with other ePMP Access Points. (Access Point Mode) Enabled: The ePMP device can be configured to synchronize with PMP 100 or PMP 450 series of radios in addition to other ePMP Access Points. Please refer to the ePMP and PMP 100 Co-location and Migration Recommendations Guide for guidance on synchronizing ePMP and PMP 100. Verify that frame size |
| Synchronization Source | GPS: Synchronization timing is received via the AP’s connected GPS antenna. Co-located or in- range APs receiving synchronization via GPS or CMM transmits and receive at the same time, (Access Point Mode) thereby reducing self-interference. CMM5: Synchronization timing is received via the AP’s Ethernet port via a connected Cambium Cluster Management Module 5 (CMM5). Co-located or in-range APs rece |
| Synchronization | The Synchronization Holdoff Time is designed to gracefully handle fluctuations/losses in the GPS |
| Holdoff Time | synchronization signaling. After the AP has received a reliable synchronization pulse for at least 60 seconds, if there is a loss of synchronization signal, the Synchronization Holdoff timer is started. (Access Point Mode) During the holdoff interval, all SM registrations are maintained. If a valid GPS synchronization pulse is regained during the holdoff interval, then the AP continues to operate |
| Preferred Access Points | The Preferred Access Points List is comprised of a list of up to 16 Access Point devices to which the |
| list | Subscriber Module device sequentially attempts registration. For each Access Point configured, if (Subscriber Module authentication is required, enter the Wireless Security type and WPA2 Pre-shared Key associated |
| Mode) | with the configured SSID. PAGE 4-24 |
| Guard interval | The purpose of the guard interval is to introduce immunity to propagation delays, echoes, and reflections, to which digital data is normally very sensitive. (Access Point Mode) Longer guard periods allow more distant echoes to be tolerated. However, longer guard intervals reduce the channel efficiency. |
| Downlink Max Rate | Specifies the maximum downlink MCS value that the Rate Adapt algorithm will choose for Radio 1. If an installation is exhibiting packet loss due to downlink interference, modifying Downlink Max (Access Point Mode) Rate to limit the device's maximum MCS rate may result in more reliable packet delivery. This is especially true in installations among changing and unpredictable interference. Radio Con |
| Max Tx Power | Auto: The Access Point can control, using ATPC (Automatic Transmit Power Control), the TX power of the Subscriber Module up to the maximum capability of the Subscriber Module’s transmitter (Subscriber Module (based on regulatory limits). Mode) Manual: The Access Point can control the TX power of the Subscriber Module up to the value configured in the Transmitter Power field. |
| Power (Subscriber | channel and total transmit power sums the power from all chains. This does not include antenna |
| Module Mode) | gain. Transmitter Output Power may be limited by regulatory rules for the country in use. |
| Uplink Max Rate | Specifies the maximum uplink MCS value that the Rate Adapt algorithm will choose for Radio 1. If an installation is exhibiting packet loss due to uplink interference, modifying Uplink Max Rate to (Subscriber Module limit the device's maximum MCS rate may result in more reliable packet delivery. This is especially Mode) true in installations among changing and unpredictable interference. |
| Scan Channel | The selected scan channel bandwidths are scanned by the Subscriber Module. Any combination |
| Display Device Name | Disabled: For security, the configured Device Name is hidden on the device login screen. Before Login Enabled: The configured Device Name is displayed upper-left on the device login screen. |
| Inactive Logout | Disabled: The device will not automatically log out users after a period of inactivity. Enabled: After the period configured in the Inactive Logout Period has elapsed, the device will automatically log out the user. PAGE 4-26 |
| Inactive Logout Period | Represents the amount of time for which a user will remain logged in. After this period has elapsed, the user will be automatically logged out. |
| Web-page Auto Update | Configure the interval for which the device retrieves system statistics for display on the management interface. For example, if this setting is configured to 5 seconds, the statistics and status parameters displayed on the management interface will be refreshed every 5 seconds (default). Webpage Auto Update is a session only configuration change. It is updated with the |
| Range Unit | Units of measurement on the device are displayed in either miles (m) or kilometers (km). |
| Web Access | HTTP: The device web management interface is accessed via HTTP. HTTPS: The device web management interface may only be accessed via secure HTTPS. |
| HTTP Port | This specifies the TCP/UDP port to be used with HTTP or HTTPS. The default value for HTTP is 80 and HTTPS is 443. |
| SSH Access | Disabled: Access to the device through SSH is not possible. Enabled: Cambium engineers can access the device through SSH which enables them to log in to the radio and troubleshoot. SSH Access is Enabled by default. |
| Telnet Access | Disabled: Command Line Interface access via Telnet is not allowed Enabled: Command Line Interface access via Telnet is allowed Network Time Protocol (NTP) |
| NTP Server IP Assignment | Static: The device retrieves NTP time data from the servers configured in fields NTP Server IP Address. DHCP: The device retrieves NTP time data from the server IP issued via a network DHCP server. |
| Preferred NTP Server | Configure the primary NTP server IP addresses from which the device will retrieve time and date information. |
| Alternate NTP Server | Configure an alternate or secondary NTP server IP addresses from which the device retrieves time and date information. |
| Time Zone | The Time Zone option may be used to offset the received NTP time to match the operator’s local time zone. Location Services |
| On-board GPS Latitude | GPS-retrieved Latitude information for the device in decimal format. |
| On-board GPS Longitude | GPS-retrieved Longitude information for the device in decimal format. |
| On-board GPS Height | GPS-retrieved height information for the device in meters. |
| Use GPS Coordinates | Click Update to retrieve device location and height information via the connected GPS source. PAGE 4-27 |
| Device Latitude | Configure Latitude information for the device in decimal format. |
| Device Longitude | Configure Longitude information for the device in decimal format. |
| Device Height | Configure height above sea level for the device in meters. |
| Device Location | Hyperlink to display the device location in Google Maps Simple Network Management Protocol (SNMP) |
| Read-Only Community | Specify a control string that can allow a Network Management Station (NMS) to read SNMP |
| String | information. No spaces are allowed in this string. This password will never authenticate an SNMP user or an NMS to read/write access. The Read-only Community String value is clear text and is readable by a packet monitor. |
| Read-Write Community | Specify a control string that can allow a Network Management Station (NMS) to access SNMP |
| System Name | Specify a string to associate with the physical module. This parameter can be polled by the NMS. Special characters are supported. |
| System Location | Specify a description string to associate with the physical location. This parameter can be polled by the NMS. Special characters are supported. |
| Traps | Disabled: SNMP traps for system events are not sent from the device. Enabled: SNMP traps for system events are sent to the servers configured in table Trap Servers. |
| Trap Community String | Configure an SNMP Trap Community String which is processed by the servers configured in Trap Servers. This string is used by the trap server to decide whether or not to process the traps incoming from the device (i.e. for traps to successfully be received by the trap server, the community string must match). System Logging (Syslog) |
| Server 1-4 | Specify up to four Syslog servers to which the device sends Syslog messages. |
| Syslog Mask | Configure the levels of Syslog messages which the devices send to the servers configured in parameters Server 1-4. Caution Choose only the Syslog levels appropriate for your installation. Excessive logging can cause the device log file to fill and begin overwriting previous entries. cnMaestro |
| Remote Management | When Enabled, the device will be managed by cnMaestro - the Cambium Remote Management System, which allows all Cambium devices to be managed in the cloud. PAGE 4-28 |
| cnMaestro URL | Configure the URL of cnMaestro. The default value is https://cloud.cambiumnetworks.com. |
| Cambium ID | Configure the Cambium ID that the device will use for on-boarding on to cnMaestro. |
| Onboarding Key | Configure the password/key associated with the Cambium-ID that the device will use for on- boarding on to cnMaestro. Account Management The Administrator account has full read and write permissions for the device. Disabled: The disabled user is not granted access to the device management interface. The Administrator Account administrator user level cannot be disabled. Enabled: The user is granted |
| Username | The username associated with the administrator account used upon device login. |
| Password | Configure a custom password to secure the device. Only the ‘Administrator’ account can override this password. The password character display may be toggled using the visibility icon The Installer account has permissions to read and write parameters applicable to unit installation and monitoring. Installer Account Disabled: The disabled user is not granted access to the device management interface |
| Home User Account | Disabled: The disabled user is not granted access to the device management interface. Enabled: The user is granted access to the device management interface. |
| Read-Only Account | Disabled: The disabled user is not granted access to the device management interface. Enabled: The user is granted access to the device management interface. |
| Wireless IP Assignment | Static: Wireless IP address is configured manually in fields Wireless IP Address, Wireless IP Subnet Mask, Wireless Gateway IP Address, Preferred DNS IP Address and Alternate DNS IP (NAT Mode, Router Mode) Address. DHCP: Device management IP addressing (Wireless IP address, Wireless Subnet mask, Wireless Gateway, and DNS server) is assigned via a network DHCP server. |
| Mode, Router Mode) | If IP Address Assignment is set to DHCP and the device is unable to retrieve IP address information via DHCP, the device management IP is set to fallback IP 192.168.0.1 (Access Point) or 192.168.0.2 (Subscriber Module). |
| Wireless IP Address (NAT | is configured to 192.168.2.1 and IP Subnet Mask (LAN) is configured to 255.255.255.0, the device |
| Wireless Gateway (NAT | acts as an entrance and exit to packets from and to other networks. Mode, Router Mode) |
| IPv6 Assignment | IPv6 Assignment specifies how the IPv6 address is obtained. Static: Device management IP addressing is configured manually in fields IPv6 Address and IPv6 Gateway. DHCPv6: Device management IP addressing (IP address and gateway) is assigned via a network DHCP server, and parameters IPv6 Address and IPv6 Gateway are unused. If the DHCPv6 server is not available previous static IPv6 address will be |
| IPv6 Gateway | Configure the IPv6 address of the device on the current network that acts as a gateway. A gateway acts as an entrance and exit to packets from and to other networks. |
| Ethernet Port Security | Disabled: No MAC address limit/gaining timers are imposed for bridging at the Subscriber (Subscriber Module Mode) Module device Ethernet port. Enabled: By configuring Secure MAC Limit and MAC Aging Time, a limit is imposed on the number and duration of bridged devices connected to the Subscriber Module Ethernet port. |
| Secure MAC Limit | Configure the number of simultaneous secure MAC addresses that will be allowed at the (Subscriber Module Mode) Ethernet interface of the Subscriber Module |
| MAC Aging Time | Configure the time for which the secure MAC addresses should be allowed to age. Once the Aging timer expires for a MAC address, it will be removed from the internal table and no longer (Subscriber Module Mode) count as an active MAC. Set the time to 0 to disable aging. Ethernet Interface (Subscriber Module NAT Mode, Router Mode) |
| DHCP Server | Disabled: Use this setting when SM is in NAT or Router mode if there is an existing DHCP Server below the SM handing out IP Addresses or if all devices below the SM will be configured with (Subscriber Module NAT static IP Addresses. Mode, Router Mode) Enabled: Use this setting when SM is in NAT or Router mode, to use the SM’s local/onboard DHCP server to hand out IP addresses to its clients. |
| DHCP Start IP | Configure the first address which will be issued to a DHCP client. Upon additional DHCP requests, the DHCP Start IP is incremented until local DHCP End IP is reached. (Subscriber Module NAT Mode, Router Mode) |
| DHCP End IP | Configure the highest IP address in the DHCP pool that can be issued to a DHCP client. (Subscriber Module NAT Mode, Router Mode) |
| Preferred DHCP DNS | Configure the primary DNS Server IP address which will be used to configure DHCP clients (if |
| Server | local DHCP Server is set to Enabled). (Subscriber Module NAT Mode, Router Mode) |
| Alternate DHCP DNS Server | Configure the secondary DNS Server IP address which will be used to configure DHCP clients (if local DHCP Server is set to Enabled). PAGE 4-35 |
| DHCP Lease Time | Configure the time for which a DHCP IP address is leased. When the lease time expires, the DHCP client must renew IP addressing via DHCP request. (Subscriber Module NAT Mode, Router Mode) Static Routes (Subscriber Module Router Mode) |
| Static Routes | When Enabled, it allows the operator to create static routes that will apply to both the Wireless and Ethernet interface of the SM. (Subscriber Module Router |
| Target Network IP | Configure the target subnet/network’s IP address to which the SM should route the packets. (Subscriber Module Router Mode) |
| Description | Provide a description to easily identify the static route and its purpose. (Subscriber Module Router Mode) IP Aliases (Subscriber Module Router Mode) PAGE 4-36 |
| IP Aliases | When Enabled, IP aliases allow the operator to associate more than one IP address to the Ethernet interface of the SM. (Subscriber Module Router |
| Separate Management IP | Disabled: When disabled, the Wireless IP is the management interface for the SM. (Subscriber Module NAT Enabled: When enabled, the IP Address below is the management interface for the SM. Mode, Router Mode) |
| Separate Management | Enabled: A VLAN configuration establishes a logical group within the network. Each computer in |
| VLAN | the VLAN, regardless of initial or eventual physical location, has access to the same data based on the VLAN architecture. For the network operator, this provides flexibility in network (Subscriber Module NAT segmentation, simpler management, and enhanced security. When the SM is in NAT mode, the Mode, Router Mode) Separate Wireless Management VLAN configuration is applicable to management data. P |
| VLAN ID | Configure this parameter to include the device’s management traffic on a separate VLAN network. (Subscriber Module NAT Mode, Router Mode) |
| VLAN Priority | ePMP radios can prioritize VLAN traffic based on the eight priorities described in the IEEE 802.1p specification. Data VLAN Priority represents the VLAN Priority or Class of Service (CoS). (Subscriber Module NAT Operators may use this prioritization field to give precedence to device management data. Mode, Router Mode) This parameter only takes effect if the Separate Wireless Management VLAN param |
| Management VLAN | Enabled: The AP management interface can be assigned to a Management VLAN to separate management traffic (remote module management via SNMP or HTTP) from user traffic (such as (Access Point Mode) internet browsing, voice, or video. Once the management interface is enabled for a VLAN, an AP’s management interface can be accessed only by packets tagged with a VLAN ID matching the management VLAN ID. |
| VLAN (Management + | Enabled: The device management interface can be assigned to a Management VLAN to separate |
| Data) | management traffic (remote module management via SNMP or HTTP) from user traffic (such as internet browsing, voice, or video. Once the management interface is enabled for a VLAN, the (Subscriber Module Mode) management interface can be accessed only by packets tagged with a VLAN ID matching the management VLAN ID. A VLAN configuration establishes a logical group within the network. Each computer i |
| Management VLAN ID | Configure this parameter to include the device’s management traffic on a separate VLAN network. For example, if Management VLAN ID is set to 2, GUI access will only be allowed from (Access Point Mode) frames tagged with VLAN ID 2. This parameter only takes effect if the MGMT VLAN parameter is (Subscriber Module Bridge enabled. Mode) |
| Management VLAN Priority | ePMP devices can prioritize VLAN traffic based on the eight priorities described in the IEEE 802.1p specification. Management VLAN Priority represents the VLAN Priority or Class of (Access Point Mode) Service (CoS). Operators may use this prioritization field to give precedence to device (Subscriber Module Bridge management traffic. Mode) This parameter only takes effect if the Management VLAN par |
| Data VLAN | Enabled: A VLAN tag will be added to all untagged traffic entering the Salve device LAN port before sending it to the Access Point and remove tags in the opposite direction from traffic (Subscriber Module Mode) (tagged with Data VLAN ID) entering on the Subscriber Module device WAN port before sending (Bridge Mode) to the Subscriber Module device LAN port. Disabled: When disabled, no changes are m |
| Data VLAN ID | Configure this parameter to include this VLAN tag to all untagged traffic entering on the Subscriber Module device LAN port before sending it to the Access Point device and remove tags (Subscriber Module Mode) in the opposite direction from traffic (tagged with Data VLAN ID) entering on the Subscriber (Bridge Mode) Module device WAN port before sending to the Subscriber Module device LAN port. |
| Data VLAN Priority | ePMP devices can prioritize VLAN traffic based on the eight priorities described in the IEEE 802.1p specification. Data VLAN Priority represents the VLAN Priority or Class of Service (CoS). (Subscriber Module Mode) Operators may use this prioritization field to give precedence to device user data. (Bridge Mode) This parameter only takes effect if the Data VLAN parameter is enabled. Configure this |
| Membership VLAN | Configure the Membership VLAN Table to include the SM in one or more VLANs. When the SM receives a packet tagged from either the Ethernet (LAN) or Wireless (WAN) side with a VLAN ID (Subscriber Module Bridge which is contained in the Membership VLAN Table, the packet is forwarded and sent out the Mode) other interface. When the SM receives a packet tagged with a VLAN ID which is not present in the |
| VLAN Mapping | Configure the VLAN Mapping Table to map the C-VLAN of traffic ingressing the Ethernet (LAN) port of the SM to an S-VLAN before being forwarded to the air interface on the UL. In the DL (Subscriber Module Bridge direction, the SM will automatically un-map the S-VLAN to the C-VLAN before forwarding the Mode) tagged packets to the Ethernet (LAN) interface of the SM. |
| C-VLAN | Configure the C-VLAN ID of the tagged traffic for which the mapping needs to occur. (Subscriber Module Bridge The C-VLAN ID must be entered in the SM VLAN Membership VLAN table. Mode) |
| S-VLAN | Configure the S-VLAN ID to which the tagged traffic needs to be mapped to. (Subscriber Module Bridge The S-VLAN ID must be entered in the SM VLAN Membership VLAN table. Mode) Ethernet Port |
| Ethernet MTU | Specify the device MTU or Maximum Transmission Unit; the size in bytes of the largest data unit that the device is configured to process. Larger MTU configurations can enable the network to operate with greater efficiency, but in the case of retransmissions due to packet errors, efficiency is reduced since large packets must be resent in the event of an error. |
| Ethernet Port | Disabled: The primary Ethernet port is disabled (a mechanism for restricting access for non- payment). (Subscriber Module Mode) Enabled: The primary Ethernet port is enabled. |
| Port Setting | Allows the Gigabit Ethernet port duplex settings and port speed to be either manually configured or auto-negotiate with the connected Ethernet device on the other end of the link. Guidelines for using Port Setting: When auto-negotiation is turned on, this applies to both Port Speed and Port Duplex Mode. If the other end of the Ethernet connection supports auto-negotiation, then Auto-Negotiate shou |
| Port Speed | With Port Setting configured to Manual, the Gigabit Ethernet port speed can be forced to 1000 Mbps, 100 Mbps or 10 Mbps. |
| Port Duplex Mode | With Port Setting configured to Manual, the Gigabit Ethernet port duplex mode can be forced to Full or Half. Port Forwarding (Subscriber Module Mode) (NAT Mode) |
| UPnP IGD | Universal Plug and Play (UPnP) is a set of networking protocols that permits networked devices, such as personal computers, printers, Internet gateways, Wi-Fi access points, and mobile devices (Subscriber Module Mode) to seamlessly discover each other's presence on the network and establish functional network (NAT Mode) services for data sharing, communications, and entertainment. UPnP is intended |
| NAT PMP (PCP) | The PCP (Port Control Protocol) allows an IPv6 or IPv4 host to control how incoming IPv6 or IPv4 packets are translated and forwarded by a Network Address Translator (NAT) or simple firewall, (Subscriber Module Mode) and also allows a host to optimize its outgoing NAT keepalive messages. PCP was standardized as (NAT Mode) a successor to the NAT Port Mapping Protocol (NAT-PMP), with which it shares |
| Data Port Forwarding | The Data Port Forwarding Table is used to define which range of wireless ports that are forwarded to a LAN (SM local network) IP address below the SM. (Subscriber Module Mode) (NAT Mode) |
| Port Begin | Configure the beginning of the range of wireless ports to match for forwarding to LAN IP. (Subscriber Module Mode) (NAT Mode) |
| Port End | Configure the end of the range of wireless ports to match for forwarding to LAN IP. (Subscriber Module Mode) (NAT Mode) |
| Forwarding IP | Configure the LAN IP of the device situated below the SM which receives the packets forwarded based on the Separate Management IP Port Forwarding Table configuration. (Subscriber Module Mode) (NAT Mode) |
| Mapped Port | Configure the port of the device situated below the SM which receives the packets forwarded based on the Data Port Forwarding Table configuration. (Subscriber Module Mode) (NAT Mode) Point-to-Point Protocol over Ethernet (PPPoE) (Subscriber Module Mode) (NAT Mode, Router Mode) |
| PPPoE | Point-to-Point Protocol over Ethernet: Used for encapsulating PPP frames inside Ethernet frames. (Subscriber Module Mode) (NAT Mode, Router Mode) PAGE 4-41 |
| Service Name | Optional entry to set a specific service name to connect to for the PPPoE session. If this is left blank the SM accepts the first service option that comes back from the Access Concentrator (Subscriber Module Mode) specified below, if any. This is limited to 32 characters. (NAT Mode, Router Mode) |
| Access Concentrator | Optional entry to set a specific Access Concentrator to connect to for the PPPoE session. If this is blank, the SM accepts the first Access Concentrator which matches the service name (if (Subscriber Module Mode) specified). This is limited to 32 characters. (NAT Mode, Router Mode) |
| MTU Size | Maximum Transmission Unit; the size in bytes of the largest data unit that the device is configured to process inside the PPPoE tunnel. This field allows the operator to specify the (Subscriber Module Mode) largest MTU value to use in the PPPoE session if PPPoE MSS Clamping is Enabled. The user will be (NAT Mode, Router Mode) able to enter an MTU value up to 1492. However, if the MTU determined in |
| Keep Alive Time | Configure the Keep Alive Time to allow the radio to keep the PPPoE session up after establishment. As an example, if this field is set to 5, the PPPoE client will send a keep-alive (Subscriber Module Mode) message to the PPPoE server every 5 seconds. If there is no acknowledgment, it sends the ‘Keep (NAT Mode, Router Mode) alive’ message to the server 4 more times (for a total of 5 times) before t |
| MSS Clamping | Disabled: The SM PPPoE session allows any MTU size determined by other devices in the PPPoE session during the LCP negotiations. (Subscriber Module Mode) Enabled: The SM PPPoE session enforces a max MTU size determined by the PPPoE MTU Size (NAT Mode, Router Mode) setting for all devices in the PPPoE session during the LCP negotiations unless one of the devices enforces an MTU setting that is smal |
| IPv6 Support | System-wide IPv6 Protocol Support. When enabled, appropriate IPv6 modules and services will be loaded. |
| Spanning Tree Protocol | Disabled: When disabled, Spanning Tree Protocol (802.1d) functionality is disabled at the Access Point. Enabled: When enabled, Spanning Tree Protocol (802.1d) functionality is enabled at the Access Point, allowing for the prevention of Ethernet bridge loops. |
| DHCP Server Below | Disabled: This blocks DHCP servers connected to the Subscriber Module device LAN side from |
| Management Access | Ethernet: Only allow access to the Access Point’s web management interface via a local (Access Point Mode) Ethernet (LAN) connection. In this configuration, the Access Point’s web management interface may not be accessed from over the air (i.e. from a device situated below the Subscriber Module). Ethernet and Wireless: Allow access to the Access Point’s web management interface via a local Etherne |
| SM Traffic Isolation | Disabled: This is the default mode. When SM isolation is disabled, an SM is able to communicate with another SM, when both the SMs are associated to the same Access Point (AP). (Access Point Mode) Enabled: When SM Isolation feature is Enabled, an SM is unable to communicate with another SM (peer-to-peer traffic) when both the SMs are associated with the same Access Point (AP). This feature essenti |
| DHCP Option 82 (Access | Disabled: The device does not insert the "remote-id" (option ID 0x2) and the "circuit-id" (ID |
| Point Mode) | 0x01). DHCP Option 82 is ‘Disabled’ by default. Enabled: The device inserts “remote-id” (option ID 0×2) to be the Subscriber Module MAC address and the “circuit-id” (ID 0×01) to be the Access Point’s MAC address. Those two fields are used to identify the remote device and connection from which the DHCP request was received. |
| LLDP | The Link Layer Discovery Protocol (LLDP) is a vendor-neutral link layer protocol (as specified in IEEE 802.1AB) used by ePMP for advertising its identity, capabilities, and neighbors on the Ethernet/wired interface. Disabled: ePMP does not receive or transmit LLDP packets from/to its neighbors. Enabled: ePMP can receive LLDP packets from its neighbors and send LLDP packets to its neighbors, depend |
| LLDP Mode | Receive and Transmit: ePMP sends and receives LLDP packets to/from its neighbors on the Ethernet/LAN interface. Receive Only: ePMP receives LLDP packets from its neighbors on the Ethernet/LAN interface and discovers them. Broadcast / Multicast Traffic Shaping (Subscriber Module Mode) (Bridge Mode) |
| Broadcast Packet Limit | Enabled: This allows the user to set the Broadcast Packet Rate below. Configure this parameter to limit the number of broadcast packets that will be allowed on the ingress of the radio’s (Subscriber Module Mode) Ethernet port. Set the packets per second value to limit the impact of events such as broadcast (Bridge Mode) storms. Disabled: There is no limit on the amount of broadcast traffic that wi |
| Broadcast Packet Rate | Set the packets per second value to limit the amount of broadcast traffic that will be allowed on the ingress on the radio’s Ethernet port. The packets per second limit can be set individually on (Subscriber Module Mode) each ePMP radio. The range is 100 to 16000 packets per second. The default is 1000. (Bridge Mode) |
| Multicast Group Limit | Configure the maximum number of simultaneous multicast groups that the SM will allow from devices below it. The default is 3. (Subscriber Module Mode) (Bridge Mode) |
| Multicast VLAN | Enabled: A VLAN tag will be added to all untagged multicast traffic entering the SM’s LAN port before sending it to the AP and remove tags in the opposite direction from traffic (tagged with (Subscriber Module Mode) Multicast VLAN ID) entering on the SM’s WAN port before sending to the SM’s LAN port. (Bridge Mode) Disabled: When disabled, no changes are made to untagged multicast traffic passing t |
| Multicast VLAN ID | Configure this parameter to include this VLAN tag to all untagged multicast traffic entering on the SM’s LAN port before sending it to the AP and remove tags in the opposite direction from (Subscriber Module Mode) multicast traffic (tagged with Multicast VLAN ID) entering on the SM’s WAN port before sending (Bridge Mode) to the SM’s LAN port. |
| Multicast VLAN Priority | ePMP radios can prioritize VLAN traffic based on the eight priorities described in the IEEE 802.1p specification. Multicast VLAN Priority represents the VLAN Priority or Class of Service (CoS). (Subscriber Module Mode) Operators may use this prioritization field to give precedence to device multicast data. (Bridge Mode) This parameter only takes effect if the Multicast VLAN parameter is enabled. C |
| DMZ | Disabled: Packets arriving on the wireless interface destined for the Ethernet side of the network are dropped if a session does not exist between the Source IP (Wireless) and (Subscriber Module NAT Destination IP (Ethernet). By default, NAT requires the sessions to be initiated from the Ethernet Mode) side before a packet is accepted from the Wireless to the Wired side. PAGE 4-44 |
| Allow ICMP to DMZ | Enabled: ICMP packets are forwarded to the DMZ IP (Subscriber Module NAT Disabled: SM answers ICMP requests, and SM Wireless IP Address becomes reachable by ping |
| Server Retries | The number of times the radio will retry authentication with the configured Radius server before it fails authentication of the SM. (Access Point Mode) |
| Server Timeout | Timeout between each retry with the configured Radius server before it fails authentication of the SM. (Access Point Mode) |
| GUI User Authentication | This applies to both the AP and its registered SMs. (Access Point Mode) Device Local Only: The device’s GUI authentication is local to the device using one of the accounts configured under Configuration->System->Account Management. Remote RADIUS Server Only: The device’s GUI authentication is performed using a RADIUS server. Remote RADIUS Server and Fallback to Local: The device’s GUI authenticati |
| Use Ethernet MAC Address | The device MAC Address can be used as the EAP-TTLS Username in either “:” or “-“ delimited |
| at EAP-TTLS Username | format. (Subscriber Module Mode) |
| Authentication Identity | Configure this Identity string to match the credentials on the RADIUS server being used for the |
| Realm | network. The default value for this parameter is cambiumnetworks.com. (Subscriber Module Mode) |
| Default Root Certificate | Default EAP-TTLS root certificate that must match the certificate on the RADIUS server. (Subscriber Module Mode) |
| Canopy Root Certificate | PMP 450 default EAP-TTLS root certificate to match the certificate on the RADIUS server used with current PMP 450 installations. (Subscriber Module Mode) |
| User Provisioned Root Cert | Import a user certificate if a certificate different from the default certificates is needed. (Subscriber Module Mode) PAGE 4-47 |
| Layer 2 Firewall | Enabled: Modifications to the Layer 2 Firewall Table are allowed and rules are enforced. Disabled: Modifications to the Layer 2 Firewall Table are not allowed and rules are not enforced. |
| Layer 2 Firewall Rules | The Layer 2 firewall table may be used to configure rules matching layer 2 (MAC layer) traffic which results in forwarding or dropping the traffic over the radio link or Ethernet interface. |
| Layer 3 Firewall | Disabled: Modifications to the Layer 3 Firewall Table are not allowed and rules are not enforced. Enabled: Modifications to the Layer 3 Firewall Table are allowed and rules are enforced. |
| Layer 3 Firewall Rules | The Layer 3 firewall table may be used to configure rules matching layer 3 (IP layer) traffic which results in forwarding or dropping the traffic over the radio link or Ethernet interface. Wireless MAC Address Filtering (Access Point Mode) |
| Wireless MAC Filter | Disabled: SMs with any MAC Address are allowed to register to the AP. (Access Point Mode) Enabled: SMs with specific MAC addresses can be allowed (Permit) or denied (Prevent) registration with the AP as configured under the MAC Filter List. |
| Wireless MAC Filter Policy | Prevent: All MAC Addresses configured under the MAC Filter List are denied registration to the AP. (Access Point Mode) Permit: Only the MAC Addresses configured under the MAC Filter List are allowed to register to the AP. |
| Wireless MAC Filter List | Configure the SM’s MAC addresses that will be permitted or prevented from registering to the AP. (Access Point Mode) |
| MAC Address | MAC Address of the SM (Access Point Mode) |
| Time Since Last Reset | Time since the stats were last reset. Ethernet Statistics – Transmitted |
| Total Traffic | The total amount of traffic in Kbits transferred from the device Ethernet interface. |
| Total Packets | The total number of packets transferred from the device Ethernet interface. |
| Packet Errors | The total number of packets transmitted out of the device Ethernet interface with errors due to collisions, CRC errors, or irregular packet size. |
| Packet Drops | The total number of packets dropped prior to sending out of the device Ethernet interface due to Ethernet setup or filtering issues. |
| Broadcast Packets | The total number of broadcast packets sent via the device Ethernet interface. |
| Multicast Packets | The total number of multicast packets sent via the device Ethernet interface. Ethernet Statistics – Received |
| Error Drop Packets | The total number of packets dropped after transmitting out of the device Wireless interface due to RF errors (No acknowledgment and other RF related packet error). |
| Capacity Drop Packets | The total number of packets dropped after transmitting out of the device wireless interface due to (Access Point Mode) capacity issues (data buffer/queue overflow or other performance or internal packet errors). |
| Retransmission | The total number of packets re-transmitted after transmitting out of the device wireless interface |
| Packets (Access Point | due to the packets not being received by the receiving device. Mode) |
| Multicast / Broadcast | The total amount of multicast and broadcast traffic transmitted out of the device wireless interface |
| Traffic | in Kbits. |
| Link Quality (Uplink) | Defines the Packet Error Rate (PER) in the uplink direction by percentage. A background color corresponds to a percentage range. (Subscriber Module |
| Link Capacity (Uplink) | Defines the capacity of the uplink as defined by MCS. DS MCS 9 provides the greatest capacity. SS MCS 1 provides the least. The capacity of the link is defined as the percentage throughput of the (Subscriber Module actual link as compared to a link that was always running at DS MCS 9. A background color Mode) corresponds to a percentage range. Blue is between 80 and 100%. Green is between 50 and 8 |
| Session Drops | Indicates the total number of Subscriber Module sessions dropped on the Access Point. |
| Link Drop Counter | Indicates the total number of times the wireless link was lost. |
| Total Device Reboots | Indicates the total number of times the device has been rebooted since the statistics were last reset from the GUI, CLI, or SNMP. |
| Soft Device Reboots | Indicates the number of times the device has been rebooted by the user through GUI, CLI or SNMP since the statistics were last reset from the GUI, CLI, or SNMP. |
| Hard Device Reboots | Indicates the number of times the device has been rebooted via power feeding and due to power outage since the statistics were last reset from the GUI, CLI, or SNMP. |
| Network Entry | The total number of Network Entry Attempts by Subscriber Module devices. Attempts (Access Point Mode) |
| Successful Network | The total number of successful network entry attempts. Entries (Access Point Mode) |
| Total Uplink (Kbits) | The total amount of traffic received via the Access Point wireless interface from the Subscriber Module in Kbits. PAGE 4-52 |
| Total Uplink Packets | The total number of packets received via the Access Point wireless interface from this Subscriber Module. |
| Uplink Packet Drops | The total number of packets dropped prior to sending out of the Access Point Ethernet interface due to RF errors (packet integrity error and other RF related packet error) from the Subscriber Module. |
| Total Downlink (Kbits) | The total amount of traffic transmitted out of the Access Point wireless interface in Kbits. |
| Total Downlink | The total number of packets transmitted out of the Access Point wireless interface. Packets |
| Downlink Packet | The total number of packets dropped after transmitting out of the Access Point wireless interface |
| Drops | due to RF errors (No acknowledgment and other RF related packet error). |
| Downlink Capacity | The total number of packets dropped after transmitting out of the Access Point Wireless interface |
| Downlink | The total number of packets re-transmitted after transmitting out of the Access Point Wireless |
| Retransmitted Packets | interface due to the packets not being received by the Subscriber Module. |
| Downlink Power (dBm) | The transmit power of the Access Point for the downlink packets to the Subscriber Module. Downlink Packets Per MCS |
| MCS 1 – MCS 9 | The number of packets (and percentage of total packets) transmitted out of the device wireless interface for every modulation mode used by the device transmitter, based on radio conditions. DS / SS DS represents dual-stream transmissions and SS represents single-stream transmissions. Uplink Packets Per MCS |
| Used | Percentage of frame time used in the uplink. (Access Point Mode) PAGE 4-53 |
| Hardware Version | Board hardware version information. |
| Serial Number (MSN) | Serial Number information. |
| 韌體版本 | U-Boot version information. |
| Software Version | The currently operating version of software on the device. Software Version The currently operating version of software on the device. (Active Bank) |
| Device-Agent Version | The operating version of the device agent, which is used for communication with cnMaestro. |
| NTP Status | Indicates whether time and date have been obtained from the NTP server. |
| Read-Only Users | Displays the number of active Read-Only users logged into the radio. |
| Read-Write Users | Displays the number of active Read-Write users logged into the radio. |
| Factory Reset Via | Enabled: When Enabled under Tools > Backup/Restore > Reset Via Power Sequence, it is possible to |
| Power Sequence | reset the radio’s configuration to factory defaults using the power cycle sequence explained under Resetting ePMP to factory defaults by power cycling on page 5-8. Disabled: When Disabled, it is not possible to factory default the radio’s configuration using the power cycle sequence. |
| Range | The calculated distance from the Access Point, determined by radio signal propagation delay. PAGE 4-56 |
| Transmitter Power | The current power level at which the device is transmitting. Uplink MCS (Subscriber Module Specifies the current MCS utilized for uplink transmission. Mode) Registered Subscriber |
| Modules | The count of registered Subscriber Modules. (Access Point Mode) |
| SM Distance (miles) | Indicates the calculated distance of the Subscriber Module from the Access Point. Session Time (hh:mm:ss) The time duration for which the Subscriber Module has been registered and in session with the Access Point. (Access Point Mode) |
| RSSI (dBm) Downlink / | Indicates the estimated RSSI of the AP at the SM (first value) and the RSSI of the SM measured at the |
| Uplink | AP (second value). |
| SNR (dB) Downlink / | Indicates the estimated SNR of the AP at the SM (first value) and the SRN of the SM measured at the |
| MU-MIMO Gain | Indicates if MU-MIMO is supported by the subscriber and the MU-MIMO gain achieved by MU- MIMO capable subscribers. |
| Model Name | Model of Subscriber Module Add As Preferred |
| Click the Add | button to add the Access Point to the Preferred Access Points List under Configuration>Radio. PAGE 4-58 |
| Registration State | The indication of the result of the Subscriber Module device network entry attempt: (Subscriber Module Successful: Subscriber Module registration is successful Mode) Failed: Out of Range: The Subscriber Module is out of the Access Point’s configured maximum range (Max Range parameter) Failed: Capacity limit reached at Access Point: The Access Point is no longer allowing Subscriber Module network e |
| Meets Reg Criteria | Yes: The scanned Access Point meets the Network Entry criteria defined by the internal Network Algorithm. (Subscriber Module |
| On-board GPS | On a GPS Synchronized ePMP radio, the field is automatically populated with the Device Longitude |
| Longitude | information from the on-board GPS chip. (Access Point Mode) |
| GPS Time (Greenwich | On a GPS Synchronized ePMP radio, the field is automatically populated with the time from the |
| Mean Time) | onboard GPS chip. (Access Point Mode) |
| GPS Firmware version | On a GPS Synchronized ePMP radio, the field indicates the current firmware version of the onboard GPS chip. (Access Point Mode) |
| Satellites Tracked | On a GPS Synchronized ePMP radio, the field indicates the number of satellites current tracked by the onboard GPS chip. (Access Point Mode) |
| Satellites Visible | On a GPS Synchronized ePMP radio, the field indicates the number of satellites visible to the on- board GPS chip. (Access Point Mode) PAGE 4-61 |
| Satellites | The Satellites table provides information about each satellite that is visible or tracked along with the Satellite ID and Signal to Noise Ratio (SNR) of the satellite. (Access Point Mode) |
| ID | Represents the Satellite ID. (Access Point Mode) |
| Signal-to-Noise Ratio | This is an expression of the carrier signal quality with respect to signal noise. (Access Point Mode) |
| Default Gateway | Configure the IP address of the device on the current network that acts as a gateway. A gateway acts as an entrance and exit to packets from and to other networks. |
| Main PSU Port | The speed and duplex at which the configured LAN port is operating. |
| DNS Server IP | The configured IP address(es) of the network DNS servers. |
| DHCP Option 82 | Status of DHCP Option 82 operation in the network. |
| Port | The port to which the device is connected. Subscriber Module MAC Address for the connected Subscriber Module device. MAC |
| Aging Timer (secs) | Time set for the MAC addresses in the Bridge table before renewal. |
| Syslog Display | Enabled: The system log file is displayed on the management GUI. Disabled: The system log file is hidden on the management GUI. |
| Download | Use this button to download the full system log file to a connected PC or device. PAGE 4-64 Attention Please read the Release Notes associated with each software release for special notices, feature updates, resolved software issues, and known software issues. The Release Notes may be accessed at the Cambium Support Center. |
| Upgrade Options | URL: A web server may be used to retrieve software upgrade packages (downloaded to the device via the webserver). For example, if a web server is running at IP address 192.168.2.1 and the software upgrade packages are located in the home directory, an operator may select an option From URL and configure the Software Upgrade Source field to http://192.168.2.1/ |
| Select File | Click Browse to select a local file (located on the device accessing the web management interface) for upgrading the device software. |
| 升級方式 | Click the Upgrade button to begin the software upgrade process. Please ensure that power to the device is not interrupted during a software upgrade. Power interruption may cause flash corruption and render the device inoperable. GPS Firmware |
| Configuration File | Text (Editable): Choosing this option will download the configuration file in the .json format and |
| Format | can be viewed and/or edited using a standard text editor. Binary (Secured): Choosing this option will download the configuration file in the .bin format, and cannot be viewed and/or edited using an editor. Use this format for a secure backup. Restore Configuration |
| Skip unsupported | In the case of configuration incompatibility, the unsupported configuration elements can be ignored |
| configuration | and skipped. elements Factory Default Configuration |
| Reset Via Power | Enabled: When Enabled, it is possible to reset the radio’s configuration to factory defaults using the |
| Sequence | power cycle sequence explained under Resetting ePMP to factory defaults by power cycling on page 5-8. Disabled: When Disabled, it is not possible to factory default the radio’s configuration using the power cycle sequence. PAGE 4-67 |
| Retain Passwords | When set to Enabled, then after a factory default of the radio for any reason, the passwords used for GUI and CLI access will not be defaulted and will remain unchanged. The default value of this field is Disabled. If the passwords cannot be retrieved after the factory default, access to the radio will be lost/unrecoverable. This feature prevents unauthorized users from gaining access to the radio |
| Keep Passwords | When the Keep Passwords checkbox is selected, the passwords used for GUI and CLI access will not be defaulted and will remain unchanged. This is a one-time option, and it does not apply to factory default procedures completed by power cycling (Reset Via Power Sequence). |
| Reset to Factory | Use this button to reset the device to its factory default configuration. Defaults A reset to factory default configuration resets all device parameters. With the Subscriber Module device in the default configuration, it may not be able to register to an Access Point device configured for your network. Backup Technical Support File |
| License Server Agent | Disabled: No communication with the License Server is established Enabled: Enables License Server functionality to obtain the number of allowed ePMP Elevate SMs to be connected to the AP |
| Cloud Licensing ID | This field represents a Cambium Networks customer identification used for AP identification on the License Server. This identifier is generated upon License Entitlement activation at the Cambium Networks web-based Support Center. |
| Connection Status | The Connection Status displays the License Server process state when the License Server Agent is Enabled. This status may also be referenced on the device Home page. |
| Enable Proxy | Disabled: The AP must have a valid internet connection to reach the license server Enabled: A proxy server is specific for license server access from a private network |
| Proxy Server IP | Specify the IP address of the proxy server used for internet access from a private network Address |
| Proxy Server Port | Specify the port used on the proxy server for internet access from a private network |
| Refresh Requests | The number of failed refresh (polling) requests to the License Server. The ePMP Elevate Subscriber |
| Failed | Module Limit resets to 1 after the 3rd failed refresh request. |
| Update Requests | The number of failed updates (licensing information transfer) requests to the License Server. The |
| ePMP Elevate | The number of ePMP Elevate devices allowed to register to the AP Subscriber Module Limit Flexible License Management |
| Local License Key | The "License Key" is obtained from support.cambiumnetworks.com and must be entered into this field to enable additional functionality (registration capacity, ePMP Elevate support) of the ePMP device. |
| Version | Specifies the licensing version scheme for the License Key |
| MAC address | The MAC Address is extracted from the License Key and must match the MAC Address of this device for the licenses to be enacted. |
| Country Code | A two-character value representing the licensed country |
| Limit | if a license is present which allows no limit of SMs to register to the device in AP TDD mode. |
| Signature | A valid License Key must have a valid signature included. The status is displayed after a License Key is entered and saved. Licenses can only be used if the signature is valid. PAGE 4-71 |
| Lower / Upper | When Range is configured to Custom, it indicates the range in MHz for which the device will scan. Frequency |
| cnDiscovery Mode | Light: Only management frames will be captured for interferer detection. Some interferers may not be discovered. Scanning results may slightly vary from actual environmental conditions. Hard: Management, control, and data frames will be captured for interferer detection. All Interferers will be discovered. It is recommended to use this mode with caution, as it may result in performance degradation |
| Scanning | Click Pause to pause scanning, and Clear Data to reset the displayed results. PAGE 4-72 Note A valid link to an SM is required to provide meaningful RSSI measurements. Attention ePMP supports Automatic Transmit Power Control (ATPC) where the Subscriber Module devices are instructed by the Access Point to adjust their Tx power in order for the Subscriber Module device signal (UL RSSI) to arrive at |
| Mode | Single Radio: The link test is conducted between the Access Point and one Subscriber Module Dual SM: The link test is conducted between the Access Point and two grouped Subscriber Modules (must be operating in MU-MIMO mode). |
| SM MAC Address | Choose the MAC Address of the Subscriber Module with which the wireless link test will be conducted. |
| Packet Size | Choose the Packet Size to use for the throughput test |
| Duration | Choose the time duration in seconds to use for the throughput test |
| Average | An auto-adjusting chart displaying the average throughput of the link |
| Watchdog Action | Wireless Restart: In case of lost ping connectivity to the specified IP address, the device automatically restarts the wireless interface. Ethernet Restart: In case of lost ping connectivity to the specified IP address, the device automatically restarts the Ethernet interface. Device Reboot: In case of lost ping connectivity to the specified IP address, the device automatically reboots. |
| Watchdog Ping | Indicates the interval in minutes between each ping connectivity diagnostic. Interval |
| Watchdog Ping Retries | Indicates the number of ping retries executed by the device prior to considering the test failed (and conducting the action defined in Watchdog Action). PAGE 4-76 |
| IP Address Version | IPv4: The ping test is conducted via the IPv4 protocol. IPv6: The ping test is conducted via the IPv6 protocol. |
| Number of packets (-c) | Enter the total number of ping requests to send to the target. |
| Buffer size (-s) | Enter the number of data bytes to be sent. |
| TTL (-t) | Set the IP Time-To-Live (TTL) for multicast packets. This flag applies if the ping target is a multicast address. |
| Ping results | The results of the ping test are displayed in the box. PAGE 4-77 |
| Fragmentation (-F) | ON: Allow the source and target to fragment probe packets. OFF: Do not fragment probe packets (on the source or target). |
| Trace method (-l) | ICMP ECHO: Use ICMP ECHO for traceroute probes. UDP: Use UDP for traceroute probes. |
| Display TTL (-l) | ON: Display TTL values for each hop on the route. OFF: Suppress display of TTL values for each hop on the route. |
| Verbose (-v) | ON: ICMP packets other than TIME_EXCEEDED and UNREACHABLE are displayed in the output. OFF: Suppress display of extraneous ICMP messaging. |
| Traceroute Results | Traceroute test results are displayed in the box. PAGE 4-78 |
| CHAPTER 5: OPERATION AND TROUBLESHOOTING | USING THE MENU OPTIONS |
| V+(ON) | Power through PoE has been applied to the device |
| Off | Power through PoE has been removed from the device |
| ton | The time duration for which the device has been powered on. This should be 3-5 seconds. |
| toff | The time duration for which the device has been powered off. This should be 3-5 seconds. PAGE 5-9 CYCLING Attention Intentional or unintentional changes or modifications to the equipment must not be made unless under the express consent of the party responsible for compliance. Any such modifications could void the user’s authority to operate the equipment and will void the manufacturer’s warranty. |
| OpenWRT | " GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. PAGE 6-6 Preamble The licenses for most software are designed to take away your freedom to share and change it. By contra |
| u-boot | "# (C) Copyright 2000 - 2005 # Wolfgang Denk, DENX Software Engineering, wd@denx.de. # See file CREDITS for list of people who contributed to this # project. # This program is free software; you can redistribute it and/or # modify it under the terms of the GNU General Public License as # published by the Free Software Foundation; either version 2 of # the License, or (at your option) any later ver |
| firewall | /* * firewall3 - 3rd OpenWrt UCI firewall implementation * Copyright (C) 2013-2014 Jo-Philipp Wich |
| fstools | /* * Copyright (C) 2014 John Crispin |
| iputils | /* * Copyright (c) 1989 The Regents of the University of California. * All rights reserved. * This code is derived from software contributed to Berkeley by * Mike Muuss. * Redistribution and use in source and binary forms, with or without * modification, are permitted provided that the following conditions * are met: * 1. Redistributions of source code must retain the above copyright * notice, thi |
| * | This product includes software developed by the University of |
| jsonfilter | /* * Copyright (C) 2013-2014 Jo-Philipp Wich |
| librpc | /* * Sun RPC is a product of Sun Microsystems, Inc. and is provided for * unrestricted use provided that this legend is included on all tape * media and as a part of the software program in whole or part. Users * may copy or modify Sun RPC without charge, but are not authorized * to license or distribute it to anyone else except as part of a product or * program developed by the user. * SUN RPC IS |
| libubox | /* * Copyright (C) 2010-2012 Felix Fietkau |
| lua | Lua License ----------- Lua is licensed under the terms of the MIT license reproduced below. This means that Lua is free software and can be used for both academic and commercial purposes at absolutely no cost. For details and rationale, see http://www.lua.org/license.html . ====================================================== ========================= Copyright (C) 1994-2012 Lua.org, PUC-Rio. P |
| LuaSrcDiet | LuaSrcDiet License ------------------ LuaSrcDiet is licensed under the terms of the MIT license reproduced below. This means that LuaSrcDiet is free software and can be used for both academic and commercial purposes at absolutely no cost. Think of LuaSrcDiet as a compiler or a text filter; whatever that is processed by LuaSrcDiet is not affected by its license. It does not add anything new into yo |
| lzma | LZMA SDK 4.65 ------------- LZMA SDK provides the documentation, samples, header files, libraries, and tools you need to develop applications that use LZMA compression. LZMA is default and general compression method of 7z format in 7-Zip compression program (www.7-zip.org). LZMA provides high compression ratio and very fast decompression. LZMA is an improved version of famous LZ77 compression algo |
| nat46 | * Copyright (c) 2013-2014 Andrew Yourtchenko |
| netifd | /* * netifd - network interface daemon * Copyright (C) 2012 Felix Fietkau |
| procd | /* * Copyright (C) 2013 Felix Fietkau |
| rpcd | /* * rpcd - UBUS RPC server * Copyright (C) 2013 Felix Fietkau |
| ubox | /* * Copyright (C) 2013 Felix Fietkau |
| ubus | /* * Copyright (C) 2011-2014 Felix Fietkau |
| uci | /* * libuci - Library for the Unified Configuration Interface * Copyright (C) 2008 Felix Fietkau |
| uClibc++ | /* Copyright (C) 2004 Garrett A. Kajmowicz This file is part of the uClibc++ Library. This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later version. This library is distributed in the hope that it will be useful, b |
| uhttpd | /* * uhttpd - Tiny single-threaded httpd * Copyright (C) 2010-2013 Jo-Philipp Wich |
| usign | /* * usign - tiny signify replacement * Copyright (C) 2015 Felix Fietkau |
| attr | /* * Copyright (c) 2001-2003,2005 Silicon Graphics, Inc. * All Rights Reserved. * This program is free software: you can redistribute it and/or modify it * under the terms of the GNU Lesser General Public License as published * by the Free Software Foundation, either version 2.1 of the License, or * (at your option) any later version. * This program is distributed in the hope that it will be usefu |
| bc | /* A Bison parser, made by GNU Bison 2.1. */ /* Skeleton parser for Yacc-like parsing with Bison, Copyright (C) 1984, 1989, 1990, 2000, 2001, 2002, 2003, 2004, 2005 Free Software Foundation, Inc. This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2, or (at your option |
| bridge-utils | /* * Copyright (C) 2000 Lennert Buytenhek * This program is free software; you can redistribute it and/or * modify it under the terms of the GNU General Public License as * published by the Free Software Foundation; either version 2 of the * License, or (at your option) any later version. * This program is distributed in the hope that it will be useful, but * WITHOUT ANY WARRANTY; without even the |
| busybox | BusyBox is distributed under version 2 of the General Public License (included in its entirety, below). Version 2 is the only version of this license which this version of BusyBox (or modified versions derived from this one) PAGE 6-30 may be distributed under. ------------------------------------------------------------------------ GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989 |
| bzip2 | This program, "bzip2", the associated library "libbzip2", and all documentation, are copyright (C) 1996-2010 Julian R Seward. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the foll |
| conntrack-tools | /* * (C) 2006-2012 by Pablo Neira Ayuso |
| curl | COPYRIGHT AND PERMISSION NOTICE Copyright (c) 1996 - 2015, Daniel Stenberg, |
| device-agent | /* ====================================================== ====================== |
| Name | : common.c |
| Author | : Subi S S Version : Copyright : Copyright (C) 2013 Cambium Networks, Ltd. All Rights Reserved CAMBIUM NETWORKS CONFIDENTIAL PROPRIETARY Description : Functions which are useful for all platforms. ====================================================== ====================== |
| dnsmasq | /* dnsmasq is Copyright (c) 2000-2015 Simon Kelley This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; version 2 dated June, 1991, or (at your option) version 3 dated 29 June, 2007. PAGE 6-33 This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; wi |
| dropbear | Dropbear contains a number of components from different sources, hence there are a few licenses and authors involved. All licenses are fairly non-restrictive. The majority of code is written by Matt Johnston, under the license below. Portions of the client-mode work are (c) 2004 Mihnea Stoenescu, under the same license: Copyright (c) 2002-2014 Matt Johnston Portions copyright (c) 2004 Mihnea Stoen |
| ebtables | /* * ebtables.c, v2.0 July 2002 * Author: Bart De Schuymer * This code was stongly inspired on the iptables code which is * Copyright (C) 1999 Paul `Rusty' Russell & Michael J. Neuling * This program is free software; you can redistribute it and/or * modify it under the terms of the GNU General Public License as * published by the Free Software Foundation; either version 2 of the * License, or (at |
| ethtool | ethtool is available under the terms of the GNU Public License version See COPYING for details. |
| eventlog | Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer |
| expat | Copyright (c) 1998, 1999, 2000 Thai Open Source Software Center Ltd and Clark Cooper Copyright (c) 2001, 2002, 2003, 2004, 2005, 2006 Expat maintainers. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, m |
| file | $File: COPYING,v 1.1 2008/02/05 19:08:11 christos Exp $ Copyright (c) Ian F. Darwin 1986, 1987, 1989, 1990, 1991, 1992, 1994, 1995. Software written by Ian F. Darwin and others; maintained 1994- Christos Zoulas. This software is not subject to any export provision of the United States Department of Commerce, and may be exported to any country or planet. Redistribution and use in source and binary |
| glib/glib2 | GNU LIBRARY GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1991 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. [This is the first released version of the library GPL. It is numbered 2 because it goes with version 2 of the ordinary G |
| haproxy | HAPROXY's license - 2006/06/15 Historically, haproxy has been covered by GPL version 2. However, an issue appeared in GPL which will prevent external non-GPL code from being built using the headers provided with haproxy. My long-term goal is to build a core system able to load external modules to support specific application protocols. Since some protocols are found in rare environments (finance, |
| i2c-tools | GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. i2cset.c - A user-space program to write an I2C register. Copyright (C) 2001-2003 Frodo Looijaard |
| iperf | Copyright (c) 1999-2007, The Board of Trustees of the University of Illinois All Rights Reserved. Iperf performance test Mark Gates Ajay Tirumala Jim Ferguson Jon Dugan Feng Qin Kevin Gibbs John Estabrook National Laboratory for Applied Network Research National Center for Supercomputing Applications University of Illinois at Urbana-Champaign http://www.ncsa.uiuc.edu Permission is hereby granted, |
| iproute2 | GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 51 Franklin St, Fifth Floor, Boston, MA 02110-1301 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. |
| * ip.c | "ip" utility frontend. |
| * Authors: | Alexey Kuznetsov, |
| iptables | /* * Author: Paul.Russell@rustcorp.com.au and mneuling@radlogic.com.au * (C) 2000-2002 by the netfilter coreteam |
| iw | Copyright (c) 2007, 2008 Johannes Berg |
| Copyright (c) 2007 | Andy Lutomirski |
| Copyright (c) 2008-2009 | Luis R. Rodriguez PAGE 6-45 Permission to use, copy, modify, and/or distribute this software for any purpose with or without fee is hereby granted, provided that the above copyright notice and this permission notice appear in all copies. THE SOFTWARE IS PROVIDED "AS IS" AND THE AUTHOR DISCLAIMS ALL WARRANTIES WITH REGARD TO THIS SOFTWARE INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITN |
| jansson | Copyright (c) 2009-2014 Petri Lehtinen |
| json-c | Copyright (c) 2009-2012 Eric Haszlakiewicz Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to wh |
| libelf | /* * elf_repl.h - public header file for systems that lack it. * Copyright (C) 1995 - 2006 Michael Riepe * This library is free software; you can redistribute it and/or * modify it under the terms of the GNU Library General Public * License as published by the Free Software Foundation; either * version 2 of the License, or (at your option) any later version. * This library is distributed in the ho |
| libevent | Libevent is available for use under the following license, commonly known as the 3-clause (or "modified") BSD license: ============================== Copyright (c) 2000-2007 Niels Provos |
| libffi | libffi - Copyright (c) 1996-2012 Anthony Green, Red Hat, Inc and others. See source files for details. Permission is hereby granted, free of charge, to any person obtaining PAGE 6-50 a copy of this software and associated documentation files (the ``Software''), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sub |
| libiwinfo | * * iwinfo - Wireless Information Library - Broadcom wl.o Backend * Copyright (C) 2009 Jo-Philipp Wich |
| libnetfilter_conntrack | /* * (C) 2005-2011 by Pablo Neira Ayuso |
| libnetfilter_cthelper | GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 675 Mass Ave, Cambridge, MA 02139, USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. |
| libnetfilter_cttimeout | GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 675 Mass Ave, Cambridge, MA 02139, USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. |
| libnetfilter_queue | GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 675 Mass Ave, Cambridge, MA 02139, USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. |
| libnfnetlink | GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 675 Mass Ave, Cambridge, MA 02139, USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. |
| libnl | GNU LESSER GENERAL PUBLIC LICENSE Version 2.1, February 1999 Copyright (C) 1991, 1999 Free Software Foundation, Inc. 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. [This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library |
| libpcap | License: BSD Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the followi |
| libwebsockets | /* * libwebsockets - small server side websockets and web server implementation * Copyright (C) 2010-2014 Andy Green |
| libxml2 | Except where otherwise noted in the source code (e.g. the files hash.c, list.c and the trio files, which are covered by a similar licence but with different Copyright notices) all the files are: Copyright (C) 1998-2012 Daniel Veillard. All Rights Reserved. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software |
| lighttpd | Copyright (c) 2004, Jan Kneschke, incremental All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: - Redistributions of source code must retain the above copyright notice, this PAGE 6-55 list of conditions and the following disclaimer. - Redistributions in binary form must reproduce the a |
| Linux-PAM | Unless otherwise *explicitly* stated the following text describes the licensed conditions under which the contents of this Linux-PAM release may be distributed: ------------------------------------------------------------------------- Redistribution and use in source and binary forms of Linux-PAM, with or without modification, are permitted provided that the following conditions are met: 1. Redist |
| lldpd | License ------- lldpd is distributed under the ISC license: PAGE 6-57 > Permission to use, copy, modify, and/or distribute this software for any > purpose with or without fee is hereby granted, provided that the above > copyright notice and this permission notice appear in all copies. > THE SOFTWARE IS PROVIDED "AS IS" AND THE AUTHOR DISCLAIMS ALL WARRANTIES > WITH REGARD TO THIS SOFTWARE INCLUDIN |
| lua-cjson | Copyright (c) 2010-2012 Mark Pulford |
| mcproxy | GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. |
| minicom | Minicom is Copyright (C) 1991,1992,1993,1994,1995,1996 Miquel van Smoorenburg. GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc., PAGE 6-59 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. |
| miniupnpd | MiniUPnPd Copyright (c) 2006-2015, Thomas BERNARD All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: * Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. * Redistributions in binary form must reproduce the above c |
| mtd-utils | GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. |
| net-snmp | Various copyrights apply to this package, listed in various separate parts below. Please make sure that you read all the parts. ---- Part 1: CMU/UCD copyright notice: (BSD like) ----- Copyright 1989, 1991, 1992 by Carnegie Mellon University Derivative Work - 1996, 1998-2000 Copyright 1996, 1998-2000 The Regents of the University of California All Rights Reserved Permission to use, copy, modify and |
| odhcp6c | GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 51 Franklin St, Fifth Floor, Boston, MA 02110-1301 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. |
| odhcpd | GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 51 Franklin St, Fifth Floor, Boston, MA 02110-1301 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. |
| openssl | LICENSE ISSUES ============== The OpenSSL toolkit stays under a double license, i.e. both the conditions of the OpenSSL License and the original SSLeay license apply to the toolkit. See below for the actual license texts. Actually both licenses are BSD- style Open Source licenses. In case of any license issues related to OpenSSL please contact openssl-core@openssl.org. OpenSSL License ------------ |
| opkg | GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. |
| pcre | Release 8 of PCRE is distributed under the terms of the "BSD" licence, specified below. The documentation for PCRE, supplied in the "doc" directory, is distributed under the same terms as the software itself. THE MAIN PCRE LIBRARY --------------------- |
| Written by: | Philip Hazel Email local part: ph10 Email domain: cam.ac.uk University of Cambridge Computing Service, Cambridge, England. Copyright (c) 1997-2010 University of Cambridge All rights reserved THE C++ WRAPPER LIBRARY ----------------------- |
| pm-utils | GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. * suspend functions for machines with Mac-style pmu * Copyright 2006 Red Hat, Inc. * Based on work from: * Peter Jones |
| rng-tools | GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 51 Franklin Street, Suite 500, Boston, MA 02110-1335 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. * rngd.c -- Random Number Generator daemon * rngd reads data from a hardware random number generator, verifies * looks l |
| rp-pppoe | GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 675 Mass Ave, Cambridge, MA 02139, USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. /*********************************************************************** * pppoe.c * Implementation of user-space PPPoE redirector for Lin |
| rstp | GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 51 Franklin St, Fifth Floor, Boston, MA 02110-1301 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. /***************************************************************************** Copyright (c) 2006 EMC Corporation. This pr |
| squashfs | GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. * Squashfs * Copyright (c) 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 * Phillip Lougher |
| strace | /* * Copyright (c) 1991, 1992 Paul Kranenburg |
| syslog-ng | Copyright (c) 2002-2015 Balabit Copyright (c) 1996-2015 Balázs Scheidler syslog-ng is licensed under the combination of the GPL and LGPL licenses. The syslog-ng core contained in the following subdirectories is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2.1 of the Lice |
| sysstat | GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 675 Mass Ave, Cambridge, MA 02139, USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. * (C) 1998-2015 by Sebastien GODARD (sysstat |
| * option) any later version. | * |
| * for more details. | * |
| tcpdump | License: BSD Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the followi |
| trace-cmd | GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. The applications are licensed under the GNU General Public License 2.0 PAGE 6-79 (see COPYING) and the libraries are |
| ubi-utils | GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. * Copyright (c) International Business Machines Corp., 2006 * This program is free software; you can redistribute it and/or |
| uClibc-ng | GNU LESSER GENERAL PUBLIC LICENSE Version 2.1, February 1999 Copyright (C) 1991, 1999 Free Software Foundation, Inc. 51 Franklin St, Fifth Floor, Boston, MA 02110-1301 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. [This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Pub |
| wget | GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 51 Franklin St, Fifth Floor, Boston, MA 02110-1301 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. /* Miscellaneous declarations. Copyright (C) 1995, 1996, 1997, 1998, 2003 Free Software Foundation, Inc. This file is part |
| wireless_tools.29 | GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. |
| xtables-addons | GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. |
| zlib | /* zlib.h -- interface of the 'zlib' general purpose compression library version 1.2.8, April 28th, 2013 Copyright (C) 1995-2013 Jean-loup Gailly and Mark Adler PAGE 6-82 This software is provided 'as-is', without any express or implied warranty. In no event will the authors be held liable for any damages arising from the use of this software. Permission is granted to anyone to use this software f |
| Jean-loup Gailly | Mark Adler |
| jloup@gzip.org | madler@alumni.caltech.edu The data format used by the zlib library is described by RFCs (Request for Comments) 1950 to 1952 in the files http://tools.ietf.org/html/rfc1950 (zlib format), rfc1951 (deflate format) and rfc1952 (gzip format). PAGE 6-83 PAGE 6-84 PAGE 6-85 |
| Region | Standard |
| USA | UL 60950-1, 2nd Edition |
| Canada | CSA C22.2 No.60950 2nd Edition |
| International | International CB certified and certified to IEC 60950-1:2005 (modified) plus EN60950-1:2006 + A1:2010 |
| Europe | ETSI EN301 489-4 PAGE 6-87 |
| S | power density in W/m2 |
| P | maximum average transmit power capability of the radio, in W |
| G | total Tx gain as a factor, converted from dB |
| d | distance from point source, in m Rearranging terms to solve for distance yields: P.G 4 .S P – maximum average transmit power capability of the radio (Watt) G – total transmit gain as a factor, converted from dB S – power density (W/m2) d – minimum distance from point source (meters) R – recommended distances (meters) PAGE 6-89 |
| Part Number | FCC ID Industry Canada C058910A102A |
| Z8H89FT0024 | 109W-0024 C050910A104A |
| Conn | Channel P G S d R |
| 類型 | Bandwidth Antenna (W) (W/m2) (m) (m) |
| AP | 20 MHz Sector, 18 dBi 0.031 63 10 0.12 0.3 |
| Z8H89FT0017 | 109W-0017 C050910C104A |
| PTP | Integrated Dish, 25 20 MHz 0.000389 316 9.01 0.03 0.1 0.24 |
| SM | dBi |
| Z8H89FT0016 | 109W-0016 C058910C114A |
| Frequency band | Region Regulatory approvals 5 GHz USA FCC Part 15 Class B |
| Device | Label |
| Force 300-25 | “Contains Transmitter Module FCC ID: Z8H89FT0017” or “Contains FCC ID: Z8H89FT0017” |
| Force 300-16 | “Contains Transmitter Module FCC ID: Z8H89FT0016” or “Contains FCC ID: Z8H89FT0016” PAGE 6-100 |
| Term | Definition |
| AES | Advanced Encryption Standard |
| ANSI | American National Standards Institute |
| CINR | Carrier to Interference plus Noise Ratio |
| CMM | Cluster Management Module |
| DFS | Dynamic Frequency Selection |
| EIRP | Equivalent Isotropically Radiated Power |
| EMC | Electromagnetic Compatibility |
| EMD | Electromagnetic Discharge |
| ETH | Ethernet |
| ETSI | European Telecommunications Standards Institute |
| FCC | Federal Communications Commission |
| FEC | Forward Error Correction |
| GUI | Graphical User Interface |
| HTTP | Hypertext Transfer Protocol |
| IC | Industry Canada |
| IEEE | Institute of Electrical and Electronics Engineers |
| IP | Internet Protocol |
| LAN | Local Area Network |
| LOS | Line of Sight |
| MIMO | Multiple In Multiple Out |
| MIR | Maximum Information Rate |
| MU-MIMO | Multi-User Multiple In Multiple Out |
| MTU | Maximum Transmission Unit PAGE 6-107 |
| nLOS | Near Line of Sight |
| NTP | Network Time Protocol |
| OFDM | Orthogonal Frequency Division Multiplexing |
| PC | Personal Computer |
| PMP | Point to Multipoint |
| QAM | Quadrature Amplitude Modulation |
| QPSK | Quadrature Phase Shift Keyed |
| RF | Radio Frequency |
| RMA | Return Merchandise Authorization |
| RSSI | Received Signal Strength Indication |
| RTTT | Road Transport and Traffic Telematics |
| RX | Receive |
| SAR | Standard Absorption Rate |
| SNMP | Simple Network Management Protocol |
| SW | Software |
| TDD | Time Division Duplex |
| TDWR | Terminal Doppler Weather Radar |
| TX | Transmit |
| UNII | Unlicensed National Information Infrastructure |
| URL | Uniform Resource Locator PAGE 6-108 |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →
27.8 cm x 27.8 cm x 4.5cm (10.9 in x 10.9 in x 1.8 in)｜重量 0.7 kg (1.5 lbs) without brackets｜Unit: mm
80211AC Cambium ePMP 3000, ePMP 3000L and Force亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，80211AC 原廠行貨連保養，提供上門安裝、佈線及網絡設定一站式服務，全港 32 區均有服務。
詳細規格請參閱上方規格表；我們會按現場點位數量、距離及功率需求設計網絡架構，並提供整體方案報價。
原廠行貨保養，工程另設保養期；網絡設備我們會預先設定好即插即用，日後有問題可遠程協助或上門檢查。
兩者主要規格分別：Channel bandwidth方面，80211AC 係 20 MHz, 40 MHz, 80 MHz，802.11N 係 5 MHz, 10 MHz, 20 MHz or 40 MHz；Environmental方面，80211AC 係 IP67，802.11N 係 IP55；Temperature方面，80211AC 係 -30°C to +60°C (-22°F to 140°F) PAGE 1-7，802.11N 係 -30°C (-22°F) to +55°C (131°F)。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 802.11N 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 80211AC 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱網絡 WiFi安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 80211AC Cambium ePMP 3000, ePMP 3000L and Force供貨連專業安裝服務（裝WIFI、裝ROUTER、裝FIREWALL），熱門地區包括：元朗網絡佈線 WiFi 工程、北角網絡佈線 WiFi 工程、土瓜灣網絡佈線 WiFi 工程、大圍網絡佈線 WiFi 工程、大埔網絡佈線 WiFi 工程、大角咀網絡佈線 WiFi 工程、將軍澳網絡佈線 WiFi 工程、尖沙咀網絡佈線 WiFi 工程。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 80211AC 香港價格連安裝報價。
80211AC Cambium ePMP 3000, ePMP 3000L and Force適合多種場景使用，以下為部分常見安裝場景，歡迎查詢是否適合您的現場環境。
露天場地裝網絡系統,戶外防水AP、廣域WiFi覆蓋、抗UV線材佈設,實現開放空間穩定連網。全港覆蓋上門安裝，油塘、藍田各區歡迎致電查詢。
WhatsApp 查詢 →民宿裝網絡系統,各房WiFi覆蓋、智能門鎖聯網、訪客限時上網,提升旅客住宿網絡體驗。免費上門度尺、按規模報價，大埔、粉嶺項目即約勘察。
WhatsApp 查詢 →場地裝網絡系統,舊網絡架構評估、頻寬瓶頸優化、設備升級換代,改善網絡速度與穩定性。專業團隊上門評估，西環、堅尼地城場地歡迎洽談報價。
WhatsApp 查詢 →酒樓裝網絡系統,落單系統專網、收銀POS聯網、顧客WiFi隔離,整合餐飲營運網絡架構。一站式勘測安裝，旺角、油麻地各區即日約見報價。
WhatsApp 查詢 →廠房辦公區裝網絡系統,辦公網與產線網隔離、ERP系統聯網、訪客WiFi管控,兼顧效率與安全。免費評估方案、即時報價，黃竹坑、香港仔一帶歡迎查詢。
WhatsApp 查詢 →美容院裝網絡系統,預約系統聯網、會員管理組網、顧客WiFi隔離,支撐美容服務數位營運。免費上門勘察、明碼實價報價，馬鞍山、烏溪沙一帶即日約期。
WhatsApp 查詢 →查看更多網絡 WiFi適用場景，請參閱 網絡 WiFi安裝工程。
如需整套網絡 WiFi方案，請參閱 網絡 WiFi安裝工程。
