| MAC (Media Access Control) Layer | Cambium Networks proprietary |
|---|
| Physical Layer | 8x8 Multi-User MIMO OFDM |
|---|
| 網絡接口 | 100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant), SFP support for 1 Gbps optical |
|---|
| Protocols Used | IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP |
|---|
| Network Management | IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestroTM |
|---|
| MTU | 1700 bytes |
|---|
| VLAN | 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID |
|---|
| Subscriber Per Sector | Up to 238 |
|---|
| ARQ | Yes |
|---|
| Modulation Levels (Adaptive) | MCS Signal to Noise Required (SNR, in dB) 2X QPSK 10 4X 16QAM 17 6X 64QAM 24 8X 256QAM 32 |
|---|
| Maximum Deployment Range | Up to 40 miles (64 km) |
|---|
| Latency | 10 ms, typical |
|---|
| Quality of Service | Diffserv QoS |
|---|
| Antenna Beam Width (Elevation) | 2° Electrical Downtilt, 8° Elevation Beamwidth and Null Fill down to -30° |
|---|
| Antenna Connection | Integrated Sector Array |
|---|
| MAIN and AUX ports : | EN61000-4-5: 10/700us, 4 kV voltage waveform : Recommended external surge suppressor: Model # C000065L007B |
|---|
| DC IN port : | EN61000-4-5: 10/700us, 4 kV voltage waveform : Recommended external surge suppressor: Model # C000000L114A |
|---|
| Mean Time Between Failure | > 40 Years |
|---|
| Environmental | IP67, IP66 |
|---|
| Temperature / Humidity | -40°C to +60°C (-40°F to +140°F) / 100% condensing |
|---|
| 重量 | Without Mounting Brackets: 20.4 kg (45 lbs) With Mounting Brackets: 22.6 kg (49.8 lbs) |
|---|
| Wind Survival | 124 mph / 200 kph 927 N |
|---|
| @ 124 mph / 200 kph | 1183 N |
|---|
| Dimensions (HxWxD) | 69 x 61 x 17.5 cm (27.2” x 24” x 7”) |
|---|

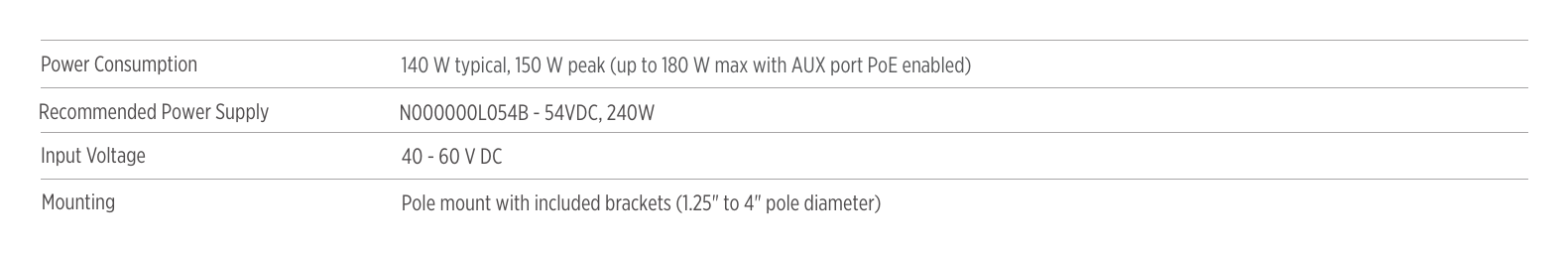

| 功耗 | 140 W typical, 150 W peak (up to 180 W max with AUX port PoE enabled) |
|---|
| Recommended Power Supply | N000000L054B - 54VDC, 240W |
|---|
| Input Voltage | 40 - 60 V DC |
|---|
| Mounting | Pole mount with included brackets (1.25" to 4" pole diameter) |
|---|
| Specifications | 3 GHz PMP 450m Access Point SPECIFICATION SHEET |
|---|
| FCC ID | QWP-30450M (3 GHz) |
|---|
| CE | EN 302 326-2 v1.2.2 (3 GHz) |
|---|
