| Camera | Compression H.265+/H.265/H.264+/H.264 |
|---|
| Streaming Capability | 3 Streams |
|---|
| 影像感測器 | 1/2.8” STARVIS™ CMOS 1080P(1920×1080)/1.3M(1280x960)/720P(1280× |
|---|
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels Resolution 720)/D1(704×576/704×480)/CIF(352×288/352×240) |
|---|
| RAM/ROM | 512M/128M Main stream: 1080P/1.3M/720P(1~50/60fps) |
|---|
| Scanning System | Progressive |
|---|
| Frame Rate | Sub stream1: D1/CIF(1 ~ 25/30fps) |
|---|
| Electronic Shutter Speed | 1/1s~1/30,000s Sub stream2: 1080P/1.3M/720P(1 ~ 25/30fps) Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; |
|---|
| Minimum Illumination | Bit Rate Control CBR/VBR 0Lux@F1.6(IR on) |
|---|
| IR Distance | Distance up to 200m (656ft) Bit Rate H.265/H.264: 448K ~ 8192Kbps |
|---|
| Day/Night | Auto(ICR) / Color / B/W |
|---|
| IR On/Off Control | Auto/Manual |
|---|
| Backlight Compensation | BLC / HLC / WDR (120dB) |
|---|
| IR LEDs | 7 |
|---|
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
|---|
| Wiper | Support |
|---|
| Gain Control | Auto / Manual |
|---|
| Noise Reduction | Ultra DNR (2D/3D) |
|---|
| 焦距 | 3.95mm~177.7mm |
|---|
| Motion Detection | Support |
|---|
| Max. Aperture | F1.6~ F4.95 Region of Interest Support |
|---|
| Angle of View | H: 70.3° ~ 1.8° Electronic Image Stabilization Support (EIS) |
|---|
| Optical Zoom | 45x Defog Support |
|---|
| Digital Zoom | 16x |
|---|
| Focus Control | Auto/Manual |
|---|
| Flip | 180° |
|---|
| Close Focus Distance | 100mm~ 1000mm DORI Distance *Note: The DORI distance is a “general proximity” of distance which makes it easy to Compression G.711a/G.711Mu/AAC/G.722/G.726/MPEG2-L2 pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Network criteria for Detect, Observe, Recognize and Identify respecti |
|---|
| Ethernet | RJ-45 (10Base-T/100Base-TX) |
|---|
| Detect | Observe Recognize Identify IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, 2345m(7694ft) 938m(3077ft) 469m(1539ft) 234m(768ft) |
|---|
| Protocol | ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
|---|
| Interoperability | ONVIF Profile S&G, API |
|---|
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -90° ~ 90° |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| Manual Control Speed | Pan: 0.1° ~40° /s; Tilt: 0.1° ~40° /s |
|---|
| Max. User Access | 20 users |
|---|
| Preset Speed | Pan: 40° /s; Tilt: 40° /s NAS (Network Attached Storage),Local PC for Edge Storage instant recording, Micro SD card 256GB |
|---|
| 預置位 | 256 |
|---|
| Web Viewer | IE, Chrome, Firefox, Safari |
|---|
| PTZ Mode | 5 Scan, 8 Tour |
|---|
| Management Software | Smart PSS, DSS, DMSS |
|---|
| Speed Setup | Human-oriented focal Length/speed adaptation |
|---|
| Smart Phone | IOS, Android Auto restore to previous PTZ and lens status after |
|---|
| Power up Action | Interface power failure Activate Preset/Scan/Tour if there is no command in Video Interface 1 coaxial cable(75Ω) Idle Motion the specified period |
|---|
| RS485 | 1 |
|---|
| Audio I/O | 1/1 |
|---|
| Alarm I/O | 2/1 www.dahuasecurity.com Certifications Wall Mount ATEX: EN 60079-0/EN 60079-1/EN 60079-28/EN ZAZ660B 60079-31 Certifications IECEx : IEC 60079-0/IEC 60079-1/EN 60079-28/IEC 60079-31 ATEX: II 2 G Ex db IIC T6 Gb, II 2 D Ex tb IIIC T80°C Db Explosion-proof Marking IECEx : Ex db IIC T6 Gb, Ex tb IIIC T80°C Db Electrical |
|---|
| 供電 | AC220V(AC100V ~ 240V) |
|---|
| 功耗 | 40W, 75W (IR on, Heater On) Environmental |
|---|
| Operating Conditions | -40°C ~ 60°C (-40°F ~ +140°F) / Less than 95% RH |
|---|
| 儲存溫度 | -40°C ~ 65°C (-40°F ~ +149°F) |
|---|

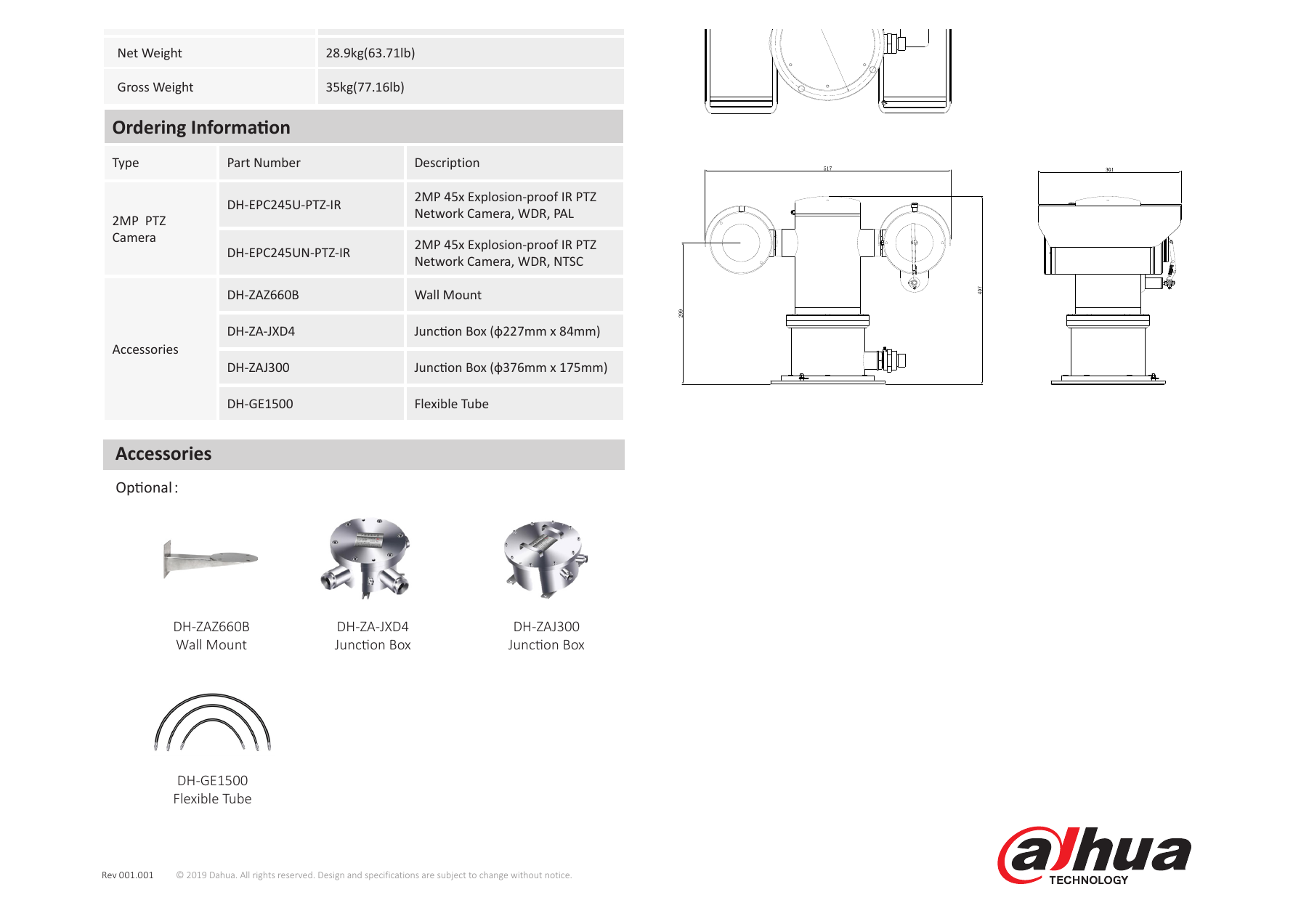

| 防護等級 | IP68 Dimensions (mm) |
|---|
| Vandal Resistance | N/A Construction |
|---|
| Casing | 316L Stainless Steel |
|---|
| 尺寸 | Φ517mm×407mm×301mm |
|---|
| 淨重 | 28.9kg(63.71lb) |
|---|
| 毛重 | 35kg(77.16lb) Ordering Information |
|---|
| 類型 | Part Number Description 2MP 45x Explosion-proof IR PTZ DH-EPC245U-PTZ-IR 2MP PTZ Network Camera, WDR, PAL |
|---|
| DH-ZAZ660B | Wall Mount |
|---|
| DH-ZA-JXD4 | Junction Box (ф227mm x 84mm) Accessories |
|---|
| DH-ZAJ300 | Junction Box (ф376mm x 175mm) |
|---|
| DH-GE1500 | Flexible Tube Accessories Optional： |
|---|
| Wall Mount | Junction Box Junction Box DH-GE1500 Flexible Tube |
|---|
| Rev 001.001 | © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
