| Camera | OSD Menu Multi-language |
|---|
| 影像感測器 | 1/2.7" CMOS BLC Mode BLC / HLC / WDR |
|---|
| Effective Pixels | 1928(H)×1088(V), 2.1MP WDR 120dB |
|---|
| Scanning System | Progressive Gain Control AGC |
|---|
| PAL: 1.3s~1/30000s | Noise Reduction 2D / 3D Electronic Shutter Speed NTSC: 1s~1/30000s |
|---|
| White Balance | Auto / Manual |
|---|
| Minimum Illumination | 0.03Lux/F2.0, 30IRE, 0Lux IR on |
|---|
| Smart IR | Auto / Manual |
|---|
| S/N Ratio | More than 65dB |
|---|
| IR Distance | Up to 30m (98feet) Certifications |
|---|
| IR On/Off Control | Auto / Manual CE (EN55032, EN55024, EN50130-4) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| IR LEDs | 24 |
|---|
| 鏡頭 | Interface |
|---|
| 鏡頭類型 | Fixed lens / Fixed iris Audio Interface N/A |
|---|
| Mount Type | Board-in Eelectrical |
|---|
| 焦距 | 3.6mm (2.8mm, 6mm Optional) Power Supply 12V DC ±25% |
|---|
| Max Aperture | F2.0 Power Consumption Max 5.5W (12V DC, IR on) |
|---|
| Angle of View | H: 90° (115.6°/59.4°) Environmental |
|---|
| Focus Control | N/A -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH Operating Conditions * Start up should be done at above -30°C (-22°F) 800mm (500mm, 1800mm) |
|---|
| Close Focus Distance | Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH 31.50'' (19.69'', 70.87'') Ingress Protection & Vandal |
|---|
| DORI Distance | Resistance IP67 & IK10 Note: The DORI distance is a “general proximity” of distance which makes it easy to Construction pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Casing Aluminium criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| 尺寸 | Φ109.9mm×81.0mm (Φ4.33"×3.19") |
|---|
| Distance | Net Weight 0.31kg (0.68lb) Definition 2.8mm:40m(132ft) Gross Weight 0.41kg (0.90lb) 25px/m |
|---|
| Detect | 3.6mm: 53m(175ft) (8px/ft) 6mm: 78m(257ft) 2.8mm:16m(53ft) 63px/m |
|---|
| Observe | 3.6mm: 21m(70ft) (19px/ft) 6mm: 31m(103ft) 2.8mm:8m(26ft) 125px/m |
|---|
| Recognize | 3.6mm: 11m(35ft) (38px/ft) 6mm: 16m(51ft) 2.8mm:4m(13ft) 250ppm |
|---|
| Identify | 3.6mm: 5m(17ft) (76px/ft) 6mm: 8m(26ft) Pan / Tilt / Rotation Pan: 0° ~ 355° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 65° Rotation: 0° ~ 355° |
|---|
| 解像度 | 1080P (1920×1080) |
|---|
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P 1-channel BNC HDCVI high definition video output & |
|---|
| Video Output | 1-channel BNC CVBS video output CVBS tester out www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|
| PFA136 | PFB203W + PFA152-E |
|---|
| 類型 | Part Number Description DH-HAC-HDBW2221EP 2.8mm 2MP WDR HDCVI IR Dome DH-HAC-HDBW2221EP 3.6mm Camera, PAL |
|---|
| DH-HAC-HDBW2221EP 6mm | Wall Mount 2MP Camera |
|---|
| DH-HAC-HDBW2221EN 2.8mm | PFB203W 2MP WDR HDCVI IR Dome DH-HAC-HDBW2221EN 3.6mm Camera, NTSC DH-HAC-HDBW2221EN 6mm |
|---|
| Wall mount (For use alone or with | PFB203W + PFA152-E+PFA200W PFB203W PFA152-E pole mount) PFA152-E |
|---|
| Pole mount (For use with | Wall Mount with Rain Shade PFB203W wall mount) PFB203W+PFA200W Rain shade (For use with PFB203W wall mount or with PFA200W PFB203W wall mount and PFA152-E pole mount) |
|---|
| Accessories | PFM800-E Passive HDCVI Balun |
|---|
| PFM800-4MP | Passive HDCVI Balun |
|---|

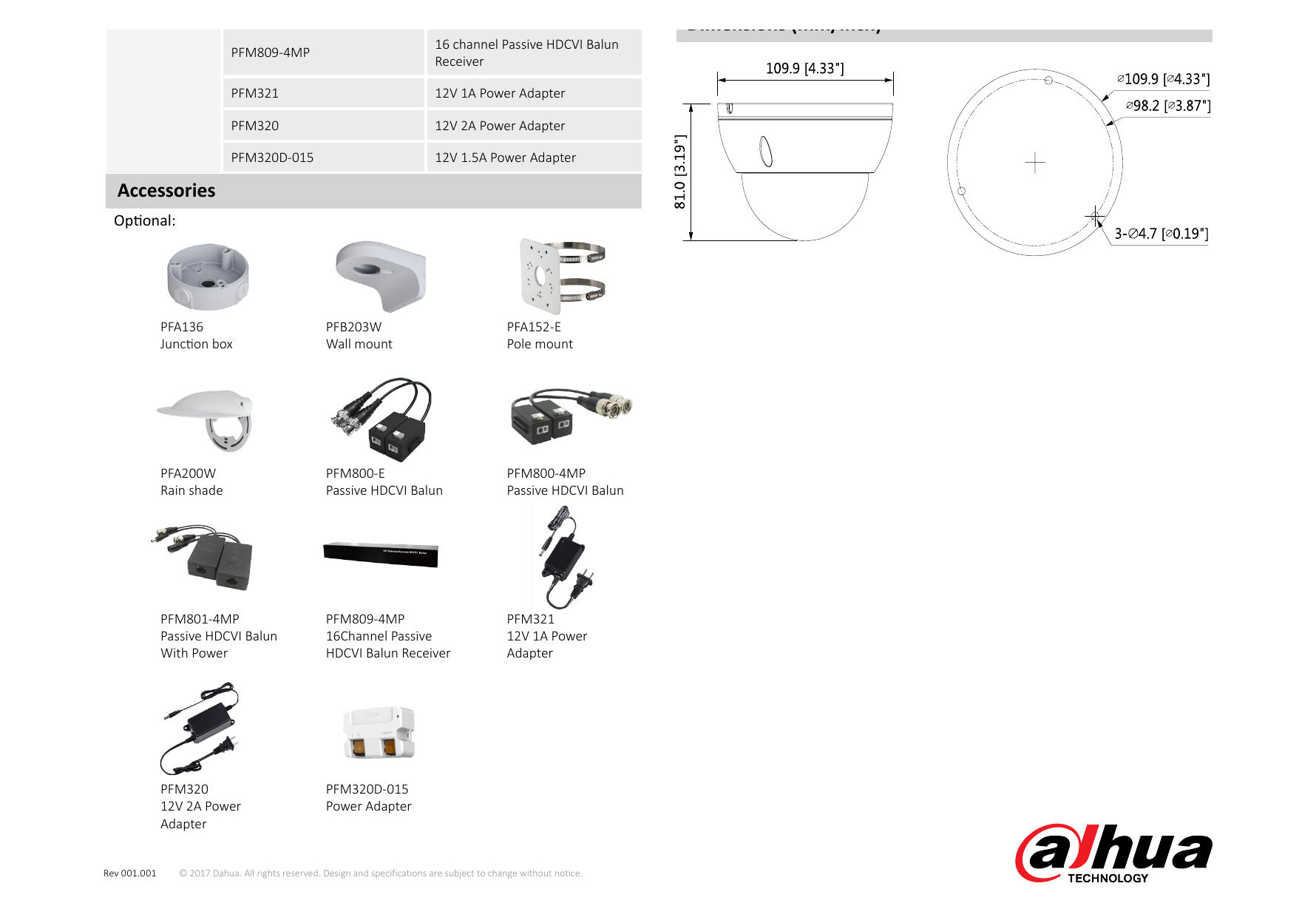

| PFM801-4MP | Passive HDCVI Balun With Power Dimensions (mm/inch) 16 channel Passive HDCVI Balun PFM809-4MP Receiver |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|
| PFM320 | 12V 2A Power Adapter |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter Accessories Optional: |
|---|
| Junction box | Wall mount Pole mount |
|---|
| PFA200W | PFM800-E PFM800-4MP |
|---|
| Rain shade | Passive HDCVI Balun Passive HDCVI Balun |
|---|
| Passive HDCVI Balun | 16Channel Passive 12V 1A Power |
|---|
| With Power | HDCVI Balun Receiver Adapter |
|---|
| Rev 001.001 | © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
