| Camera | BLC Mode BLC / HLC / DWDR |
|---|
| 影像感測器 | 1/2.7" CMOS WDR DWDR |
|---|
| Effective Pixels | 2592(H)×1944(V), 5MP Gain Control AGC |
|---|
| Scanning System | Progressive Noise Reduction 2D |
|---|
| PAL: 1/25~1/100000s | White Balance Auto / Manual Electronic Shutter Speed NTSC: 1/30~1/100000s |
|---|
| Smart IR | Auto / Manual |
|---|
| Minimum Illumination | 0.02Lux/F1.8, 30IRE, 0Lux IR on |
|---|
| S/N Ratio | More than 65dB Certifications CE (EN55032, EN55024, EN50130-4) |
|---|
| IR Distance | Up to 60m (197feet) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| IR On/Off Control | Auto / Manual |
|---|
| IR LEDs | 2 Interface |
|---|
| Audio Interface | N/A |
|---|
| 鏡頭類型 | Motorized lens / Fixed iris Eelectrical |
|---|
| Mount Type | Board-in Power Supply POC/12V DC ±30% |
|---|
| 焦距 | 2.7-12mm Power Consumption Max 6.6W (12V DC, IR on) |
|---|
| Max Aperture | F1.8 Environmental |
|---|
| H: 93°~30° | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH |
|---|
| Angle of View | Operating Conditions |
|---|
| V: 68°~22° | * Start up should be done at above -30°C (-22°F) |
|---|
| Focus Control | Motorized Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH 800mm Ingress Protection & Vandal |
|---|
| Close Focus Distance | IP67 31.50'' Resistance |
|---|
| DORI Distance | Construction |
|---|
| Casing | Aluminium Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on Dimensions Φ122mm×104mm (Φ4.8"×4.1") sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| 淨重 | 0.45kg (0.99lb) |
|---|
| DORI 偵測距離 | Distance Gross Weight 0.61kg (1.34lb) |
|---|
| Definition | Wide Tele |
|---|
| Detect | 25px/m (8px/ft) 67m(220ft) 198m(650ft) |
|---|
| Observe | 63px/m (19px/ft) 27m(89ft) 79m(259ft) |
|---|
| Recognize | 125px/m (38px/ft) 13m(43ft) 39m(128ft) |
|---|
| Identify | 250px/m (76px/ft) 7m(22ft) 19m(62ft) Pan / Tilt / Rotation Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 78° Rotation: 0° ~ 360° |
|---|
| 解像度 | 5MP (2592×1944) |
|---|
| Frame Rate | 20fps@5MP, 25/30fps@4MP, 25/30fps@1080P 1-channel BNC high definition video output / CVBS Video Output video output (Can switch) |
|---|
| Day/Night | Auto (ICR) / Manual www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|
| PFA130-E | PFB203W + PFA152-E |
|---|
| 類型 | Part Number Description 5MP HDCVI POC IR Eyeball Camera, DH-HAC-HDW1500TP-Z-POC PAL 5MP Camera 5MP HDCVI POC IR Eyeball Camera, DH-HAC-HDW1500TN-Z-POC NTSC |
|---|
| Pole mount (For use with PFB203W | Wall Mount wall mount) PFB203W |
|---|
| PFM820 | UTC Controller |
|---|
| Accessories | PFM800-E Passive HDCVI Balun |
|---|
| PFM800-4K | Passive Video Balun |
|---|
| PFM800B-4K | Passive Video Balun |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter |
|---|

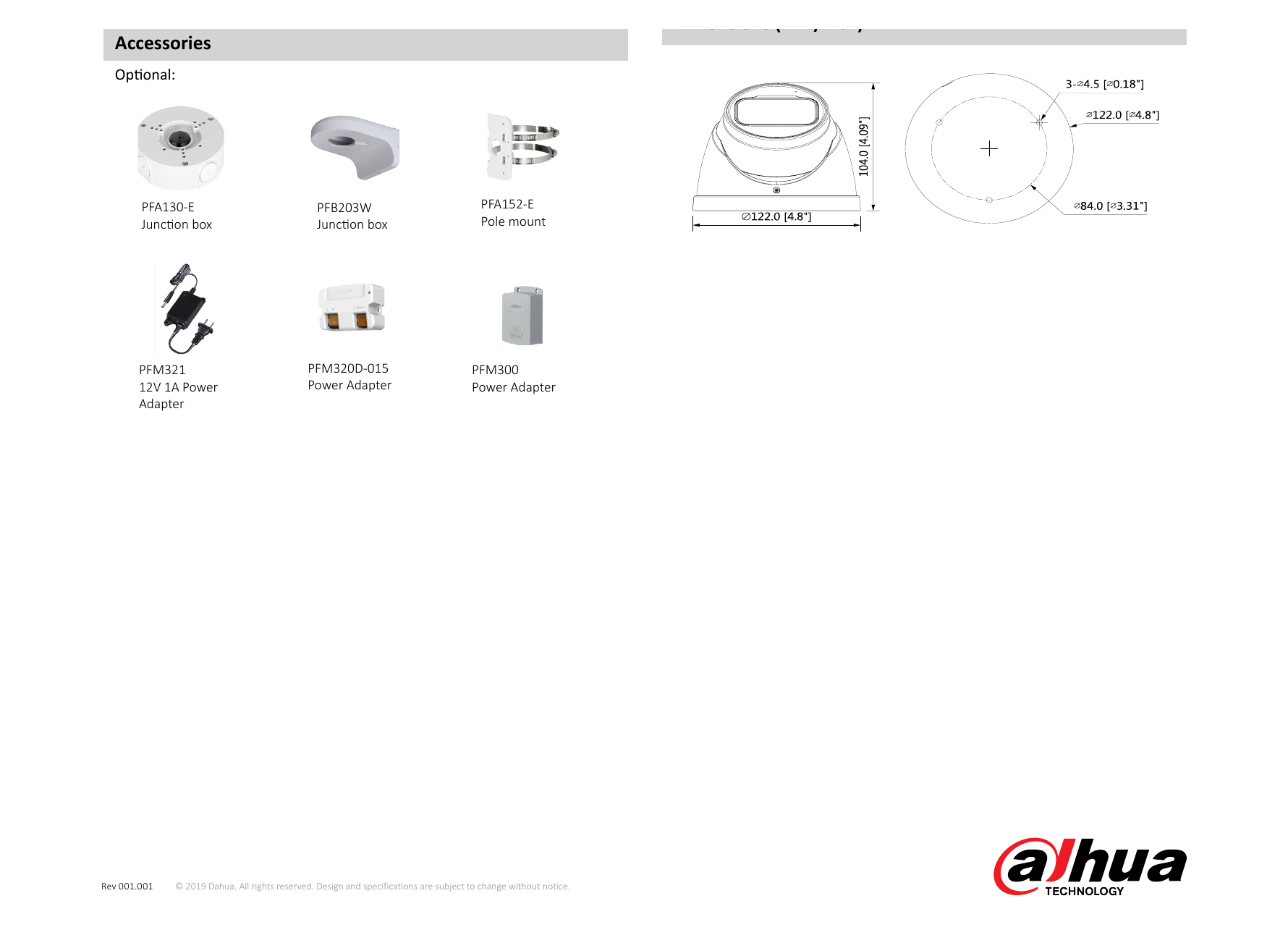

| PFM300 | 12V 2A Power Adapter Dimensions (mm/inch) Accessories Optional: |
|---|
| Junction box | Junction box Pole mount |
|---|
| Rev 001.001 | © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
