DAHUA DH-HAC-HDW2401EM-A CCTV攝影機安裝・保養

Name: DAHUA DH-HAC-HDW2401EM-A DH-HAC-HDW2401EM-A
Brand: Dahua
SKU: DH-HAC-HDW2401EM-A

產品簡介

Dahua DH-HAC-HDW2401EM-A 為DH-HAC-HDW2401EM-A，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DH-HAC-HDW2401EM-A 香港價格連安裝報價。

Camera：Video Output 1-channel BNC HDCVI high definition video outpu
影像感測器：1/3" CMOS
Day/Night：Auto (ICR) / Manual
Effective Pixels：2688(H)×1520(V), 4.1MP
OSD Menu：Multi-language

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

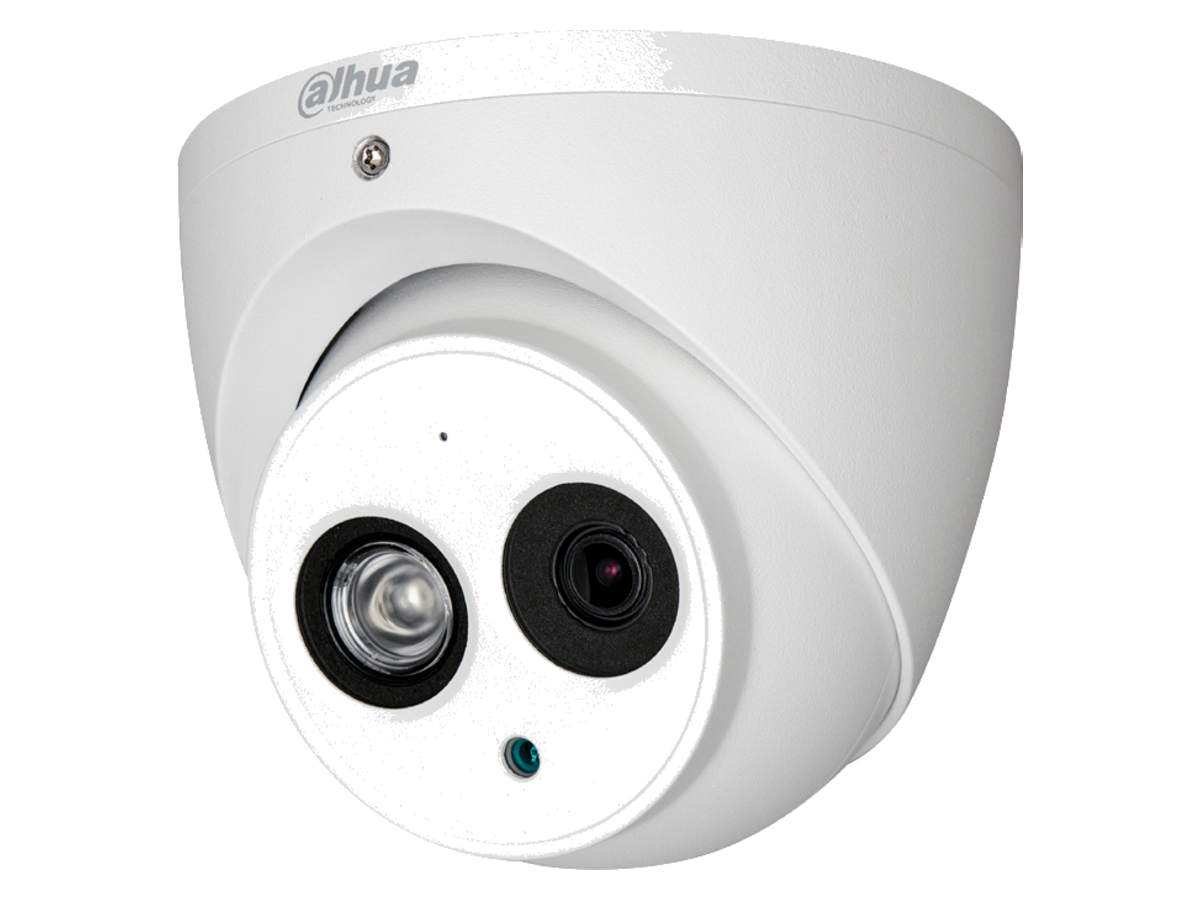

DH-HAC-HDW2401EM-A Dahua DH-HAC-HDW2401EM-A 產品圖片

詳細規格

Camera	Video Output 1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output
影像感測器	1/3" CMOS
Day/Night	Auto (ICR) / Manual
Effective Pixels	2688(H)×1520(V), 4.1MP
OSD Menu	Multi-language
Scanning System	Progressive
BLC Mode	BLC / HLC / WDR PAL: 1/4s~1/100,000s
Electronic Shutter Speed	WDR 120dB NTSC: 1/3s~1/100,000s
Minimum Illumination	0.01Lux/F1.5, 30IRE, 0Lux IR on Gain Control AGC
S/N Ratio	More than 65dB Noise Reduction 2D/3D
IR Distance	Up to 50m (164feet) White Balance Auto / Manual
IR On/Off Control	Auto / Manual Smart IR Auto / Manual
IR LEDs	1 Certifications CE (EN55032, EN55024, EN50130-4)
鏡頭	Certifications FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
鏡頭類型	Fixed lens / Fixed iris
Mount Type	Board-in
Audio Interface	Built-in Mic
焦距	3.6mm (2.8mm, 6mm Optional) Eelectrical
Max Aperture	F1.5
供電	12V DC ±25%
Angle of View	H: 79° (99.7°/48.6°)
功耗	Max 5.3W (12V DC, IR on)
Focus Control	N/A 1500mm (900mm, 1700mm) Environmental Close Focus Distance 59.06'' (35.43'', 66.93'') -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH Operating Conditions * Start up should be done at above -30°C (-22°F) DORI Distance
儲存環境	-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH Note: The DORI distance is a “general proximity” of distance which makes it easy to Ingress Protection & Vandal pinpoint the right camera for your needs. The DORI distance is calculated based on IP67 Resistance sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify res
DORI 偵測距離	Casing Aluminium Distance Definition

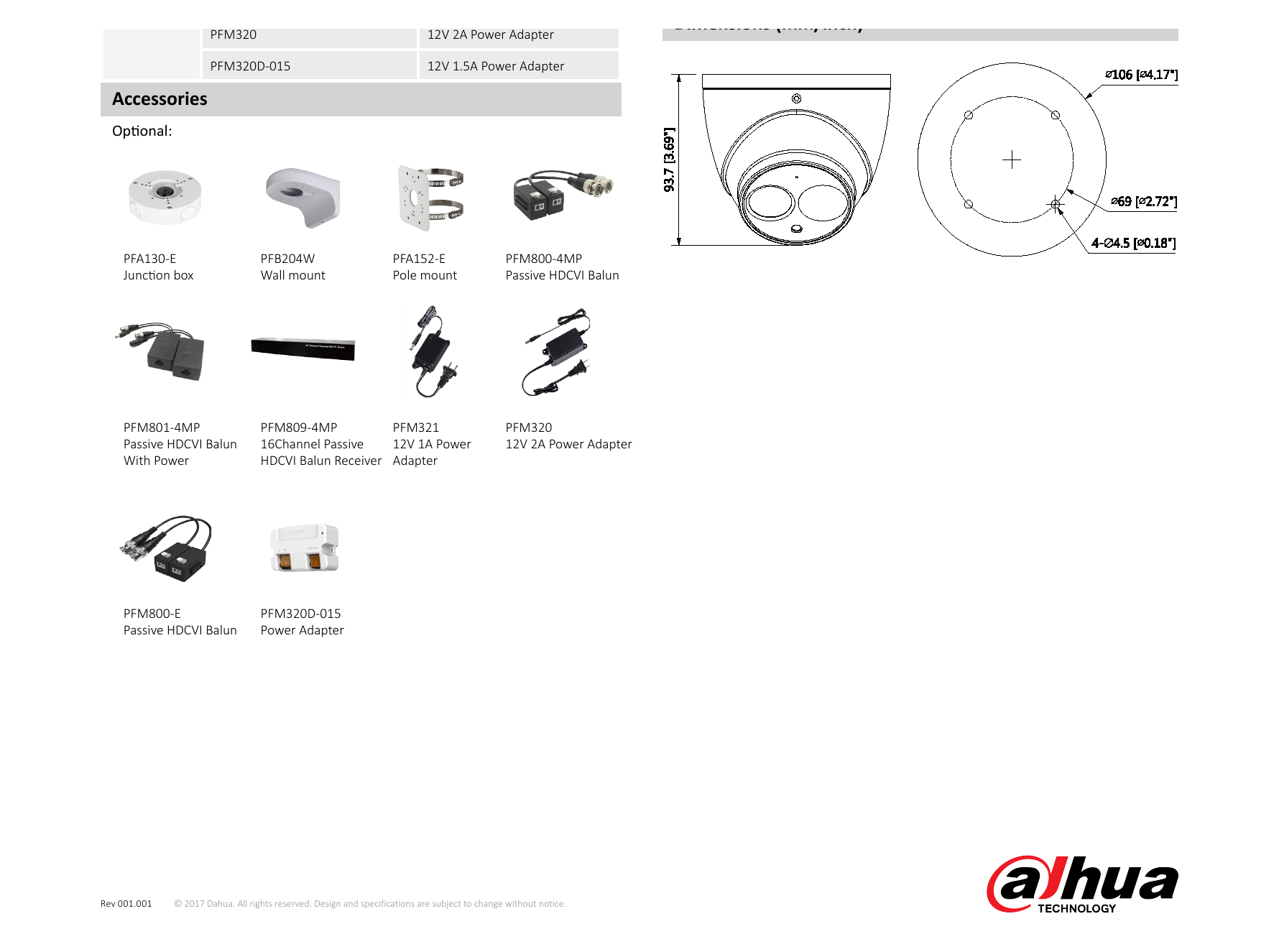

尺寸	Φ106mm×93.7mm (Φ4.17"×3.69") 2.8mm:63m(208ft) 25px/m
Detect	3.6mm: 80m(262ft) Net Weight 0.44kg (0.97lb) (8px/ft) 6mm:120m(394ft)
毛重	0.58kg (1.28lb) 2.8mm:25m(83ft) 63px/m
Observe	3.6mm: 32m(105ft) (19px/ft) 6mm:48m(157ft) 2.8mm:13m(42ft) 125px/m
Recognize	3.6mm: 16m(52ft) (38px/ft) 6mm: 24m(79ft) 2.8mm:6m(21ft) 250ppm
Identify	3.6mm: 8m(26ft) (76px/ft) 6mm: 12m(39ft) Pan / Tilt / Rotation Pan: 0° ~ 360°
Pan/Tilt/Rotation	Tilt: 0° ~ 78° Rotation: 0° ~ 360°
解像度	4MP (2560×1440) www.dahuasecurity.com
Ordering Information	Juncon Mount Pole Mount
PFA130-E	PFB204W + PFA152-E
類型	Part Number Description DH-HAC-HDW2401EMP-A 2.8mm 4MP HDCVI WDR IR Eyeball DH-HAC-HDW2401EMP-A 3.6mm Camera, PAL DH-HAC-HDW2401EMP-A 6mm 4MP Camera DH-HAC-HDW2401EMN-A 2.8mm 4MP HDCVI WDR IR Eyeball DH-HAC-HDW2401EMN-A 3.6mm Camera, NTSC DH-HAC-HDW2401EMN-A 6mm Wall Mount
PFM800-E	Passive HDCVI Balun Accessories
PFM800-4MP	Passive HDCVI Balun
PFM801-4MP	Passive HDCVI Balun With Power
PFM321	12V 1A Power Adapter
PFM320	12V 2A Power Adapter Dimensions (mm/inch)
PFM320D-015	12V 1.5A Power Adapter Accessories Optional:
Junction box	Wall mount Pole mount Passive HDCVI Balun
Passive HDCVI Balun	16Channel Passive 12V 1A Power 12V 2A Power Adapter
With Power	HDCVI Balun Receiver Adapter
Rev 001.001	© 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com
