| Camera | People Counting and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, |
|---|
| 影像感測器 | 1/1.8" CMOS people counting in area and queue management. 3840 (H) × 2160 (V) Heat Map Yes Motor vehicle, non-motor vehicle, face, human body |
|---|
| ROM | 4 GB detection; track; snapshot; snapshot optimization; optimal face snapshot upload. |
|---|
| RAM | 2 GB Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, |
|---|
| Scanning System | Progressive calling. Video Metadata Non-motor vehicle attributes: type, color, number of |
|---|
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s people, top type and color, hat. Human body attributes: gender, top/bottom type and 0.0008 lux@F1.6 (Color, 30 IRE) color, bag, hat and umbrella. |
|---|
| 最低照度 | 0.0004 lux@F1.6 (B/W, 30 IRE) Face attributes: gender, age, expressions, glasses, face 0 lux (Illuminator on) mask and beard. |
|---|
| S/N Ratio | >56 dB Work together with Smart NVR to perform refine |
|---|
| Smart Search | intelligent search, event extraction and merging to event |
|---|
| Illumination Distance | 120 m (393.70 ft) (IR) videos |
|---|
| Illuminator On/Off Control | Auto; Zoomprio;Manual Smart Sound Detection Yes |
|---|
| Illuminator Number | 4 (IR LED) Video |
|---|
| Pan: 0°–360° | H.265; H.264; H.264H; H.264B; MJPEG (Only supported Video Compression |
|---|
| 角度調節 | Tilt: 0°–90° by the sub stream) Rotation: 0°–360° |
|---|
| Smart Codec | Smart H.265+; Smart H.264+ |
|---|
| AI Coding | AI H.265; AI H.264 |
|---|
| 鏡頭類型 | Motorized vari-focal Main stream: 3840 × 2160@(1–25/30 fps) |
|---|
| 鏡頭接口 | Module Sub stream: D1@(1–25/30 fps) Third stream: 1080p@(1–25/30 fps) |
|---|
| 焦距 | 8 mm–32 mm Video Frame Rate Fourth stream: 720p@(1–10 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected |
|---|
| Max. Aperture | F1.6 to the total encoding capacity. |
|---|
| Field of View | H: 42°–15°; V: 23°–9°; D: 48°–17° Stream Capability 4 streams |
|---|
| Iris Control | Auto 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728); 5M (2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × |
|---|
| Close Focus Distance | 1.5 m (4.92 ft) 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p Resolution (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); |
|---|
| 鏡頭 | Detect Observe Recognize Identify D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
|---|
| DORI 偵測距離 | 213.6 m 85.4 m 42.7 m 21.4 m |
|---|
| W | Bit Rate Control CBR/VBR |
|---|
| Distance | (700.79 ft) (280.18 ft) (140.09 ft) (70.21 ft) 572.8 m 229.1 m 114.6 m 57.3 m Video Bit Rate H.264: 32 kbps–16384 kbps; H.265: 12 kbps–13568 kbps (1879.27 ft) (751.64 ft) (375.98 ft) (187.99 ft) |
|---|
| Day/Night | Auto(ICR)/Color/B/W |
|---|
| BLC | Yes |
|---|
| EPTZ | Yes Intrusion, tripwire, fast moving (the three functions HLC Yes support the classification and accurate detection |
|---|
| IVS (Perimeter Protection) | WDR 120 dB of vehicle and human); loitering detection, people gathering, and parking detection Scene Self-adaptation Yes |
|---|
| Smart Object Detection | Smart abandoned object; smart missing object (SSA) Auto; natural; street lamp; outdoor; manual; regional |
|---|
| SMD 3.0 | Less false alarm, longer detection distance White Balance custom |
|---|
| AI SSA | Yes Gain Control Auto Face detection; track; snapshot; snapshot optimization; Noise Reduction 3D NR optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 |
|---|
| Motion Detection | OFF/ON (4 areas, rectangular) |
|---|
| Face Detection | attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); Region of Interest (RoI) Yes (4 areas) face angle filter; optimization time setting |
|---|
| 防抖 | Electronic Image Stabilization (EIS) www.dahuasecurity.com |
|---|
| Smart Illumination | Yes Basic: 4.0 W (12 VDC); 5.3 W (PoE) |
|---|
| 功耗 | Max. (H.265+ WDR+ Intelligence on+IR on): 10.2 W (12 |
|---|
| 除霧 | Yes VDC); 12.8 W (PoE) 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × Environment 1520) resolution and lower) |
|---|
| 工作溫度 | –30 °C to +60 °C (–22 °F to +140 °F) |
|---|
| Mirror | Yes |
|---|
| 工作濕度 | ≤95% |
|---|
| Privacy Masking | 8 areas |
|---|
| 儲存溫度 | –40 °C to +60 °C (–40 °F to +140 °F) |
|---|
| Storage Humidity | 10%–95% (RH), non-condensing |
|---|
| Built-in MIC | Yes |
|---|
| 防護等級 | IP67; IK10 |
|---|
| 音訊壓縮 | G.711a; G.711Mu; PCM; G.726; G.723 |
|---|
| 警報 | Structure No SD card; SD card full; SD card error; network Casing Material Metal + plastic disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast 273.2 mm × 95.0 mm × 95.0 mm (10.76" × 3.74" × 3.74") Product Dimensions moving; abandoned object; missing object; loitering (L × W × H) detection; people gathering; parking detection; scene |
|---|
| Alarm Event | Net Weight 1.13 kg (2.49 lb) changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people Gross Weight 1.68 kg (3.70 lb) number error detection; queue people number alarm; queue time alarm; security exception; defocus detection |
|---|
| Network | Ordering Information |
|---|
| Network Port | RJ-45 (10/100 Enhancement Base-T) Type Model Description |
|---|

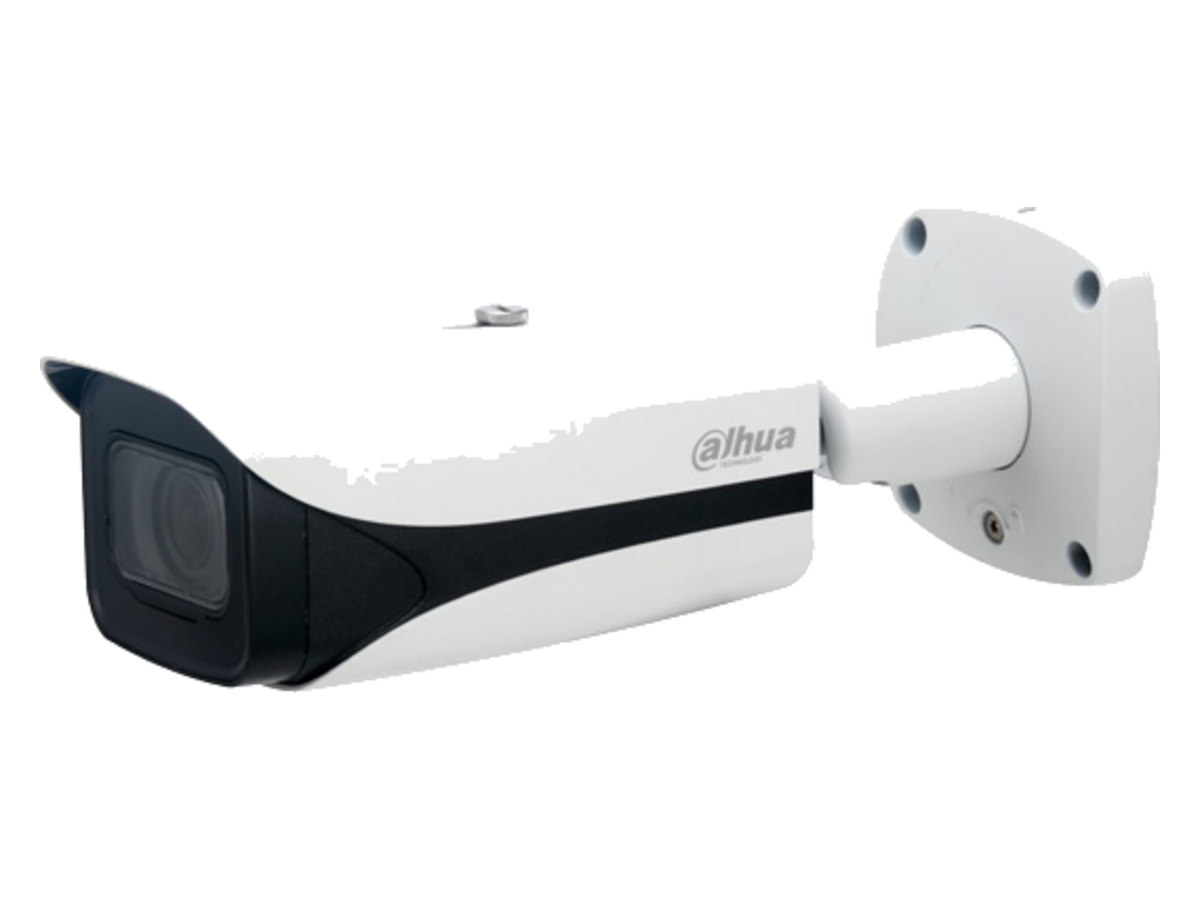

| SDK and API | Yes 8MP IR Vari-focal Bullet WizMind DH-IPC-HFW5842E-Z4E Network Camera 8MP IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; Camera |
|---|
| 網絡協議 | SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; 8MP IR Vari-focal Bullet WizMind IPC-HFW5842E-Z4E Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P Network Camera |
|---|
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI PFA121 Water-proof Junction Box |
|---|
| 用戶管理 | 20 (Total bandwidth: 80 M) PFA156 Pole mount Bracket Accessories |
|---|
| Storage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS PFM321D 12 VDC 1 A Power Adapter (Optional) |
|---|
| IE: IE 9 and later | PFM900-E Integrated Mount Tester |
|---|
| Browser | Chrome: Chrome 102 and later |
|---|
| Firefox: Firefox 88 and later | TF-P100 MicroSD Memory Card |
|---|
| Management Software | SmartPSS Lite; DSS; DMSS |
|---|
| Mobile Client | iOS; Android Accessories Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video Optional: |
|---|
| Cyber Security | encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive PFA121 PFA156 PFM321D |
|---|
| Certifications | 2014/30/EU; Water-proof Pole mount 12 VDC 1 A Power |
|---|
| FCC: 47 CFR FCC Part 15, Subpart B; | Junction Box Bracket Adapter UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
|---|
| 音訊輸入 | 1 channel (RCA port) |
|---|
| 音訊輸出 | 1 channel (RCA port) |
|---|
| 警報輸入 | 2 channels in: wet contact, 5mA 3V–5V DC PFM900-E TF-P100 |
|---|
| Integrated | MicroSD |
|---|
| 警報輸出 | 1 channel out: wet contact, 300mA 12V DC Mount Tester Memory Card |
|---|

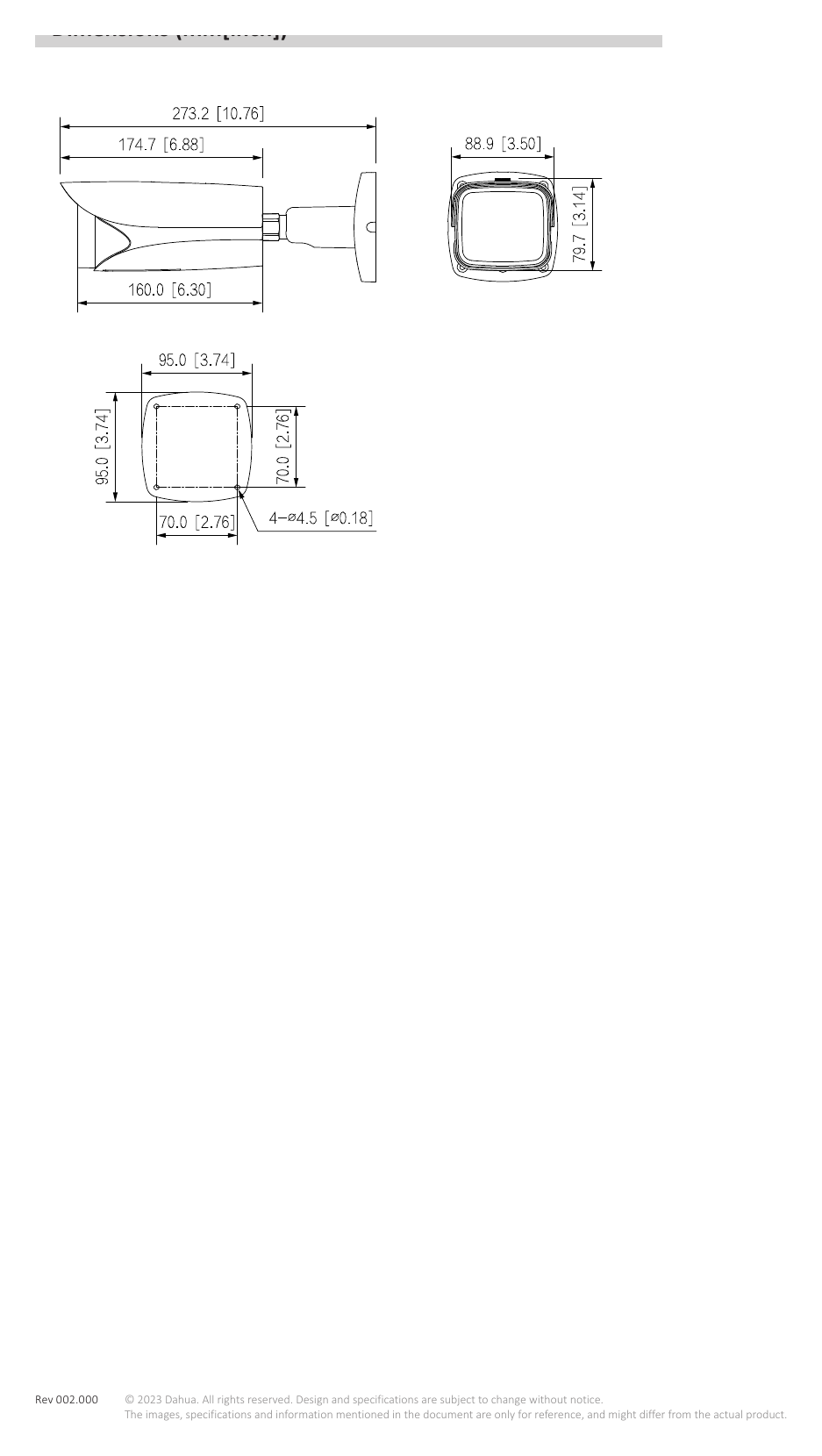

| 供電 | 12 VDC/PoE (802.3af)/ePoE www.dahuasecurity.com Dimensions (mm[inch]) |
|---|
| Rev 002.000 | © 2023 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
