| Camera | OSD Menu Multi-language |
|---|
| 影像感測器 | 1/2.7" CMOS BLC Mode BLC / HLC / DWDR |
|---|
| Effective Pixels | 1920(H)×1080(V), 2MP WDR DWDR |
|---|
| Scanning System | Progressive Gain Control AGC |
|---|
| PAL: 1/25~1/100000s | Noise Reduction 2D Electronic Shutter Speed NTSC: 1/30~1/100000s |
|---|
| White Balance | Auto / Manual |
|---|
| Minimum Illumination | 0.008Lux/F1.85, 30IRE, 0Lux IR on |
|---|
| Smart IR | Auto / Manual |
|---|
| S/N Ratio | More than 65dB |
|---|
| IR Distance | Up to 30m (98feet) Certifications CE (EN55032, EN55024, EN50130-4) |
|---|
| IR On/Off Control | Auto / Manual |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| IR LEDs | 1 |
|---|
| 鏡頭 | Interface |
|---|
| 鏡頭類型 | Fixed lens / Fixed iris Audio Interface N/A |
|---|
| Mount Type | Board-in Eelectrical |
|---|
| 焦距 | 3.6mm (2.8mm, 6mm Optional) Power Supply 12V DC ±30% |
|---|
| Max Aperture | F1.85 Power Consumption Max 3.7W (12V DC, IR on) Angle of View |
|---|
| H: 87° (103°, 54.7°) | Environmental V: 47° (59°, 31.3°) -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH Operating Conditions |
|---|
| Focus Control | N/A * Start up should be done at above -40°C (-40°F) 1000mm (500mm, 2000mm) Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH Close Focus Distance 39.37"(19.69'', 78.74'') Ingress Protection & Vandal IP67 Resistance DORI Distance Construction Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI dis |
|---|
| DORI 偵測距離 | Net Weight 0.36kg (0.79lb) Distance Definition |
|---|
| 毛重 | 0.47kg (1.04lb) 2.8mm: 37m(122ft) 25px/m |
|---|
| Detect | 3.6mm: 53m(175ft) (8px/ft) 6mm: 80m(262ft) 2.8mm: 15m(49ft) 63px/m |
|---|
| Observe | 3.6mm: 21m(70ft) (19px/ft) 6mm: 32m(105ft) 2.8mm: 8m(25ft) 125px/m |
|---|
| Recognize | 3.6mm: 11m(35ft) (38px/ft) 6mm: 16m(52ft) 2.8mm: 4m(12ft) 250ppm |
|---|
| Identify | 3.6mm: 5m(17ft) (76px/ft) 6mm: 8m(26ft) Pan / Tilt / Rotation Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
|---|
| 解像度 | 1080P (1920×1080) |
|---|
| Frame Rate | 25/30fps@1080P 1-channel BNC high definition video output / CVBS Video Output video output (Can switch) www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|
| PFA134 | PFA134 + PFA152-E |
|---|
| 類型 | Part Number Description DH-HAC-HFW1220TP 2.8mm 2MP Value Starlight HDCVI IR DH-HAC-HFW1220TP 3.6mm Bullet Camera, PAL DH-HAC-HFW1220TP 6mm 2MP Camera DH-HAC-HFW1220TN 2.8mm 2MP Value Starlight HDCVI IR DH-HAC-HFW1220TN 3.6mm Bullet Camera, NTSC DH-HAC-HFW1220TN 6mm Junction box (For use alone or PFA134 with PFA152-E pole mount) Pole mount (For use with PFA134 PFA152-E junction box) |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| PFM800-4K | Passive Video Balun Accessories |
|---|

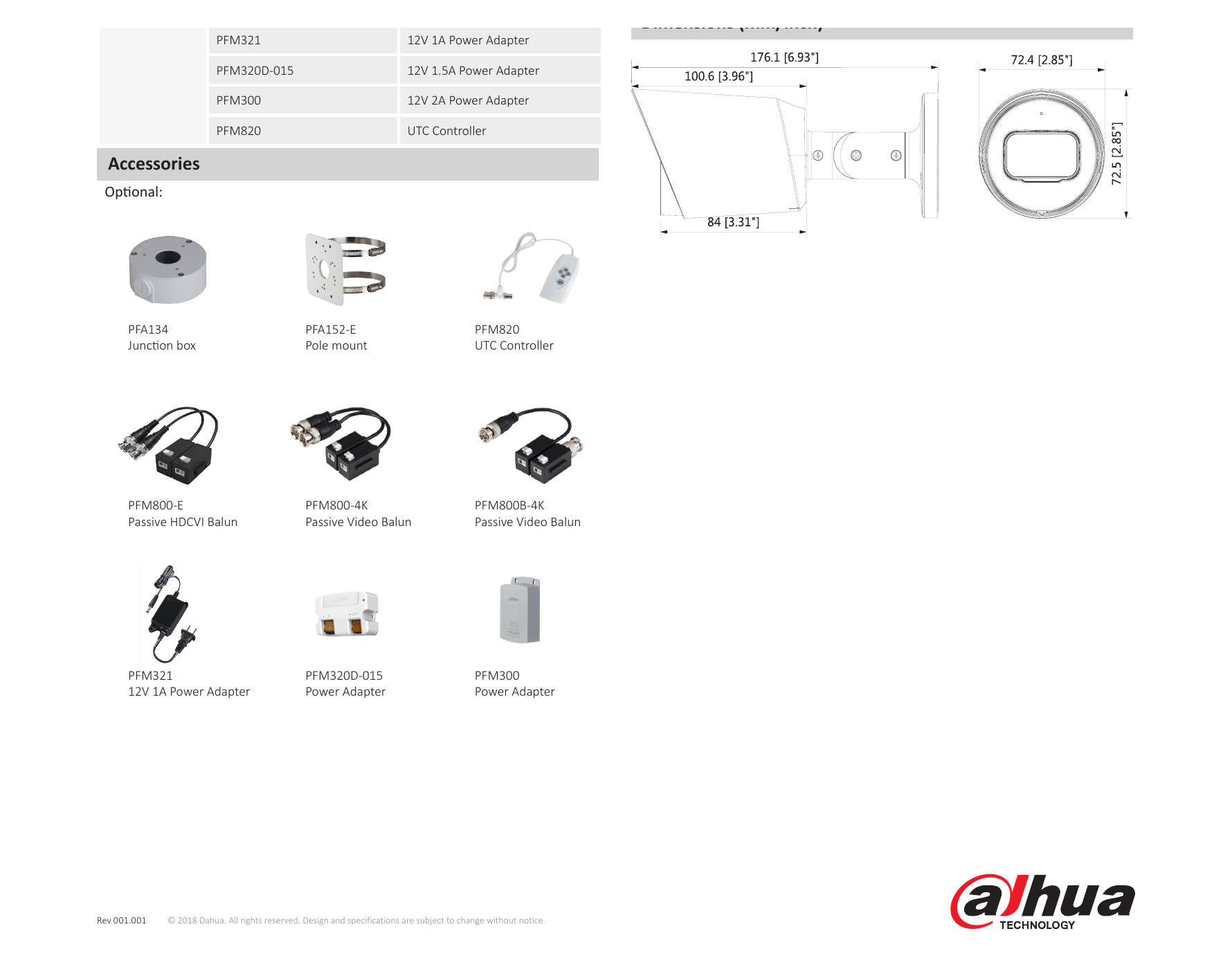

| PFM800B-4K | Passive Video Balun Dimensions (mm/inch) |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter |
|---|
| PFM300 | 12V 2A Power Adapter |
|---|
| PFM820 | UTC Controller Accessories Optional: |
|---|
| Junction box | Pole mount UTC Controller |
|---|
| Passive HDCVI Balun | Passive Video Balun Passive Video Balun |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
