| Camera | BLC Mode BLC / HLC / WDR |
|---|
| 影像感測器 | 1/2.8" CMOS WDR 120dB |
|---|
| Effective Pixels | 1920(H)×1080(V), 2MP Gain Control AGC |
|---|
| Scanning System | Progressive Noise Reduction 2D/3D |
|---|
| PAL: 1/4s~1/100,000s | White Balance Auto / Manual Electronic Shutter Speed NTSC: 1/3s~1/100,000s |
|---|
| Smart IR | Auto / Manual |
|---|
| Minimum Illumination | 0.004Lux/F1.6, 30IRE, 0Lux IR on |
|---|
| S/N Ratio | More than 65dB Certifications CE (EN55032, EN55024, EN50130-4) |
|---|
| IR Distance | Up to 80m (262feet) Certifications FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| IR On/Off Control | Auto / Manual |
|---|
| IR LEDs | 4 |
|---|
| Audio Interface | 1ch in & Built-in Mic Eelectrical |
|---|
| 鏡頭類型 | Fixed lens / Fixed iris |
|---|
| 供電 | 12V DC ±30% |
|---|
| Mount Type | Board-in |
|---|
| 功耗 | Max. 10.1W (12V DC, IR on) |
|---|
| 焦距 | 3.6mm (6mm Optional) Environmental |
|---|
| Max Aperture | F1.6 -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH Operating Conditions * Start up should be done at above -40°C (-40°F) |
|---|
| Angle of View | H: 86.9° (52.8°) |
|---|
| 儲存環境 | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH |
|---|
| Focus Control | N/A Ingress Protection & Vandal 1200mm (2200mm) IP67 |
|---|
| Close Focus Distance | Resistance 47.2'' (86.6") Construction DORI Distance |
|---|
| Casing | Aluminium Note: The DORI distance is a “general proximity” of distance which makes it easy to |
|---|
| 尺寸 | 244.1mm×90.4mm×90.4mm (9.61"×3.5"×23.5") pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. Net Weight 0.75kg (1.65lb) |
|---|
| DORI 偵測距離 | Gross Weight 0.92kg (l2.02lb) Distance Definition 3.6mm: 55m(180ft) |
|---|
| Detect | 25px/m (8px/ft) 6mm:83m(272ft) 3.6mm:22m(27ft) |
|---|
| Observe | 63px/m (19px/ft) 6mm:33m(108ft) 3.6mm: 11m(36ft) |
|---|
| Recognize | 125px/m (38px/ft) 6mm: 17m(56ft) 3.6mm:6m(20ft) |
|---|
| Identify | 250px/m (76px/ft) 6mm:8m(26ft) Pan / Tilt / Rotation Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
|---|
| 解像度 | 1080P (1920×1080) |
|---|
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P 1-channel BNC high definition video output / CVBS Video Output video output (DIP switch) |
|---|
| Day/Night | Auto (ICR) / Manual www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|
| PFA130-E | PFA130-E + PFA152-E |
|---|
| 類型 | Part Number Description DH-HAC-HFW2241TP-I8-A 3.6mm 2MP Starlight HDCVI IR Bullet Camera, PAL DH-HAC-HFW2241TP-I8-A 6mm 2MP Camera DH-HAC-HFW2241TN-I8-A 3.6mm 2MP Starlight HDCVI IR Bullet Camera, NTSC DH-HAC-HFW2241TN-I8-A 6mm Junction box (For use alone or PFA121 with PFA152-E pole mount) Pole mount (For use with PFA121 PFA152-E |
|---|
| junction box) | Corner Mount |
|---|
| Corner mount braket (For use | PFA130-E + PFA151 PFA151 with PFA130-E junction box) Accessories |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|
| PFM320 | 12V 2A Power Adapter |
|---|

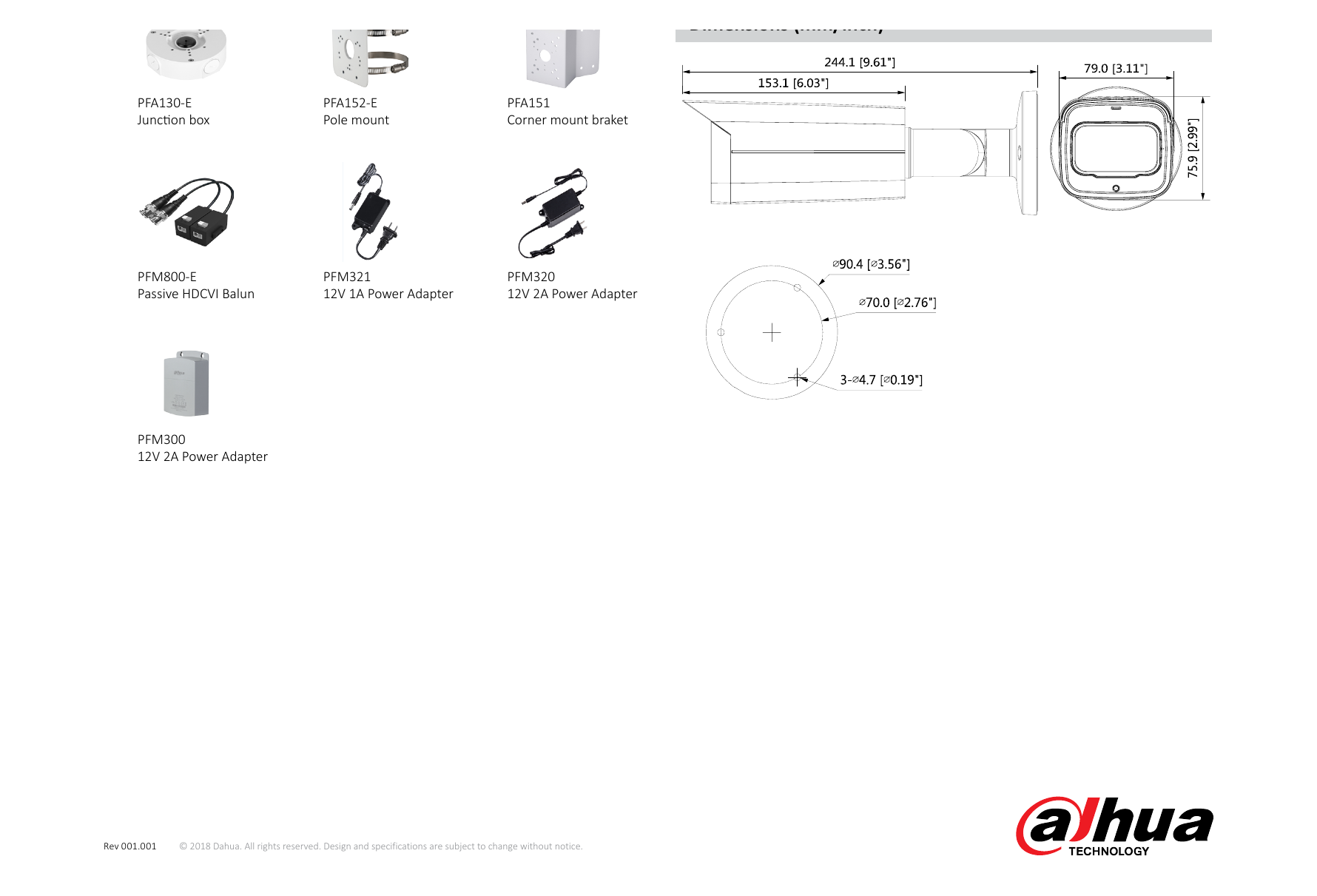

| PFM300 | 12V 2A Power Adapter Accessories Optional: Dimensions (mm/inch) |
|---|
| Junction box | Pole mount Corner mount braket |
|---|
| Passive HDCVI Balun | 12V 1A Power Adapter 12V 2A Power Adapter PFM300 12V 2A Power Adapter |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
