| Camera | BLC Mode BLC / HLC / WDR(120dB)/ SSA |
|---|
| 影像感測器 | 1/1.9” 2Megapixel progressive scan CMOS White Balance Auto/Natural/Street Lamp/Outdoor/Manual |
|---|
| Effective Pixels | 1920(H)x1080(V) Gain Control Auto/Manual |
|---|
| RAM/ROM | 1024MB/128MB Noise Reduction 3D DNR |
|---|
| Scanning System | Progressive Motion Detetion Off / On (4 Zone, Rectangle) 0.002Lux/F1.53 (Color,1/3s,30IRE) Region of Interest Off / On (4 Zone) |
|---|
| Minimum Illumination | 0.01Lux/F1.53 (Color,1/30s,30IRE) 0Lux/F1.53(IR on) Electronic Image Support More than 50dB Stabilization(EIS) S/N Ratio |
|---|
| Distance up to 50m(164ft) | Smart IR Support IR Distance |
|---|
| Auto/ Manual | Defog Support IR On/Off Control 3 Digital Zoom 16x IR LEDs |
|---|
| Flip | 0°/90°/180°/270° |
|---|
| Mirror | Off / On |
|---|
| 鏡頭類型 | Motorized /Auto Iris(HALL) |
|---|
| Privacy Masking | Off / On (4 Area, Rectangle) |
|---|
| Mount Type | Board-in |
|---|
| 焦距 | 4.1~16.4mm motorized Audio |
|---|
| Compression | G.711a/G.711Mu/AAC/ G.726 |
|---|
| Max. Aperture | F1.53 |
|---|
| Angle of View | H: 92˚~32 ˚ V:53 ˚ ~18 ˚ |
|---|
| Ethernet | RJ-45 (100/1000Base-T) |
|---|
| Optical Zoom | 4x HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; |
|---|
| Focus Control | Motorized Protocol DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP |
|---|
| Close Focus Distance | 1m(3.28ft) |
|---|
| Interoperability | ONVIF, PSIA, CGI |
|---|
| 鏡頭 | Detect Observe Recognize Identify |
|---|
| DORI 偵測距離 | Streaming Method Unicast / Multicast |
|---|
| Distance | W 57m(187ft) 23m(75ft) 11m(36ft) 6m(20ft) |
|---|
| Max. User Access | 10 Users/20 Users |
|---|
| T | 137m(449ft) 55m(180ft) 27m(89ft) 14m(49ft) NAS |
|---|
| Pan/Tilt/Rotation | Edge Storage Local PC for instant recording Mirco SD card 128GB |
|---|
| Pan/Tilt/Rotation Range | Pan:0˚~355˚; Tilt:0˚~65˚; Rotation:0˚~355˚ |
|---|
| Web Viewer | IE, Chrome, Firefox, Safari Intelligence |
|---|
| Management Software | Smart PSS, DSS, Easy4ip |
|---|
| IVS | Tripwire, Intrusion, Object Abandoned/Missing |
|---|
| Smart Phone | IOS, Android Advanced Intelligent Functions Face Detection, People Counting, Heat Map Certifications CE (EN 60950:2000) |
|---|
| Streaming Capability | 3 Streams 1080P(1920×1080)/ 1.3M(1280x960)/ |
|---|
| Video Interface | 1 Port(For adjustment only) |
|---|
| 解像度 | 720P(1280x720)/ D1(704×576/704x480) / VGA(640x480)/ CIF(352×288/342x240) |
|---|
| Audio Interface | 1/1 channel In/Out Main Stream: 1080P(1~50/60fps) |
|---|
| RS485 | N/A |
|---|
| Frame Rate | Sub Stream: D1 (1 ~ 50/60fps) 1 channel In: 5mA 5VDC Alarm |
|---|
| Third Stream: 1080P(1~50/60fps) | 1 channel Out: 1A 30VDC / 0.5A 50VAC |
|---|
| 碼率控制 | CBR/VBR Electrical |
|---|
| H.264: 24~ 10240Kbps | Power Supply DC12V,AC24V, PoE+ (802.3at)(Class 4) Bit Rate H.265: 14~ 6144Kbps |
|---|
| 功耗 | <18W www.dahuasecurity.com |
|---|
| Environmental | Accessories Optional: |
|---|
| Operating Conditions | -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH |
|---|
| Strorage Conditions | -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH |
|---|
| 防護等級 | IP67 |
|---|
| Corrosion Protection | Meet the criteria of NEMA 4X |
|---|
| Vandal Resistance | IK10 PFB720WA Wall mount Construction |
|---|
| Casing | Metal Wall Mount |
|---|

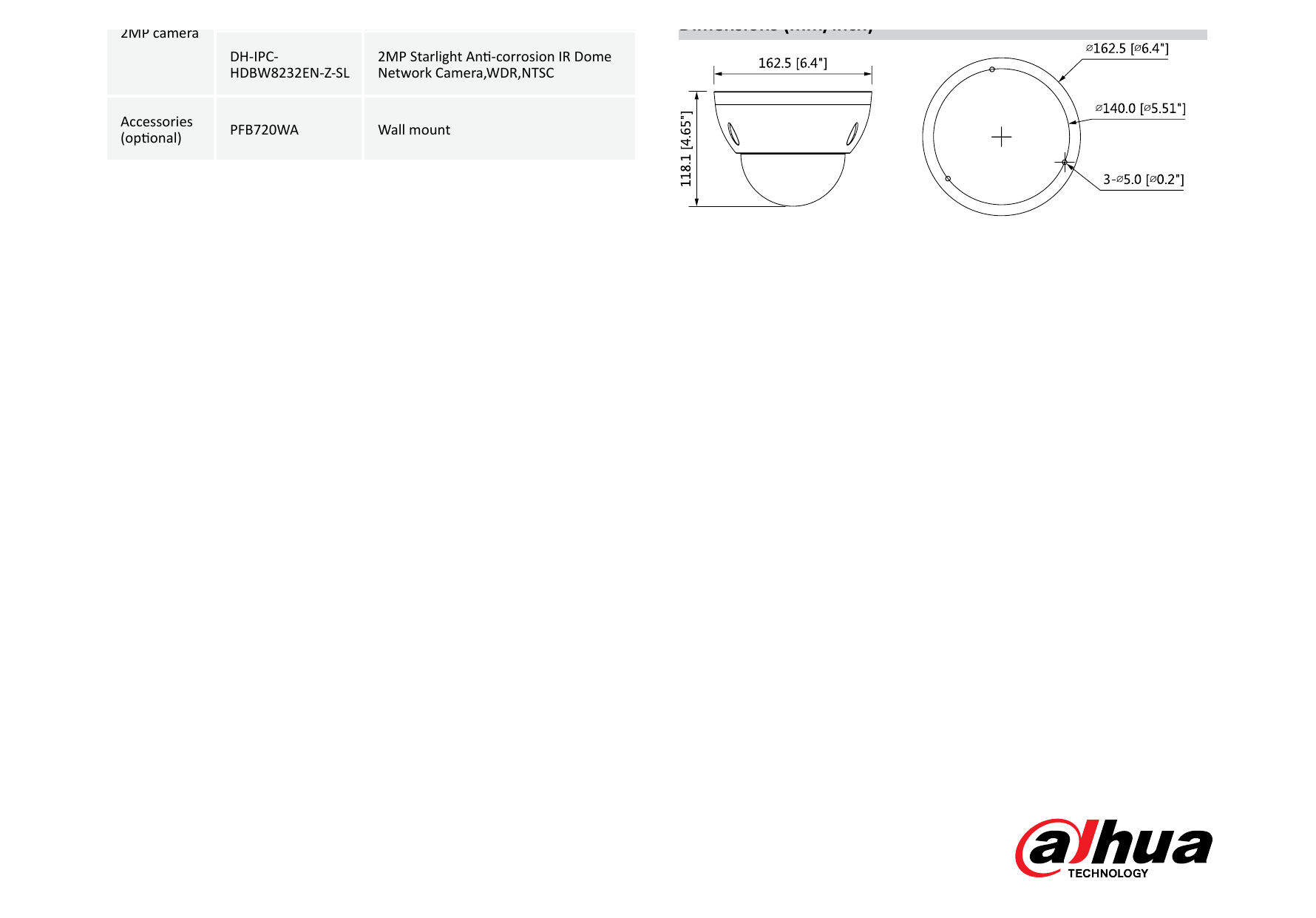

| 尺寸 | Φ162.5mm×118.1mm(Φ6.4”×4.65”) |
|---|
| 淨重 | 2.25kg(4.96lb) |
|---|
| 毛重 | 3kg(6.61lb) Ordering Information |
|---|
| 類型 | Part Number Description |
|---|
| DH-IPC- | 2MP Starlight Anti-corrosion IR Dome |
|---|
| HDBW8232EP-Z-SL | Network Camera,WDR,PAL 2MP camera Dimensions (mm/inch) |
|---|
| HDBW8232EN-Z-SL | Network Camera,WDR,NTSC Accessories |
|---|
| PFB720WA | Wall mount (optional) www.dahuasecurity.com |
|---|
