| Camera | IVS Tripwire, Intrusion, Abandoned/Missing |
|---|
| 影像感測器 | 1/1.8” STARVIS™ CMOS Advanced Intelligent Functions Face Detection, Heat Map |
|---|
| Effective Pixels | 2592(H) x 1520(V), 4 Megapixels Video |
|---|
| Scanning System | Progressive Compression H.265+/H.265/H.264+/H.264 |
|---|
| Electronic Shutter Speed | 1/1s~1/30,000s Streaming Capability 3 Streams Color: 0.002Lux@F1.4; B/W: 0.0002Lux@F1.4; 4M(2592×1520)/3M(2304×1296)/1080P(1920× |
|---|
| Minimum Illumination | Resolution 1080)/720P(1280×720)/D1(704×576/704×480)/ 0Lux@F1.4 (IR on) CIF(352×288/352×240) |
|---|
| S/N Ratio | More than 56dB Main stream: 4M/3M(1~25/30fps), 1080P/1.3M/ 720P(1~50/60fps) |
|---|
| IR Distance | Distance up to 450m (1476ft) |
|---|
| Frame Rate | Sub stream1: D1/CIF(1 ~ 25/30fps) |
|---|
| IR On/Off Control | Auto/Manual Sub stream2: 1080P/1.3M/720P (1 ~ 25/30fps) |
|---|
| IR LEDs | 10 |
|---|
| 碼率控制 | CBR/VBR |
|---|
| Smart Wiper | Support |
|---|
| Bit Rate | H.265/H.264: 512K ~ 8192Kbps |
|---|
| Day/Night | Auto(ICR) / Color / B/W |
|---|
| 焦距 | 5.6mm~223mm |
|---|
| Backlight Compensation | BLC / HLC / WDR(120dB) |
|---|
| Max. Aperture | F1.4~ F4.8 |
|---|
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
|---|
| Angle of View | H: 63.9° ~ 2.0° |
|---|
| Gain Control | Auto / Manual |
|---|
| Optical Zoom | 40x |
|---|
| Noise Reduction | Ultra DNR (2D/3D) |
|---|
| Focus Control | Auto/Manual |
|---|
| Motion Detection | Support |
|---|
| Close Focus Distance | 100mm~ 1000mm |
|---|
| Region of Interest | Support DORI Distance Electronic Image Stabilization Support *Note: The DORI distance is a “general proximity” of distance which makes it easy to (EIS) pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Optical Defog Support criteria for Detect, Observe, Recognize and Identify respect |
|---|
| Digital Zoom | 16x |
|---|
| Detect | Observe Recognize Identify |
|---|
| Flip | 180° 2933m(9623ft) 1164m(3819ft) 586m(1922ft) 293m(961ft) |
|---|
| Privacy Masking | Up to 24 areas |
|---|
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -30° ~ 90°,auto flip 180° G.711a/G.711mu/PCM/G.726/AAC/G722.1/G.729/ Compression |
|---|
| Manual Control Speed | Pan: 0.1° ~240° /s; Tilt: 0.1° ~100° /s MPEG2-Layer2 |
|---|
| Preset Speed | Pan: 240° /s; Tilt: 120° /s |
|---|
| Ethernet | RJ-45 (10Base-T/100Base-TX) |
|---|
| 預置位 | 300 IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, |
|---|
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan Protocol ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
|---|
| Speed Setup | Human-oriented focal Length/ speed adaptation |
|---|
| Interoperability | ONVIF Profile S&G, API Auto restore to previous PTZ and lens status after Power up Action |
|---|
| power failure | Streaming Method Unicast / Multicast Activate Preset/ Scan/ Tour/ Pattern if there is no |
|---|
| Idle Motion | Max. User Access 20 users command in the specified period NAS (Network Attached Storage),Local PC for |
|---|
| Protocol | DH-SD, Pelco-P/D (Auto recognition) Edge Storage instant recording, Micro SD card 256GB |
|---|
| Intelligence | Web Viewer IE, Chrome, Firefox, Safari |
|---|
| Motion detection, Video tampering , Scene | Management Software Smart PSS, DSS, DMSS |
|---|
| Event Trigger | changing, Network disconnection, IP address |
|---|
| conflict, Illegal Access, Storage anomaly | Smart Phone IOS, Android www.dahuasecurity.com Certifications Optional： CE: EN55032/EN55024/EN50130-4 |
|---|
| Certifications | FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1 |
|---|
| Video Interface | 1 port(BNC, 1.0V[p-p], 75Ω) PFA120 PFA140 PFA150 |
|---|
| Junction Box | Power Box Pole Mount |
|---|
| RS485 | 1 |
|---|
| Audio I/O | 1/1 |
|---|
| Alarm I/O | 7/2 Electrical |
|---|
| 供電 | AC24V/3A(±25%), Hi-PoE PFA151 Corner Mount |
|---|
| 功耗 | 26W, 38W (IR on, Heater on) |
|---|
| Juncon Mount | Power Box Mount |
|---|
| Environmental | PFB306W + PFA120 PFB306W + PFA140 |
|---|
| Operating Conditions | -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH |
|---|
| 防護等級 | IP67 |
|---|
| Vandal Resistance | N/A Construction |
|---|
| Casing | Metal |
|---|
| Corner Mount | Pole Mount |
|---|

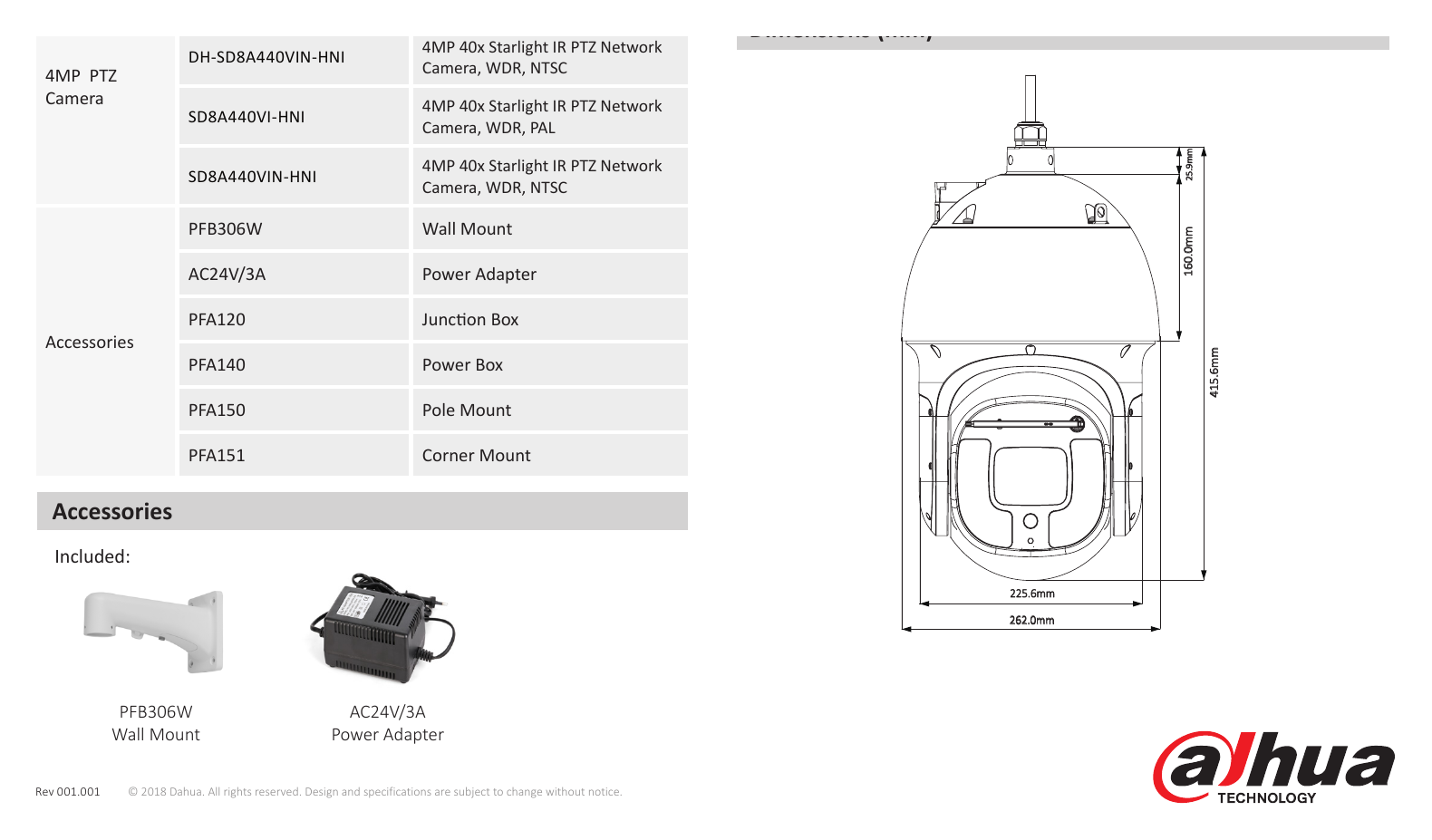

| 尺寸 | Φ262(mm) x 415.6 (mm) PFB306W + PFA151 PFB306W + PFA150 |
|---|
| 淨重 | 8.5kg(18.74lb) |
|---|
| 毛重 | 14.3kg(31.53lb) Ordering Information |
|---|
| 類型 | Part Number Description 4MP 40x Starlight IR PTZ Network DH-SD8A440VI-HNI Camera, WDR, PAL Dimensions (mm) 4MP 40x Starlight IR PTZ Network DH-SD8A440VIN-HNI 4MP PTZ Camera, WDR, NTSC |
|---|
| PFB306W | Wall Mount 160.0mm |
|---|
| AC24V/3A | Power Adapter |
|---|
| PFA120 | Junction Box Accessories 415.6mm |
|---|
| PFA140 | Power Box |
|---|
| PFA150 | Pole Mount |
|---|
| PFA151 | Corner Mount Accessories Included: 225.6mm 262.0mm |
|---|
| Wall Mount | Power Adapter |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
