| Camera | BLC Mode BLC / HLC / DWDR/ SSA |
|---|
| 影像感測器 | 1/1.8” 6Megapixel progressive scan CMOS White Balance Auto/Natural/Street Lamp/Outdoor/Manual |
|---|
| Effective Pixels | 3072(H)x2048(V) Gain Control Auto/Manual |
|---|
| RAM/ROM | 1024MB/128MB Noise Reduction 3D DNR |
|---|
| Scanning System | Progressive Motion Detetion Off / On (4 Zone, Rectangle) |
|---|
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s Region of Interest Off / On (4 Zone) 0.01Lux/F1.53(Color,1/3s,30IRE) Electronic Image Support |
|---|
| Minimum Illumination | 0.1Lux/F1.53(Color,1/30s,30IRE) Stabilization(EIS) 0Lux/F1.53(IR on) |
|---|
| Smart IR | Support |
|---|
| S/N Ratio | More than 50dB |
|---|
| 除霧 | Support |
|---|
| IR Distance | Distance up to 50m(164ft) |
|---|
| Digital Zoom | 16x |
|---|
| IR On/Off Control | Auto/ Manual |
|---|
| Flip | 0°/90°/180°/270° |
|---|
| IR LEDs | 3 |
|---|
| Mirror | Off / On |
|---|
| Privacy Masking | Off / On (4 Area, Rectangle) |
|---|
| 鏡頭類型 | Motorized /Auto Iris(HALL) |
|---|
| Mount Type | Board-in |
|---|
| Compression | G.711a/G.711Mu/AAC/ G.726 |
|---|
| 焦距 | 4.1~16.4mm motorized |
|---|
| Max. Aperture | F1.53 |
|---|
| Ethernet | RJ-45 (100/1000Base-T) |
|---|
| Angle of View | H: 107˚~35 ˚ V:60 ˚ ~25˚ HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; |
|---|
| Optical Zoom | 4x Protocol DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP |
|---|
| Focus Control | Motorized |
|---|
| Interoperability | ONVIF, PSIA, CGI |
|---|
| Close Focus Distance | 1m(3.28ft) |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| 鏡頭 | Detect Observe Recognize Identify |
|---|
| Max. User Access | 10 Users/20 Users |
|---|
| W | 88m(289ft) 35m(115ft) 18m(59ft) 9m(30ft) NAS Distance |
|---|
| Edge Storage | Local PC for instant recording |
|---|
| T | 213m(699ft) 85m(279ft) 43m(141ft) 21m(69ft) Mirco SD card 128GB |
|---|
| Pan/Tilt/Rotation | Web Viewer IE, Chrome, Firefox, Safari |
|---|
| Pan/Tilt/Rotation Range | Pan:0˚~355˚; Tilt:0˚~65˚; Rotation:0˚~355˚ Management Software Smart PSS, DSS, Easy4ip |
|---|
| Intelligence | Smart Phone IOS, Android |
|---|
| IVS | Tripwire, Intrusion, Object Abandoned/Missing Certifications |
|---|
| Advanced Intelligent Functions | Face Detection, People Counting, Heat Map CE (EN 60950:2000) |
|---|
| Certifications | UL:UL60950-1 FCC: FCC Part 15 Subpart B |
|---|
| Video Interface | 1 Port(For adjustment only) |
|---|
| Streaming Capability | 3 Streams 6M(3072x2048)/ 5M(2560x1920)/3M(2048x1536)/ Audio Interface 1/1 channel In/Out 3M(2304x1296)/ 1080P(1920×1080)/ Resolution 1.3M(1280x960)/ 720P(1280x720)D1(704×576/ RS485 N/A 704x480) / VGA(640x480)/ CIF(352×288/342x240) 1 channel In: 5mA 5VDC |
|---|
| Main Stream: 6M(1~25/30fps) | Alarm 1 channel Out: 1A 30VDC / 0.5A 50VAC |
|---|
| Frame Rate | Sub Stream: D1 (1 ~ 25/30fps) Electrical Third Stream: 1080P(1~25/30fps) |
|---|
| 供電 | DC12V,AC24V, PoE+(802.3at)(Class 4) |
|---|
| 碼率控制 | CBR/VBR |
|---|
| 功耗 | <18W |
|---|
| Bit Rate | H.264: 24~ 16384Kbps H.265: 14~ 9984Kbps www.dahuasecurity.com |
|---|
| Environmental | Accessories |
|---|
| Operating Conditions | -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH Optional: |
|---|
| Strorage Conditions | -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH |
|---|
| 防護等級 | IP67 |
|---|
| Vandal Resistance | IK10 |
|---|
| Construction | PFB302S PFA138 PFB201C |
|---|
| Wall mount | Jun on Box In-ceiling mount |
|---|
| Casing | Metal |
|---|

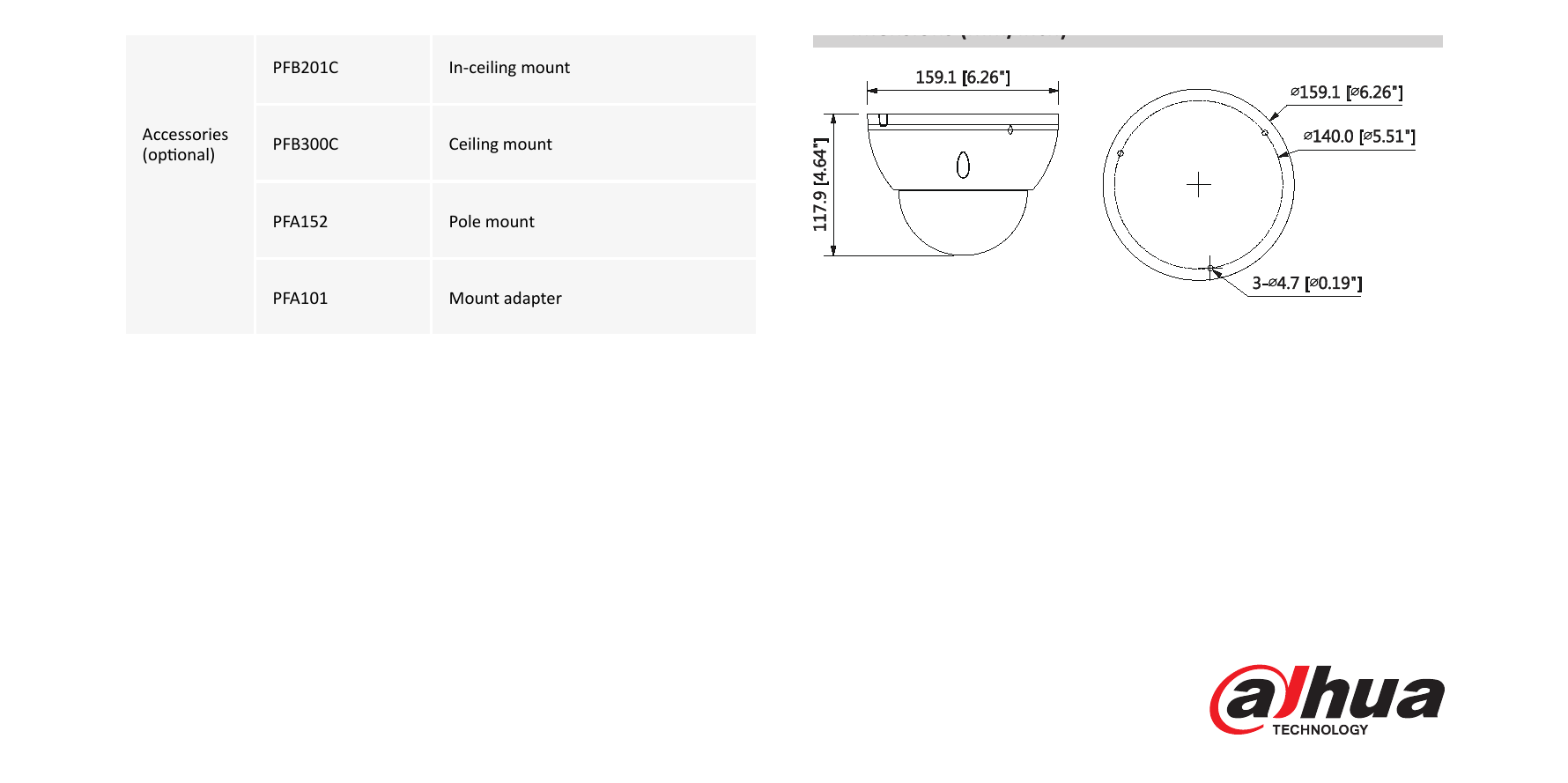

| 尺寸 | Φ159.1mm×117.9mm(Φ6.26”×4.64”) |
|---|
| 淨重 | 0.96kg(2.12lb) |
|---|
| 毛重 | 1.75 kg(3.56lb) |
|---|
| PFB300C | PFA152 PFA101 |
|---|
| Ordering Information | Ceiling mount Pole mount Mount adapter |
|---|
| 類型 | Part Number Description |
|---|
| DH-IPC- | In-ceiling Mount Juncon Mount Pole Mount 6MP IR Dome Network Camera,PAL |
|---|
| HDBW8630EP-Z | PFB201C PFA138 PFA101 + PFB302S + PFA152 DH-IPC- 6MP IR Dome Network Camera,NTSC HDBW8630EN-Z 6MP camera |
|---|
| IPC-HDBW8630EP-Z | 6MP IR Dome Network Camera,PAL |
|---|
| Ceiling Mount | Wall Mount |
|---|
| PFA101 + PFB300C | PFA101 + PFB302S |
|---|
| IPC-HDBW8630EN-Z | 6MP IR Dome Network Camera,NTSC Accessories |
|---|
| PFA138 | Junction Box (included) |
|---|
| PFB302S | Wall mount Dimensions (mm/inch) |
|---|
| PFB201C | In-ceiling mount Accessories |
|---|
| PFA152 | Pole mount |
|---|
| PFA101 | Mount adapter www.dahuasecurity.com |
|---|
